Wire Resistive Touch Screens: A Deep Dive Into Their Technology, Benefits, Drawbacks, and Best‑Use Scenarios

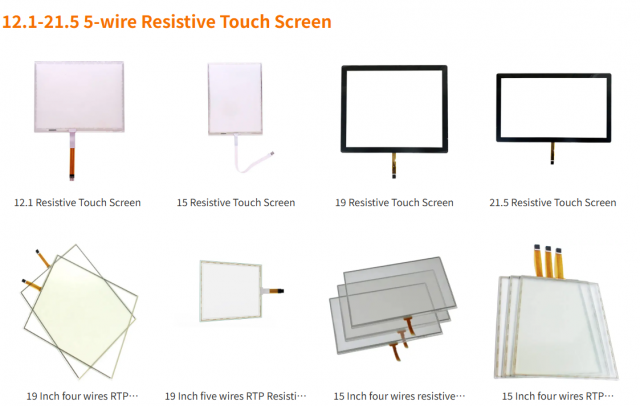

please click here:

https://www.reshine-display.com/12-1-21-5-5-wire-resistive-touch-screen.html

Introduction

In an age where sleek smartphones and tablets dominate, dominated by capacitive touch panels and multi‑touch gestures, the humble resistive touch screen often gets overlooked. Yet, for many industrial applications, rugged environments, or budget-conscious projects, the so-called “wire resistive touch screen” remains a strong, pragmatic choice. This article explains what a wire resistive touch screen is, how it works, where it excels and where it falls short, and how to decide whether it's the right touch technology for your needs.

What you'll read here will help you weigh the trade‑offs, understand common pitfalls, and make informed choices about touch-screen design.

What Is a Wire Resistive Touch Screen?

A “wire resistive” touch screen is a subtype of resistive touch technology. In general, resistive touch screens consist of multiple layers, typically two thin conductive sheets (often coated with ITO or another conductive material) separated by a small gap. When pressure is applied (e.g. a finger, stylus, or gloved hand pushes on the top layer), the two conductive layers make physical contact — completing a circuit. The controller measures the resistance or voltage drop to compute the touch coordinate.

In the case of many wire‑resistive implementations, special wiring (for example, a 5‑wire resistive panel) provides stabilized, high-accuracy sensing: the inner conductive glass acts as a static reference and the outer flexible layer — when pressed — contacts it. This design preserves calibration and ensures that touches remain precise even after prolonged use.

Because touch detection depends on pressure rather than conductivity, a wire resistive panel accepts input from a bare finger, a gloved finger, a stylus, or almost any object capable of applying pressure. This wide compatibility is one of the biggest strengths of resistive screens.

How It Works — Under the Hood

Imagine the screen's stack‑up like a sandwich: two conductive “bread” layers enclosing a thin air gap or spacer. The top layer is flexible (often a plastic/PET or other flexible film), while the bottom layer is typically rigid (glass or glass-like substrate). When you press the top layer at a point, it flexes downward and touches the bottom conductive layer. At that instant, the touch controller detects a change in resistance (or completes a voltage divider circuit) and calculates the exact X and Y position of the touch based on how the voltage changes along the wires at the screen edges.

In a 5‑wire resistive panel, there are four wires attached to the bottom conductive layer (defining the axes) and one wire on the top layer. Because the bottom layer remains static and only the top flexible sheet deforms, such panels typically offer better durability, higher repeatability, and require only one calibration.

This design contrasts with older 4‑wire resistive panels whose outer layer flexing could lead to drift over time — a key reason why 5‑wire “wire resistive” variants are still used when reliability matters.

Advantages of Wire Resistive Touch Screens

There are several distinct advantages that make wire resistive panels appealing for specific applications:

Input Flexibility — Because detection depends on physical pressure, almost any object works: bare fingers, gloved fingers, stylus pens, nails, even tools. This is invaluable in industrial settings, medical environments, outdoor kiosks, or context where gloves are common.
Cost‑effectiveness — Resistive touch panels tend to be significantly cheaper to manufacture than capacitive ones, making them ideal for budget‑sensitive devices or cost-constrained production.
Environmental Robustness — Resistive screens perform reliably even under dust, moisture, dirt, or when the user wears gloves. This makes them suited for harsh environments, industrial control panels, agricultural machines, or field equipment.
Single‑Touch Precision — For applications that need simple, precise single-point touches — like certain HMIs, machinery controls, or data-entry panels — resistive screens deliver straightforward, stable input.
Durability in Specific Use Cases — Some wire resistive panels (especially 5‑wire types) can endure millions of touches and maintain stable calibration, which makes them reliable for embedded, industrial, or long-term use.

Because of these strengths, wire resistive screens never truly disappeared; instead, they found enduring niches where their drawbacks are less harmful but their advantages shine.

Drawbacks and Limitations

That said, resistive technology, including wire resistive panels, carries several drawbacks compared to more modern alternatives. It's important to understand them before selecting this technology:

Poor Optical Clarity and Brightness — The multi-layer structure (flexible film + gap + bottom glass) often results in less light transmission. This means the display may appear dimmer, less sharp, or with slightly poorer contrast compared to capacitive (glass-based) screens.
Lack of Multi‑Touch and Gestures — Most resistive panels only support single-point touch. Complex gestures like pinch-to-zoom, multi-finger swipes, or other multi-touch interactions are typically impossible. This significantly limits usability in modern consumer interfaces.
Less “Smooth” User Experience — Because activation requires pressure and flexing, the touch feels less responsive or "plunky" compared to capacitive screens, which respond to even light touches. For many users accustomed to smartphones or tablets, the experience may feel dated or less refined.
Wear Over Time — The flexible top layer (often plastic) is susceptible to scratches, abrasion, and wear. Over long-term heavy use, this can degrade touch accuracy, cause dead spots, or require recalibration or replacement.
Visual and Ergonomic Trade-Offs — Because of lower light transmission and reduced brightness or contrast, resistive panels may underperform in bright ambient light or as displays for media-rich content. They are less ideal for phones, tablets, or visually intensive displays.

Resistive vs Other Touch Technologies — A Comparison

Feature / Criterion	Wire Resistive Touch Screen	Capacitive (and Other Modern) Touch Screens
Input method	Pressure-sensitive — any object (finger, stylus, gloves, etc.)	Conductive-based — generally bare finger or special stylus
Cost	Low-cost, affordable	Higher manufacturing cost
Environmental robustness	Good — tolerates dust, moisture, gloves, rugged environments	More vulnerable to moisture, relies on clean conductive contact
Multi-touch / Gestures	Usually single-touch only — no multi-point gestures	Supports multi-touch gestures, pinch/zoom, swipes
Display clarity / Brightness	Lower — multiple layers and flexible film reduce light transmission, contrast, clarity	Higher — often glass-based, better optical clarity and brightness
Durability (in rough use)	Mixed — good for dust/moisture but susceptible to scratches and wear over time	Glass surfaces more scratch-resistant; overall longevity often better
User experience (smoothness)	Pressure required — less smooth, lower sensitivity	Light touch response, smooth and modern UX

Typical Use Cases — When Wire Resistive Is the Right Call

Given its strengths and weaknesses, wire resistive touch screens tend to excel in the following scenarios:

Industrial and Manufacturing Environments — Factories, control panels, machinery interfaces where operators often wear gloves and environment may be dusty, oily, or humid. The ability to use any object, plus robustness to contaminants, makes resistive a good choice.
Outdoor or Rugged Equipment — Agricultural machines, construction equipment, medical devices, kiosks in rugged settings — where input reliability is more important than shine and gesture support.
Budget‑Sensitive Devices — If cost is a major factor (e.g., low-cost handheld gadgets, embedded systems, entry-level industrial HMIs), resistive screens deliver acceptable performance without inflating costs.
Specialized Use Cases — Systems that rely on stylus input (e.g. handwriting, signature capture), or must accept non-conductive tools/fingertips, where capacitive screens may fail or require specialized styluses/gloves.

In all these cases, the user doesn't need multi-touch gestures, high-end visual fidelity, or the “glass‑like” UX of a smartphone. What matters is ruggedness, flexibility, cost, and reliable single‑point touch.

Selecting the Right Resistive Variant — What to Watch For

If you decide that resistive is the way to go, especially a wire resistive (e.g. 5‑wire) panel, here are some selection criteria to consider:

Layer quality and substrate materials — Better panels use higher-quality flexible films and protective coatings to resist scratching, wear, and deformation. Avoid cheap resistive panels with flimsy plastic overlays.
Durability rating (touch cycles) — For industrial or frequent-use applications, aim for panels rated for millions of touches or high impact cycles. 5‑wire resistive panels tend to hold up better than 4‑wire types.
Calibration stability — A panel that drifts or requires frequent recalibration can be a maintenance burden. 5‑wire panels are generally better here because the bottom conductive layer remains stable.
Protective coatings / hardcoat for scratch resistance — Given that the top layer is often plastic, a strong hardcoat helps prolong lifespan. A soft film surface will degrade quickly under heavy use or with sharp stylus/objects.
Optical properties and backlighting — Because resistive layers can reduce brightness, if display clarity is important (e.g. for images, UI, bright-light environments), choose panels with high transmissivity or ensure adequate backlighting.

When NOT to Use Wire Resistive Panels

While they're great for many scenarios, resistive panels are often a poor fit for consumer‑style devices where modern user expectations include smooth, gesture-rich, multi-touch interfaces. Avoid resistive screens when:

You need multi-touch gestures (zooming, swiping, multi-finger input).
Visual clarity, brightness, and colour richness matter (graphics, photos, video).
The device is meant for modern consumer interaction — e.g., smartphone, tablet, multimedia display.
You anticipate heavy wear over time (frequent tapping, rough stylus use) without easy maintenance or panel replacement.

Best Practices for Maintenance and Longevity

If you commit to a wire resistive panel in your design or deployment, following a few best practices helps maximize its lifespan and performance:

Use a soft stylus or finger; avoid sharp, hard objects to prevent scratching the top layer.
If used outdoors or in dusty environments, consider a protective overlay or protective glass cover (if compatible).
Ensure proper calibration at installation; periodic recalibration may be needed if drift appears over time.
Provide sufficient backlighting (or bright display) to compensate for reduced optical transmissivity.
For high-use environments, consider a 5‑wire resistive panel with a hardcoat and high touch-cycle durability rating.

The Future of Wire Resistive Touch Screens

Resistive touch technology is undeniably older than capacitive or other modern touch methods. As projected-capacitive systems and even more advanced solutions (e.g. surface‑acoustic wave, infrared, haptic-enabled capacitive, etc.) proliferate, resistive panels will continue to occupy a diminishing niche — but a niche that remains relevant.

In sectors such as industrial control, medical equipment, embedded systems, outdoor kiosks, and legacy devices, wire resistive touch panels will likely continue to be used. For those contexts, resistive's reliability, flexibility, and low cost remain compelling.

Moreover, incremental improvements — better film materials, stronger hardcoats, more durable flexible layers — keep resistive panels competitive in certain verticals. For example, custom 5-wire resistive solutions with improved hardness or hybrid touch systems (resistive + capacitive) might emerge, offering a middle ground for specialized applications.

Conclusion

The “wire resistive touch screen” may lack the glamour of modern glass capacitive panels, but it remains an underappreciated workhorse — inexpensive, rugged, versatile, and forgiving. For many practical and industrial applications, especially where gloves, tools, dust, or moisture are involved, resistive panels offer robust, cost-effective, and reliable touch input.

The key is to match the touch technology with the real-world demands: if you need multi-touch gestures, high display clarity, and smartphone‑like smoothness, resistive is likely unsuitable. If, instead, you prioritize durability, low cost, flexibility, and environmental robustness, resistive — particularly a well‑designed wire resistive panel — could be the smarter choice.

Frequently Asked Questions

Q: Can a resistive touch screen detect multi-finger gestures like pinch-to-zoom?

A: In almost all cases, no. Most resistive screens — including wire resistive types — support only single-point touch. This makes multi-finger gestures like pinch-to-zoom or two-finger swipes impractical or impossible.

Q: Will a resistive screen work if I wear gloves or use a stylus?

A: Yes. Because resistive screens detect pressure rather than electrical conductivity, they respond to any object that can press the surface — fingers with gloves, styluses, nails, even non-conductive tools.

Q: Do resistive screens need calibration?

A: Often they do. Some resistive panels may drift over time due to wear or changes in the conductive layers, so periodic recalibration helps maintain accuracy — especially important in precision or industrial use cases.

Q: Why do resistive screens look dimmer or less sharp than capacitive ones?

A: Because resistive screens use multiple layers (flexible film, conductive coating, gap, substrate), the additional layers and air gap reduce optical transmittance. That loss leads to lower brightness, reduced contrast, and slightly diminished sharpness.

Q: In what scenarios is a wire resistive touch screen a better option than a capacitive one?

A: Resistive is often superior when: the environment is dusty, wet, or requires glove/stylus use; when cost matters; when the device is industrial, rugged, or embedded; when only simple single-point input is needed; or when long-term maintenance or replacement is acceptable.

Article Summary

Wire resistive touch screens rely on pressure to detect input, causing two conductive layers to meet when pressed. They're cost-effective, rugged, and accept input from fingers, gloves or stylus, making them ideal for industrial or harsh environments. Though limited in brightness and multi-touch capability, they remain a practical choice where reliability and flexibility matter most.
