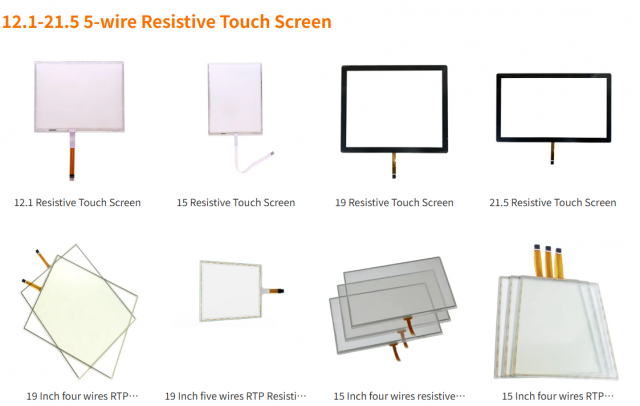

https://www.reshine-display.com/12-1-21-5-5-wire-resistive-touch-screen.html
Touch interfaces have transformed how people interact with devices. While capacitive screens dominate consumer smartphones, the wire resistive touch screen remains a critical technology in many industrial, medical, automotive, retail, and specialized environments. Its precision, durability, and ability to function under harsh conditions make it indispensable where consumer-grade touchscreens fail.
This article explores wire resistive touch screens in depth—what they are, how they work, how they compare to other touchscreen technologies, and why they remain a leading choice for professional-grade equipment. It also covers customization considerations, performance characteristics, and emerging innovations that continue to modernize resistive touch systems.
Understanding Wire Resistive Touch Screen Technology
Wire resistive touch screens belong to the broader resistive touchscreen family. They rely on pressure rather than electrical conductivity from the human body, making their operation extremely flexible. Unlike capacitive screens that require direct skin contact or specially designed gloves, a wire resistive screen can be activated using a finger, pen, stylus, glove, or any object that applies force to the surface.
A wire resistive screen is built with a matrix of fine conductive wires arranged in horizontal and vertical layers separated by spacers. When pressure is applied, the flexible top layer bends and makes contact with the lower layer, closing a circuit. The controller interprets the point of contact to determine coordinates.
This simple but effective mechanism allows for consistent performance across diverse environments.
Structural Composition of a Wire Resistive Touch Screen
A typical wire resistive touch screen includes:
Top Flexible Layer
Often made of PET film coated with a transparent resistive material. This layer responds to any form of pressure.
Grid of Conductive Wires
Ultra-fine wires laid in horizontal and vertical patterns, acting as sensing lines. Their precision determines touch accuracy and resolution.
Spacer Dots
Microscopic separators that prevent accidental contact between layers. They maintain the proper distance when the screen is untouched.
Bottom Glass or Rigid Layer
Provides structural stability. Often glass or rigid plastic, depending on application environment.
Controller Electronics
Interprets changes in resistance and translates them into positional data sent to the device's processor.
Protective Coatings
Anti-glare, anti-UV, anti-corrosion, or scratch-resistant coatings are commonly added for industrial applications.
This multi-layer structure is optimized for accuracy, stability, and long-term reliability.
How Wire Resistive Touch Screens Work
The operation is straightforward:
-
The user applies pressure.
-
The top layer bends to meet the bottom layer.
-
Conductive wires from both layers make contact.
-
The controller senses voltage changes in the grid.
-
The system triangulates the precise X-Y coordinates.
This pressure-based detection ensures reliable operation in extreme environments, including:
-
Low or high temperatures
-
High moisture or humidity
-
Contaminated or dusty areas
-
Situations requiring gloves or tools
These characteristics explain why resistive screens remain common in industrial panels, medical diagnostics, and kiosk systems.
Why Choose a Wire Resistive Touch Screen?
Wire resistive touch screens offer a combination of functionality and durability rarely matched by other technologies. Key advantages include:
Universal Touch Compatibility
Works with any object, including pens, styluses, and thick gloves—ideal for factory workers, surgeons, or outdoor personnel.
High Precision Input
Supports fine-point interaction and highly accurate positioning necessary for technical UIs, medical devices, and engineering equipment.
Cost-Effectiveness
Lower production cost than capacitive screens, especially for larger sizes and custom designs.
Stable Operation
Sensitivity is not affected by moisture, chemicals, or electrical interference, making it suitable for controlled and uncontrolled environments alike.
Long Lifespan
Modern resistive screens can withstand hundreds of thousands to millions of touch cycles, depending on thickness and materials.
Applications Across Industries
The wire resistive touch screen remains popular in sectors that demand reliability over consumer-grade aesthetics.
Industrial Control Panels
Manufacturing lines, CNC machines, and automation interfaces rely on resistive touch screens for accuracy and glove compatibility.
Medical Equipment
Ultrasound, patient monitors, and diagnostic machines require sterilizable, precise input surfaces.
Automotive Systems
Used in older vehicle dashboards, GPS devices, fleet management tablets, and rugged vehicle-mounted displays.
Retail and POS Terminals
Payment kiosks, ticketing machines, and self-service checkout units benefit from resistive input reliability.
Laboratory Instruments
Accurate measurement interfaces need precise operation that isn't affected by gloves or chemical exposure.
Military and Field Applications
Rugged devices in extreme climates rely on resistive screens for consistent, dependable performance.
Even with capacitive dominance in consumer markets, resistive screens remain critical where conditions are demanding and accuracy is non-negotiable.
Comparison: Wire Resistive vs. Other Touch Technologies
Below is a practical comparison between wire resistive, capacitive, and infrared touch screens.
Touchscreen Technology Comparison
| Feature | Wire Resistive Touch Screen | Capacitive Touch Screen | Infrared Touch Screen |
|---|---|---|---|
| Input Method | Finger, stylus, gloves, tools | Bare finger or special stylus | Any object |
| Precision | Very high | High | Medium |
| Durability | High, but surface may wear | Very durable surface | Very durable |
| Cost | Low-medium | Medium-high | High |
| Environmental Tolerance | Excellent | Sensitive to moisture/dirt | Good |
| Multi-Touch | Limited (some models) | Full multi-touch | Yes |
| Ideal Use | Industrial, medical, kiosks | Consumer devices | Large displays |
This table clearly shows that wire resistive is unmatched in versatility and environmental resilience, which is why it persists in specialized industries.
Modern Advancements in Wire Resistive Touch Screen Technology
Resistive touchscreens are evolving, incorporating innovations that respond to modern expectations:
Enhanced Transparency
New conductive materials minimize optical haze, improving clarity to near-capacitive levels.
Higher Durability Films
Upgraded PET materials resist scratches and impacts better than before.
Pressure Sensitivity Improvements
Advanced controllers enable variable pressure detection, enabling richer UI interactions.
Hybrid Resistive-Capacitive Models
Some manufacturers combine resistive structure with capacitive overlays to add multi-touch functionality.
Anti-Microbial Coatings
Essential for medical devices and public kiosks after global emphasis on hygiene.
These innovations ensure that wire resistive technology continues to evolve rather than fade out.
Design Considerations for Engineers and OEMs
When choosing or customizing a wire resistive touch screen, engineers should consider:
Screen Size and Aspect Ratio
Common sizes range from 2.8 to 21.5 inches, but custom panels can be produced for machinery or kiosks.
Mounting Options
Bezel mount, tape mount, panel mount, or adhesive methods vary by device design.
Surface Treatments
Anti-glare, hardened, UV-resistant, chemically resistant, or anti-fingerprint coatings tailored to environment type.
Controller Compatibility
USB, RS232, I²C, and other communication methods depend on system architecture.
Operating Temperature Range
Industrial-grade screens may support extreme hot or cold conditions.
Custom Printing
Logos, borders, and color frames can be added for branded equipment.
Customization determines performance and durability in real-world conditions.
Common Challenges and How to Overcome Them
Even with exceptional benefits, wire resistive touch screens face certain challenges:
Surface Wear
Repeated pressure can cause surface fatigue.
Solution: Choose high-hardness PET films or add protective coverings.
Lower Light Transmission
Resistive screens traditionally transmit slightly less light than capacitive displays.
Solution: Use improved conductive materials and AR (anti-reflection) coatings.
Limited Multi-Touch
Basic resistive models support single input.
Solution: Use advanced multi-touch resistive variants when multi-contact interaction is needed.
Potential Drifting
Over time, coordinates may drift.
Solution: Regular calibration resolves this issue.
Understanding these factors ensures optimal performance and longevity of the system.
Future Outlook of Resistive Touch Technology
Despite capacitive screens dominating consumer markets, wire resistive touch screens are expected to maintain strong industrial relevance. With innovations like:
-
Higher transparency
-
Durability upgrades
-
Hybrid multi-touch support
-
Smarter controllers
-
Human-machine interface evolution
…the technology is far from obsolete. Instead, it is becoming more specialized and refined, optimized for environments where precision and reliability matter far more than aesthetic appeal.
Frequently Asked Questions (FAQs)
1. What is a wire resistive touch screen used for?
It is used in industrial machines, medical instruments, POS systems, kiosks, and environments requiring glove or tool input.
2. Is a resistive touchscreen better than capacitive?
It depends on usage. Resistive is better for gloves, tools, accuracy, and harsh environments; capacitive is better for multi-touch and consumer experiences.
3. Can resistive touch screens support multi-touch?
Traditional models support single touch, but modern variants can support limited multi-touch.
4. How durable are wire resistive screens?
High-quality versions can last for hundreds of thousands or millions of touches, depending on surface material and usage conditions.
5. Do resistive touch screens work with water or chemicals present?
Yes. They are not affected by moisture or contaminants, making them ideal for factories, kitchens, labs, and clinics.
6. Can I customize a wire resistive touch screen?
Yes. Sizes, coatings, controllers, borders, branding, and durability specifications can all be customized.
Summary
This article explains wire resistive touch screens, their structure, operation, advantages, and industrial applications. It compares resistive with capacitive and infrared technologies, outlines customization options, and highlights modern innovations that keep resistive touchscreens essential in professional environments.
