Unraveling the Strength: Why Stud Link Anchor Chain Remains the Backbone of Marine Mooring Systems

please click here:

https://www.anchorchainjn.com/stud-link-anchor-chain.html

Introduction

In the world of maritime operations — from massive container ships navigating deep seas to offshore drilling rigs anchored hundreds of metres below the surface — the silent workhorses of safety and stability are often hidden beneath the waves. One such unsung hero is the stud link anchor chain, a type of chain that continues to dominate mooring and anchoring applications worldwide. Despite advancements in materials and novel chain designs, stud link anchor chain persists thanks to its robust mechanical integrity, reliability, and long-proven performance record under extreme conditions. This article delves into what stud link anchor chain is, how it compares to other chain types, why engineers and seafarers still trust it, and how to maintain and select it properly for marine use.

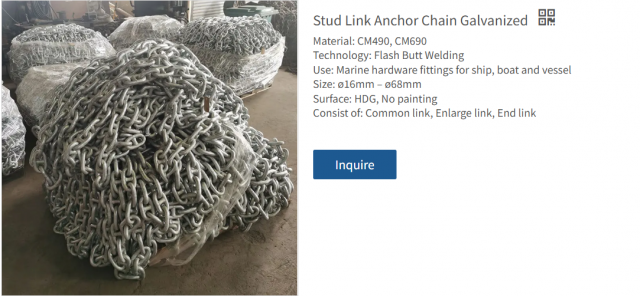

What Is Stud Link Anchor Chain

Stud link anchor chain is a heavy-duty chain in which each link is fitted with a fixed bar, called the “stud,” stretching across the centre of the link's interior. The stud prevents the link from deforming under load, from twisting or bending when under tension, and from collapsing inward under extreme stress. Unlike simple chain types where links can contort or buckle under heavy loads, the stud in each link ensures that the load distributes evenly across the link length, preserving the specified geometry and strength. This design is especially critical when the chain is subjected to shock loads — common during anchoring or mooring operations in rough seas — or prolonged tensile stress from dynamic loads such as waves, currents, and vessel movement.

In practice, each link is forged from high-tensile steel, shaped into an oval or “long” link, welded and heat-treated. The stud is inserted before welding so that once fused, the link becomes a robust, singular structural element. The result is a chain that satisfies the rigorous demands of marine environments, where safety margins are non-negotiable.

Materials and Manufacturing Process

The reliability of stud link chain stems not only from its design but also from the quality of steel and manufacturing processes employed. Modern chains are typically forged from high-grade, quenched and tempered steel known for its yield strength, toughness, and resistance to fatigue. The steel must be capable of sustaining cyclic loading, resisting brittle fracture even in cold seawater, and withstanding long-term corrosion.

The manufacturing process involves several critical steps:

• Material selection: High-tensile steel billets are chosen, with chemical composition carefully controlled to ensure optimum strength and ductility.

• Forging: The billets are heated and shaped into links with consistent dimensions. Precision forging ensures uniform wall thickness, an essential factor for predictable strength.

• Stud insertion and welding: The stud is positioned inside the link before welding. Welding is executed meticulously to avoid defects. After welding, the chain link becomes a monolithic structure.

• Heat treatment: The links undergo quenching and tempering to achieve high tensile strength while preserving toughness.

• Final inspection and testing: Each chain batch is tested — typically via tensile testing, elongation checks, hardness testing, and sometimes ultrasonic or magnetic particle inspection to detect internal flaws. Chains are also batch-marked and certified with working load limits (WLL) derived from a safety factor relative to their minimum breaking load (MBL).

Because of this rigorous process, stud link anchor chains deliver predictable performance under load — a non-negotiable requirement for any marine anchoring system.

Why Stud Link Chain Offers Superior Mechanical Performance

The inclusion of a stud in each link makes a fundamental difference in how load is handled. Without the stud, links can collapse inward under load, creating stress concentrations at the welds or link curvature, which can lead to fatigue cracking or catastrophic failure. The stud effectively keeps the link open and fully shaped, ensuring that the cross-sectional area designed to bear load remains fully engaged.

Key mechanical advantages of stud link chain include:

• Uniform stress distribution: The stud ensures the entire link circumference carries load, not just portions, reducing localized stress peaks.

• Resistance to deformation under compression: When chain lies on the seabed or hangs over a fairlead, some links may be compressed; the stud resists buckling or distortion.

• Improved fatigue resistance: With stable geometry, links are less likely to suffer stress cycles in unpredictable orientations — critical when the anchor or mooring components experience constant movement.

• Controlled elongation under load: Under tension, stud chain elongates predictably, so engineers can factor in elongation in mooring calculations.

These factors collectively mean that, for a given chain diameter and steel grade, stud link chain generally exhibits higher reliability than equivalent non‑stud designs — an important consideration when anchors hold multi‑million‑pound ships or drilling platforms in place.

How Stud Link Chain Compares to Other Chain Types

Below is a comparison of stud link chain with some common alternative chain types used in marine or industrial applications: short link, long link (non‑stud), and proof coil chain.

From the table it becomes apparent why stud link anchor chain remains the standard in critical anchoring and mooring scenarios. While lighter and cheaper alternatives may suit low‑risk applications, they lack the structural integrity required for high loads, cyclic stress, or unpredictable marine environments.

Common Applications and Real‑World Use Cases

Stud link anchor chain finds application across a wide spectrum of maritime operations. Some typical use cases include:

• Anchor chains for large vessels: Container ships, tankers, cruise liners, and bulk carriers all depend on stud link chain to safely hold position during anchoring — often in deep waters or rough seas.

• Mooring systems for offshore platforms: Oil rigs, FPSOs (Floating Production Storage and Offloading units), and floating wind turbines rely on stud link chain moorings to secure them against wind, wave and current forces over many years.

• Subsea anchors and anchor piles: Heavy-duty chains linking anchors to seabed piles or drag‑embedment anchors — especially where high holding capacity is required.

• Salvage, towing, and emergency anchoring: In rescue or tow‑back operations, the chain's strength and shock resistance are critical for dynamic loads — for instance when towing a disabled vessel in rough seas or when anchor is dropped suddenly to halt drift.

• Permanent or semi-permanent mooring buoys: Deep‑water buoys used in offshore mooring or scientific buoy arrays often use stud link chain for their moorings, where long-term reliability under cyclic loading is essential.

In all these cases, the extra cost, weight, or handling complexity of stud link chain pays off many times over through increased safety margins and reduced maintenance or replacement costs.

Key Considerations When Choosing Stud Link Chain

Selecting the right stud link anchor chain involves more than just picking a diameter and quantity. Several factors must be carefully evaluated to ensure safety and suitability:

Steel Grade and Certification

Chain steel must meet recognized standards — commonly high‑tensile grades with certification for marine use. Using substandard steel or non‑certified chain may result in brittle fracture, inadequate fatigue resistance, or early failure. Always verify the chain's material certificates and compliance with regulatory bodies or classification societies if the chain is used on commercial vessels or offshore installations.

Chain Diameter and Working Load Limit (WLL)

Chain diameter determines the minimum breaking load, but designers should also consider the working load limit, which accounts for safety factors. Anchor chains typically use safety factors of 5 to 6 times the operational load. Oversizing the chain adds weight and cost; undersizing brings unacceptable risk. The designer must consider anchor weight, vessel displacement, environmental loads (wind, wave, current), and dynamic factors such as surge, yaw, and mooring line elasticity.

Chain Length and Stowage

Longer chain provides more catenary effect, absorbs shock loads, and keeps anchor angle shallow — beneficial for holding power. However, long chains impose heavy stowage and handling burdens. Ships and rigs must have adequate chain lockers or spooling systems to store the chain safely and to deploy/retrieve it without kinking or damaging links.

Fatigue Life and Maintenance Schedule

Repeated loading, especially with mooring spread and vessel motion, causes fatigue. Maintenance must involve regular inspection for wear, corrosion, elongation, and any link deformation. Designers should estimate fatigue life under expected cyclic loads; in some cases, chains may need replacement long before they reach their theoretical breaking strength.

Environmental Conditions: Corrosion and Subsea Exposure

Saltwater, oxygen, marine growth, and cyclic wet/dry conditions accelerate corrosion. For sub‑sea applications, galvanizing or coating may extend life, but coating cannot replace regular inspection. In some sensitive marine environments, special low‑corrosion steel or cathodic protection systems may be required.

Maintenance, Inspection, and Lifespan of Stud Link Chain

Even the strongest stud link chain is not maintenance‑free. To ensure longevity and safety, operators should follow systematic inspection and maintenance regimes. Key aspects include:

• Visual inspection: Monitor for cracks, weld defects, deformation, corrosion pits, bent studs, or ovalization of links. Any link showing distortion should be replaced.

• Measurement: Periodically measure chain diameter, link length, and stud orientation to detect elongation or deformation. Compare to baseline measurements taken upon installation.

• Non‑destructive testing (NDT): For heavily loaded chains or long-term service, use magnetic particle inspection or ultrasonic testing to detect subsurface cracks — especially near welds.

• Cleaning and corrosion protection: Clean marine growth, salt deposits, or sediments from chain. For chains on moorings or buoys, consider galvanizing, painting, or applying corrosion-resistant coatings.

• Replacing degraded sections: Chains should not remain in service once they show significant wear, elongation, or structural damage — regardless of theoretical load capacity.

With proper maintenance, stud link chains can remain operational for decades — especially when used in controlled environments like offshore moorings or where cyclic loading is well understood and managed. However, where conditions are harsh (frequent anchor retrievals, heavy surge, abrasive seabed), lifespan may be reduced significantly.

Why Stud Link Chain Still Dominates Despite Modern Alternatives

Over centuries, chain design and materials have evolved — from wrought iron to modern high‑tensile alloy steels, from simple twisted or short‑link chain to complex mooring wires and synthetic risers. Yet, stud link anchor chain continues to be the standard for critical anchoring applications. Several factors explain this persistence:

• Proven reliability: Decades of real-world performance under extreme loads have built confidence among naval architects, offshore engineers, and classification societies. In safety‑critical systems, proven reliability often outweighs novelty.

• Simplicity and predictability: Stud link chain's behaviour under load is well-known and predictable — stress distribution, elongation, fatigue life — making it easier to design for and to certify.

• Ease of inspection and maintenance: Unlike complex synthetic or composite mooring solutions, stud link chain is robust, inspectable, and repairable. Individual links can be replaced; wave damage, corrosion, or wear are visible and manageable.

• Cost per unit strength: While heavy and material‑intensive, stud link chain remains cost‑effective relative to its strength and longevity, especially compared to high‑tech alternatives requiring specialised components or high‑maintenance procedures.

• Compatibility and standardisation: Because it has been so widely used for so long, infrastructure — chain lockers, chain wheels, deck machinery, inspection protocols — is already configured for stud link chain. Switching to a newer system often requires expensive retrofits.

In short, stud link chain occupies a “sweet spot” of strength, durability, cost‑effectiveness — and above all, reliability. Until some new technology convincingly outperforms it on all these fronts, stud link chain will remain deeply embedded in marine engineering.

How to Determine the Right Stud Link Chain for Your Project

When selecting a stud link anchor chain, follow a structured approach:

1. Define the purpose and required safety factors: Are you anchoring a deep‑sea drill rig or a small coastal vessel? Determine environmental loads — wind, current, waves — and expected dynamic stresses.

2. Select appropriate steel grade and certification class: Use only chain that meets recognized maritime standards and comes with material traceability.

3. Calculate required chain diameter and length: Use anchor load calculations and mooring analyses to size the chain for both breaking strength and fatigue life.

4. Assess handling and storage logistics: Ensure chain lockers, wheels, spooling machinery or cranes are compatible with the chain size and weight.

5. Plan inspection and maintenance schedule: Define intervals for visual inspection, NDT, corrosion mitigation, and replacement of worn links or sections.

6. Document and certificate chain: Maintain chain logbooks, batch certificates, inspection records — essential for compliance, safety audits, and insurance requirements.

By following such methodical selection procedures, the stud link chain you choose will provide not just momentary safety, but long-term reliability and service life.

Conclusion

The stud link anchor chain may seem unglamorous compared to high‑tech composite lines, synthetic ropes, or automated mooring systems. Yet its enduring dominance in marine anchoring and mooring proves that, in the maritime world, reliability, simplicity, and proven performance matter more than novelty. The stud link chain combines carefully engineered design — the central stud ensuring uniform load distribution — with high‑tensile steel, precise forging, and rigorous testing. The result is a chain that handles shock loads, resists fatigue, and withstands years of heavy use in the harshest environments. Whether anchoring a leviathan container ship or holding steady an offshore platform in a storm, stud link chain remains the backbone of marine mooring systems — testament to the fact that sometimes, the oldest solutions endure because they simply work.

Common Questions & Answers

What is the main difference between stud link anchor chain and short link or long link chain?

The key difference lies in the presence of the stud across each link's interior. That stud prevents deformation, maintains link geometry under load, and provides predictable load distribution. Short link and long link chains lack this structural reinforcement, making them more susceptible to deformation, buckling, or fatigue — especially under cyclic or shock loads.

Can stud link chain be used for mooring buoys, not just for anchors?

Yes. Stud link chain is widely used for mooring buoys — particularly in offshore environments — because of its high strength, resistance to cyclic loading, and reliability over long periods. Its robustness makes it suitable for permanent or semi‑permanent moorings where maintenance intervals are long and reliability is critical.

How often should stud link chain be inspected for fatigue or damage?

Inspection frequency depends on usage and environmental conditions. For critical mooring or anchoring systems subject to cyclic loads or heavy dynamic stress, a regular schedule might involve visual inspections every few months, functional inspections after heavy storms or severe loads, and non‑destructive testing (NDT) at longer intervals (for example annually or biannually). Chains used infrequently or under light loads may allow longer intervals — but always in compliance with classification‑society guidelines or project specifications.

Does stud link chain rust quickly in saltwater, and how can corrosion be mitigated?

Like any steel in a marine environment, stud link chain is prone to corrosion. The risk accelerates with exposure to salt, oxygen, marine growth, and repeated wet/dry cycles. To mitigate corrosion, operators often apply galvanizing or special marine coatings, use cathodic protection, regularly clean marine growth, and conduct inspections. Preventive maintenance and prompt replacement of corroded or pitted links are key to preserving chain integrity.

Is stud link chain obsolete given modern synthetic mooring lines and advanced mooring systems?

Despite advances in synthetic ropes, composite mooring risers, and automated dynamic positioning systems, stud link anchor chain remains far from obsolete. Its advantages — high tensile strength, predictable performance, ease of inspection, repairability, and cost‑effectiveness — still make it the go‑to solution for heavy-duty anchoring and mooring. Unless a novel material or system can consistently outperform stud link chain across all these dimensions, stud link chain will continue to be a mainstay in marine engineering.

Summary

Stud link anchor chain combines a robust design — each link reinforced by an internal stud — with high‑tensile steel forging to deliver superior load distribution, fatigue resistance and predictable performance under heavy, dynamic loads. Its reliability and long service life make it the trusted backbone of anchoring and mooring systems across maritime and offshore industries.
