Vacuum plasma cleaning has rapidly become one of the most essential processes in high-tech manufacturing, from semiconductor packaging to medical device bonding. As electronic components shrink and product reliability demands grow, traditional cleaning methods like solvents and ultrasonic washing can no longer meet the microscopic cleanliness standards required today. This is where the Vacuum Plasma Cleaner stands out — delivering unparalleled precision, eco-friendly operation, and enhanced surface activation for stronger bonding, coating, and printing outcomes.
This article provides an in-depth exploration of vacuum plasma cleaning technology, its working principles, applications, advantages, and how it compares with other cleaning methods. A detailed comparison table, practical insights, and FAQs are included to help engineers, researchers, and manufacturers make informed decisions.
Understanding Vacuum Plasma Cleaning
Vacuum plasma cleaning is a process that uses ionized gas (plasma) inside a controlled vacuum chamber to remove organic contaminants, activate surfaces, and improve adhesion. Unlike wet chemical cleaning, plasma cleaning does not rely on liquid solvents. Instead, it applies highly reactive species—such as ions, radicals, and UV photons—to break down contaminants at the molecular level.
The process is especially valuable in industries where adhesion, purity, and surface modification are critical.
How a Vacuum Plasma Cleaner Works

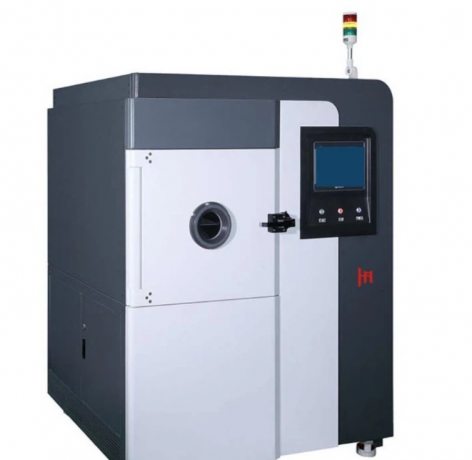

A vacuum plasma cleaner operates inside a sealed chamber where the air is removed to create a low-pressure environment. Once evacuated, a specific gas—often oxygen, argon, hydrogen, or a mixture—is introduced. An electrical field then energizes the gas, transforming it into plasma.
Key Stages of the Process
Chamber evacuation
The chamber is pumped down to a preset vacuum level to remove atmospheric contaminants and ensure consistent plasma formation.
Gas introduction
Process gases are injected at controlled flow rates, depending on the type of cleaning or activation required.
Plasma generation
A power source, such as RF (radio frequency) or microwave energy, excites the gas into plasma.
Surface interaction
Reactive plasma species break organic bonds, remove contaminants, and alter surface chemistry to increase wettability or bonding strength.
Post-cleaning cycle
After plasma treatment, the chamber is vented, and the cleaned parts are ready for downstream processes.
Why Vacuum Plasma Cleaning Is Critical Today
With electronics becoming smaller and more complex, even microscopic contaminants can lead to device failure. Adhesive bonding and wire bonding require surfaces that are free from hydrocarbons and oxides. Plasma cleaning offers:
-
Zero-residue cleaning
-
High repeatability
-
Improved adhesion and coating uniformity
-
Lower environmental impact compared to solvent cleaning
In an era where sustainability and performance merge, vacuum plasma cleaning stands out as the preferred choice across industries.
Major Advantages of Vacuum Plasma Cleaners
Precision Cleaning at a Molecular Level
Plasma reaches areas that are impossible for liquid solvents, making it suitable for small gaps, microstructures, and fine geometries.
Eco-Friendly Process
No harmful chemicals or solvent disposal is required. Vacuum plasma cleaning supports greener manufacturing standards.
Enhanced Surface Energy
The process increases surface energy, enabling stronger adhesion for bonding, printing, gluing, or coating.
Good for Heat-Sensitive Materials
Plasma operates at low temperatures, allowing safe treatment of polymers, films, PCBs, lenses, and medical plastics.
Consistent and Controllable
Parameters like plasma power, gas composition, and exposure time are finely tunable, ensuring reproducible results.
Applications of Vacuum Plasma Cleaners
Vacuum plasma cleaners are used across various high-technology fields, including:
Semiconductor and Electronics Manufacturing
-
Removal of flux residues
-
Activation before wire bonding
-
Surface preparation before die attach
-
Oxide removal on precision metal surfaces
Medical and Biomedical Industries
-
Improving adhesion for implant coatings
-
Cleaning microfluidic devices
-
Preparing plastic substrates for bonding
Automotive and Aerospace Engineering
-
Surface activation for adhesives
-
Cleaning sensors and connectors
-
Pre-treatment before coating or encapsulation
Optics and Photonics
-
Lens cleaning
-
Fiber-optic preparation
-
Thin-film deposition preparation
Comparison: Vacuum Plasma Cleaner vs Other Cleaning Methods
Below is a clear comparison to evaluate how vacuum plasma cleaning stands against traditional methods:
| Feature / Method | Vacuum Plasma Cleaner | Wet Chemical Cleaning | Ultrasonic Cleaning |
|---|---|---|---|
| Cleaning Depth | Molecular-level | Surface-level | Medium-depth |
| Environmental Impact | Very low | High (solvents) | Medium |
| Suitable for Complex Shapes | Excellent | Poor | Moderate |
| Heat Impact on Components | Low | Low to moderate | Moderate |
| Residue After Cleaning | None | Possible | Possible |
| Performance on Organic Films | Excellent | Moderate | Moderate |
| Process Control | Highly controllable | Hard to standardize | Limited |
| Operating Cost (Long-term) | Low | High | Medium |
This table clearly demonstrates how vacuum plasma cleaning offers superior performance with fewer long-term operational challenges.
Types of Vacuum Plasma Cleaners
Low-Frequency Plasma Cleaners
Ideal for basic surface cleaning and etching tasks, suitable for general electronics assemblies.
RF Plasma Cleaners
Most common type used in advanced manufacturing; excellent control over plasma intensity and uniformity.
Microwave Plasma Cleaners
Used for high-efficiency processes, often in semiconductor manufacturing where extremely clean surfaces are required.
Reactive Gas Plasma Cleaners
Utilize gases like oxygen or hydrogen for specific chemical reactions on target materials.
Choosing the Right Vacuum Plasma Cleaner
When selecting a vacuum plasma cleaner for your application, consider the following:
1. Chamber Size and Capacity
Determine whether you need batch processing or single-piece cleaning.
2. Type of Plasma Source
RF systems offer versatility, while microwave systems excel in advanced processes.
3. Gas Compatibility
Ensure the machine can work with the required gases for cleaning or activation.
4. Power and Parameter Control
Good systems allow precise adjustment of power, flow rate, and cycle time.
5. Material Compatibility
Different materials require different plasma chemistries; verify compatibility with plastics, metals, ceramics, or composites.
6. Integration Requirements
Some machines are designed for manual loading, while others are compatible with automated production lines.
Common Surface Issues Solved by Vacuum Plasma Cleaning
Weak Adhesion
Low surface energy can prevent adhesives, coatings, and inks from sticking. Plasma improves surface energy dramatically.
Oxide Layers
Metal oxides reduce bonding performance. Plasma can remove these without damaging the base metal.
Organic Contamination
Flux residues, oils, and fingerprints are easily decomposed by plasma.
Bonding Failures
Improperly prepared surfaces are a leading cause of bonding failure; plasma treatment stabilizes surface chemistry for better bonds.
Innovative Uses of Vacuum Plasma Cleaners in Emerging Fields
Flexible Electronics
Plasma prepares ultra-thin substrates without warping or overheating.
Microfluidics
Channels in microfluidic devices require extremely clean surfaces for precise flow control.
Wearable Technology
Improves adhesion for coatings and encapsulation on bendable substrates.
Smart Packaging
Enhances printability for high-resolution QR codes and RFID tags.
Best Practices for Using a Vacuum Plasma Cleaner
Maintain a Stable Vacuum
Stable low pressure ensures uniform plasma distribution.
Choose the Correct Gas Type
Oxygen enhances organic removal, while argon is ideal for physical sputtering.
Optimize Exposure Time
Over-cleaning may roughen some sensitive materials; tuning is essential.
Clean Chamber Regularly
Chamber cleanliness impacts plasma uniformity and cycle repeatability.
Validate Surface Energy
Use contact angle testing to confirm the effectiveness of surface activation.
Future Trends in Vacuum Plasma Technology
As manufacturing evolves, vacuum plasma cleaners continue to improve in functionality:
-
AI-assisted control for predictive process optimization
-
Higher speed inline plasma systems for mass production
-
More compact designs for startups and research labs
-
Hybrid systems combining plasma with UV or ozone treatment
Vacuum plasma cleaning is expected to play a central role in semiconductor innovation, 3D electronics, green manufacturing, and biocompatible device production.
Frequently Asked Questions
1. What materials can be cleaned with a vacuum plasma cleaner?
Plastics, metals, ceramics, silicon wafers, glass, PCBs, and many composite materials can be treated without damage.
2. Is plasma cleaning safe for sensitive electronic components?
Yes. Plasma cleaning is low-temperature and non-contact, making it suitable for delicate electronics and micro-components.
3. What gas should I use for plasma cleaning?
Oxygen is common for removing organics, while argon is ideal for physical cleaning. Gas selection depends on your material and cleaning goal.
4. How long does a typical plasma cleaning cycle take?
Cycles usually range from 30 seconds to several minutes, depending on contamination level and desired activation.
5. Does vacuum plasma cleaning replace wet chemical cleaning entirely?
In many applications, yes. However, some industries still use both methods together for maximum cleanliness.
Summary
Vacuum plasma cleaners offer ultra-precise, eco-friendly cleaning and surface activation for electronics, medical devices, optics, and more. This article explains working principles, advantages, applications, comparison tables, and selection tips, helping manufacturers achieve higher adhesion and reliability.
