Introduction to Torque Sensors

Torque sensors, also known as torque transducers or torque meters, are devices that measure the torque-or rotational force-applied to an object. They convert this mechanical torque into an electrical signal, enabling precise monitoring and control of mechanical systems. Torque measurement is critical in many industries including automotive, aerospace, manufacturing, and robotics, where it ensures machinery efficiency, safety, and performance optimization.

How Torque Sensors Work

Basic Principle of Torque Measurement

Torque is the product of force and the distance from the pivot point, typically measured in Newton-meters (Nm) or pound-feet (lb-ft). When torque is applied to a shaft or component, it causes a slight twist or deformation. Torque sensors detect this deformation and translate it into an electrical signal proportional to the torque applied.

Common Sensing Technologies

  • Strain Gauge Torque Sensors:

    These are the most widely used torque sensors. Strain gauges are thin wires or foil patterns bonded to the surface of a shaft or disc. When torque causes deformation, the strain gauges stretch or compress, changing their electrical resistance. This change is measured using a Wheatstone bridge circuit and converted into an electrical output signal.

  • Magnetoelastic Torque Sensors:

    These sensors detect changes in magnetic properties of materials under stress. When torque is applied, the magnetic permeability changes, and this variation is converted into an electrical signal. They are highly sensitive and suitable for harsh environments.

  • Optical Torque Sensors:

    Using light-based methods such as interferometry or polarimetry, these sensors measure changes in optical properties caused by torque-induced deformation. They offer high accuracy and are immune to electromagnetic interference.

Signal Processing and Output

The electrical signal generated by the sensor is amplified and conditioned to provide usable data. Outputs can be analog or digital, depending on the sensor design and application requirements.

Types of Torque Sensors

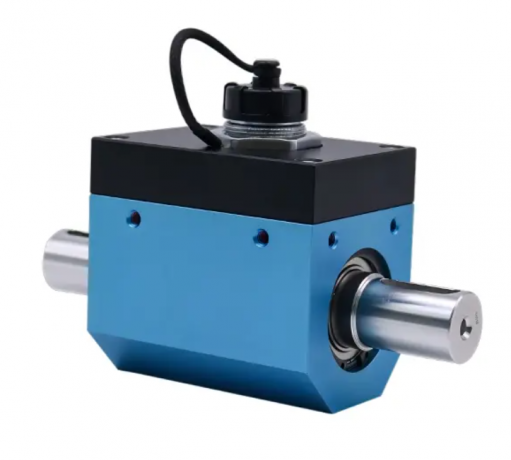

Rotary (Dynamic) Torque Sensors

  • Designed to measure torque on rotating shafts such as motors, engines, and gearboxes.

  • Often use slip rings or wireless transmission to send signals from the rotating shaft.

  • Used in real-time torque monitoring and control in automotive testing, manufacturing, and powertrain analysis.

Reaction (Static) Torque Sensors

  • Measure torque in stationary or non-rotating systems.

  • Commonly used in calibration, assembly line monitoring, and quality control.

  • Provide high precision in static torque measurement.

Non-Contact Torque Sensors

  • Use magnetic or optical methods to measure torque without physical contact.

  • Ideal for high-speed applications or where sensor wear must be minimized.

  • Offer longevity and reduced maintenance.

Inline Torque Transducers

  • Installed directly in the drive line or machinery.

  • Facilitate seamless torque measurement during normal operation.

  • Widely used in industrial process control.

Applications of Torque Sensors

Automotive Industry

  • Measurement of engine torque, drivetrain performance, and transmission calibration.

  • Testing of clutches, gearboxes, power steering, brakes, and suspension systems.

  • Used in electric and hybrid vehicles to optimize motor assistance and fuel efficiency.

Aerospace Sector

  • Monitoring torque in aircraft engines, turbines, control surfaces, and landing gear.

  • Ensuring safety and performance in critical flight components.

Industrial Manufacturing

  • Torque monitoring in conveyor belts, robotic arms, and assembly tools.

  • Quality control in tightening processes and machinery diagnostics.

Energy and Power Generation

  • Assessing torque output in wind turbines, hydroelectric generators, and power transmission systems.

  • Enhancing efficiency and reliability of renewable energy sources.

Medical and Research

  • Torque measurement in prosthetics and robotic surgical instruments.

  • Laboratory testing and R&D for material properties and mechanical behavior.

Selecting the Right Torque Sensor

When choosing a torque sensor, consider the following factors:

  • Measurement Range: Ensure the sensor can handle the maximum expected torque.

  • Accuracy and Resolution: Higher precision is needed for critical applications.

  • Environmental Conditions: Temperature, humidity, and exposure to chemicals affect sensor choice.

  • Output Type: Analog or digital output depending on integration with control systems.

  • Installation Requirements: Compatibility with existing machinery and ease of mounting.

Advantages of Using Torque Sensors

  • High Accuracy: Enables precise torque measurement for quality and safety.

  • Real-Time Monitoring: Facilitates immediate feedback and control.

  • Durability: Designed to withstand harsh environments with minimal maintenance.

  • Versatility: Applicable across diverse industries and mechanical systems.

Frequently Asked Questions (FAQs)

1. What is the difference between rotary and reaction torque sensors?

Rotary torque sensors measure torque on rotating shafts, while reaction torque sensors measure torque in stationary or static conditions.

2. How do strain gauge torque sensors work?

They detect deformation caused by torque through changes in electrical resistance of strain gauges attached to the sensor's surface.

3. Can torque sensors be used in high-speed applications?

Yes, especially non-contact rotary torque sensors that use magnetic or optical transmission methods are suitable for high-speed measurements.

4. What industries benefit most from torque sensor technology?

Automotive, aerospace, manufacturing, energy, and medical sectors extensively use torque sensors for performance and safety monitoring.

5. How is the output from a torque sensor typically used?

The electrical output is processed by control systems or data acquisition units to monitor, control, or analyze torque in real time.

Article Summary

Torque sensors are essential devices that measure rotational force by detecting deformation caused by applied torque. Utilizing technologies like strain gauges, magnetoelastic, and optical sensing, these sensors provide accurate, real-time torque data critical for industries such as automotive, aerospace, manufacturing, and energy. Selecting the appropriate torque sensor depends on factors like measurement range, accuracy, and environmental conditions, ensuring optimal performance and reliability in diverse applications.
