Surface Mount Devices (SMDs) have transformed the electronics manufacturing industry by enabling compact, efficient, and high-density circuit designs. This article explores what Surface Mount Devices are, their role in Surface Mount Technology (SMT), key components, manufacturing processes, advantages, disadvantages, and diverse applications across industries.

What is a Surface Mount Device (SMD)?

A Surface Mount Device (SMD) is an electronic component designed to be mounted directly onto the surface of a printed circuit board (PCB), unlike traditional through-hole components that require leads to be inserted into drilled holes. SMDs are typically much smaller and lighter, making them ideal for compact electronic products such as smartphones, laptops, and wearable devices.

Key Characteristics of SMDs

  • Compact Size: SMDs are miniaturized components, allowing for high-density circuit layouts.

  • Mounting Method: They are soldered directly onto flat copper pads on the PCB surface.

  • Types of Components: Common SMDs include resistors, capacitors, transistors, diodes, and integrated circuits.

  • Automation Friendly: Designed for placement by automated pick-and-place machines, enabling high-speed manufacturing.

This compactness and automation compatibility have made SMDs the backbone of modern electronics assembly.

Surface Mount Technology (SMT) and Its Relationship with SMDs

Surface Mount Technology (SMT) is the process used to mount SMDs onto PCBs. SMT involves applying solder paste to PCB pads, placing components using automated machines, and then soldering them in place through reflow soldering.

SMT Process Overview

  1. Solder Paste Application: A stencil applies solder paste-a mixture of flux and tiny solder particles-onto the PCB pads.

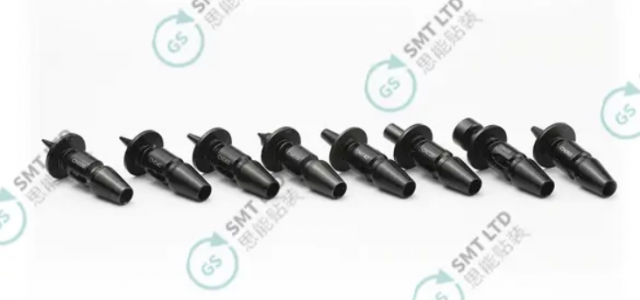

  2. Component Placement: Pick-and-place machines accurately position SMDs on the solder-pasted pads.

  3. Reflow Soldering: The PCB passes through an oven where the solder paste melts, bonding the components to the board. Surface tension during melting helps self-align components precisely.

This automated process allows for rapid, precise, and repeatable assembly, significantly reducing production costs and time.

Components of Surface Mount Devices

SMDs encompass various electronic components essential for circuit functionality:

Resistors

SMD resistors control current flow and adjust voltage levels within circuits. Their small size allows dense packing on PCBs, critical for compact devices.

Capacitors

SMD capacitors store and release electrical energy, filtering signals and stabilizing power supplies. Their miniaturized form factor supports high-density circuit designs.

Transistors and Diodes

These active components regulate current flow and signal direction, enabling amplification, switching, and rectification functions in circuits.

Integrated Circuits (ICs)

ICs combine multiple electronic functions into a single chip, often packaged as SMDs with flat contacts or solder balls (e.g., Ball Grid Arrays). They are central to complex electronics like microprocessors and memory modules.

Advantages of Surface Mount Devices and SMT

Higher Component Density and Compact Design

SMDs enable placing more components per unit area since no holes are needed for mounting. This leads to smaller, lighter PCBs suitable for miniaturized electronics.

Faster and More Efficient Production

Automation in SMT allows rapid placement and soldering of components, increasing throughput and reducing labor costs.

Improved Electrical Performance

Shorter leads and smaller components reduce resistance and inductance, enhancing signal integrity and high-frequency performance.

Cost-Effectiveness

Despite higher initial setup costs, SMT reduces material usage and assembly time, lowering overall manufacturing expenses for large-scale production.

Enhanced Reliability and Uniformity

Automated soldering ensures consistent quality and reduces human error, improving product reliability.

Disadvantages and Challenges of SMDs and SMT

Mechanical Stress Sensitivity

SMDs can be less robust under mechanical shock or vibration compared to through-hole components due to smaller solder joints.

Thermal Cycling Vulnerability

Repeated heating and cooling can stress solder joints, potentially leading to failures in harsh environments.

Complex Repairs and Inspection

Tiny components and dense layouts make manual repair and visual inspection difficult without specialized equipment.

Limited Marking Space

Small component size restricts labeling, complicating identification and inventory management.

High Initial Investment

SMT requires expensive machinery and precise process control, which may be cost-prohibitive for small-scale production.

Applications of Surface Mount Devices

SMDs and SMT are widely used across industries requiring compact, reliable, and high-performance electronics.

Consumer Electronics

Smartphones, laptops, tablets, and wearables rely heavily on SMDs for compactness and functionality.

Medical Devices

Precision and miniaturization are critical in pacemakers, hearing aids, glucose monitors, and portable diagnostic tools, all benefiting from SMT.

Automotive Industry

Advanced driver-assistance systems, electric vehicle battery management, and sensor modules use SMDs for their reliability and compactness.

Aerospace and Defense

Lightweight, durable electronics for satellites, radar, and electronic warfare systems employ SMT to withstand extreme conditions.

Telecommunications

Routers, modems, base stations, and set-top boxes incorporate SMDs to handle high-speed data transmission in compact form factors.

Summary

Surface Mount Devices are fundamental components in modern electronics manufacturing, enabling smaller, faster, and more efficient devices. Coupled with Surface Mount Technology, they have revolutionized PCB assembly by facilitating automation, higher component density, and improved electrical performance. Despite some challenges related to mechanical robustness and repair complexity, their advantages have made SMDs indispensable across consumer electronics, medical, automotive, aerospace, and telecommunications industries.

Frequently Asked Questions (FAQs)

Q1: What is the difference between Surface Mount Devices and through-hole components?

A1: Surface Mount Devices are mounted directly on the PCB surface without leads going through holes, allowing smaller size and higher component density, whereas through-hole components have leads inserted into drilled holes for soldering.

Q2: Why is Surface Mount Technology preferred over through-hole technology?

A2: SMT enables automated assembly, higher component density, faster production, and smaller, lighter PCBs, making it more cost-effective and suitable for modern compact electronics.

Q3: Can SMDs be used for high-power applications?

A3: SMDs are generally less suitable for very high-power or high-heat dissipation applications due to their small size and thermal limitations, where through-hole or specialized components may be preferred.

Q4: How are SMDs placed on PCBs during manufacturing?

A4: Automated pick-and-place machines position SMDs onto solder-pasted PCB pads, followed by reflow soldering to permanently attach them.

Q5: What industries benefit most from Surface Mount Devices?

A5: Consumer electronics, medical devices, automotive, aerospace, defense, and telecommunications industries benefit significantly from the compactness, reliability, and automation advantages of SMDs.

Article Summary


Surface Mount Devices (SMDs) are miniature electronic components mounted directly on PCB surfaces using Surface Mount Technology (SMT). This method enables compact, high-density, and automated assembly of modern electronics, benefiting industries from consumer gadgets to aerospace. Despite some challenges, SMDs have revolutionized manufacturing by improving efficiency, performance, and product miniaturization.
