Shackles are fundamental components used in lifting, rigging, towing, and securing loads across various industries. Despite their seemingly simple design, selecting the correct shackle requires understanding their types, materials, load capacities, and applications. This comprehensive guide explores everything you need to know about shackles, including technical specifications, safety considerations, and practical comparisons to help you make an informed choice.



What is a Shackle?

A shackle is a U-shaped piece of metal secured with a pin or bolt across the opening. Shackles serve as connection points between lifting slings, chains, ropes, or other hardware. They are critical in ensuring safe and secure load handling. Shackles are widely used in maritime, construction, industrial, and outdoor activities.

The two main components of a shackle are:

  • Body: The U-shaped frame that forms the main structure of the shackle.

  • Pin: A removable bolt, screw, or locking mechanism that closes the shackle loop.

Shackles are valued for their simplicity, strength, and versatility. Understanding the different types and their appropriate use is essential to prevent accidents and equipment failure.



Types of Shackles

Shackles are categorized based on their shape and pin mechanism. The three most common types are Anchor (or Bow) Shackles, Chain (or D) Shackles, and Screw Pin or Bolt Type Shackles.



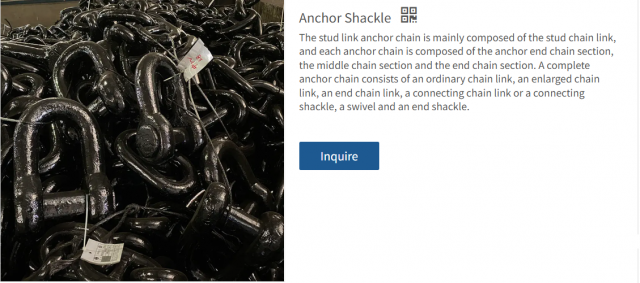

Anchor (Bow) Shackle

Anchor shackles have a larger, rounded "O"-shaped loop, providing more room for slings or multiple connections. They are ideal for multi-directional loading, where tension may pull from various angles.

Advantages:

  • Can handle multi-directional loads

  • Suitable for heavy-duty lifting

  • Easy to attach multiple slings or chains

Limitations:

  • Slightly heavier than D-shackles

  • Larger size may be cumbersome in tight spaces



Chain (D) Shackle

D-shaped shackles, or chain shackles, have a narrow, elongated loop suitable for straight-line pulls. They are commonly used when the load is applied in a single direction.

Advantages:

  • Efficient for straight-line loads

  • Compact and lightweight

  • High working load limit relative to size

Limitations:

  • Not ideal for multi-directional loads

  • Can twist under side loading



Screw Pin Shackle

Screw pin shackles have a threaded pin that can be easily removed and replaced. They are convenient for temporary connections but should not be used for permanent or critical lifting operations under continuous vibration.

Advantages:

  • Easy to assemble and disassemble

  • No tools required for pin removal

  • Suitable for temporary connections

Limitations:

  • Pin may unscrew under vibration if not secured

  • Not ideal for permanent critical lifting



Bolt Type Shackle

Bolt type shackles use a bolt with a nut and cotter pin for securing. They are suitable for permanent connections and applications where vibration or movement is common.

Advantages:

  • More secure than screw pin

  • Reliable under vibration

  • Suitable for heavy-duty and permanent rigging

Limitations:

  • Requires tools to assemble/disassemble

  • Slower to connect than screw pin shackles



Material Types and Their Impact

Shackles are manufactured from various materials, each influencing strength, durability, and corrosion resistance. The most common materials include Carbon Steel, Alloy Steel, and Stainless Steel.

Material Strength Corrosion Resistance Best Use Cases
Carbon Steel Moderate Low General industrial, indoor use
Alloy Steel High Medium Heavy lifting, construction
Stainless Steel Moderate-High High Marine environments, outdoors

Choosing the right material is crucial. For instance, stainless steel shackles are ideal for marine applications due to superior corrosion resistance, whereas alloy steel shackles are preferred for lifting heavy loads in construction or industrial settings.



Understanding Working Load Limit (WLL)

The Working Load Limit (WLL) is the maximum load a shackle can safely handle. It is essential to distinguish between WLL and Breaking Load, which is the load at which a shackle will fail. For safety, always ensure the WLL is greater than the intended load, considering factors such as dynamic forces and environmental conditions.

Key considerations:

  • Do not exceed WLL

  • Use safety factors (commonly 5:1 for lifting)

  • Inspect shackles regularly for wear or deformation



Common Applications of Shackles

Shackles are used across various industries and applications. Understanding their proper use ensures safety and efficiency.



Construction and Rigging

Shackles are indispensable in lifting and rigging. They connect slings to cranes, hoists, or load hooks. Bow shackles are commonly preferred due to their ability to accommodate multiple slings.



Marine and Boating

Stainless steel shackles are widely used in marine environments to secure rigging, anchor chains, and sailboat hardware. Resistance to saltwater corrosion is crucial.



Industrial and Manufacturing

In manufacturing facilities, shackles link heavy machinery, transport chains, or safety equipment. Bolt-type shackles provide secure connections in environments with vibration or repetitive movement.



Outdoor and Adventure Activities

Shackles are used in climbing, rescue operations, and off-roading. Lightweight, durable shackles with secure pins are essential for safety-critical outdoor activities.



Choosing the Right Shackle: Factors to Consider

Selecting the appropriate shackle involves evaluating several factors:

  1. Load Capacity: Always consider the WLL relative to the expected load.

  2. Type of Load: Multi-directional vs. straight-line pulling determines the shackle shape.

  3. Material Requirements: Marine, industrial, or general use.

  4. Pin Security: Screw pin vs. bolt type depending on the permanence of the connection.

  5. Environment: Corrosion resistance for outdoor or marine use.

  6. Ease of Use: Frequency of assembly and disassembly may favor screw pin shackles.



Comparison Table: Shackle Types and Applications

Shackle Type Best For Load Direction Pin Type Recommendation Ideal Material
Anchor/Bow Multi-sling lifting Multi-directional Screw Pin or Bolt Type Alloy Steel/Stainless
Chain/D Straight-line load Single-direction Screw Pin Alloy Steel/Carbon Steel
Screw Pin Temporary connections Any Screw Pin Carbon or Alloy Steel
Bolt Type Permanent, heavy-duty load Any Bolt & Nut Alloy Steel



Safety Considerations

Proper use of shackles is essential to prevent accidents:

  • Inspect shackles before use for wear, deformation, or cracks.

  • Avoid side loading on D shackles; use bow shackles for multi-directional loads.

  • Do not exceed the rated WLL.

  • Ensure the pin is fully seated and properly secured.

  • Replace damaged or worn shackles immediately.



Shackle Maintenance Tips

  • Regularly clean shackles to prevent rust and debris accumulation.

  • Lubricate pins to ensure smooth operation.

  • Store in dry conditions when not in use.

  • Use anti-corrosion coatings for harsh environments.



Advanced Shackle Innovations

Modern shackles incorporate features for enhanced safety and usability:

  • Self-locking pins prevent accidental loosening under vibration.

  • Color-coded shackles indicate WLL for quick identification.

  • High-strength alloy designs allow for reduced weight without compromising safety.



Common Mistakes to Avoid

  • Using a shackle not rated for the load.

  • Twisting or bending the shackle under uneven load.

  • Using screw pin shackles for permanent connections under vibration.

  • Failing to inspect for wear or corrosion before each use.



Conclusion

Shackles are small yet vital components in lifting, rigging, and securing loads. Choosing the right shackle involves understanding types, materials, load limits, and applications. Proper selection, regular maintenance, and adherence to safety standards ensure optimal performance and prevent accidents. By carefully evaluating your needs and using the comparison guides provided, you can confidently select the correct shackle for any application.



Frequently Asked Questions (FAQ)

Q1: What is the difference between a bow shackle and a D shackle?

A: A bow shackle has a rounded shape, suitable for multi-directional loads, while a D shackle is narrow, best for straight-line loads.

Q2: Can I use a screw pin shackle for permanent lifting?

A: No, screw pin shackles may unscrew under vibration. For permanent lifting, use a bolt-type shackle.

Q3: How do I know the working load limit of a shackle?

A: The WLL is usually stamped on the shackle body. Always choose a WLL higher than your expected load.

Q4: What material is best for marine shackles?

A: Stainless steel is ideal due to its high corrosion resistance in saltwater environments.

Q5: How should I maintain shackles for long-term use?

A: Clean regularly, lubricate pins, inspect for wear or deformation, and store in a dry environment.

Article Summary


Shackles are essential in lifting, rigging, and securing loads. This guide explains shackle types, materials, load limits, and applications. Featuring comparison tables and safety tips, it helps readers select the right shackle, maintain it properly, and prevent accidents across industrial, marine, and outdoor uses.
