Introduction

In the world of mechanical engineering and fastening technology, the ring nut stands as an essential yet often overlooked component. Known for its circular design and internal threading, the ring nut provides robust clamping force, ensuring parts remain securely connected under high mechanical loads. From automotive assemblies and heavy machinery to precision instruments, ring nuts are integral to safe and efficient mechanical performance.

This comprehensive guide explores everything you need to know about ring nuts — including their design, working principles, materials, installation methods, advantages, and industrial applications. You will also learn how ring nuts differ from other types of fasteners through a detailed comparison table, helping you make informed purchasing or engineering decisions.

What Is a Ring Nut?

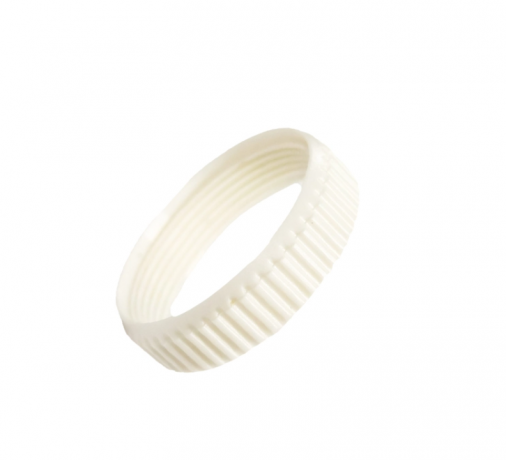

A ring nut is a circular fastener with internal threads, designed to be screwed onto a shaft or threaded bolt to secure mechanical components. Its distinct ring shape often includes holes or slots around the circumference, allowing tools like hook spanners or pin wrenches to tighten or loosen it efficiently.

Ring nuts are widely used in mechanical systems where space is limited or where traditional hexagonal nuts might not provide the required clamping geometry. They are often paired with lock washers or retaining devices to prevent loosening due to vibration.

How Ring Nuts Work

The working principle of a ring nut is straightforward but highly effective. When tightened onto a threaded rod or shaft, the internal threads of the nut engage with the threads of the bolt or spindle, generating friction and axial pressure. This clamping force locks the attached parts firmly in place.

Some ring nuts feature grooves or notches around their outer surface, enabling the use of specialized tools for precise torque application. Others incorporate locking mechanisms, such as nylon inserts or spring-loaded pins, to resist vibration and unintentional loosening.

Types of Ring Nuts

Ring nuts come in several configurations depending on their intended function, load capacity, and application environment. Below are the most common types:

1. Slotted Ring Nuts (Round Slotted Nuts) – Equipped with multiple slots for wrench engagement; ideal for bearing retention.

2. Self-Locking Ring Nuts – Include a locking feature that maintains tightness under vibration.

3. Welded Ring Nuts – Designed for permanent installations; often welded to a base surface.

4. Precision Ring Nuts – Machined to tight tolerances for use in high-accuracy assemblies such as spindles or rotating shafts.

5. Heavy-Duty Ring Nuts – Larger and thicker for high-load industrial applications.

Materials and Surface Treatments

Material choice is crucial for ensuring performance and longevity. Common materials include:

• Carbon Steel – Offers strength and affordability for general mechanical use.

• Stainless Steel – Provides excellent corrosion resistance, suitable for marine or outdoor environments.

• Brass and Bronze – Used where conductivity and non-sparking properties are important.

• Aluminum Alloy – Lightweight option for aerospace or precision instruments.

Surface treatments further enhance durability and resistance:

• Zinc Plating – Corrosion protection

• Black Oxide – Adds mild corrosion resistance with a matte finish

• Nickel Plating – Superior wear and corrosion resistance

• Phosphate Coating – Common for industrial and military-grade applications

Comparison: Ring Nut vs. Hex Nut

The comparison highlights that ring nuts are better suited for applications demanding precision and compact design, while hex nuts are ideal for general-purpose fastening.

Installation and Maintenance Tips

Proper installation ensures optimal performance and prevents mechanical failure.

1. Clean Threads – Remove dirt and debris from both the nut and shaft threads.

2. Use Correct Tools – Employ a hook spanner or pin wrench designed for ring nuts to ensure even torque.

3. Apply Proper Torque – Over-tightening may damage threads, while under-tightening can lead to slippage.

4. Add Locking Elements – Consider a tab washer, cotter pin, or locking adhesive for high-vibration environments.

5. Inspect Regularly – Check for wear, corrosion, and thread damage during maintenance schedules.

Industrial Applications

Ring nuts are integral to many sectors due to their versatility and compact design:

• Automotive Industry – Securing wheel bearings, drive shafts, and suspension components.

• Aerospace and Defense – Lightweight yet strong fastening solutions in precision equipment.

• Machinery and Manufacturing – Used to hold bearings, pulleys, and couplings in position.

• Marine and Offshore Equipment – Stainless ring nuts resist corrosion in saltwater environments.

• Renewable Energy Systems – Applied in turbine assemblies where vibration resistance is critical.

Advantages of Using Ring Nuts

• Compact shape suitable for tight spaces

• High axial load capacity

• Easy to adjust and maintain with simple tools

• Enhanced resistance to vibration and loosening

• Available in multiple materials and sizes

• Aesthetic and functional in design-critical applications

Selecting the Right Ring Nut

Choosing the proper ring nut depends on several factors:

• Thread Size and Pitch – Must match the corresponding shaft or bolt.

• Load Requirement – Heavier applications require stronger materials.

• Environmental Exposure – Corrosive conditions demand stainless or coated versions.

• Precision Level – High-tolerance assemblies need machined precision ring nuts.

• Installation Method – Determine if you need a removable or welded nut.

When sourcing from suppliers, always verify standards such as DIN 981, ISO 2982-2, or equivalent, ensuring dimensional accuracy and performance reliability.

Common Problems and Troubleshooting

1. Nut Loosening – Use locking mechanisms or adhesives.

2. Thread Damage – Replace both nut and mating part if threads are stripped.

3. Corrosion – Opt for stainless or plated variants.

4. Tool Slippage – Use the correct spanner size and ensure tool engagement.

5. Uneven Tightening – Always tighten gradually and check torque values.

Future Trends in Ring Nut Manufacturing

With advancements in CNC machining and materials science, modern ring nuts are becoming lighter, stronger, and more precise. Innovations include:

• Smart Coatings that signal wear or corrosion.

• Composite Materials for reduced weight and improved performance.

• Additive Manufacturing (3D printing) for customized geometries.

• Automated Assembly Integration for higher efficiency in production lines.

As industries move toward automation and sustainability, the design and manufacturing of ring nuts will continue evolving to meet performance and environmental demands.

Frequently Asked Questions

1. What is the difference between a ring nut and a round nut?

A ring nut typically includes slots or holes for tool engagement, while a round nut may be a simpler version without these features.

2. Can ring nuts be reused?

Yes, provided the threads remain undamaged and torque values are maintained.

3. Are ring nuts suitable for high-vibration environments?

Yes. Many designs include locking features that prevent loosening under vibration.

4. How do I measure the correct ring nut size?

Measure the internal thread diameter and pitch, ensuring they match the shaft or bolt specification.

5. What tools are used to tighten a ring nut?

Common tools include hook spanners, pin wrenches, or adjustable ring nut spanners designed for slot engagement.

Article Summary

This detailed guide explores ring nuts—covering their function, types, materials, installation methods, and applications. It compares ring nuts with hex nuts, provides selection advice, and highlights industry uses. Ideal for engineers seeking precision fastening solutions.
