Touch screens have revolutionized the way humans interact with devices, offering intuitive interfaces that have become essential in smartphones, tablets, industrial machinery, and many other sectors. Among the different touch screen technologies available today, resistive touch screens stand out for their robustness, affordability, and precise input capabilities. In this article, we delve into the intricacies of resistive touch screen technology, explore its applications, advantages and limitations, and compare it with other touch technologies to provide a comprehensive understanding.
What is a Resistive Touch Screen?
A resistive touch screen is a type of display that responds to pressure applied by a finger, stylus, or other object. Unlike capacitive screens, which detect electrical changes from conductive touch, resistive screens rely on physical pressure to register input. This simple yet effective design makes resistive touch screens versatile and reliable for various applications.
Structure and Working Principle
Resistive touch screens are composed of several layers:
-
Top Flexible Layer: Often made of polyester, this layer bends when pressure is applied.
-
Conductive Bottom Layer: Usually glass with a conductive coating.
-
Spacer Dots: Tiny insulating dots keep the layers apart until pressure is applied.
-
Controller: Interprets the voltage change at the contact point and sends coordinates to the device.
When pressure is applied to the screen, the top layer bends and touches the conductive bottom layer. This contact closes a circuit, generating an electrical signal at the point of contact, which the controller translates into precise coordinates.
Variants of Resistive Touch Screens
Resistive touch screens can be classified based on the number of wires used in the grid:
-

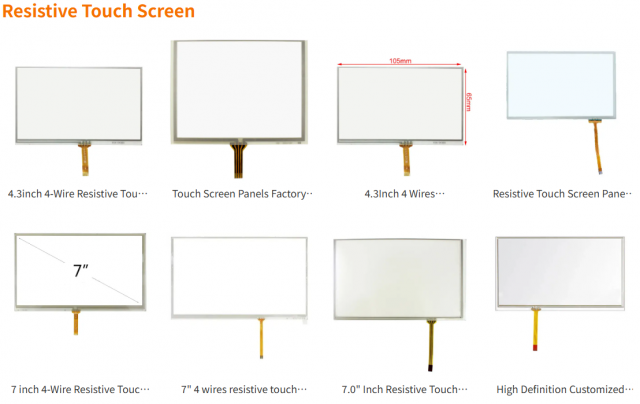

4-Wire Resistive Touch Screen: The most common type, offering reliable performance and lower cost.
-
5-Wire Resistive Touch Screen: Provides enhanced durability and accuracy.
-
8-Wire Resistive Touch Screen: Designed for specialized industrial applications requiring long-term durability and high precision.
Advantages of Resistive Touch Screens
Resistive touch technology offers several benefits that make it a preferred choice in specific applications:
-
Affordability: Resistive screens are generally cheaper to manufacture than capacitive screens.
-
Stylus and Glove Compatibility: Since they respond to pressure, resistive screens can be operated with any object, including styluses and gloves.
-
High Accuracy: The design ensures precise point-of-contact detection, which is critical in industrial or medical applications.
-
Durability: Resistive screens can withstand dust, water splashes, and other environmental contaminants better than some capacitive counterparts.
-
Low Power Consumption: Suitable for battery-operated devices where energy efficiency is critical.
Limitations of Resistive Touch Screens
Despite their advantages, resistive screens also have certain drawbacks:
-
Single Touch Only: Most resistive screens do not support multi-touch gestures like pinch-to-zoom.
-
Lower Sensitivity: They require physical pressure, which might feel less responsive compared to capacitive screens.
-
Screen Clarity: Multiple layers can slightly reduce the brightness and clarity of the display.
-
Susceptible to Wear: Repeated pressing may eventually wear out the top layer, although high-quality materials mitigate this effect.
Applications of Resistive Touch Screens
Resistive touch screens find extensive applications across industries due to their robustness and versatility:
-
Industrial Control Panels: Used in factories, kiosks, and machinery due to their durability.
-
Medical Devices: Stylus compatibility ensures precise input for patient data entry and diagnostics.
-
Point-of-Sale Systems: In retail and hospitality, resistive screens provide reliable performance even with gloves or stylus use.
-
Consumer Electronics: Budget smartphones, e-readers, and educational tablets sometimes use resistive screens.
-
Automotive Systems: Dashboard controls in vehicles often utilize resistive touch technology for reliable operation under varying conditions.
Resistive vs. Capacitive Touch Screens
Comparing resistive touch screens with capacitive ones highlights their respective strengths and weaknesses:
| Feature | Resistive Touch Screen | Capacitive Touch Screen |
|---|---|---|
| Input Method | Pressure (finger, stylus, glove) | Conductive touch (finger) |
| Multi-Touch Support | Limited (mostly single touch) | Supports multi-touch gestures |
| Accuracy | High | Moderate |
| Durability | High in harsh environments | Less durable under rough use |
| Screen Clarity | Slightly reduced | High clarity |
| Cost | Low | Higher |
| Applications | Industrial, medical, POS | Smartphones, tablets, public kiosks |
This comparison demonstrates that resistive touch screens excel in environments requiring accuracy and reliability, especially where stylus or glove use is frequent, while capacitive screens dominate consumer electronics demanding multi-touch capabilities.
Innovations in Resistive Touch Technology
Recent developments in resistive touch screens aim to enhance durability, sensitivity, and user experience:
-
Optical Bonding: Reduces glare and increases display clarity by bonding layers together.
-
Surface Treatments: Anti-scratch coatings improve longevity and maintain smooth touch performance.
-
Hybrid Designs: Some devices integrate resistive and capacitive elements to combine precision with gesture capabilities.
Choosing the Right Resistive Touch Screen
Selecting a resistive touch screen depends on the device's intended application and user requirements. Key factors include:
-
Environmental Conditions: For dusty or wet environments, resistive screens are preferable.
-
Input Method: If stylus or glove use is required, resistive technology is ideal.
-
Longevity and Reliability: High-quality resistive screens offer long operational lifespans even under heavy usage.
-
Cost Considerations: Resistive touch screens provide a budget-friendly option without sacrificing functionality for specific applications.
Future Trends and Market Outlook
Although capacitive touch screens dominate consumer electronics, resistive screens maintain strong demand in industrial, medical, and specialized fields. The global market trend indicates:
-
Increasing adoption in rugged and industrial devices.
-
Integration with IoT devices where durability and low power consumption are critical.
-
Development of hybrid touch systems combining resistive precision with capacitive convenience.
Conclusion
Resistive touch screens remain a cornerstone of touch technology, offering durability, precision, and affordability. While they lack some of the flashy features of capacitive screens, their practical advantages in specialized applications make them indispensable. Understanding their structure, functionality, and applications allows manufacturers, designers, and consumers to make informed choices when implementing touch interfaces.
Frequently Asked Questions
Q1: Can resistive touch screens detect multi-touch input?
A1: Most resistive touch screens are designed for single-touch input. Some advanced variants may support limited multi-touch, but they are generally less responsive than capacitive screens in this regard.
Q2: Are resistive touch screens suitable for outdoor use?
A2: Yes, resistive touch screens perform well in outdoor or harsh environments because they are less sensitive to dust, moisture, and temperature variations compared to capacitive screens.
Q3: Can I use a stylus or gloves on resistive touch screens?
A3: Absolutely. Resistive screens respond to pressure, making them compatible with any object, including styluses, pens, and gloves.
Q4: How long do resistive touch screens last?
A4: The longevity depends on the quality of materials and usage. High-quality resistive screens can last several years, even under heavy use.
Q5: Why are resistive touch screens cheaper than capacitive screens?
A5: Resistive screens use simpler technology with fewer expensive components, which lowers manufacturing costs while maintaining reliability in specific applications.
Summary
Resistive touch screens offer precise, durable, and affordable touch input, ideal for industrial, medical, and specialized applications. They operate via pressure detection, support stylus and glove use, and excel in harsh environments, making them a reliable alternative to capacitive screens.
