Leaf spring suspensions have been a cornerstone of heavy-duty vehicle design for over a century. Whether it's a pickup truck hauling a heavy load, a commercial van transporting cargo, or an off‑road vehicle enduring rough terrain, the humble leaf spring quietly bears the weight, absorbs the shocks, and ensures ride stability. Yet behind every functioning leaf spring system lies a collection of critical components — each with its own role, material demands, and wear‑points. In this article, we will dissect what “leaf spring components” really involve: the main parts, the support hardware, how materials and design choices affect performance, maintenance best practices, and how to choose the right configuration for your vehicle.

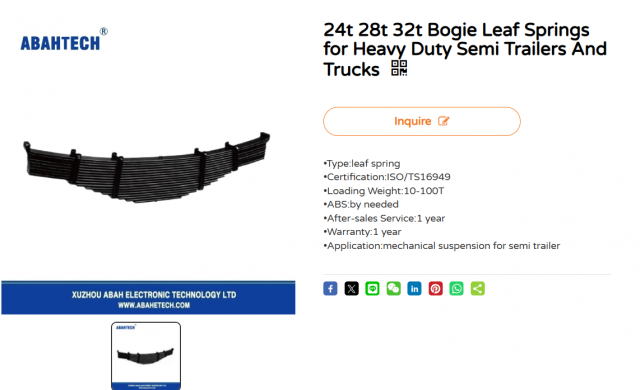

Overview of Leaf Spring Architecture

The term “leaf spring” may evoke the image of a single curved metal arc bolted under a chassis. In truth, it is often a multi‑leaf assembly or a carefully engineered parabolic stack of metal (or composite) leaves. Regardless of design, the spring must perform two fundamental functions:

Support static vehicle load (passengers, cargo)
Absorb dynamic shocks and road irregularities while maintaining axle alignment

To deliver these, a leaf spring system relies on more than just spring leaves. A full assembly includes shackles, U-bolts, center bolts, eye bushings, spring seats, rebound clips, and occasionally helper or overload leaves. Understanding these parts and how they interact is key to grasping the strengths and limitations of leaf‑spring suspensions.

Core Components of a Leaf Spring System

Spring Leaves

These are the heart of the system. A leaf spring can consist of:

A main leaf — the longest, thickest leaf, typically with eyes at both ends.
Several helper or overload leaves — shorter or thinner leaves added to increase load capacity.
Sometimes keeper leaves or center leaves to fill the stack and control spring curvature.

The number and arrangement of leaves determine the spring's stiffness, load‑carrying capacity, flexibility, and ride comfort. A tightly stacked multi‑leaf spring might provide superior load support but yield a harsh ride when lightly loaded; parabolic (tapered) leaves can offer a smoother ride at varying loads but may compromise heavy-load robustness.

Center Bolt / Clip

The center bolt runs through the middle of the leaf stack, ensuring that all leaves remain aligned longitudinally and share load evenly. In some designs, spring clips or clamps serve a similar function. Without this alignment, individual leaves may shift during suspension travel, leading to uneven wear or failure.

Spring Eyes and Bushings

At either end of the main leaf is a circular or oval “eye.” These eyes form the pivot points for the suspension. Bushings — typically rubber or polyurethane — fit inside the eyes and provide a cushion between the spring and its mounting bolt, reducing metal‑to‑metal contact and dampening vibration/noise. Over time, bushings can wear out, causing excess movement, clunking noises, or premature spring fatigue.

Shackles

A shackle is a short link or bracket connecting one end of the leaf spring (usually the rear) to the vehicle frame. As the spring flexes under load and travels through its arc, the shackle swings, allowing the spring ends to move without binding. The shackle's design and mounting orientation help determine the effective spring rate, ride height under load, and motion geometry.

Spring Seats / Hangers / Mounting Blocks

Leaf springs are anchored to the vehicle chassis via mounts on both ends. One end often uses a fixed hanger (non-moving), while the other has the shackle arrangement. These mounts must hold the spring securely but permit enough flex for the suspension to function. Mounting blocks may include pads or insulators to reduce vibration. Damage or misalignment here can cause spring winding, uneven ride height, or stress fractures.

U-Bolts, Plates, and Fasteners

These secure the leaf spring (or its axle seat plate) to the vehicle's axle housing. U-bolts wrap under the axle and pass through a spring plate, compressed with nuts. This clamping ensures the spring remains aligned under load and braking forces. Correct torque on these bolts is essential: too loose, and the spring can shift; too tight, and you might crush or deform the spring plate.

Rebound Clips or Wrap Clips (Optional)

Some leaf spring assemblies include small clips at intervals along the stack — especially near the ends of helper leaves. These prevent helper leaves from shifting sideways or rubbing against the main leaves. They are especially useful in tandem‑axle, heavy‑duty, or off‑road applications, where lateral forces can be significant.

Materials and Design Variants: What's Inside Matters

Not all leaf springs are created equal. The choice of materials, leaf profile, and stack design significantly influences performance, durability, and ride quality. Here is a comparison of common configurations:

Spring Type / Material	Advantages	Drawbacks / Considerations	Best Use Cases
Standard Multi‑leaf (Plain Carbon Steel)	Simple, durable, high load capacity, cost-effective	Heavy, prone to inter-leaf friction (might need lubrication), coarse ride when lightly loaded	Trucks, commercial vans, heavy cargo load vehicles
Parabolic Steel Leaf (Tempered, Shot‑peened)	Lighter weight, smoother ride, better flex under varying loads	Lower ultimate load capacity, more expensive, less tolerant of overloading	Light‑to‑mid payload vehicles, SUVs, off‑roaders seeking comfort
Composite / Fiberglass Reinforced (e.g. FRP)	Very light, corrosion-resistant, flexible yet strong, minimal maintenance	Sensitive to impacts, higher replacement cost, may require special mounts	Specialty vehicles, lightweight trailers, motorcycles
Hybrid Stack (Steel + Composite helper leaves)	Combines load capacity with reduced weight and improved ride	Complex design, possible interface wear between dissimilar materials	Vehicles needing balance of load capacity and comfort
Shackles & Mounts using Alloy Steel / Forged Components	Durable under load, higher fatigue life, reliable under stress	Higher cost, needs proper maintenance	Heavy-duty off-road, agricultural, and industrial vehicles

This table shows that the choice of spring components and materials is not one-size-fits-all. Instead, it must match the load requirements, ride comfort expectations, environmental exposure, and maintenance capacity of the vehicle's use-case.

How Design Choices Affect Performance

Ride Comfort vs Load Capacity

A thick, multi‑leaf stack with many leaves will resist sagging under heavy loads, maintaining ride height and axle position. However, when the vehicle is empty or lightly loaded, that same stiffness translates to a rough, jarring ride, because there is little flex available for shock absorption. In contrast, parabolic or composite spring designs flex more under the same loads, absorbing bumps and irregularities — but they may compress too much under heavy loads without additional helper leaves, leading to sag or excessive spring travel.

Weight and Fuel Efficiency

Traditional steel multi‑leaf springs add significant weight to the vehicle. In applications where every kilogram counts — like off‑road vehicles, light commercial vans with agility needs, or vehicles aiming for better fuel efficiency — switching to parabolic or composite springs can reduce unsprung mass by 20–40%. That translates not only to lighter weight but to improved handling and fuel economy.

Durability and Maintenance

Steel leaf springs are robust; as long as the leaves are regularly inspected, fasteners properly torqued, and bushings in good order, they can last hundreds of thousands of miles. But multi‑leaf designs suffer from inter‑leaf friction, which can cause premature wear — especially under repeated flex cycles. Lubrication or rubberized interleaf pads can mitigate this, but they must be maintained.

Composite springs, while corrosion‑resistant, are vulnerable to cracks or delamination under sharp impacts. Their mounts must be carefully designed to avoid stress risers, and inspection for surface chips or cracks becomes more critical.

Shackles, U‑bolts, and centers bolts also bear stress. Loose or corroded U‑bolts, for instance, can lead to axle misalignment, uneven tire wear, or even axle separation under heavy braking.

Choosing the Right Leaf Spring Configuration: What to Consider

When selecting or replacing a leaf spring system, several factors should guide the decision:

Load requirements: What is the maximum payload the vehicle will carry regularly (cargo weight, passengers)?
Usage patterns: Is the vehicle mostly unloaded (like a work van), frequently loaded to capacity (delivery truck), or varying loads (pickup used for both commuting and hauling)?
Ride comfort expectations: Is a smooth ride important (e.g. people transport, family off‑roading) or is load capacity and durability the priority (e.g. commercial use)?
Environmental conditions: Exposure to salt, moisture, mud, and extreme temperatures influences material choice and mounting hardware.
Maintenance capacity: Are there resources to regularly check and maintain bushings, U‑bolts, lubrication, or are low-maintenance composite springs preferred?

For example:

A delivery van carrying heavy parcels daily might benefit from a solid, hardened multi-leaf steel spring set with strong U‑bolts and high‑quality shackles — prioritizing durability and load handling.
An off‑road SUV that alternates between empty commuting and occasional cargo could lean toward parabolic steel or composite springs for a smoother ride and reduced unsprung mass.
A custom trailer built for occasional family camping trips might choose composite leaf springs for reduced maintenance and weight savings.

Maintenance and Common Failure Points — What to Watch For

Leaf spring systems are rugged, but they are not maintenance-free. Understanding common failure points helps prolong service life and avoid dangerous failures.

Bushing Wear

Bushings — rubber or polyurethane — are subject to wear, cracking, and collapse over time. When they degrade, the spring eye begins to wobble or shift, which can lead to misalignment, clunking noise, or uneven stress on the leaf stack. For synthetic bushings, occasional inspection and lubrication can extend life; for rubber, replacing every few years (depending on use) is advisable.

Loose or Corroded U‑Bolts

U‑bolts must be torqued to specification. Under-tightening allows the axle to shift under braking or load; over-tightening can deform the spring plate or crush the spring seat. Corrosion — especially in salt-prone environments — can weaken bolt integrity. A torque-check during every major service interval is good practice.

Inter‑leaf Wear or Breakage

In multi‑leaf designs, repeated flexing causes friction between leaves. Without proper lubrication or dampening (e.g., wrap clips, pads), surface wear can create grinding noises and shorten spring life. In worst cases, a cracked leaf may combine with load to cause catastrophic failure. Regular inspection for rust, cracks, or unusual noises is vital.

Shackle or Mount Damage

Bushings here can fail, bolts can shear, or mounts can crack — especially if overloaded or exposed to repeated off-axis stress (e.g., heavy braking, side‑loads in turns). If shackles show excessive play or rust damage, replacement is necessary; driving on compromised mounts can lead to axle misalignment or detachment.

Material Fatigue (Composite Springs)

While composite springs resist corrosion, repeated flex cycles can cause micro‑cracking or delamination — especially at mounting points or where the leaf ends face repeated stress. Unlike steel, damage may not always be visible until failure. Periodic detailed inspection (possibly with dye‑penetrant or other non‑destructive testing) is recommended for vehicles under heavy or frequent use.

Upgrading or Replacing Leaf Spring Systems: Practical Advice

If your vehicle's ride quality, load support, or reliability is no longer acceptable, upgrading the leaf spring system can make a big difference. Below are tips for selecting and installing a new system:

Match Load and Ride Quality Needs: Don't overspecify. A heavy-duty multi-leaf spring on a van seldom loaded may deliver a harsh ride. Conversely, light parabolic springs under a heavy load may sag or bottom out.
Ensure Correct Springs for Axle and Frame Dimensions: Leaves must align with axle seat width, frame hangers, and mounting bolt centers. Incorrect size leads to poor axle positioning or spring binding.
Use High‑Quality Mounting Hardware: Upgrade shackles, U‑bolts, and bushings if original hardware is worn. Forged shackles and high-grade U‑bolts improve durability and reduce maintenance needs.
Consider Anti‑Sway / Helper Leaf Kits for Variable Loads: If vehicle load varies significantly (empty vs full cargo), helper‑leaf or overload kits give flexibility — offering softer ride when empty and better support when loaded.
Maintain Regular Inspection Schedule: Check bushing integrity, U‑bolt torque, leaf alignment, and signs of wear once or twice a year, more often under heavy use. Lubricate where applicable, and replace worn components proactively.

When done properly, an upgraded leaf‑spring setup can restore factory ride quality — or even surpass it — while ensuring safety, load capacity, and long service life.

Why Leaf Spring Components Still Matter in the Age of Coil Springs and Air Suspension

Modern suspensions often favor coil springs or air suspension for comfort and adjustability. So why do leaf springs — and their componentry — remain relevant?

Load-Carrying Capacity: Leaf springs excel at supports heavy loads without sagging. For commercial vehicles, pickup trucks, trailers, and vans, this remains a primary requirement.
Simplicity and Durability: Fewer moving parts, no compressors or bags to maintain — leaf spring assemblies are mechanically simple and rugged, especially valuable in remote or harsh environments.
Cost-Effectiveness: Steel leaf spring systems (and even upgrades) are often far cheaper than air suspensions, both in initial cost and long-term maintenance.
Ease of Replacement: Individual leaves, bushings, or U‑bolts can be replaced without overhauling the entire suspension — making repairs simpler and cheaper.
Strong Under Braking and Towing Loads: When towing or hauling, leaf springs resist squat or sag better than many coil-based suspensions unless those are specially reinforced.

In short, for applications demanding durability, load bearing, and rugged reliability, leaf spring systems — and the quality of their components — remain unmatched.

Common Misconceptions and Mistakes in Leaf Spring Use

Many drivers, fleet managers, or DIY mechanics fall prey to assumptions that can degrade suspension performance or safety. Some common pitfalls:

Assuming All Leaf Springs Are Equal: Not all spring packs are interchangeable. Differences in eye-to-eye length, center bolt position, pack height, and travel arc matter greatly. Installing a leaf pack with incorrect specifications can lead to binding or unsafe geometry.
Neglecting Hardware Wear or Torque: Even the best spring pack will fail prematurely if shackles wobble, bushings are worn, or U‑bolts are loose — yet many only check springs and forget hardware.
Overlooking Interleaf Lubrication or Anti‑Friction Treatments: Without regular attention, metal-on-metal friction heats and wears down spring surfaces — increasing noise and shortening lifespan.
Ignoring Load Variability: A van that sometimes carries no load and sometimes heavy cargo needs a spring setup that balances comfort and strength — otherwise ride or safety will suffer at one or both extremes.
Assuming Composite Springs Are Bulletproof: Composite springs offer advantages but are not invincible. Impact damage, improper mounts, or overloading can cause sudden failure — so regular inspection is not optional.

Avoiding these mistakes ensures that a leaf spring system remains not only functional, but safe and long‑lasting.

Real‑World Case Study: Upgrading a Delivery Van Suspension

Consider a mid‑sized delivery van used by a small business. On some days, it runs nearly empty; on others, it carries heavy parcels. The original factory-installed multi‑leaf spring delivers good load‑carrying capacity but results in a jarring ride when lightly loaded — contributing to driver fatigue and occasional cargo shifting.

Diagnosis and Requirements

Need a suspension supporting payloads up to 1000 kg
Want improved comfort when lightly loaded
Prefer minimal maintenance downtime

Solution Implemented

Replaced original multi-leaf stack with a parabolic steel leaf spring set tailored for the van's axle width and frame mounts
Upgraded to polyurethane bushings for longer life and reduced noise
Installed reinforced U‑bolts and wrap clips to stabilize leaves and prevent interleaf friction

Outcome

Ride comfort improved dramatically when van was empty or lightly loaded — fewer jolts, smoother handling
Under heavy load (~900–1000 kg), van maintained proper ride height and axle alignment
Maintenance intervals extended — bushings lasted longer, and no shifting of leaves occurred during brake-heavy stop-and-go operations

The upgrade delivered a balance of comfort, load capacity, and reduced driver fatigue — underlining how smart component selection and proper installation can transform a basic leaf-spring suspension into a robust and versatile asset.

How to Evaluate Your Leaf Spring System — A Simple Checklist

Before accepting a knock or sag as “normal,” run through this inspection checklist:

Check for visible cracks or rust on spring leaves, particularly near the eyes and ends.
Inspect bushings: look for cracks, flattening, excessive play, or hardened rubber.
Verify U‑bolt torque: see whether nuts are tight and hardware corrosion-free.
Look for axle misalignment or uneven ride height (side-to-side or front-to-back).
Listen for clunking or squeaking noises when accelerating, braking, or going over bumps — possible signs of worn bushings or shifting leaves.
For vehicles that tow or carry variable load, test ride quality both empty and fully loaded to identify sagging or harshness.

Performing this inspection periodically helps catch problems early and avoid costly failures.

Final Thoughts: Why Knowing Components Matters

Understanding the anatomy of a leaf spring system is more than academic — it empowers you to make informed decisions when purchasing, upgrading, or maintaining your vehicle. By recognizing that leaf spring performance hinges not just on the spring pack but on every associated component — bushings, shackles, U‑bolts, mounts — you can diagnose issues more effectively, extend service life, and tailor suspension characteristics to your needs.

Whether you're running a heavy‑duty commercial fleet, equipping an off‑road spec vehicle, or simply upgrading a pickup for mixed use, the choices you make in leaf spring components will define ride comfort, load capacity, maintenance cost, and vehicle longevity.

Choose wisely, inspect regularly, and your leaf spring system will serve reliably — perhaps for decades.

Frequently Asked Questions

What is the typical lifespan of a leaf spring assembly under normal conditions?

Under standard load and usage, a well-maintained steel multi‑leaf spring assembly can last for several hundred thousand miles. Replacement is often only necessary when leaves crack, bushings fail, or mounts become misaligned.

Can I replace only bushings or do I need to replace the entire leaf spring pack when upgrading?

If leaves are in good shape and geometry is correct, upgrading bushings alone (with quality polyurethane or rubber replacements) can significantly improve ride quality and reduce noise. Full pack replacement is only needed when leaves are worn, cracked, or if you want a different spring rate or ride characteristic.

Are composite leaf springs worth the added cost over steel ones?

Composite springs offer weight reduction, corrosion resistance, and smoother ride quality. They are worth the cost for applications prioritizing agility, fuel efficiency, lighter unsprung mass, or minimal maintenance — provided load requirements are within their specifications.

How often should U‑bolt torque and spring alignment be checked?

It's a good practice to check U‑bolt torque and spring alignment at each major service interval — at least every 12 months or every 10,000 to 15,000 miles (whichever comes first), and more often if the vehicle regularly carries heavy loads or operates in harsh environments.

What signs indicate that my leaf springs are overloaded?

Common signs include visible sagging when parked under load, bottoming out on bumps, reduced ride height, frequent contact between chassis and underbody, excessive bouncing or instability when braking or turning, and premature wear or cracking of leaves.

Summary

A leaf spring suspension depends on more than just curved metal — components like spring leaves, bushings, shackles, U‑bolts, and mounts all determine performance. Choosing the right design and material for load, ride comfort, and maintenance needs ensures durability, safety, and optimal vehicle behavior under varied conditions.
