Touch screens have become ubiquitous in modern technology, powering devices from smartphones to industrial kiosks. Yet, one size does not fit all when it comes to touch screen dimensions and designs. Customizing the size of a touch screen is a critical step to optimize user experience, functionality, and integration into diverse applications. This comprehensive article explores the importance of touch screen size customization, the technologies involved, design considerations, and practical applications, enriched with visuals and videos to illustrate key points.

Understanding Touch Screen Size Customization

What Is Touch Screen Size Customization?

Touch screen size customization refers to tailoring the physical dimensions and aspect ratios of touch-sensitive displays to meet specific user requirements or environmental constraints. This customization ensures the device fits perfectly within its intended use case, whether a compact handheld gadget or a large interactive wall display.

Why Customize Touch Screen Size?

  • Optimized User Experience: Different applications require different screen sizes to ensure comfortable interaction. For example, kiosks in public spaces benefit from large screens, while handheld medical devices need smaller, precise touch areas.

  • Space and Installation Constraints: Custom sizes allow integration into unique form factors or limited spaces, such as embedded automotive dashboards or industrial control panels.

  • Cost Efficiency: Custom sizing can reduce wasted materials and improve production efficiency for specialized products.

  • Brand Identity and Aesthetics: Tailored sizes and shapes can enhance product design and differentiate brands.

Technologies Behind Touch Screen Size Customization

Projected capacitive touch screens are the most common for customization due to their responsiveness and multi-touch capability, but their size is limited by material properties like Indium Tin Oxide (ITO) resistivity, which affects sensor performance as size increases.

Custom Size Range Examples

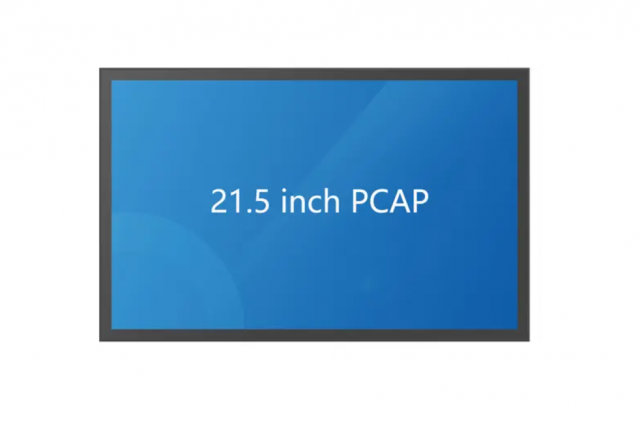

Manufacturers offer custom touch screens from as small as 2.8 inches to as large as 86 inches or more, depending on technology and application needs. For instance, DINGTOUCH provides multi-touch PCAP screens ranging from 2.8” to 65” tailored for various industries, while infrared touch screens can exceed 80 inches for large interactive displays.

Design Considerations for Custom Touch Screen Sizes

User Interaction and Ergonomics

When designing for large touch screens (30 inches and above), consider:

  • Touch Target Size: Larger screens require bigger touch targets to accommodate different user heights and arm reaches. Guidelines suggest touch areas of 8-12 mm minimum per side, scaled appropriately for viewing distance.

  • Viewing Distance and Angle: Larger screens are typically viewed from farther away, affecting font size and UI element spacing.

  • Multi-User Interaction: Large screens often support multiple simultaneous users, necessitating multi-touch support and interface design that prevents accidental touches.

Installation Environment

  • Mounting Style: Wall-mounted, floor-standing, table-top, or embedded options influence screen size and shape.

  • Lighting Conditions: Outdoor or brightly lit environments may require anti-glare coatings or high-brightness displays (1000 nits or higher) to maintain visibility.

  • Durability Requirements: Industrial or public-use screens may need reinforced glass, anti-scratch coatings, or waterproofing.

Custom Shape and Aspect Ratio

Beyond size, customization can include:

  • Aspect Ratios: Widescreen (16:9), square, or custom ratios to fit content or device form factors.

  • Special Shapes: Curved, rounded corners, or irregular shapes for aesthetic or functional purposes.

  • Border and Bezel Design: Narrow bezels or black silk screen borders to maximize active display area.

The Custom Touch Screen Manufacturing Process

Step 1: Requirement Analysis and Specification

  • Define size, touch technology, aspect ratio, and environmental needs.

  • Confirm interface compatibility (e.g., USB, HDMI, VGA).

  • Specify brightness, coating, and durability requirements.

Step 2: Prototype and Design

  • Create CAD drawings for size and shape.

  • Develop touch sensor layout considering electrode length and resistance.

  • Design cover glass with possible logo or branding silk-screened.

Step 3: Production and Testing

  • Manufacture touch sensors and assemble with LCD or display panels.

  • Test for responsiveness, multi-touch accuracy, and environmental robustness.

  • Adjust firmware or software drivers for customized touch behavior.

Step 4: Delivery and Integration

  • Provide documentation for installation and maintenance.

  • Offer software customization options for UI and touch response tuning.

Applications of Customized Touch Screen Sizes

Large Interactive Displays

Used in:

  • Meeting rooms and conference halls (42” to 85”)

  • Museums and exhibitions for interactive content

  • Retail advertising and digital signage

Industrial and Medical Devices

  • Control panels with custom sizes for ergonomic use

  • Portable medical devices requiring compact, precise touchscreens

Automotive and Transportation

  • Dashboard displays tailored to vehicle interiors

  • Ticketing kiosks with ruggedized, custom-sized screens

Consumer Electronics

  • Smartphones and tablets with unique aspect ratios

  • Gaming devices with specialized touch interfaces

Frequently Asked Questions (FAQs)

1. What is the maximum size for a capacitive touch screen?

Capacitive touch screens typically max out around 65 inches due to material constraints, though infrared touch screens can exceed 150 inches.

2. Can I customize the shape of my touch screen?

Yes, manufacturers can produce special-shaped screens, including curved or irregular forms, based on your design requirements.

3. How do I choose the right touch screen size for my application?

Consider user interaction distance, number of users, installation environment, and device form factor to determine the optimal size.

4. Are custom touch screens more expensive than standard sizes?

Custom screens may have higher initial costs but can reduce waste and improve usability, offering better value for specialized applications.

5. Can the touch screen coating be customized?

Yes, options like anti-glare, anti-fingerprint, and high-brightness coatings are available to enhance visibility and durability.

Article Summary

Touch screen size customization is essential for optimizing user experience and device integration across industries. From small handheld devices to large interactive walls, tailored sizes and shapes accommodate ergonomic, environmental, and functional needs. Advances in capacitive and infrared technologies enable diverse size options, while design considerations like touch target dimensions and mounting styles ensure usability. Custom coatings and interfaces further enhance performance, making size customization a key factor in modern touch screen solutions.
