Surface Mount Technology (SMT) machines have become the backbone of modern electronics manufacturing. From smartphones and smart home devices to automotive ECUs and industrial control modules, nearly every compact electronic product relies on SMT processes for speed, precision, and scalability. As electronic components grow smaller and PCBs become denser, the role of SMT equipment is becoming even more critical.
This article explores SMT machines in depth: how they work, their variations, the innovations reshaping the industry, and how manufacturers can select the right equipment. Whether you manage production lines, source electronics manufacturing equipment, or simply want to understand how electronics are built, this comprehensive guide will give you the clarity you need.

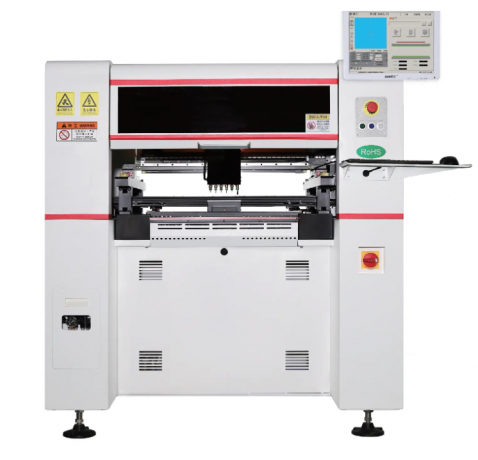

What Are SMT Machines and Why Are They Essential?
SMT machines refer to automated equipment used in the Surface Mount Technology process. Instead of inserting component leads through holes in a PCB, SMT components are mounted directly onto the board's surface. This shift transformed electronics manufacturing, enabling micro-scale components, compact device design, higher throughput, and lower production cost.
Core Processes Supported by SMT Machines
Modern SMT lines include several integrated systems:
-
Solder paste printer – Applies solder paste onto PCB pads through a stencil.
-
Pick-and-place machine – Positions SMT components with precision measured in microns.
-
Reflow oven – Melts solder paste to create permanent joints.
-
AOI (Automated Optical Inspection) – Detects placement and soldering defects.
-
SPI (Solder Paste Inspection) – Ensures paste volume and alignment accuracy.
-
Conveyor & loader/unloader systems – Automate PCB transport and improve cycle efficiency.
Although the pick-and-place machine is often considered the “heart” of the SMT line, each subsystem plays an essential role in building reliable, high-density electronics.
How SMT Machines Work: A Layer-by-Layer Breakdown
Component Feeding
SMT components arrive in reels, trays, or tubes. Feeders present components in a repeatable position so the pick-and-place head can collect them. High-speed lines may use intelligent feeders that store component metadata and adjust automatically for error-free loading.
Optical Alignment and Vision Systems
Before placing each part, the machine uses embedded cameras to inspect:
-
Component orientation
-
Dimensions
-
Fiducial marks on the PCB
-
Pad alignment
This ensures precise placement even for 0402, 0201, or ultra-miniature chips.
Placement Execution
Robotic arms or multi-nozzle heads transfer components from feeder to PCB pads. The more nozzles and the faster the head acceleration, the higher the placement rate.
Reflow Soldering
Once components are placed, the PCB travels through controlled heating zones. The solder paste melts and forms electrical and mechanical connections. Advanced reflow ovens use nitrogen environments to reduce oxidation and improve joint consistency.
Types of SMT Machines and Their Distinctive Characteristics
Entry-Level SMT Machines
These machines focus on cost-efficient production for:
-
Prototyping labs
-
Startups
-
Small EMS companies
特点 include simpler interfaces, slower placement speeds, and fewer feeder slots. They offer flexibility for frequent product changes.
Mid-Range SMT Systems
Designed for small-to-medium manufacturing batches, these machines typically feature:
-
Moderate placement speed
-
Intelligent feeder systems
-
Multi-function heads for mixed component sizes
-
Higher accuracy suitable for fine-pitch devices
This category suits many consumer electronics and industrial product manufacturers.
High-Speed SMT Machines
Built for mass production, they provide:
-
Ultra-fast placement rates
-
Dual-lane conveyor systems
-
Advanced vision correction
-
Support for micro-components
-
High uptime and low maintenance needs
Large EMS factories and semiconductor packaging lines almost always rely on high-speed platforms.
Hybrid Placement Machines
These combine high-speed chip shooters with flexible multi-function heads. They can handle extremely small passive components as well as large, irregular IC packages.
Comparing SMT Machine Categories
Below is a simplified comparison to illustrate key differences.
| Feature / Category | Entry-Level SMT Machine | Mid-Range SMT Machine | High-Speed SMT Machine |
|---|---|---|---|
| Typical Placement Speed | Low | Medium | Very High |
| Best For | Prototyping, small batches | Medium factories | Mass production |
| Component Size Range | Limited | Broad | Ultra-wide |
| Feeder Capacity | Small | Medium | Large |
| Accuracy | Basic | Precise | Ultra-precise |
| Price Level | Low | Moderate | High |
| Maintenance Needs | Low | Medium | Low to Medium |
Key Innovations Driving the SMT Equipment Industry
AI-Enhanced Vision Systems
Machine learning algorithms now detect component orientation and solder joint quality with near-zero false positives. This improves throughput and reduces manual inspection time.
Smart Factory Integration
Modern SMT lines connect with MES, ERP, and cloud systems. Benefits include:
-
Real-time traceability
-
Predictive maintenance
-
Material consumption forecasting
-
Automated quality reporting
Non-Stop Feeder Replacement
Some high-end machines allow operators to replace component reels during operation, minimizing downtime and boosting line efficiency.
Miniaturization Technology
As consumer electronics shrink, SMT machines must support:
-
01005 components
-
Ultra-fine BGA pitches
-
wafers and micro-modules
Precision improvements are now measured in sub-micron increments.
How to Select the Right SMT Machine for Your Production Needs
The ideal SMT equipment depends heavily on product characteristics, order volume, and future production goals. Below are the most important considerations.
Evaluate Placement Speed Versus Product Mix
High-speed machines benefit mass production, but for low-volume, high-mix projects, excessive speed may not justify the cost. Look for flexible head designs that adapt to diverse component types.
Consider Feeder Capacity and Component Variety
More feeder slots mean fewer changeovers. If your factory handles multiple products, higher capacity improves efficiency significantly.
Assess Vision Accuracy and Camera Technology
The more advanced the vision system, the better your yield. Check for:
-
3D inspection capability
-
Automatic calibration
-
Solder joint inspection algorithms
Analyze Long-Term Maintenance Requirements
Look for:
-
Readily available spare parts
-
Easy access points
-
Clear diagnostic systems
Stable long-term performance is often more valuable than peak speed.
Check Software Usability
User-friendly software reduces training time and minimizes human error. Some machines support drag-and-drop programming, automatic pick-up optimization, and cloud-based monitoring.
Estimate Total Cost of Ownership
Cost considerations should include:
-
Initial machine price
-
Feeder investments
-
Upgrade options
-
Operating energy consumption
-
Downtime risk
A cheaper machine may cost more in yield loss and maintenance over five years.
The Role of SMT Machines in Today's Electronics Ecosystem
Consumer Electronics
SMT machines enable compact, lightweight smartphones, wearables, smartwatches, VR headsets, and IoT devices. Without SMT, such electronics would be bulky and expensive.
Automotive Electronics
Key applications include:
-
ADAS systems
-
Battery management modules
-
In-vehicle infotainment
-
Powertrains
High reliability and durability place strict demands on SMT process accuracy.
Medical Devices
SMT supports miniaturized diagnostic systems, implantable devices, and handheld medical tools where compact, high-precision electronics are essential.
Industrial Equipment
Automation controllers, PLCs, and industrial sensors rely on SMT for robust performance in harsh environments.
Future Trends Shaping SMT Machine Development
Full Automation and Lights-Out Manufacturing
Robots now manage reel replacement, PCB loading, and system calibration. The future SMT line may operate with minimal human presence.
Eco-Friendly SMT Processing
Manufacturers are adopting:
-
Lower-temperature solder alloys
-
Energy-efficient reflow systems
-
Recyclable materials
Sustainability is becoming a competitive advantage.
Chiplet and Advanced Packaging Integration
As chiplet architecture grows, SMT machines must handle:
-
High-density interposers
-
Mixed-signal modules
-
Advanced substrate designs
This will push placement accuracy to new extremes.
Common SMT Machine Mistakes and How to Avoid Them
Incorrect Solder Paste Application
Too much or too little paste leads to defects. Always monitor stencil wear and paste viscosity.
Misaligned Boards
If fiducial marks are dirty or covered, placement accuracy will drop. Regular cleaning and inspection help prevent errors.
Poor Reflow Profiling
A reflow oven with the wrong thermal profile can damage components or cause weak joints. Use thermal profiling tools for calibration.
Inadequate Material Storage
Moisture-sensitive components can absorb humidity, leading to failures after reflow. Use dry cabinets and proper labeling systems.
Why SMT Machines Are a Long-Term Investment
While SMT equipment may represent a significant upfront cost, the return comes from:
-
Faster cycle times
-
Lower labor expenses
-
Higher product accuracy
-
Lower defect rates
-
Greater scalability
SMT machines enable companies to compete in global electronics markets where speed and precision determine success.
Frequently Asked Questions
1. What is the most important part of an SMT line?
The pick-and-place machine is often considered the core because it handles component placement, but the entire SMT line must work together for optimal yield.
2. How accurate are modern SMT machines?
High-end systems achieve placement accuracy in the micron range, supporting extremely small components and fine-pitch ICs.
3. Do SMT machines require skilled operators?
While automation reduces manual work, trained operators are still essential for programming, quality control, and maintenance.
4. Can SMT machines handle large components?
Yes. Modern systems can place connectors, shields, large BGAs, and specialized modules along with small passives.
5. How long does it take to set up an SMT machine?
Setup time varies. Entry-level machines require more manual configuration, while advanced models use intelligent feeders and auto-calibration to reduce setup time significantly.
Summary
This article explores SMT machines, including how they work, their key categories, essential components, industry applications, and future innovations. It also provides selection guidance, a comparison table, and answers to common questions to help manufacturers choose the right SMT equipment.
