Modern electronics manufacturing demands extreme accuracy, speed, and repeatability. Among the many factors influencing SMT printing quality, stencil cleanliness plays a decisive role. As components become smaller and solder paste apertures become finer, the cleaning method you choose can define whether your line achieves high first-pass yield or suffers from costly rework. This guide explores the world of stencil cleaning machines, explaining how they work, the technologies behind them, key selection criteria, and how to compare different models before purchasing.
Understanding the Role of Stencil Cleaning
In every SMT line, the stencil is responsible for transferring precise volumes of solder paste to the PCB pads. Over time, paste residues accumulate, clog apertures, and lead to inconsistent deposits. This results in bridging, insufficient solder joints, tombstoning, and many downstream failures.
Manual cleaning methods once helped operators recover clogged stencils, but modern electronics manufacturing requires consistency beyond what human labor can deliver. High-value lead-free paste, finer pitch components, and pressure to reduce defects all make automated stencil cleaning machines indispensable.

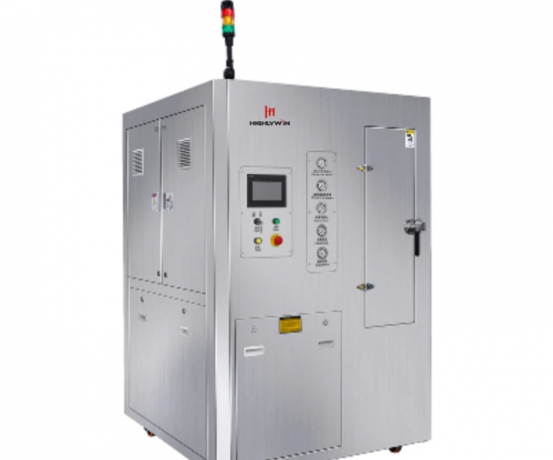

How a Stencil Cleaning Machine Works
A stencil cleaning machine removes solder paste, glue, and flux residues from the stencil surface and aperture walls using a controlled mechanical and chemical process. While designs vary between manufacturers, most machines combine these elements:
-
An enclosed chamber to avoid chemical exposure
-
High-pressure spray or ultrasonic agitation
-
Specialized cleaning fluids compatible with lead-free paste
-
Rinse and drying cycles
-
Filtration systems to reduce solvent consumption
The objective is to restore the stencil to "as new" condition while minimizing damage, ensuring long-term durability and print quality stability.
Types of Stencil Cleaning Machines
Stencil cleaning technology varies depending on how the machine agitates and removes paste from the stencil. The three most common types are described below.
Spray-in-Air Cleaning Machines
These use high-pressure spray nozzles positioned above and below the stencil. They break down solder paste using kinetic energy and fluid flow. Spray-in-air systems work efficiently for most SMT lines and are known for their balance of performance and cost.
Ultrasonic Stencil Cleaning Machines
Ultrasonic systems rely on microscopic cavitation bubbles formed in the liquid. When these bubbles collapse, they generate intense micro-forces that detach hardened paste particles from the stencil. They are extremely effective for fine-pitch apertures and challenging residues but require well-tuned frequency and power levels to avoid stencil damage.
Spray-under-Immersion Cleaning Machines
These machines submerge the stencil in a liquid tank and use directional sprays under the liquid to remove particles. This combination provides thorough cleaning while reducing chemical vapor release and supporting even fluid distribution.
Comparison Table: Spray vs. Ultrasonic vs. Immersion Machines
| Feature / Type | Spray-in-Air | Ultrasonic | Spray-Under-Immersion |
|---|---|---|---|
| Cleaning Strength | Moderate to High | Very High | High |
| Best for Fine-Pitch | Good | Excellent | Very Good |
| Stencil Safety | Very Safe | Requires Proper Tuning | Very Safe |
| Chemical Usage | Moderate | Low to Moderate | Low |
| Cycle Time | Fast | Medium | Medium |
| Cost | Lower | Higher | Medium |
This table helps you quickly determine which machine aligns with production requirements and budget realities.
Why a Stencil Cleaning Machine Matters in Modern SMT Production
Several manufacturing trends highlight why automated cleaning has become essential:
-
Components continue shrinking, increasing stencil complexity
-
Lead-free solder pastes dry faster, reducing workability
-
High-speed printing requires consistent aperture volume release
-
Manufacturers pursue zero-defect strategies
-
Rework costs rise due to multi-layer and high-density PCBs
A well-maintained stencil cleaning workflow directly influences solder paste transfer efficiency, print uniformity, and ultimately final product performance.
Key Features to Look For When Selecting a Stencil Cleaning Machine
Choosing the right equipment requires understanding your line's workload, stencil materials, solder pastes, and environmental policies. Below are the most critical features to evaluate.
Cleaning Technology Compatibility
Your machine must match your stencil type, aperture size, and paste properties. For example, ultra-fine pitch applications below 0.3 mm often benefit from ultrasonic systems due to their unmatched precision.
Chemical or Chemistry-Free Operation
Some machines operate entirely with DI water while others rely on special detergents or solvents. Consider:
-
Environmental regulations
-
Disposal costs
-
Compatibility with your paste supplier's recommendations
Filtration and Chemical Recirculation
A high-quality machine should have a multi-stage filtration system, reducing chemical waste and maintaining stable performance across hundreds of cycles.
Automation Level
Modern machines often include:
-
Automatic dosing
-
Automated spray pressure control
-
Touchscreen PLC interfaces
-
Recipe management for different stencil types
This ensures repeatability regardless of operator experience.
Drying Technology
Effective drying is essential to avoid water droplets or streaks that affect future printing. Features include hot air drying, vacuum drying, or air knife systems.
Machine Footprint and Integration
Space is a premium in SMT factories. Some machines offer a compact vertical design, while others prioritize throughput and capacity. Consider your floor plan and long-term expansion plans.
Environmental and Safety Considerations
More manufacturers prioritize eco-friendly cleaning, focusing on reducing solvent use and minimizing waste discharge. Key environmental features include:
-
Closed-loop solvent systems
-
VOC-free detergents
-
Stainless steel construction for long life
-
Energy-efficient pumps
Safety features also matter: automatic door locks, emergency stops, fluid leak detection, and ergonomic loading systems help protect operators in daily usage.
Cost of Ownership: Beyond the Purchase Price
A stencil cleaning machine represents an ongoing cost investment, not a one-time purchase. When planning your budget, consider:
-
Chemical consumption
-
Maintenance parts
-
Energy use
-
Filtration replacement
-
Labor time saved
Machines with more efficient recirculation systems often pay for themselves through reduced chemical costs and improved line yield.
Common Applications of Stencil Cleaning Machines
While primarily used for SMT stencils, these machines can clean additional components:
-
Squeegees
-
PumpPrint heads
-
Misprinted PCBs
-
Glue dispensers
-
Nano-coated stencils (with correct chemistry)
This versatility improves ROI and simplifies cleaning workflows.
Best Practices for Maintaining a Stencil Cleaning Machine
Even the best machine requires routine care to maintain peak performance. Recommended practices include:
-
Regularly checking spray pressure and nozzle condition
-
Replacing filters as indicated
-
Verifying chemical concentration with automated or manual methods
-
Cleaning the chamber interior
-
Running calibration cycles when necessary
Well-maintained equipment directly contributes to ongoing printing stability and lower defect rates.
Signs Your Production Line Needs an Upgraded Cleaning System
If your SMT line experiences the following issues, your stencil cleaning solution may no longer be sufficient:
-
Inconsistent solder deposits
-
Frequent print defects
-
Squeegee drag marks
-
Increased bridging on fine-pitch components
-
Excessive rework
-
Short stencil lifespan
Upgrading the cleaning machine can improve yield, reduce waste, and enhance reliability across the entire assembly line.
How to Evaluate a Vendor Before Buying
Not all stencil cleaning machines are equal. Before purchasing, evaluate each vendor carefully:
-
Do they provide chemistry guidance and compatibility testing?
-
Is support available for installation and training?
-
Can the machine be customized to match your process?
-
What is the lead time and availability of spare parts?
-
Are sample cleaning tests available before purchase?
Reliable vendors help optimize your cleaning workflow and prevent long-term operational issues.
FAQs About Stencil Cleaning Machines
1. Can all stencil types be cleaned using the same machine?
Not always. Some stencils, especially nano-coated ones, require chemistry-compatible cleaning cycles. Always verify with the manufacturer.
2. How long does the cleaning cycle typically take?
Most machines complete cleaning, rinsing, and drying within 5–15 minutes depending on the technology and residue type.
3. Are ultrasonic cleaning machines safe for fine stencils?
Yes, when frequency and power are calibrated correctly. Modern machines include safeguards to prevent cavitation damage.
4. What type of cleaning fluid should I use?
This depends on your paste, stencil material, and machine type. Many manufacturers provide recommended fluids for optimal results.
5. How often should I clean the stencil during production?
High-precision lines clean after each print or after several cycles depending on paste viscosity, humidity, and stencil aperture design.
Summary
This comprehensive guide explains how stencil cleaning machines enhance SMT printing quality, compares major cleaning technologies, outlines key selection criteria, and provides practical advice for improving yield and reducing defects. Ideal for manufacturers seeking reliable, efficient cleaning solutions.
