Introduction

In the high-stakes world of pharmaceutical manufacturing, accuracy, sterility, and speed matter more than ever. One crucial component in this chain is the vial filling machine. These sophisticated pieces of equipment are vital for dosing liquid medicines into individual vials, ensuring each dose is exactly right. As demand for biologics, vaccines, and specialty injectables continues to explode, the role of vial filling machines is expanding rapidly. In this article, we'll explore everything you need to know about vial filling machines—from basic concepts and types to technological innovations, challenges, and best practices.



Understanding Vial Filling Machines

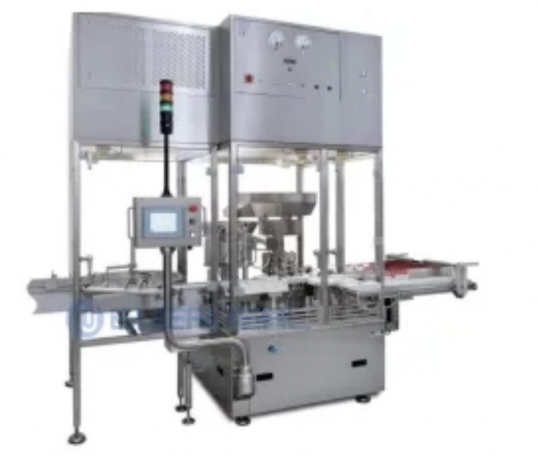

A vial filling machine is an automated system designed to fill sterile liquid products into vials with high precision. Unlike simple bottling machines used in food or chemical industries, vial filling equipment must meet rigorous pharmaceutical standards. It must control for contamination, maintain aseptic conditions, and accurately measure volumes down to microliters. These machines are commonly used in the production of vaccines, injectable drugs, biologics, diagnostics, and other sterile solutions.



Core Components and Functions

To appreciate how vial filling machines work, it's helpful to break down their key components and functions.

• Vial Handling System: This subsystem includes conveyors, rotaries, or feeding mechanisms that transport empty vials, align them, and convey them through various stages of the filling line.

• Sterilization Module: For applications requiring aseptic conditions, machines may include sterilization steps, such as dry-heat tunnels, hydrogen peroxide decontamination, or irradiation.

• Filling Mechanism: This is the heart of the machine. It may rely on piston pumps, peristaltic pumps, or gravity-based systems to draw and dispense the liquid.

• Stoppering System: After filling, vials need stoppers (rubber or silicon) inserted to seal them. This step often demands vertical or rotary capping heads.

• Crimping / Sealing Module: For vials that use crimp caps or aluminum seals, a crimping station ensures a tight, secure seal.

• Inspection Stage: Many machines include inspection systems (e.g., vision systems) to check fill level, foreign particles, stopper placement, and seal integrity.

• Control and Automation: Sophisticated control systems (e.g., PLCs, SCADA) manage filling parameters, dose volumes, speeds, and system alarms.

• Cleaning-In-Place (CIP) / Sterilization-In-Place (SIP): These allow cleaning or sterilizing internal fluid paths without disassembling hardware, which is essential for efficiency and regulatory compliance.



Types of Vial Filling Machines: A Comparative Look

Not all vial filling machines are created equal. Different types suit different applications, depending on the nature of the liquid, required throughput, sterility, and regulatory demands. The following table offers a side-by-side comparison of common types.

Type	Working Principle	Typical Applications	Strengths	Limitations
Piston‑based Filling	Uses pistons to draw and dispense a fixed volume	High‑precision injectables, biotech	Very accurate, good for viscous fluids	Higher maintenance, potential for wear, more parts
Peristaltic Pump	Flexible tubing compresses to move fluid	Cytotoxics, aggressive/sterile fluids	Isolated fluid path, easy to sterilize, good for shear-sensitive liquids	Limited pressure, tube wear, not ideal for very high throughput
Gravity Filling	Liquid flows by gravity through a nozzle	Low-viscosity solutions, vaccines	Simple design, low cost, minimal shear	Less accurate, depends on fluid head height, not ideal for viscous fluids
Pressure / Pump Filling	Uses compressed gas or pump pressure to push liquid	Large-scale vaccine production	High speed, good for low-viscosity	Risk of foaming, complexity in pressure control
Aseptic Filling Systems	A combination of filling, sterilization, and isolation	Sterile drugs, biotech drugs	High sterility assurance, containment	Expensive, complex validation, stringent maintenance

This comparison helps illustrate that selecting the right machine depends heavily on your product and production priorities.



Key Selection Criteria for Your Operation

Choosing the optimal vial filling machine is more than picking based on price. Here are some critical factors to evaluate:

1. Product Characteristics

   • Viscosity: Viscous biologics may need piston-based systems; watery solutions may suit gravity or pressure filling.

   • Foam Sensitivity: If the product foams easily, gentle filling (e.g., peristaltic) helps.

   • Particulate Sensitivity: Drugs sensitive to shear or agitation might require low-shear pumps.

2. Production Volume and Throughput

   • Evaluate how many vials per minute or hour are needed. High-demand vaccines may require high-speed pressure systems.

   • Flexibility versus fixed volume: Will your line need to switch between small-batch clinical and large commercial runs?

3. Sterility and Regulatory Needs

   • Do you need an aseptic filling line?

   • What validation protocols are needed for your product (FDA, EMA, GMP)?

   • Cleaning cycles: CIP and SIP capabilities can reduce downtime while ensuring compliance.

4. Accuracy and Precision

   • What is the acceptable deviation in fill volume?

   • Do you require inline metrology (fill-level monitoring, weight checks)?

5. Contamination Risk and Containment

   • For cytotoxic or highly potent drugs, containment features are essential.

   • Barrier systems or isolators may be required to protect operators and product.

6. Maintenance and Operating Costs

   • Parts subject to wear (piston rods, pump tubing) need regular replacement.

   • The cost of sterilizing agents, rigour of cleaning, and downtime all factor in.

7. Scalability and Flexibility

   • Can the machine adapt to different vial sizes or formats?

   • Does the vendor support modular upgrades?

8. Validation and Documentation Support

   • Suppliers should provide documentation such as IQ/OQ/PQ scripts, traceability, and change control.

   • Regulatory support can simplify qualification of new lines.



Technological Innovations and Trends

The vial filling machine landscape is evolving quickly, driven by technological innovation and shifting pharmaceutical trends. Here are some of the most important developments:



Isolation and Containment Technologies

Barrier isolators and RABS (Restricted Access Barrier Systems) are increasingly common. These systems reduce contamination risk and protect operators, making them critical in sterile and high-potency filling.



Advanced Metrology and Vision Systems

Modern machines include high-speed vision systems capable of detecting fill-level variation, foreign particles, and misalignment in real time. Coupled with machine learning, these inspection systems are becoming more intelligent, flagging even subtle anomalies.



Single-Use Technologies

Single-use fluid paths and disposable assemblies reduce cross-contamination risks and save validation time between batches. They are especially useful in clinical manufacturing or multiproduct facilities.



Digital Twins and Predictive Maintenance

Digital twin models allow manufacturers to simulate and optimize performance, anticipate breakdowns, and plan maintenance proactively. Combined with sensor-based predictive maintenance, these technologies reduce downtime and improve throughput.



High-Speed Aseptic Filling

New generation machines are pushing the boundaries of throughput without compromising sterility. Technologies like micro-dosing, multi-nozzle filling, and fill-by-weight are enabling faster lines suited for large-scale vaccine production.



Benefits and Return on Investment

Investing in a vial filling machine brings several advantages — but the return on investment (ROI) depends on how well the machine aligns with your process. Here are the key benefits and ROI drivers:

• Increased Throughput: Compared to manual filling, automated systems dramatically increase the number of vials processed per hour.

• Improved Accuracy and Reduced Waste: Precise metering reduces overfills, underfills, and rejects, lowering cost per dose.

• Enhanced Sterility and Safety: Advanced machines with isolators or barrier systems reduce contamination and risk to operators.

• Regulatory Compliance: Pre-validated systems and documentation support reduce risk during inspections and speed up approval.

• Flexibility for Multiproduct Lines: Modular designs and single-use options let you switch formats quickly, maximizing asset utilization.

• Lower Total Cost of Ownership (TCO): While capital cost is high, lower labor costs, reduced rejects, and predictive maintenance combine to deliver strong long-term ROI.



Operational Challenges and Maintenance

Operating a vial filling machine is not without challenges. Here are some common issues and how to mitigate them:



Validation Complexity

Qualifying a vial filling system involves installation qualification (IQ), operational qualification (OQ), and performance qualification (PQ). These stages demand extensive testing, documentation, and often third-party audits.



Preventing Cross‑Contamination

When switching between products, cross-contamination risk looms. Implementing robust cleaning protocols, validated CIP/SIP cycles, or disposable fluid paths is essential.



Tubing and Pump Wear

In peristaltic pumps, tubing degrades over time. Regular replacement schedules are needed. For piston systems, seals and pistons require maintenance. Having a spares strategy is crucial.



Calibration and Accuracy Drift

Filling accuracy can drift over time. Regular calibration, weight checks, and fill-level inspections are necessary to maintain precision.



Containment Integrity

Ensuring isolators and barrier systems remain sealed over time is critical. Leak testing, pressure decay tests, and routine maintenance of gaskets or gloves are essential.



Downtime for Changeovers

Switching vial sizes or products can lead to downtime. Single-use paths or quick-change parts can help, but planning and staff training remain key.



Quality Assurance and Regulatory Considerations

In pharmaceutical manufacturing, quality assurance (QA) is paramount. Vial filling machines must comply with stringent regulatory requirements. Here are important QA and regulatory dimensions to consider:

• GMP Compliance: All filling operations must adhere to Good Manufacturing Practice. That means controlled environments, validated processes, traceability, and documented standard operating procedures.

• Sterility Assurance: For injectable products, sterility must be maintained throughout. Sterilization protocols, microbial monitoring, environmental controls, and isolator integrity tests are mandatory.

• Particulate Control: No visible particles can be present. Vision inspection and filter verification are often used.

• Traceability: Batch records, logbooks, electronic data capture, and audit trails help ensure every vial can be traced back.

• Qualification Protocols: IQ/OQ/PQ must be documented and executed to show that the system performs as designed, under worst-case conditions.

• Supply Chain Validation: Consumables like stoppers, sealing materials, tubing, and filters must be qualified and traceable.

• Change Control and Deviations: Regulatory frameworks demand rigorous processes for managing change, investigating deviations, and triggering corrective and preventive actions (CAPA).



Implementation Best Practices

To maximize the benefits of a vial filling machine, companies should follow a set of best practices when implementing and operating these systems:

1. Perform a Thorough Needs Assessment

   Begin with a detailed analysis of product volume, expected growth, flexibility needs, validation constraints, and regulatory environment.

2. Engage Suppliers Early

   Select vendors that offer validation support, training, spare parts, and lifecycle documentation. Co-develop performance specifications (FPS) and user requirement specifications (URS).

3. Optimize Layout and Workflow

   Arrange your production line to minimize manual handling, avoid cross-traffic, and maintain separation between clean and non-clean zones.

4. Train Operators and Maintenance Staff

   Develop structured training programs for line operators, maintenance technicians, and quality assurance personnel. Emphasize aseptic technique, line clearance, and changeover protocols.

5. Establish Maintenance and Calibration Schedules

   Create preventive maintenance plans for pump tubing, pistons, sensors, and other wear parts. Establish calibration cycles for weight checks and fill volume validation.

6. Implement Data Monitoring and Analytics

   Use SCADA or other control systems to log process parameters, fill volumes, and fault data. Analyze trends to detect drift or potential issues early.

7. Validate and Re-validate When Needed

   Conduct full IQ/OQ/PQ upfront. After major modifications or changeovers, re-validate critical steps. Document and audit all processes.

8. Plan for Continuous Improvement

   Maintain a culture of feedback and optimization. Use process data and quality metrics to iterate on cycle times, line speeds, and yield.



Future Outlook and Trends

Looking ahead, the vial filling machine market is poised to continue evolving, driven by several powerful forces.

• mRNA Vaccines and Biologics: The growing demand for advanced therapies (like mRNA vaccines) increases the need for highly precise, high-throughput aseptic filling systems.

• Personalized Medicine: Smaller batch sizes and rapid changeovers make modular, single-use systems more attractive.

• Digitization: Integration of Industry 4.0 technologies—including digital twins, real-time analytics, and predictive maintenance—will optimize OEE (overall equipment effectiveness).

• Sustainability: Manufacturers are seeking more sustainable operations through reduced water/energy usage in CIP/SIP, and use of biodegradable or recyclable disposables.

• Regulatory Innovation: Regulators are adapting to new technologies, possibly offering expedited pathways or more flexible validation for single-use and closed systems.



Risks and Challenges on the Horizon

Alongside opportunities, risks persist. Supply chain disruptions (e.g., of tubing or stoppers), rising costs of single-use components, and skilled labor shortages could hamper growth. Cybersecurity is another concern: as machines become more connected, they may become targets for malicious actors. Regulatory changes may also require rapid adaptation, especially in emerging markets.



Conclusion

Vial filling machines are the cornerstone of modern injectable drug manufacturing. They drive precision, sterility, and productivity—everything that matters when producing life-saving medicines. The right choice of filling technology depends heavily on your product, volume, and regulatory requirements. As innovation accelerates, especially in single-use systems and digital tools, manufacturers will be better positioned than ever to produce high-quality vials safely, efficiently, and sustainably. However, choosing, validating, and operating a vial filling machine remains a complex challenge that demands strategic planning, skilled teams, and a long-term commitment to quality.



Frequently Asked Questions

Question 1: What types of vial filling machines are best for small-batch clinical manufacturing?

Answer: For small-batch clinical manufacturing, peristaltic pump-based or single-use filling lines are often ideal. These systems are flexible, have lower validation burden, and can be changed over quickly between different formulations without heavy cleaning or requalification.

Question 2: How do I validate a vial filling machine for GMP compliance?

Answer: Validation involves establishing qualification protocols—Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ). You need to test worst-case scenarios, verify fill accuracy, test sterility or contamination control, evaluate cleaning cycles, and document all steps in accordance with regulatory guidelines.

Question 3: How do you minimize contamination risk during vial filling?

Answer: To minimize contamination, you can use barrier isolators or RABS to separate the operator from the product. Implement CIP/SIP cleaning cycles, maintain strict gowning procedures, use HEPA-filtered air flows, and regularly monitor for particulates and microbial contamination with inline inspection and environmental monitoring.

Question 4: What is the typical cost of a vial filling machine?

Answer: The cost varies significantly depending on the type, capacity, sterility features, and level of automation. A basic gravity filling machine for non-sterile liquids may be relatively inexpensive, while a high-speed aseptic filling and crimping line with isolators and vision inspection can run into the millions. Lifetime costs also include maintenance, spare parts, validation activities, and utilities.

Question 5: Can a filling machine handle different vial sizes or formats?

Answer: Yes, many modern vial filling machines are modular and configurable. They support multiple vial sizes and shapes, changeover kits, and adjustable conveyance systems. However, switching formats typically requires changeover planning, re-validation, and often spare parts tailored to the new vial type.

Question 6: How do predictive maintenance and digital twin technology improve production?

Answer: Predictive maintenance uses real-time sensors and analytics to anticipate when components (like pump tubing or pistons) will wear out. Digital twins create a virtual model of the filling machine, allowing you to simulate processes, optimize performance, and plan maintenance without stopping production. This reduces downtime and maximizes output.

Summary

Vial filling machines are essential in pharma manufacturing, delivering precise, sterile dosing for injectables. This article breaks down types (piston, peristaltic, gravity), key selection factors, technological trends like single‑use and digital twins, and best practices for validation and maintenance.
