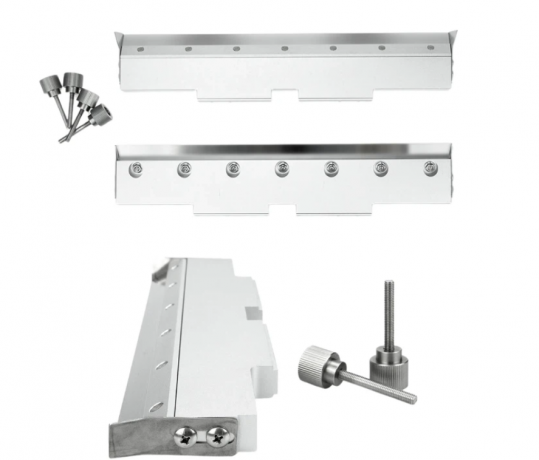

Introduction
In the world of surface‑mount technology (SMT), success depends on more than just the core machines — the pick‑and‑place, the reflow oven, the stencil printer. Equally critical are the often-overlooked SMT accessories that enable precision, reliability, and optimal throughput. From nozzles and feeders to cleaning tools and flux pens, these components influence yield rates, reduce downtime, and ultimately shape the efficiency of any electronics manufacturing line. This article explores the landscape of SMT accessories, explains how to choose the right ones for your workflow, compares common options, and offers guidance on maintenance and cost‑effectiveness. Whether you're running a small prototyping lab or a high-volume production facility, a solid grasp of SMT accessories can dramatically leapfrog your PCB quality and efficiency.
What Are SMT Accessories — And Why They Matter
Defining SMT Accessories
SMT accessories comprise all the peripheral tools, consumables, and supporting hardware used in SMT assembly beyond the main machines. They include nozzle sets for pick-and-place heads, feeder tapes and pallets, solder paste dispensing tips, flux pens and syringes, stencil cleaning wipes, reflow trays, vacuum pick-up tools, preheating mats, and cleaning pads, among others. Essentially, these are the enablers of the SMT workflow — small in size, but critical in effect.
The Role of Accessories in Assembly Quality and Throughput
These accessories impact several core aspects of production: placement precision, soldering quality, speed of setup and changeover, maintenance intervals, and waste reduction. A misfitting nozzle, for example, can misplace tiny components or damage them, leading to rework or scrap. Low-quality cleaning wipes may leave residue, affecting solderability. An outdated feeder pallet might jam, causing unplanned stoppages. Therefore, choosing the right accessories isn't just a matter of convenience — it directly affects yield, cost per board, and overall manufacturing reliability.
Common Types of SMT Accessories
Nozzle Sets and Pick‑and‑Place Heads
Nozzles are perhaps the most critical accessory in a pick-and-place system. They are responsible for picking up components — from 0402 passives to BGA packages — and placing them accurately onto the PCB. Nozzles vary by shape, material, internal geometry, and compatibility with different component sizes and shapes. Many manufacturers supply a range of nozzles to handle different component families, often organized as “micro nozzles,” “standard nozzles,” and “large component nozzles.”
Feeder Tapes, Pallets, and Carriers
Feeders hold components and deliver them to the pick-and-place head. Accessories here include tapes for taped components, pallets for loose components, and carriers for special components like connectors. Using the correct feeder tape — in terms of pitch, material, and carrier width — ensures smooth feeding and prevents misfeeds. Pallets for trays and tubes are also important when dealing with odd-shaped or large components.
Solder‑Paste Dispensing Tips and Flux Pens
Many SMT lines include manual or semi-automatic solder-paste or adhesive dispensing. The tips and needles used for dispensing are accessories that determine droplet size, paste volume accuracy, and repeatability. Flux pens, syringes, and dispensers are also critical — especially for rework, touch-up, or manual soldering steps. High-quality tips maintain their shape and size over many cycles, while cheaper ones may degrade, leading to inconsistent paste distribution.
Cleansing Supplies: Wipes, Brushes, and Solvents
Maintaining cleanliness on stencils, pallets, reflow trays, and within the pick-and-place machine is vital. Accessories include lint-free wipes, brushes, solvents, and anti-static cleaning agents. Regular cleaning ensures that solder paste or flux residues don't accumulate, which could otherwise lead to solder defects, bridging, and contamination.
Vacuum Pick‑Up Tools and Preheating Mats
For prototypes or manual assembly, vacuum pick-up pens help with placing sensitive components. Preheating mats warm PCBs to reduce thermal shock during soldering or rework. Both are simple accessories, but they significantly help improve handling and solder quality — especially when working with mixed-technology boards (SMT + through-hole + BGAs).
How to Choose the Right SMT Accessories for Your Production Needs
Match to Machine and Component Types
First and foremost, accessories must be compatible with your core machines. A nozzle must fit onto the pick-and-place head and must be matched to the component sizes you routinely place. Feeder tapes must match component packaging widths and pitches. When working with mixed components or frequent changeovers, a flexible inventory of nozzles, feeders, and tips is worthwhile. If your line uses small passives, BGAs, and connectors in the same run, plan for nozzles that cover a broad size range.
Balance Between Quality and Cost
Lower-cost accessories may seem appealing, especially in a prototyping context. However, in a production environment, the cost-efficiency of reliable, high-yield accessories quickly outweighs the upfront savings. For example, durable nozzles might cost more, but if they reduce misplacement rates, scrap, and downtime, they often pay for themselves in hours. Evaluate total cost of ownership — not just purchase price.
Consider Throughput and Changeover Frequency
In high-mix or high-changeover environments (e.g. contract manufacturers, small-batch production), having a versatile set of accessories is critical. Quick‑release feeders, easy-to‑clean solder tips, and a stock of cleaning tools reduce changeover time and maintain line momentum. If your line rarely changes, or runs long batches, choose accessories optimized for consistency and lifespan.
Assess Material Compatibility and Environmental Conditions
Some accessories are sensitive to environmental factors — humidity, static, temperature. For example, solder‑paste dispensing tips may clog if humidity is high; cleaning solvents may evaporate quickly if ventilation is poor. Nozzles made of certain materials (e.g. brass) may wear faster under abrasive fluxes or frequent use, whereas ceramic or stainless‑steel nozzles may endure longer but at higher cost. Evaluate based on your environment and usage frequency.
Comparing Popular SMT Accessory Options
| Accessory Type | Material / Option | Precision & Reliability | Typical Longevity / Re‑use | Best Suited For | Relative Cost |
|---|---|---|---|---|---|
| Nozzle (brass) | Standard brass nozzle set | Good for common components, moderate wear | 300–500 cycles before wear | General mid-volume production | Low |
| Nozzle (stainless steel) | SS precision nozzles | High placement precision, resistant to wear & flux | 800–1200 cycles | Fine-pitch BGAs, high-mix boards | Medium |
| Nozzle (ceramic) | Ceramic composite nozzles | Excellent stability, minimal wear, heat‑resistant | 1000+ cycles | High-reliability boards, premium products | High |
| Feeder tape (standard embossed) | 8 mm / 12 mm / 16 mm | Reliable for tape-and-reel components | Single-use tapes; carriers reusable | Most SMT runs | Low per reel |
| Feeder pallet (tray) | ESD-safe plastic pallet | Reliable for loose/tray components | 100s of cycles if cleaned | Mixed-component boards | Low–Medium |
| Dispensing tip (brass) | Standard solder paste needle | Basic dispensing, prone to clogging | Single-use to short reuse | Low-volume prototypes | Low |
| Dispensing tip (stainless / hardened) | Precision dispensing needle | Accurate paste dispensing, less clogging | Multiple uses if cleaned properly | Production adhesive/solder dispensing | Medium |
| Cleaning wipes (lint-free) | Polyester wipes | Residue-free cleaning | Single-use wipes | Stencil and tray cleaning | Low |
| Cleaning wipes (premium) | Non-woven, anti-static, lint-free | Cleanest results, minimal lint | Single-use | High-reliability boards | Medium |
| Vacuum pick-up pen (standard) | Basic suction pen | Good for manual placement | Durable | Prototyping / rework | Low |
| Vacuum pick-up pen (ESD-safe) | ESD-safe suction pen | Safe for sensitive components | Durable | Prototyping / rework of sensitive boards | Medium |
Maintenance, Cleaning, and Lifecycle Management
Even the best accessories will fail or underperform if not properly maintained. Handling maintenance proactively can extend longevity and protect quality.
-
Nozzle care: Clean thoroughly after each run or daily; inspect for wear and replace if edges are chipped or suction is diminished.
-
Feeder and pallet upkeep: Clean tape guides, rollers, and pallet surfaces; check for ESD compliance.
-
Dispensing tip maintenance: Clean reusable tips immediately after use; store properly to prevent clogging.
-
Cleaning supplies inventory management: Maintain stock of lint-free wipes, brushes, and approved solvents; discard contaminated wipes.
-
Vacuum tools and preheating mats: Check suction cups, clean mats, and ensure thermal function for consistent results.
Cost‑Benefit Analysis
Cheap accessories may reduce upfront costs but can increase scrap, downtime, and rework. Premium accessories improve yield, minimize errors, and provide better total cost of ownership over time, especially in mid- to high-volume production. Investing in high-quality SMT accessories pays off in reliability, efficiency, and consistency.
Practical Tips for Building an Effective SMT Accessory Inventory
-
Start with a core kit of nozzles, standard feeders, dispensing tips, and cleaning supplies.
-
Expand to specialized tools as component types or board complexity increases.
-
Keep spare parts to minimize downtime.
-
Implement a regular maintenance schedule.
-
Track performance metrics like yield, misplacement errors, and accessory lifespan to optimize inventory.
Emerging Trends in SMT Accessories
-
Adaptive nozzles and AI-assisted pick-and-place tooling improve precision and reduce inventory needs.
-
Eco-friendly cleaning supplies reduce hazardous emissions while maintaining performance.
-
Reusable, high-precision dispensing systems lower long-term consumable costs.
-
Modular feeder and pallet systems allow rapid changeovers for high-mix production.
Conclusion
SMT accessories may be small, yet their impact on PCB assembly quality, throughput, cost, and reliability is profound. Choosing the right accessories, maintaining them properly, and understanding tradeoffs can elevate production efficiency and yield. Investing in high-quality accessories often lowers total costs and ensures consistent performance, especially as SMT technology evolves.
Common Questions About SMT Accessories (Q&A)
Q: How often should I replace nozzles in a typical mid‑volume SMT line?
A: For standard brass nozzles, expect 300–500 cycles; stainless or ceramic nozzles last 800–1200 cycles. Inspect daily and replace if edges chip or suction diminishes.
Q: Is it worth investing in premium cleaning supplies?
A: Yes. They reduce residue, contamination, and improve solder paste adhesion, increasing yield and reducing rework.
Q: Can a single set of nozzles cover all component types?
A: No. Maintain a small inventory of nozzles optimized for micro passives, ICs, BGAs, connectors, etc., for precision placement.
Q: What's the impact of poor-quality feeder tapes or pallets?
A: Misfeeds, jams, missing components, rework, scrap, and downtime; often cost more than the savings from cheap supplies.
Q: For a small prototyping lab, is high-end accessories investment necessary?
A: Not always. Budget-friendly accessories may suffice, but attention to maintenance and cleanliness remains essential.
Article Summary
SMT accessories are crucial for PCB assembly quality and efficiency. From nozzles and feeders to cleaning tools, informed selection and maintenance improve yield, reduce downtime, and lower long-term costs. This guide provides practical tips, comparisons, and emerging trends to optimize production workflows.
