Efficient component insertion remains one of the most crucial parts of through-hole PCB assembly. While surface-mount devices dominate much of today's electronics manufacturing landscape, radial components—such as LEDs, electrolytic capacitors, buzzers, diodes, relays and sensors—continue to require precise mechanical insertion before soldering. This is where the Radial Insertion Machine proves indispensable.
Modern radial insertion machines offer fast placement speed, accurate lead forming, and high-level automation, making them essential tools for high-volume electronics factories. This article explores their full functionality, advantages, structure, selection methods, applications, and comparisons with other insertion systems.
Understanding What a Radial Insertion Machine Is

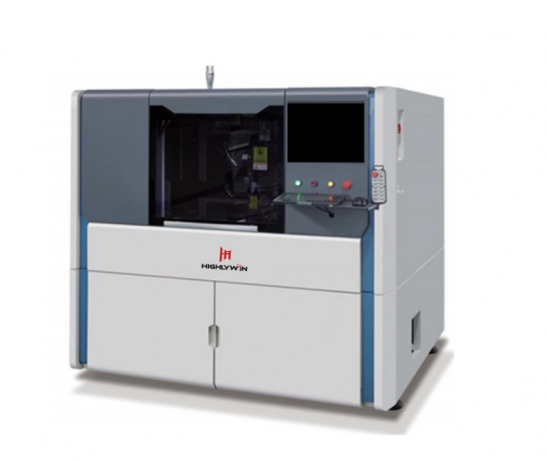

A radial insertion machine is a specialized automated equipment used in through-hole PCB assembly to insert components with radial leads into printed circuit boards. These machines are typically used for parts where the two leads are positioned equally around the component body, pointing downward.
Common components include:
-
Aluminum electrolytic capacitors
-
Tantalum capacitors
-
LEDs and lamp indicators
-
Magnetic buzzers
-
Thermistors
-
Gas arrestors
-
Radial diodes
These machines not only insert components but also cut and form the leads to match the PCB hole pattern, improving both assembly accuracy and final solder joint quality.
How a Radial Insertion Machine Works
Although designs vary by manufacturer, most radial insertion machines follow the same workflow:
Feeding
Components stored in reels or ammunition-style packaging are fed into the machine using a mechanical indexing system.
Lead Cutting and Forming
The machine automatically cuts the leads to the correct length and forms them into precise shapes (kink, clinch, or straight) to ensure stability on the PCB.
Positioning
A servo-driven head aligns the leads with the target holes based on programmed coordinates.
Insertion
The machine inserts the component vertically into the PCB with controlled force to ensure seating accuracy.
Clinch Mechanism
Under the PCB, a clincher bends the leads inward or outward so the component remains stable before soldering.
This combination of automated feeding, forming, and inserting ensures consistent placement speed far exceeding manual insertion.
Why Radial Insertion Machines Remain Relevant
Despite the rise of SMT, radial components remain essential for:
-
High-power circuits
-
Audio and lighting systems
-
Automotive electronics
-
Appliances
-
Industrial controllers
Radial insertion machines help electronics manufacturers maintain speed, consistency, and cost savings that would be impossible with manual labor.
Key reasons for ongoing relevance:
-
Radial capacitors and LEDs still dominate many industries
-
Through-hole components provide stronger mechanical support
-
Many power circuits require large electrolytic capacitors
-
Cost-effective for high-volume production
-
Reduces human error
Benefits of Using Radial Insertion Machines
Improved Productivity
Operators can process thousands of components per hour with minimal interruptions.
Consistent Quality
Automated forming and clinching ensures uniformity across all boards.
Reduced Labor Cost
Far fewer skilled workers are required compared to manual insertion.
Lower Defect Rate
Accurate alignment reduces issues like mis-insertion, bent pins, or poor seating.
Programmable Flexibility
Modern models offer fast program switching for multi-model production lines.
Key Components of a Radial Insertion Machine
Understanding the structure helps in choosing the right machine:
Feeder Unit
Holds component reels and indexes them smoothly.
Lead Forming Unit
Cuts and bends the leads to specified angles before insertion.
Insertion Head
High-precision servo head that aligns components to PCB holes.
PCB Worktable
Adjustable platform that securely positions the board during operation.
Clinch Unit
Performs inward or outward bending to hold the component in place.
Control System
Runs through program files, coordinates movement, and manages error alarms.
Vision System (Advanced Models)
Used for verifying insertion accuracy and compensating for PCB tolerance.
Comparison: Radial Insertion Machine vs Axial Insertion Machine
Below is a comparison table to clarify their differences:
| Feature | Radial Insertion Machine | Axial Insertion Machine |
|---|---|---|
| Component Type | Capacitors, LEDs, buzzers, sensors | Resistors, diodes, axial capacitors |
| Lead Orientation | Two leads pointing downward | Two leads extending from each side |
| Insertion Speed | Typically faster for larger parts | High speed for small axial parts |
| PCB Mounting Stability | Strong due to clinched leads | Moderate stability |
| Ideal Applications | Power circuits, indicators, audio, appliances | Consumer electronics, automotive modules |
| Machine Complexity | Higher due to forming variations | Generally simpler |
Advanced Features Found in Modern Radial Insertion Machines
Intelligent Component Recognition
Some machines detect wrong components automatically.
Auto-Change Feeder
Allows reel replacement without stopping the production line.
Closed-Loop Servo Control
Ensures high accuracy even at maximum speed.
Automatic Defect Ejection
If a part is malformed, the machine discards it before insertion.
Remote Production Monitoring
Supports Industry 4.0 integration for real-time analytics.
How to Choose the Right Radial Insertion Machine
1. Component Variety
Choose a model compatible with your component sizes and lead shapes.
2. Insertion Speed
High-volume manufacturers should prioritize cycle time and feeder capacity.
3. PCB Size Capability
Large boards require a wider worktable and larger motion range.
4. Program Flexibility
Look for user-friendly programming software with quick format switching.
5. Maintenance Requirements
Machines with modular design reduce downtime and repair cost.
6. Available Support
Choose brands with reliable technical support, spare parts, and training.
Common Industries Using Radial Insertion Machines
These machines appear across sectors including:
-
Consumer appliances
-
LED lighting
-
Industrial control modules
-
Power supply manufacturers
-
Automotive electronics
-
Communication base stations
Because many of these industries rely heavily on radial capacitors and LEDs, insertion machines remain fundamental tools for electronics assembly.
Typical Problems and Troubleshooting Tips
Component Jam
Cause: Deformed tape or incorrect feeder alignment
Fix: Re-align feeding path or switch to a new reel.
Mis-Insertion
Cause: Incorrect motion coordinates
Fix: Recalibrate insertion head.
Clinch Failure
Cause: Worn clincher or dust contamination
Fix: Replace clincher set, clean mechanism.
Lead Forming Inaccuracy
Cause: Dull cutting blades
Fix: Replace blade set and lubricate forming unit.
PCB Damage
Cause: Incorrect insertion force
Fix: Adjust downward pressure in software.
Future Development of Radial Insertion Technology
As electronics manufacturing continues evolving, radial insertion machines will incorporate:
-
Higher speed servo systems
-
Optical alignment using AI
-
Predictive maintenance
-
Fully automated reel changing
-
Integration with smart factory MES/ERP systems
Radial components are not disappearing anytime soon, meaning these machines will remain essential in production chains.
Frequently Asked Questions
1. What components can a radial insertion machine handle?
It is designed for components with radial leads, including electrolytic capacitors, LEDs, diodes, buzzers, and thermistors.
2. Are radial insertion machines suitable for small batch production?
Yes, but large-volume production gains the most cost advantages because program switching still requires setup time.
3. Can one machine insert multiple types of components?
Most modern machines support multiple feeders, enabling quick switching between different component types within one program.
4. What affects the accuracy of a radial insertion machine?
Lead forming quality, servo precision, PCB positioning, and calibration all influence accuracy.
5. How long do radial insertion blades last?
Blade life varies by material and production volume, but many factories replace them after several hundred thousand cycles to maintain forming accuracy.
Summary
This article explains how radial insertion machines automate the placement of radial components such as capacitors and LEDs during PCB assembly. It covers machine structure, workflow, benefits, comparisons, troubleshooting, advanced features, selection tips, and industry applications, offering a complete manufacturing guide.
