Introduction

Aluminum honeycomb panels have emerged as a revolutionary material in modern construction and engineering, combining lightweight properties with exceptional strength and versatility. Inspired by the natural hexagonal structure of honeycombs, these panels are engineered to deliver superior rigidity, insulation, and durability while being environmentally friendly. This article explores the composition, manufacturing, advantages, applications, and common questions related to aluminum honeycomb panels.

What Are Aluminum Honeycomb Panels?

Definition and Structure

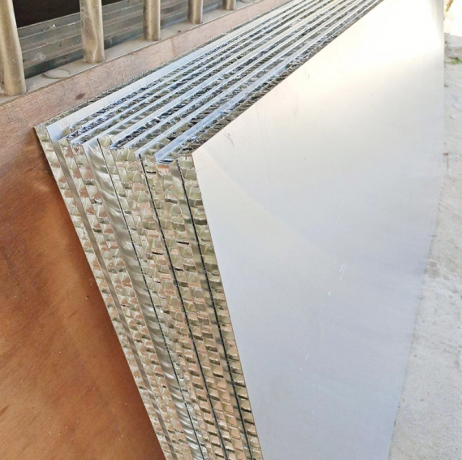

An aluminum honeycomb panel is a composite sandwich panel consisting of a honeycomb-shaped core made from thin aluminum foil bonded between two aluminum skin sheets. The core's hexagonal cells mimic natural honeycombs, providing an optimal balance between weight and strength. This structure acts like a series of miniature I-beams, distributing loads evenly and enhancing rigidity without adding significant weight.

The face sheets are typically made from aluminum alloys such as AA 3003 or AA 5005, with thicknesses ranging from 0.7 mm to 1.5 mm, while the honeycomb core foil thickness ranges from 0.04 mm to 0.08 mm. The panel thickness can vary, commonly between 12 mm and 25 mm, depending on the application requirements.

Manufacturing Process

The manufacturing process involves several key steps:

  • Printing adhesive lines on aluminum foil sheets.

  • Cutting and stacking the foil sheets.

  • Using heat and pressure to bond the layers into a solid honeycomb block.

  • Expanding the block to form the honeycomb structure.

  • Bonding the honeycomb core between two aluminum face sheets under precise temperature and pressure conditions.

This process ensures a durable, flat, and strong panel ready for various uses.

Advantages of Aluminum Honeycomb Panels

Lightweight Yet Strong

Due to the honeycomb core's cellular design, these panels have a very low density, making them significantly lighter than solid aluminum or steel sheets. Despite their light weight, they offer exceptional strength and rigidity, often outperforming heavier materials in strength-to-weight ratio.

Excellent Thermal and Sound Insulation

Although aluminum is a good conductor of heat and sound, the honeycomb structure creates multiple closed air pockets that inhibit heat transfer and sound transmission. This makes aluminum honeycomb panels effective for insulation in buildings, transportation, and industrial applications.

Corrosion and Fire Resistance

Aluminum's natural corrosion resistance extends to honeycomb panels, making them durable in moist or harsh environments. Additionally, many aluminum honeycomb panels meet stringent fire safety standards, being non-combustible and fire-retardant, which is critical for building facades and transportation interiors.

Environmental Sustainability

Aluminum is fully recyclable, and the honeycomb panels contribute to sustainable construction by reducing material usage and energy consumption. Their lightweight nature also reduces transportation emissions and structural load requirements.

Versatility and Customization

Panels can be produced in various thicknesses, cell sizes, and aluminum alloys to meet specific performance needs. They can be flat or curved, allowing for architectural flexibility. Surface finishes can be customized with coatings like PVDF for aesthetics and weather resistance.

Applications of Aluminum Honeycomb Panels

Building and Construction

Used extensively for curtain walls, facades, ceilings, partitions, and roofing, aluminum honeycomb panels provide a lightweight, strong, and fire-safe cladding solution. Their flatness and finish consistency make them ideal for modern architectural designs.

Transportation

The aerospace and railway industries utilize these panels for aircraft interiors, train coaches, and metro cars due to their lightweight and high strength, which contribute to fuel efficiency and safety.

Industrial Uses

They serve as core materials in sandwich panels for floors, doors, partitions, and working surfaces in machinery. The panels' stiffness and impact resistance improve durability in demanding environments.

Doors and Furniture

Aluminum honeycomb cores are used in door manufacturing to reduce weight while maintaining strength and durability. This results in easier installation, reduced hardware stress, and long-lasting performance without warping.

Frequently Asked Questions (FAQs)

Q1: What makes aluminum honeycomb panels stronger than solid aluminum sheets?

A1: The honeycomb core acts like a network of I-beams, distributing stress evenly and providing superior rigidity, which results in a higher strength-to-weight ratio than solid sheets.

Q2: Are aluminum honeycomb panels suitable for fire-prone environments?

A2: Yes, many aluminum honeycomb panels are non-combustible and meet fire safety certifications, making them safe for use in building facades and transportation interiors.

Q3: How do aluminum honeycomb panels provide sound insulation?

A3: The hexagonal cells trap air and reduce sound transmission by absorbing sound waves and preventing reflection, despite aluminum itself being a good sound conductor.

Q4: Can aluminum honeycomb panels be recycled?

A4: Absolutely. Aluminum is 100% recyclable without loss of quality, making these panels an environmentally sustainable choice.

Q5: What industries benefit most from aluminum honeycomb panels?

A5: Aerospace, construction, transportation, and industrial manufacturing benefit from their lightweight, strength, insulation, and durability properties.

Conclusion

Aluminum honeycomb panels represent a cutting-edge material solution combining lightweight design with exceptional strength, insulation, and sustainability. Their unique honeycomb core structure offers advantages across multiple industries, from aerospace to architecture. With customizable specifications and proven performance, these panels continue to redefine modern construction and manufacturing standards.

Article Summary


Aluminum honeycomb panels are advanced composite materials featuring a lightweight hexagonal core bonded between aluminum sheets. They offer unmatched strength-to-weight ratios, excellent thermal and sound insulation, corrosion and fire resistance, and environmental sustainability. Widely used in construction, aerospace, and transportation, these panels provide durable, lightweight, and versatile solutions for modern engineering challenges.
