Introduction

In modern electronics manufacturing, the surface mount technology process determines not only the quality of assembly but also the long-term reliability of electronic products. Among all SMT components, the SMT nozzle is often underestimated despite being one of the most critical contributors to placement accuracy, machine speed, and yield rate. A high-quality nozzle does more than pick components; it ensures stable suction, reduces misplacement, enhances repeatability, and even lowers operational costs by minimizing downtime.

This comprehensive guide explores how SMT nozzles work, the materials that influence their durability, key criteria to select the correct nozzle, comparison of common nozzle types, and insights into future SMT nozzle technology. Whether you are a production engineer, buyer, or factory owner, this article will serve as your most practical and up-to-date reference.

Understanding the Role of SMT Nozzles in the Placement Process

An SMT nozzle is the interface between the pick-and-place machine and the electronic component. It utilizes vacuum pressure to pick up components and places them precisely on solder paste-coated pads. Although its appearance is small and simple, the nozzle affects multiple performance parameters:

• Placement accuracy

• Component stability

• Machine speed and throughput

• Wear resistance and maintenance cost

• Compatibility with specific components and feeders

A mismatch between nozzle and component can lead to repeated drop-outs, rotation errors, skewing, and even PCB scrap. Therefore, selecting the correct SMT nozzle is a strategic decision rather than a simple consumable purchase.

How an SMT Nozzle Works

The working principle is based on vacuum, airflow, and component geometry. When activated, the nozzle creates negative pressure to lift the component from its tape pocket or tray. During movement, the machine's vision system adjusts the component orientation. Finally, the nozzle releases the vacuum and positions the component on the board.

A high-performance nozzle features:

• A stable vacuum flow path

• Anti-static and anti-adhesion surface

• Proper inner diameter to match component size

• Precision-cut edges to reduce component damage

The better the nozzle design, the smoother and faster the pick-and-place process becomes.

Classification of SMT Nozzles

SMT nozzles differ depending on machine brands, component size, and application. Below is a practical grouping used in real factories:

By Machine Platform

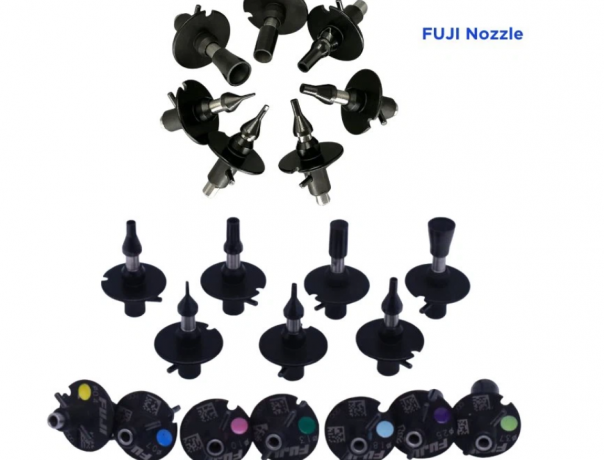

• Yamaha nozzles

• Juki nozzles

• Fuji nozzles

• Panasonic nozzles

• Siemens nozzles

• Samsung nozzles

Each platform has its own dimensions, connection method, and recognition features.

By Component Category

• Standard chip components (0201, 0402, 0603, etc.)

• ICs and QFPs

• BGA and CSP

• LEDs

• Odd-shape components

By Feature and Design

• Standard vacuum nozzles

• Special nozzles for fragile components

• Ceramic-coated nozzles

• Rubber-tip nozzles

• Customized industrial application nozzles

Comparison Table: Common SMT Nozzle Types and Their Advantages

Below is a table comparing popular nozzle materials and structures:

This table helps engineers quickly identify the most suitable nozzle type for different production needs.

Key Factors When Selecting an SMT Nozzle

Component Size and Shape

The nozzle's inner diameter must match the component's pickup area. Oversized nozzles reduce stability; undersized nozzles cause component flipping or damage.

Vacuum Capability

A smooth airflow path ensures reliable pickup. Narrow or rough vacuum pathways may reduce suction.

Material and Surface Treatment

Better materials directly translate to longer lifespan and fewer alignment errors. Ceramic coatings, diamond coatings, and anti-static finishes are becoming increasingly popular.

Machine Compatibility

Each brand has precise mechanical tolerances. Using third-party nozzles without strict quality control may cause:

• Recognition failures

• Lower machine speed

• Increased calibration issues

Component Fragility

For LEDs, lenses, or ultra-thin chips, soft or rubber nozzles prevent scratches and breakage.

Why High-Quality Nozzles Increase Production Efficiency

A premium nozzle contributes to:

• Higher pickup rates

• Reduced downtime

• Longer maintenance intervals

• Improved product consistency

• Lower cost per board

In large factories running 24-hour cycles, a small reduction in misplacement rate can save thousands of dollars per month.

SMT Nozzle Maintenance and Common Issues

Routine Maintenance Tips

• Clean vacuum hole with special pins

• Remove solder paste residue

• Inspect nozzle tip for cracks

• Avoid harsh brushing that damages the coating

• Store nozzles in anti-static trays

Common Failures

• Vacuum leakage

• Broken nozzle tip

• Deformed rubber head

• Incorrect recognition by vision system

• Electrostatic buildup

Regular inspection dramatically extends nozzle longevity.

The Future of SMT Nozzle Technology

Manufacturers are introducing next-generation technologies, such as:

• AI-optimized nozzle geometry

• Anti-adhesion nano-coated surfaces

• Wear-predictive maintenance via machine data

• Universal quick-change interfaces

• Ultra-lightweight composite materials

The direction is clear: higher speed, lower cost, smarter diagnostics, and compatibility with micro-miniature components.

Frequently Asked Questions (FAQ)

1. How long can an SMT nozzle typically last?

Depending on material and usage, it can last from several weeks to several months in continuous production.

2. Can universal nozzles replace OEM nozzles?

Yes, if manufactured with tight tolerances. However, low-quality universal nozzles may reduce accuracy.

3. Why is ceramic coating important?

It improves wear resistance, reduces static, and prevents adhesion of solder or debris.

4. How often should nozzles be cleaned?

Generally every shift, but high-precision production may require more frequent cleaning.

5. What causes a nozzle to drop components?

Possible reasons include worn tip, incorrect diameter, dirty vacuum hole, or unstable airflow.

Summary

This article introduces the working principles, classifications, material differences, and selection criteria of SMT nozzles. It explains how nozzles affect accuracy, production efficiency, and cost, compares common nozzle types, highlights maintenance tips, and provides insights into future SMT nozzle technologies.
