Surface Mount Technology continues to evolve at a rapid pace, and few components inside an SMT line influence placement accuracy as dramatically as the SMT nozzle. While often overlooked, nozzles determine pick-and-place precision, speed, compatibility with micro-components, and overall line efficiency. This guide explores the latest nozzle innovations, material improvements, automation trends, and selection strategies to help factories enhance production quality with minimal downtime.
Understanding the Function of an SMT Nozzle
At the center of every pick-and-place system, an SMT nozzle performs three core tasks:
-
Picking components from the feeder
-
Holding them securely through negative pressure
-
Placing them accurately on the PCB pad
Although simple in concept, the tolerances, geometry, and material properties of a nozzle directly shape its stability and reliability. Modern nozzles must operate across high-speed cycles, tiny component sizes, and complex package shapes, often requiring customized engineering to meet production demands.

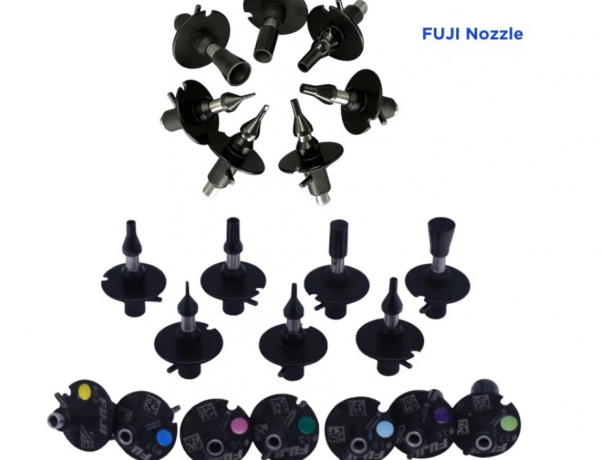

Types of SMT Nozzles Used Today
Standard Vacuum Nozzles
These nozzles rely on suction power to grip components. They are commonly used for resistors, capacitors, diodes, and most small to medium SMD packages. Their durability and broad compatibility make them essential in general-purpose pick-and-place work.
Mechanical Nozzles
Larger or odd-shaped components sometimes cannot be handled by suction alone. Mechanical nozzles use grippers, claws, or clamps to secure heavy or irregular items. They allow extended flexibility for power modules, connectors, or industrial components.
Custom Nozzles
Manufacturers increasingly rely on custom-designed nozzles for micro-LEDs, ultra-thin chips, sensors, BGA variants, chip-on-film devices, and flexible PCB modules. Custom shapes reduce mis-picks and rework cost.
Ceramic Coated Nozzles
To improve wear resistance and minimize static or contamination during high-volume production, many new nozzle designs use ceramic coatings or full zirconia structures. These provide excellent durability compared to plastic or metal-only types.
Structural Innovations in SMT Nozzle Design
Miniaturization for Micro-Components
With 01005 and 008004 component sizes becoming standard, modern nozzles must support extremely small contact points. Micro-cavity designs and ultra-thin walls ensure a secure grip without damaging components.
Anti-Static Surface Treatments
Electronics such as wearable devices or automotive sensors are increasingly sensitive to ESD. Anti-static coatings on nozzle tips protect against electrostatic discharge to reduce device failure risk.
Precision-Machined Airflow Channels
Advanced CNC and laser machining now shape airflow more accurately, reducing turbulence and increasing consistent suction across the entire placement cycle.
Interchangeable Nozzle Patterns
Some systems allow quick swapping of nozzle tips, enabling multi-product lines to run different components without replacing entire nozzle assemblies.
Material Comparison: Which Nozzle Performs Best?
Below is a comparison table showing how common SMT nozzle materials differ:
| Material Type | Durability | ESD Resistance | Suction Stability | Cost Level | Best Application |
|---|---|---|---|---|---|
| Stainless Steel | High | Low | High | Medium | General components, harsh environments |
| Plastic / Polymer | Medium | Medium | Medium | Low | Low-cost production, standard SMD |
| Ceramic / Zirconia | Very High | Very High | Very High | High | Micro-components, precision work |
| Rubber-Coated Tips | Low | Medium | High | Low | Lightweight parts, fragile components |
Ceramic-based nozzles have become the preferred choice for high-precision production lines due to their exceptional wear resistance and stable performance over long cycles.
How SMT Nozzles Influence Production Efficiency
Pick-and-Place Accuracy
A slight misalignment in nozzle geometry can shift component placement by microns, causing solder defects or complete placement failure. High-precision nozzles with stable airflow significantly improve yield.
Speed Optimization
High-speed lines running tens of thousands of placements per hour depend on lightweight, friction-optimized nozzles to avoid rotational drag and maintain accurate Z-height control.
Reduction of Mis-Picks
A worn or poorly matched nozzle often leads to mis-picks, double-picks, or dropped components. Selecting the correct nozzle shape—round, square, slotted, or custom—reduces machine downtime.
Compatibility and Changeover Time
Nozzles designed for rapid installation and removal help factories perform faster product changeovers, essential for high-mix, low-volume manufacturing.
Choosing the Right SMT Nozzle for Your Line
Consider Component Variety
If your line handles microchips, LEDs, and connectors, you may require a mix of vacuum nozzles and mechanical nozzles to avoid mis-handling.
Match Nozzle Size to Component Contact Area
A nozzle too small may cause instability, while one too large may damage the components. Matching the tip opening to the actual pickup surface avoids unnecessary rework.
Check Machine Brand Compatibility
Different SMT machine brands require specific nozzle mounting styles. Examples include:
-
Yamaha
-
Juki
-
Panasonic
-
Fuji
-
ASM / Siemens
-
Hanwha / Samsung
Using incompatible or low-precision nozzles may cause detection errors or height calibration failures.
Evaluate Material Needs
For high-speed micro-assembly, ceramic nozzles are ideal. For general low-cost production, polymer nozzles may be sufficient.
Maintenance Strategies to Extend Nozzle Life
Nozzles operate in an environment with dust, solder paste particles, flux residues, and occasional feeder debris. Proper maintenance is crucial:
Regular Cleaning
Use ultrasonic cleaners or lint-free wipes to remove contaminants. Avoid chemical solvents that degrade rubber tips.
Inspection Under Microscope
Chips, cracks, and wear marks can weaken suction and reduce accuracy. Early detection prevents the nozzle from damaging valuable components.
Calibration Checks
Modern pick-and-place systems allow nozzle recognition and auto-height calibration. Correct calibration ensures each nozzle performs within tolerance.
Replacement Scheduling
High-usage nozzles used for micro-components should be replaced more frequently to maintain peak performance.
Automation and Smart Nozzle Technology
SMT equipment manufacturers now integrate smart sensors and data technology into nozzles and nozzle holders.
Automatic Nozzle Detection
Systems automatically scan nozzle IDs to verify they match the program. This prevents operators from loading incorrect nozzles for certain production tasks.
Self-Monitoring Suction Sensors
Some advanced nozzles include airflow sensors that detect low suction levels in real time, preventing mis-picks before they occur.
AI-Driven Placement Optimization
Modern machines adjust placement speed, suction power, and rotation dynamically based on component characteristics learned from feedback loops.
SMT Nozzles in LED and Micro-LED Manufacturing
Micro-LED manufacturing requires extreme precision due to micro-sized chips and delicate structures. Specialized nozzles help by:
-
Avoiding chip scratching
-
Maintaining stable pickup force
-
Providing anti-static protection
Custom-engineered nozzle tips shape airflow to handle chips as small as a grain of dust, supporting industries such as AR displays, high-resolution screens, and automotive LED modules.
Common Problems and How to Solve Them
Mis-Pick or Double-Pick
Usually caused by incorrect nozzle size, worn material, or insufficient suction.
Component Sticking to Nozzle
Often related to static buildup or contamination. Anti-static coatings or regular cleaning help solve this.
Nozzle Not Recognized by Machine
May be due to a damaged ID code or incompatible nozzle base.
Rotation Errors
A damaged nozzle shaft or improper mounting can cause inaccurate component alignment.
Future Trends in SMT Nozzle Technology
The future of SMT nozzles will focus on:
-
Ultra-light carbon composite materials
-
Adaptive nozzle tips that adjust pickup pressure automatically
-
Full digital traceability of nozzle cycles
-
Nano-coatings for extreme anti-wear performance
-
Nozzles designed for chip-on-wafer and heterogeneous integration
As component packages continue to shrink and diversify, nozzle design will remain one of the most rapidly evolving areas in SMT manufacturing.
Frequently Asked Questions (FAQ)
1. How often should an SMT nozzle be replaced?
Replacement frequency depends on component size and production volume. Micro-component nozzles tend to wear faster and may require more frequent replacement.
2. Can one nozzle handle all SMT components?
No. Different components require different nozzle diameters, shapes, and materials. A universal nozzle reduces flexibility and accuracy.
3. Are ceramic nozzles worth the higher cost?
Yes. Ceramic nozzles provide longer life, better precision, and improved ESD protection, making them ideal for advanced electronics production.
4. What causes poor suction during pickup?
Common causes include contamination, cracks in the nozzle, worn tips, or incorrect airflow settings.
5. Do smart nozzles require special machines?
Many modern pick-and-place systems include interfaces for smart nozzle detection, but older machines may need upgrades.
Article Summary
This article explores the full landscape of SMT nozzle technology, including nozzle types, materials, performance factors, innovations, maintenance, and future trends. It offers deep insights for improving pick-and-place accuracy, optimizing production, and selecting the right nozzle for any SMT line.
