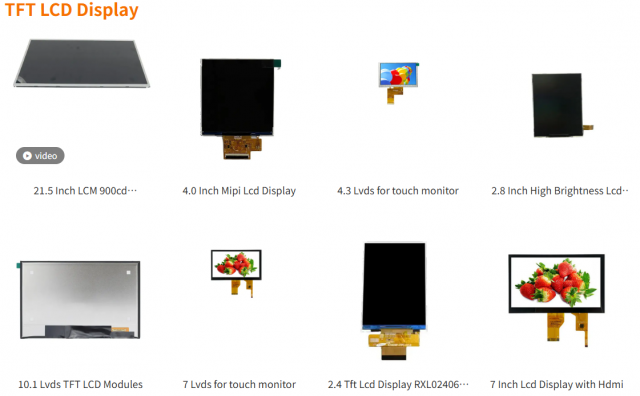

please click here：
https://www.reshine-display.com/tft-lcd-display.html
Modern screens may feel like everyday objects, but behind their familiar glow lies a fascinating intersection of physics, materials science, and design. The TFT LCD display, in particular, remains one of the most widely adopted technologies in consumer and industrial electronics. Rather than revisiting surface-level descriptions, this article takes you on a deeper and more nuanced exploration—how TFT LCD displays evolved, why they remain relevant despite newer display approaches, and how various engineering decisions influence color, durability, and performance.
Understanding the Core of TFT LCD Displays
While many people casually equate “LCD” with “any flat screen,” the sophistication of TFT structures often goes unnoticed. A TFT LCD is built on a thin-film transistor matrix that individually modulates liquid crystal cells. Each cell determines how much light from a backlight can pass through, producing an image.
This setup creates an elegant dance between electronics and optics: one part electrical addressing, one part light modulation, and one part color filtering.
Why TFT Technology Still Dominates Multiple Sectors
Innovation sometimes pushes older technologies to the sidelines, but TFT LCD displays maintain a broad foothold in the market. Their balance of cost, clarity, and durability gives them distinct advantages, especially across automotive, medical, industrial, and handheld device categories.
Some compelling traits help explain this longevity:
-
A resilient architecture suitable for harsh and vibrating environments
-
Predictable long-term performance
-
Excellent compatibility with touch panels
-
Broad temperature range options
-
Lower power consumption than many emissive displays under sustained operation
In short, TFT LCD displays continue to thrive because they evolve, not stagnate.
The Structure of a TFT LCD Display
The construction of a TFT LCD display is somewhat akin to a layered manuscript—each page serving a purpose, all pages working together to narrate a coherent visual story.
The Backlight System
The display relies on an illumination layer—often using white LEDs—to provide uniform light. Uniformity, stability, and lifespan of this backlight profoundly influence the final visual experience.
The Thin-Film Transistor Layer
TFTs function like tiny switches that control each individual pixel. They improve refresh speed, reduce ghosting, and allow millions of pixels to be controlled with precision.
The Liquid Crystal Layer
Liquid crystal molecules reorient under electric fields, changing light polarization. The TFT determines exactly how each pixel behaves at any given moment.
The Color Filter Layer
Red, green, and blue subpixels work together to produce the full palette of display colors.
The Polarizers
Polarizing layers ensure that light orientation interacts appropriately with the liquid crystals to create visible imagery.
The collaboration among these layers produces the crisp, structured images TFT displays are known for.
TFT LCD Display Types and Their Distinct Personalities
Not all TFTs behave the same. Different panel modes alter how light interacts with liquid crystals, resulting in distinct performance strengths.
TN (Twisted Nematic) Panels
Often chosen for cost-conscious applications, TN panels are known for quick response times but limited viewing angles.
IPS (In-Plane Switching) Panels
IPS panels approach image creation differently, orienting liquid crystals horizontally. This results in wide viewing angles and superior color accuracy.
VA (Vertical Alignment) Panels
VA occupies a middle ground—better contrast than TN, deeper blacks than IPS, but with slightly slower response times.
Below is a simplified comparison:
| Technology | Viewing Angle | Color Accuracy | Contrast | Response Time | Typical Applications |
|---|---|---|---|---|---|
| TN | Narrow | Basic | Moderate | Very Fast | Gaming gear, simple devices |
| IPS | Wide | Excellent | Good | Fast | Industrial displays, tablets, medical monitors |
| VA | Moderate | Good | High | Moderate | TVs, multimedia systems |
This diversity enables engineers and purchasers to match display type to purpose, rather than defaulting to a single option.
Where TFT LCD Displays Excel Today
Although competitors like OLED attract attention, TFT displays maintain advantages in several categories.
Automotive and Transportation
Their resistance to burn-in and excellent readability—even under intense sunlight—make them ideal for dashboards, infotainment panels, and control interfaces.
Industrial HMI (Human-Machine Interfaces)
Factories require stable displays that handle heat, vibration, and continuous use. TFT LCD displays deliver reliability without sacrificing clarity.
Medical Equipment
From portable ultrasound devices to diagnostic monitors, TFT displays offer precise color rendering essential for clinical accuracy.
Consumer Electronics
Smart appliances, handheld consoles, and wearables rely on the balance of cost and performance that TFT technology offers.
Outdoor Displays
High-brightness TFT modules, often paired with transflective designs, perform remarkably well in bright environments.
Key Engineering Factors That Influence Display Performance
If you've ever wondered why one TFT LCD display appears vibrant and another looks washed out, much of the answer lies in design variables often invisible to users.
1. Backlight Brightness and Uniformity
High-lumen backlights improve outdoor visibility. Diffusers and prism sheets ensure homogenous illumination.
2. Surface Treatments
Anti-reflection coatings, optical bonding, and anti-fingerprint surfaces play pivotal roles in overall legibility.
3. Touch Integration
Modern TFT LCDs increasingly incorporate capacitive or resistive touch panels directly into their structure. This reduces assembly thickness and improves noise immunity.
4. Operating Temperature Range
Displays used in cold storage facilities or desert-like environments require special liquid crystal formulations.
5. Color Gamut Tuning
High-end TFT modules are calibrated to expand color space, particularly for medical and creative applications.
6. Power Consumption Optimization
Engineers balance refresh rates, LED efficiency, and pixel structures to achieve low power consumption.
These factors separate a generic TFT display from a professionally engineered one.
Choosing the Right TFT LCD Display for Your Application
Selecting a display can feel overwhelming due to the breadth of options. Instead of relying purely on resolution and size, consider the holistic environment where the display will operate.
Evaluate the User Environment
-
Bright sunlight? Opt for high-brightness or transflective displays.
-
Vibration-heavy conditions? Choose ruggedized structures with strengthened bonding.
-
Sensitive medical calibrations? IPS is usually favored.
Consider Interface Compatibility
Designs may require RGB, SPI, LVDS, or MIPI interfaces depending on system architecture.
Check Touch Requirements
Resistive touch might suit gloved industrial use, while capacitive touch suits consumer or medical markets.
Think About Longevity
Long-term component availability is vital for products requiring multi-year lifecycles.
By blending environmental awareness with engineering insights, you can specify a TFT LCD display that feels tailor-made for your device.
Emerging Trends in the TFT LCD Display Landscape
Technology rarely stands still, and TFT LCDs continue to evolve.
Advanced Optical Bonding
Modern bonding significantly reduces reflections, enhances contrast, and increases durability.
Mini-LED Backlights
These backlights bring localized dimming and higher brightness while boosting energy efficiency.
Ultra-wide Viewing Technologies
Enhanced IPS variants aim to rival professional-grade displays.
Flexible TFT Approaches
Although still in early development, flexible TFT LCDs are opening new possibilities in wearables and embedded systems.
Each innovation shows that TFT LCD displays aren't relics—they're actively expanding their capabilities.
Common Misconceptions About TFT LCD Displays
A few assumptions continue to circulate around the industry, so let's quietly challenge them.
“TFT is outdated compared to OLED.”
OLED excels in certain domains but suffers from longevity and burn-in issues. TFT LCD displays win in outdoor readability, affordability, and consistency.
“All TFT displays look the same.”
Differences in panel modes, coatings, bonding, and calibration can drastically separate two displays that appear identical on paper.
“Viewing angle doesn't matter in industrial gear.”
Wide-angle viewing is critical for shared workspaces, medical teams, factory lines, and marine environments.
Understanding these nuances improves product design decisions.
Practical Tips for Integrating TFT LCD Displays Into a Product Design
When bringing a new product to life, consider the following strategic moves:
-
Request optical bonding options early, especially for outdoor devices.
-
Test readability under real environmental lighting conditions.
-
Confirm EMI compatibility during system integration.
-
Evaluate long-term vendor stability.
-
Match display resolution to actual content—not marketing expectations.
-
Review mechanical mounting needs to avoid stress-related failures.
These steps help transform a good display choice into a great one.
Frequently Asked Questions
1. What is the lifespan of a TFT LCD display?
Most TFT LCD modules last tens of thousands of hours, and high-quality industrial versions can exceed this depending on backlight design.
2. Are TFT LCD displays suitable for outdoor use?
Yes. High-brightness, transflective, and optically bonded TFT displays offer excellent outdoor performance.
3. How does a TFT display differ from OLED?
TFT LCD uses a backlight, while OLED pixels emit their own light. TFT excels in durability and cost; OLED offers deeper blacks.
4. Can TFT displays support touch integration?
Absolutely. They pair seamlessly with resistive or capacitive touch panels.
5. Is IPS always better than TN?
Better depends on purpose. IPS offers richer color and angles, while TN is faster and cost-effective.
Summary
TFT LCD displays remain essential across automotive, industrial, medical, and consumer electronics thanks to their balance of clarity, durability, and cost. This article explores structure, panel types, engineering factors, selection tips, trends, and FAQs, offering a comprehensive understanding of modern TFT LCD technology.
