Surface Mount Technology (SMT) has transformed the electronics manufacturing landscape by enabling smaller, faster, and more reliable devices. This article explores SMT in depth, covering its principles, manufacturing process, advantages, applications, challenges, and future trends.

What is Surface Mount Technology?

Surface Mount Technology (SMT) is a method of mounting electronic components directly onto the surface of printed circuit boards (PCBs), rather than inserting component leads through holes as in traditional through-hole technology. Components designed for SMT are called surface-mount devices (SMDs). SMT emerged in the 1980s and quickly became the dominant assembly technique due to its automation capabilities and efficiency.

Unlike through-hole components, SMDs are generally smaller, often with no leads or very short leads, allowing for higher component density on PCBs. SMT enables components to be mounted on both sides of a board, further increasing circuit complexity and miniaturization.

The SMT Manufacturing Process

The SMT assembly process is highly automated and consists of several key stages:

1. PCB and Component Preparation

Before assembly begins, the PCB is designed with solder pads on its surface, usually made of copper and coated with metals like silver, tin-lead, or gold. These pads provide the points where components will be soldered. Components are selected and prepared for placement.

2. Solder Paste Printing

A stencil matching the PCB layout is used to apply solder paste onto the solder pads. The solder paste is a mixture of powdered solder and flux, which temporarily holds components in place and cleans the surfaces during soldering.

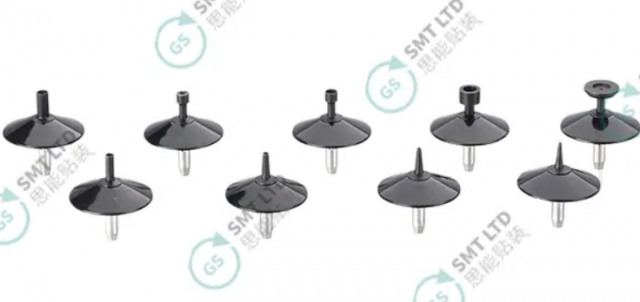

3. Component Placement

Pick-and-place machines rapidly and accurately place components onto the solder-pasted PCB. These machines can handle tens of thousands of components per hour, positioning each precisely according to the PCB design.

4. Reflow Soldering

The PCB passes through a reflow oven with controlled temperature zones:

  • Preheat Zone: Gradually heats the board to 140–160°C to activate the flux.

  • Soak Zone: Maintains temperature to ensure even heating.

  • Reflow Zone: Raises temperature to 210–230°C to melt the solder, forming reliable electrical and mechanical connections.

  • Cooling Zone: Cools the board to solidify the solder joints.

5. Inspection and Cleaning

Post-soldering, the boards undergo inspection via automated optical inspection (AOI), X-ray, or other methods to detect defects. Cleaning removes flux residues to ensure reliability.

Advantages of Surface Mount Technology

Increased Manufacturing Efficiency

SMT eliminates the need for drilling holes in PCBs, reducing production time and cost. Setup times are shorter, enabling faster prototyping and mass production.

Compact and High-Density Designs

SMT components are smaller and can be mounted on both sides of the PCB, allowing for more complex circuits in smaller spaces. This leads to lighter, more compact electronic devices.

Improved Electrical Performance and Reliability

Shorter leads and smaller components reduce parasitic inductance and capacitance, improving circuit speed and signal integrity. SMT assemblies also withstand vibration and mechanical stress better than through-hole assemblies.

Design Flexibility

SMT can be combined with through-hole components on the same board, allowing designers to optimize for performance and cost. The technology supports multitasking and integration of high-end components.

Electromagnetic Compatibility (EMC)

SMT assemblies typically exhibit lower electromagnetic interference due to reduced lead lengths and optimized layouts, enhancing device safety and compliance with regulatory standards.

Applications of SMT

SMT is ubiquitous across various industries:

  • Consumer Electronics: Smartphones, laptops, tablets, wearables, and smart appliances rely on SMT for compact, feature-rich designs.

  • Automotive Electronics: Engine control units, infotainment, ADAS, and lighting systems use SMT for reliability and miniaturization in harsh environments.

  • Medical Devices: Pacemakers, hearing aids, and diagnostic equipment benefit from SMT's miniaturization and high-quality manufacturing.

  • Industrial Equipment: Automation, robotics, and control systems employ SMT for improved efficiency and durability.

  • Telecommunications: Base stations, routers, and optical networking gear depend on SMT for high-density, high-speed circuitry.

Challenges and Limitations of SMT

Despite its advantages, SMT has some challenges:

  • Component Handling: Very small components require precise placement and handling equipment.

  • Thermal Management: High component density can lead to heat dissipation issues.

  • Repair and Rework: SMT assemblies can be more difficult to repair due to component size and density.

  • Initial Equipment Cost: SMT production lines require significant investment in automated machinery.

The evolution of SMT continues with trends such as:

  • Miniaturization: Further shrinking of components and PCBs for wearable and implantable devices.

  • Advanced Packaging: Use of Ball Grid Arrays (BGAs) and Chip Scale Packages (CSPs) for enhanced performance.

  • Automation and AI: Increased use of AI for defect detection and process optimization.

  • Flexible Electronics: SMT applied to flexible and wearable substrates.

  • Environmental Considerations: Lead-free solder and greener manufacturing processes.

Q1: What is the main difference between SMT and through-hole technology?

A1: SMT mounts components directly on the PCB surface, while through-hole inserts leads through drilled holes in the PCB.

Q2: Why is SMT preferred for modern electronics?

A2: SMT allows for smaller, lighter, and more complex circuits with faster, automated manufacturing and better electrical performance.

Q3: What are the key steps in the SMT assembly process?

A3: The main steps are solder paste printing, component placement, reflow soldering, and inspection.

Q4: Can SMT and through-hole components be used on the same PCB?

A4: Yes, many PCBs combine both technologies to optimize design and functionality.

Q5: What industries benefit most from SMT?

A5: Consumer electronics, automotive, medical devices, industrial automation, and telecommunications heavily rely on SMT.

Article Summary


Surface Mount Technology (SMT) is a revolutionary method for mounting electronic components directly onto PCBs, enabling smaller, faster, and more reliable devices. Its automated manufacturing process improves efficiency and design flexibility, making it essential across consumer electronics, automotive, medical, industrial, and telecommunications sectors. SMT continues to evolve with trends in miniaturization, advanced packaging, and automation.
