Surface Mount Technology (SMT) has revolutionized electronics manufacturing by enabling the precise placement of tiny components on printed circuit boards (PCBs). Central to this process are SMT nozzles, which pick and place components with high accuracy. However, these nozzles are prone to contamination from flux residues, solder paste, and dust, which can degrade placement quality and cause production inefficiencies. Effective SMT nozzle cleaning is therefore critical to maintaining high yield, minimizing downtime, and extending nozzle lifespan. This comprehensive article explores SMT nozzle cleaning methods, equipment, maintenance tips, and answers common questions to help manufacturers optimize their SMT lines.

Understanding SMT Nozzles and Their Importance

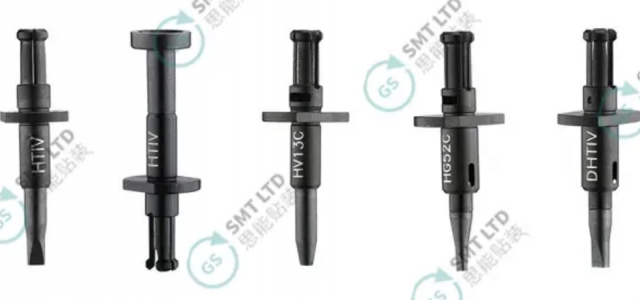

SMT nozzles are precision parts attached to pick-and-place machines. They create suction to pick up components and place them accurately on PCBs. Because of their fine apertures and intricate design, nozzles are vulnerable to clogging and contamination, which can cause:

  • Component misplacement or drops

  • Reduced production throughput

  • Increased machine downtime

  • Premature nozzle wear or damage

Maintaining clean nozzles ensures consistent suction, precise placement, and overall production quality.

Common Contaminants Affecting SMT Nozzles

Nozzles accumulate various contaminants during SMT processes, including:

  • Flux residues

  • Solder paste particles

  • Dust and debris

  • Oils and greases from handling

These contaminants can clog nozzle apertures and internal cavities, reducing suction power and causing placement errors.

SMT Nozzle Cleaning Methods

Several methods exist for cleaning SMT nozzles, each with advantages and limitations.

Manual Cleaning

Manual cleaning is the traditional approach involving:

  • Wiping nozzle surfaces with lint-free cloths

  • Using industrial alcohol and air guns to remove residues

  • Employing fine steel wires or needles to clear small apertures

Pros:

  • Simple and low-cost

  • Can be done on-site without special equipment

Cons:

  • Inefficient and time-consuming

  • Cannot clean nozzle interiors thoroughly

  • Risk of damaging nozzle coatings or reflector plates due to alcohol corrosion or mechanical abrasion

  • Labor-intensive and inconsistent results

Ultrasonic Cleaning

Ultrasonic cleaners use high-frequency sound waves in a cleaning solution to dislodge contaminants.

Pros:

  • Effective for larger nozzles

  • Can clean internal cavities better than manual methods

Cons:

  • May damage delicate black coatings on nozzles due to collisions during cleaning

  • Cleaning solutions can cause reflector plate detachment

  • Less effective for very small nozzles

  • Requires specialized equipment

High-Pressure Water Mist Cleaning (Automatic SMT Nozzle Cleaning Machines)

This is the most advanced and widely adopted method today. It uses high-pressure atomized deionized or distilled water mist to clean nozzles.

How it works:

  • High-pressure water mist is sprayed onto nozzle surfaces and interiors at supersonic speeds, effectively removing dirt without mechanical abrasion.

  • Warm air drying follows to prevent moisture retention.

  • The process is automated, allowing batch cleaning of multiple nozzles simultaneously.

Pros:

  • Thorough cleaning of both surface and internal nozzle parts

  • Gentle on nozzle coatings and reflector plates, preserving nozzle lifespan

  • Environmentally friendly, using only deionized water without harsh chemicals

  • Saves labor and reduces cleaning time dramatically

  • Improves production quality by preventing component drops and placement errors

Cons:

  • Requires investment in automatic cleaning machines

Features of Modern Automatic SMT Nozzle Cleaners

Leading models like the BNC-8000 and DEZ-C716 incorporate innovative designs:

  • Capability to clean up to 30 nozzles in about 5-10 minutes

  • Use of warm distilled or deionized water for effective cleaning without corrosion

  • High-pressure air drying systems for complete moisture removal

  • User-friendly interfaces with touch screens and sliding nozzle holders for convenience

  • Automated inspection and maintenance record keeping in some smart models

  • Compact footprint suitable for SMT production environments

These features ensure constant output quality, reduce rework, and save costs by extending nozzle life and minimizing machine downtime.

Best Practices for SMT Nozzle Maintenance

  • Regular Cleaning: Schedule nozzle cleaning based on usage frequency and contamination levels to avoid buildup.

  • Avoid Harsh Chemicals: Use only recommended cleaning fluids like deionized water; avoid alcohol or corrosive solvents.

  • Handle Nozzles Carefully: Prevent mechanical damage by avoiding insertion of hard objects like steel needles unless specifically designed for that nozzle.

  • Use Automated Cleaning When Possible: Automated cleaners provide consistent, thorough cleaning and reduce human error.

  • Inspect Nozzles Periodically: Use smart cleaning machines with inspection functions or visual checks to detect wear or damage early.

Troubleshooting Common SMT Nozzle Issues

  • Nozzle Clogging: Clean with high-pressure water mist or ultrasonic cleaning; avoid manual probing that can damage nozzles.

  • Reflector Plate Detachment: Avoid soaking nozzles in alcohol or harsh solvents; use gentle cleaning methods.

  • Reduced Suction: Inspect for internal residue buildup; clean interiors thoroughly with automatic cleaning machines.

  • Surface Coating Damage: Use cleaning methods that avoid mechanical collision or abrasive materials.

Frequently Asked Questions (FAQs)

Q1: Why is high-pressure water mist cleaning preferred over ultrasonic cleaning?

A1: High-pressure water mist cleaning effectively cleans both the surface and interior of nozzles without damaging delicate coatings or reflector plates, unlike ultrasonic cleaning which can cause collisions and damage.

Q2: Can manual cleaning damage SMT nozzles?

A2: Yes, manual cleaning with steel needles or alcohol can damage nozzle surfaces and internal parts, reducing nozzle lifespan.

Q3: How often should SMT nozzles be cleaned?

A3: Cleaning frequency depends on production volume and contamination levels but generally should be performed regularly before significant residue buildup affects placement quality.

Q4: What type of water is used in automatic SMT nozzle cleaners?

A4: Deionized or distilled water is used to prevent corrosion and residue formation during cleaning.

Q5: Do automatic nozzle cleaners also inspect nozzles?

A5: Some advanced models include automatic inspection features that detect nozzle wear or defects and log maintenance history for quality control.

Article Summary

SMT nozzle cleaning is vital for maintaining high precision and efficiency in surface mount technology manufacturing. Traditional manual and ultrasonic cleaning methods have limitations and risks, while modern high-pressure water mist cleaning offers a gentle, thorough, and automated solution. Using deionized water and advanced drying systems, automatic SMT nozzle cleaners extend nozzle lifespan, reduce downtime, and enhance production quality. Regular maintenance and proper cleaning techniques ensure consistent placement accuracy and cost savings in SMT lines.
