Introduction
In the fast-paced world of printed circuit board (PCB) assembly, efficiency, accuracy, and reliability are paramount. At the heart of any high-performance surface-mount technology (SMT) production line lies the often-overlooked but critical component known as the “feeder.” An SMT feeder is the mechanism that supplies the pick-and-place machine with electronic components, one feeder per tape, reel, tube, or tray. Choosing the right feeders can make the difference between downtime and seamless production, between high yield and frustrating defects.
For manufacturing engineers, production managers, and procurement specialists alike, understanding types of SMT feeders, their strengths and limitations, criteria for selection, and maintenance practices is essential. This article dives deep into the world of SMT feeders—exploring various designs, comparing their use cases, and outlining best practices for selection and upkeep.
What Is an SMT Feeder and Why It Matters
At its core, an SMT feeder's job is deceptively simple: hold component packages securely and present them to the pick-and-place head with consistent orientation and timing. However, the demands placed on feeders are steep: components must be delivered accurately at tens of thousands per hour, while minimizing mechanical failures, jams, or misfeeds.
A high-quality feeder ensures:
-
Smooth, misalignment-free feeding of components.
-
Repeatable accuracy across thousands of pick cycles.
-
Easy changeover between various component types and sizes.
-
Reduced machine downtime and maintenance costs.
When feeders underperform, the entire production line suffers: misplaced parts, missed picks, increased defect rates, and costly stoppages.
Common Types of SMT Feeders
Understanding the available feeder types is the first step toward making informed decisions. Below are the main categories commonly used in SMT assembly environments.
Tape-and-Reel Feeders
Tape-and-reel feeders are the most widely used type in modern SMT lines. Components arrive sealed in pockets along a carrier tape wound around a reel. The feeder advances the tape pocket by pocket, presenting each component to the pick head.
Advantages of tape-and-reel feeders include broad component compatibility, high throughput, and minimal manual handling. They excel in mass production environments where many identical components are placed repeatedly.
However, tape feeders can be bulky when many different components are used, requiring ample feeder slots or bank magazines. Also, handling small pitch tapes or specialized tapes (e.g., embossed, black carrier) may require more precise feeders.
Tray Feeders
Some components—especially large, heavy, or fragile ones—are supplied in trays. Tray feeders hold the tray and advance it so that each pocket aligns under the pick head.
Tray feeders avoid the stress and vibration that tape can impart on delicate parts (e.g., large connectors, shields, or custom modules). For low-volume or high-mix boards, trays help reduce component damage and misalignment. Downsides include slower throughput and more frequent operator intervention when swapping trays.
Tube Feeders
Tubes (or “sticks”) are traditionally used for components like resistors, capacitors, or small semiconductors. Feeders designed for tubes draw components along a tube, often using vibration or air jets.
Tube feeders are popular when tape isn't available or economical, such as for small runs or prototypes. They are usually cheaper than tape feeders. On the flip side, tubes often lead to lower placement speed, more variability in orientation, and higher risk of jams.

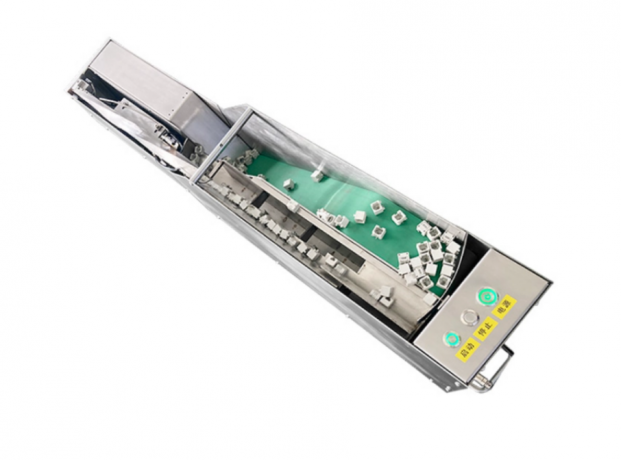

Bulk Feeders (Vibratory or Vacuum-Based)
Bulk feeders handle loose components—think trays, bins, or vibratory bowls. These feeders use vibration or vacuum suction to orient and deliver components. Bulk feeders are typically used in prototypes, repair, or special manufacturing cases where components are supplied loose and volumes are small.
While flexible and inexpensive for low-volume production, they suffer from low precision, inconsistent orientation, slower throughput, and higher risk of component damage or misfeed — making them unsuitable for high-volume production.
Comparing Feeder Types: Choosing What Suits Your Line
The optimal feeder type depends heavily on production volume, component variety, board complexity, and budget constraints. The table below summarizes the strengths and limitations of each feeder type:
| Feeder Type | Best Use Case | Advantages | Disadvantages |
|---|---|---|---|
| Tape-and-Reel Feeder | High-volume, low-to-medium mix production | High throughput; consistent placement; low manual labor | Requires many feeder slots; less flexible for varied parts |
| Tray Feeder | Large, fragile or custom components | Gentle handling; good for heavy/fragile parts | Slower speed; more manual changeovers |
| Tube Feeder | Small runs; prototyping; resistors/capacitors | Lower cost; simple setup | Low speed; possible misorientation or jams |
| Bulk Feeder | Prototyping, repairs, loose parts | Highly flexible; low setup cost | Poor reliability; inconsistent orientation; slow |
From the table, it becomes clear that for standard high-volume electronics manufacturing, tape-and-reel feeders dominate. But for specialized components (e.g., heavy connectors, custom modules), tray feeders are often the safer, more reliable choice. For prototype runs or repair lines where cost and flexibility are key, tube or bulk feeders may suffice — albeit with compromises on speed and consistency.
Key Criteria for Selecting SMT Feeders
When deciding on feeders for your SMT line, consider these critical factors:
Component Type and Package
The feeder must accommodate the package type (e.g., resistors, capacitors, ICs, connectors), package size and weight, and orientation needs. For heavy or fragile items, tray feeders may be mandatory. For high-speed placement of standard parts, tape-and-reel feeders are preferred.
Throughput Requirements
If your production targets are high (e.g., tens of thousands of placements per hour), feeders must support rapid, smooth advance without causing jams or misfeeds. Tape feeders generally provide the highest throughput. For smaller terms, tray or tube feeders may suffice.
Feeder Slot Availability
Feeder slots are limited on pick-and-place machines. A line handling many different components may exceed slot capacity, requiring feeder consolidation strategies (e.g., combining less used parts, using multi‑part reels, or applying tray feeders for infrequently used, large parts).
Changeover Frequency and Ease
In high-mix production environments, quick changeovers are essential. Feeders that allow fast tape loading, minimal adjustment, and reliable feeding reduce downtime. Tray and tube feeders often require more manual intervention, whereas modern modular tape feeders can be swapped swiftly.
Maintenance, Reliability & Downtime Risk
Feeder reliability directly impacts line uptime. Frequent jams, misfeeds, or mechanical wear can lead to rejects or halts. Feeder designs that minimize moving parts, offer easy cleaning, and have robust tape drive mechanisms help reduce maintenance burden.
Cost — Initial and Operating
Higher-end tape feeders and tray feeders cost more initially but tend to save labor and reduce downtime over time. Tube or bulk feeders may look cheaper upfront but may cost more in scrap, manual labor, and slower throughput. Evaluating total cost of ownership (TCO) rather than upfront cost alone is essential.
Best Practices When Using SMT Feeders
Maintain an Organized Feeder Inventory System
Label feeders clearly with part numbers, reel sizes, and feeder types. Keep a log of feeder usage, maintenance cycles, and lifetime picks. This prevents mismatches (e.g., using a feeder meant for one component on another) and allows for predictive maintenance before failures occur.
Match Feeder Type to Production Needs
Adopt tape-and-reel feeders for parts used frequently in high volume. Reserve tray feeders for heavy, fragile, or custom parts. Use tube or bulk feeders only when necessary (e.g., prototyping, repair, or small runs), recognizing their limitations.
Train Operators on Proper Loading and Handling
Impactful feeder performance depends not only on hardware but also on correct tape loading, correct tape tension settings, and avoiding over-tightening or twisting reels. Proper training reduces jams and mechanical wear.
Regular Inspection and Preventive Maintenance
Dust, debris, adhesive residue from carrier tapes can accumulate in feeder mechanisms, causing misfeeds or stickiness. Implement a regular cleaning schedule, inspect drive wheels, tape guides, springs and sensors. Replace worn components before failure.
Plan for Feeder Slot Optimization
In complex boards with many component types, it's common to run out of feeder slots. Use strategies like combining multiple small‑quantity parts into shared reels, using multi‑part reels, or using tray feeders for rarely used components. This way, you avoid mid-run stoppages due to lack of feeder slots.
Case Studies: Tape-and-Reel vs Tray Feeders
Scenario A: High-Volume Smartphone PCB Production
A high-throughput SMT line is producing thousands of smartphone motherboards per day. Each board uses hundreds of identical resistors, capacitors, and small ICs. Speed and consistency are critical; any misfeed or delay drastically affects yield.
In this scenario, tape-and-reel feeders excel. Because components are standardized and abundant, the upfront cost of purchasing enough tape feeders is justified. Throughput remains high, downtime low, and maintenance is predictable. Tray or tube feeders would slow down the operation and risk misalignment — unacceptable in volume production.
Scenario B: Low-Volume Custom Industrial Controllers with Large Connectors
An electronics manufacturer produces custom industrial controllers in small batches (e.g., 100–500 units). The PCBs use many standard passive parts but also several custom heavy-duty connectors and heatsinks supplied in trays. Production runs are infrequent but varied.
Here, a hybrid approach works best: tape feeders for the passive components, tray feeders for heavy connectors, and tube feeders for occasional capacitors if tapes are not available. The slower throughput is acceptable for small volumes, while tray feeders protect large parts from damage and misplacement. The flexibility helps accommodate custom BOMs without major retooling or feeder investment.
Common Challenges and How to Mitigate Them
Jams and Misfeeds
Improper tape loading, worn drive wheels, dust, or debris can cause jams. To mitigate, ensure proper tape loading with correct orientation and tension, maintain a clean environment, and schedule regular maintenance. If jams persist, examine springs, drive wheels, and sensors for wear or alignment issues.
Feeder Slot Shortage
High-mix boards with dozens of unique parts risk running out of feeder positions. To handle this, consolidate parts by combining small-quantity components into shared reels where possible, consider using multi-part/tray feeders, or prioritize high-use parts in feeders and manually place low-use items.
Child Component Damage (for fragile or heavy parts)
For delicate or heavy components (e.g., large connectors, shields), tape feeding may stress the parts or cause misorientation. Use tray feeders that gently cradle the parts, avoiding mechanical stress, or consider manual placement if feed reliability is critical.
Maintenance Overhead
Feeder maintenance can be time-consuming and often neglected. Without routine cleaning and inspection, dust and adhesive build-up can degrade performance. To avoid this, implement scheduled maintenance logs, replace wear-prone components proactively, and have spare feeders on hand to minimize downtime.
Choosing Feeder Technology for the Future
As electronics become more complex, with a mix of ultrafine-pitch components, large converters, heavy connectors, and custom modules, one-size-fits-all feeder strategies start to break down. Manufacturers need flexible, scalable feeder strategies. Here's a forward-looking approach:
-
Invest in modular tape-and-reel feeders that accept a range of tape widths, pitches, and component sizes. This reduces the need for specialized feeders.
-
Maintain a flexible pool of tray feeders for heavy or custom components, reusing them across different jobs.
-
For prototypes and low-volume runs, reserve tube or bulk feeders — but plan for possible lower yields or increased manual labor.
-
Implement good data tracking: monitor feeder usage, pick counts, failure rates, and maintenance logs. Use this data to decide feeder retirement, replacement, or upgrade.
-
When investing in new pick-and-place machines, consider feeder slot capacity, feeder type compatibility, and ease of feeder changeover to ensure long-term flexibility.
Summary
Feeders may seem like a mundane accessory to SMT pick-and-place machines, but their role is undeniably fundamental. The right selection — in types, quantities, and maintenance practices — can dramatically influence production yield, throughput, flexibility, and total cost of ownership.
Tape-and-reel feeders remain the backbone of high-speed, high-volume manufacturing. Tray feeders offer indispensable value when handling large, heavy, or fragile components. Tube and bulk feeders retain niche relevance for prototypes and special jobs. The key is balancing throughput, flexibility, cost, and reliability to match your manufacturing profile.
By maintaining an organized feeder inventory, training operators, scheduling preventive maintenance, and planning feeder slot usage wisely, manufacturers can optimize their SMT lines for both current needs and future scalability.
Frequently Asked Questions
Why is feeder selection more important than just investing in a high-speed pick-and-place machine?
Because even the fastest machine cannot place components correctly if the feeders fail to deliver parts consistently. Feeder issues cause misalignment, mis-picks, jams, and downtime — which negate the benefits of a fast machine.
Can I use only tube feeders to save cost on small runs?
Yes, tube feeders can be suitable for smaller jobs, prototypes, or runs with limited budget. However, you should expect slower placement speed, more variable orientation, and possibly lower yield. For frequent or larger runs, tape or tray feeders are still preferable.
How often should feeders be maintained or inspected?
It depends on usage, but a good practice is to inspect and clean feeders every few production batches or at the end of each shift in high-volume lines. Monitor for wear on drive wheels, residue buildup, and tension issues, and replace parts before failures occur.
Is it worth investing in feeder slot expansion or more feeders for flexibility?
Yes — if your production involves many different components or frequent design changes. The added flexibility may reduce changeover time, prevent bottlenecks, and support future product variations, improving long-term efficiency.
How do I decide between using tray feeders vs manual placement for large components?
If components are heavy or fragile and used in moderate to high quantities, tray feeders are generally safer and more efficient. If only a few components per board, and setup or feeder cost is high, manual placement may be acceptable — though less consistent and slower.
Abstract
This article explores the critical role of SMT feeders in modern PCB assembly lines. It describes common feeder types—tape‑and‑reel, tray, tube, bulk—their best-use scenarios, relative strengths and weaknesses, and key criteria for selection. Practical advice on maintenance, feeder slot optimization, and future-proofing strategies is provided to help manufacturers balance throughput, flexibility, cost, and reliability for sustainable SMT operations.
