Seamless Coiled Tubing: A Comprehensive Guide to Its Manufacturing, Advantages, and Industrial Applications

Seamless coiled tubing has emerged as a critical component across various industries, including oil and gas, chemical processing, aerospace, and healthcare. Its unique manufacturing process and superior material properties make it a preferred choice where strength, corrosion resistance, and reliability are paramount. This article explores the nature of seamless coiled tubing, its production, benefits, applications, and considerations for selecting the right tubing for your needs.

What is Seamless Coiled Tubing?

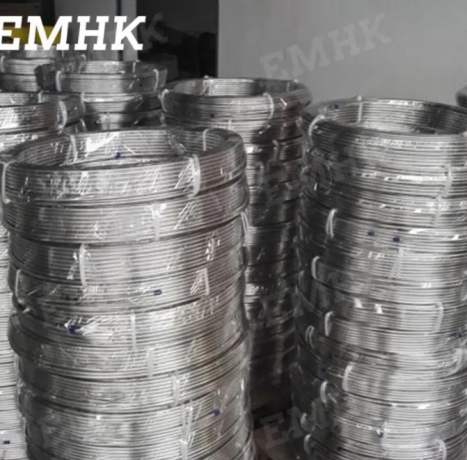

Seamless coiled tubing is a continuous length of small-diameter steel or stainless steel tubing formed into a coil without any welded joints or seams. Unlike traditional jointed tubing, which consists of multiple connected segments, seamless coiled tubing is manufactured from a single piece of metal, ensuring uniform strength and integrity throughout its length. The tubing is typically wound onto spools or reels for ease of transport and installation.

Manufacturing Process

The production of seamless coiled tubing involves several key steps:

• Billet Preparation: High-quality stainless steel or alloy billets are selected as raw materials.

• Extrusion: The billet is heated and extruded through a die to form a hollow tube.

• Cold Drawing: The tube is drawn through a series of dies to achieve precise diameter and wall thickness.

• Annealing: Heat treatment relieves internal stresses and enhances ductility.

• Coiling: The seamless tube is carefully coiled into continuous lengths, often thousands of feet long, without compromising structural integrity.

Specialized machinery supports the tubing internally during coiling to prevent deformation, and tooling adjustments accommodate radial growth during bending. This meticulous process results in tubing with a smooth interior surface and consistent mechanical properties throughout.

Advantages of Seamless Coiled Tubing

Seamless coiled tubing offers numerous advantages over welded or jointed tubing, making it highly desirable for demanding applications.

Corrosion Resistance

The absence of welds eliminates weak points where corrosion often initiates. Combined with the inherent corrosion resistance of stainless steel alloys (such as 304, 316, and duplex grades), seamless coiled tubing withstands harsh chemical and environmental exposures, extending service life significantly.

Enhanced Structural Integrity and Reliability

Without seams or welds, the tubing has uniform strength and is less prone to leaks or failures under high pressure. This reliability is critical in safety-sensitive applications like oil well intervention and chemical injection lines.

Cost-Effectiveness

Long continuous lengths reduce the need for multiple fittings and joints, lowering material and installation costs. The compact coil form also simplifies transportation and storage, minimizing logistical expenses.

Improved Flow Efficiency

The smooth internal surface reduces friction and pressure drops, enabling higher flow rates and better fluid dynamics compared to welded tubing. This efficiency is vital in applications such as hydraulic fracturing and chemical transfer.

Superior Fatigue Resistance

The uniform seamless structure endows the tubing with excellent fatigue resistance, allowing it to endure repeated stress cycles without cracking or failure, which is essential in dynamic environments like downhole operations.

Versatility

Seamless coiled tubing is adaptable to complex geometries and can be used in a variety of industries, including oil and gas, chemical processing, aerospace, healthcare, and renewable energy. Its flexibility and strength allow it to navigate bends and curves without compromising performance.

Industrial Applications of Seamless Coiled Tubing

Oil and Gas Industry

Seamless coiled tubing is extensively used for well intervention, hydraulic fracturing, chemical injection, and control lines for subsea safety valves. Its ability to withstand high pressures and corrosive downhole environments makes it indispensable for maintaining and enhancing production without shutting down operations.

Chemical and Pharmaceutical Processing

The tubing's corrosion resistance and hygienic properties make it ideal for transporting aggressive chemicals and sterile fluids. It is also used in instrumentation for precise fluid and gas transfer, flow measurement, and sensing applications.

Aerospace and Defense

High-strength seamless tubing is employed in fuel lines, hydraulic systems, and gas return tubes where reliability and weight savings are critical. Its uniform structure ensures safety and performance under extreme conditions.

Renewable Energy

Seamless coiled tubing finds applications in solar thermal systems, geothermal energy, and hydrogen refueling stations due to its ability to withstand high temperatures and corrosive environments.

Medical and Food Industries

Non-toxic and tasteless stainless steel seamless tubing is preferred for fluid delivery systems, surgical instruments, and food processing equipment where cleanliness and contamination prevention are mandatory.

How to Select the Right Seamless Coiled Tubing

Choosing the appropriate seamless coiled tubing depends on several factors:

• Material Grade: Select based on corrosion resistance and mechanical strength requirements. Common grades include 304, 316, 321, 310S, and duplex stainless steels.

• Diameter and Wall Thickness: These must match the pressure and flow demands of the application.

• Length and Coil Configuration: Consider installation logistics and the continuous length needed.

• Environmental Conditions: Account for temperature extremes, chemical exposure, and mechanical stresses.

• Application Specifics: For example, tubing used in high-purity or hygienic environments requires additional cleaning and certification processes.

Challenges and Considerations

While seamless coiled tubing offers many benefits, it comes with certain challenges:

• Cost: The complex manufacturing process and high-quality raw materials make seamless tubing more expensive than welded alternatives.

• Handling: Coiling and uncoiling require specialized equipment and expertise to avoid damage.

• Customization: Tailoring tubing to specific applications may require collaboration with manufacturers to optimize material and dimensions.

Frequently Asked Questions (FAQs)

Q1: What is the main difference between seamless coiled tubing and traditional jointed tubing?

A1: Seamless coiled tubing is manufactured as one continuous piece without welds or joints, whereas traditional tubing consists of multiple connected segments. This results in higher strength, fewer leak points, and better corrosion resistance for seamless tubing.

Q2: Why is seamless coiled tubing preferred in oil and gas well interventions?

A2: Its continuous length allows interventions without shutting down production, and its strength and corrosion resistance enable it to withstand harsh downhole conditions.

Q3: Can seamless coiled tubing be used in high-temperature environments?

A3: Yes, stainless steel seamless tubing can resist high temperatures, making it suitable for applications like geothermal energy and solar thermal systems.

Q4: How does the seamless design improve flow efficiency?

A4: The smooth internal surface reduces friction and pressure drop, allowing fluids to flow more freely compared to tubing with welded seams.

Q5: What industries benefit most from seamless coiled tubing?

A5: Key industries include oil and gas, chemical processing, aerospace, renewable energy, medical, and food processing due to the tubing's strength, corrosion resistance, and hygienic properties.

Article Summary

Seamless coiled tubing is a continuous, weld-free tubing solution offering superior strength, corrosion resistance, and reliability. Manufactured through extrusion, cold drawing, annealing, and coiling, it is widely used in oil and gas, chemical, aerospace, and healthcare industries. Its advantages include improved flow efficiency, cost savings, and versatility, making it ideal for demanding applications requiring durability and safety.
