Introduction

Welded coiled tubing (WCT) has emerged as a pivotal technology across various industries, offering a unique combination of flexibility, strength, and cost-effectiveness. Unlike traditional jointed pipes, WCT is manufactured as a continuous length of tubing, spooled onto a reel, which eliminates the need for numerous connections and significantly reduces the risk of leaks and failures. This innovative approach has revolutionized operations in sectors ranging from oil and gas to chemical processing, HVAC, and even water treatment. This article delves into the diverse applications of welded coiled tubing, exploring its benefits, limitations, and future trends.

What is Welded Coiled Tubing?

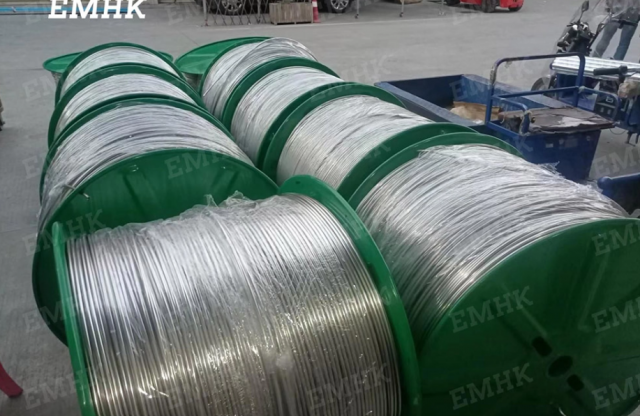

Welded coiled tubing is a continuous pipe, typically made of steel, that is manufactured by welding together several sections of flexible pipe to achieve lengths exceeding 100 meters. These tubes are then coiled onto a reel for easy transportation and deployment. The welding process, often employing techniques like Plasma Arc Welding or Friction Stir Welding, ensures the structural integrity of the tubing, while the coiling process imparts flexibility, allowing it to navigate complex geometries.

Advantages of Welded Coiled Tubing

  • Reduced Leakage Risk: The continuous nature of WCT eliminates the need for multiple connections, significantly reducing the risk of leaks, which is crucial in applications involving high-pressure or corrosive fluids.

  • Enhanced Efficiency: WCT streamlines operations by allowing for uninterrupted fluid or gas flow. This is particularly beneficial in drilling, well intervention, and chemical injection processes.

  • Cost Savings: By reducing the need for connections and minimizing downtime due to leaks or failures, WCT offers significant cost savings over traditional jointed pipes.

  • Flexibility and Maneuverability: The coiled design allows WCT to navigate bends, curves, and complex wellbore geometries with ease, making it ideal for applications in confined spaces or challenging environments.

  • Durability: WCT is designed to withstand high pressure, temperature, and corrosive environments, ensuring long-term reliability and performance.

Applications of Welded Coiled Tubing

Oil and Gas Industry

Welded coiled tubing has found extensive applications in the oil and gas industry, transforming well intervention, drilling, and production operations.

Well Intervention and Maintenance

WCT is widely used for well intervention tasks such as removing obstructions, cleaning production tubing, and conducting logging and perforation operations. Its flexibility allows it to navigate through complex wellbore geometries with ease. For example, it is often used to deploy tools for acidizing treatments that enhance production by dissolving reservoir blockages.

Acid Stimulation (Acidizing)

In acidizing, WCT is used to pump acid under pressure to dissolve or remove formation damage, such as scale, debris, or mud filtrate. This offers advantages like precise acid placement and effective treatment of the target formation.

Sand or Solids Cleanout

WCT is employed to clean out sand or solids from a wellbore by pumping fluid down the well to carry the solids to the surface.

Installation/Retrieval of Downhole Equipment

WCT is used for the installation and retrieval of downhole equipment, including temporary or permanent barriers placed in the wellbore to isolate specific sections.

Drilling Operations

In certain scenarios, WCT can replace conventional drilling equipment. It is particularly useful in underbalanced drilling and directional drilling operations. The continuous length of tubing enables uninterrupted operations, which are critical in challenging environments. Coiled tubing drilling also minimizes formation damage, making it ideal for delicate reservoirs.

Coiled Tubing Drilling (CTD)

CTD serves as the drilling string to bore wells, offering advantages over traditional drilling approaches, such as cost reduction, faster drilling speeds, and enhanced operational adaptability. It is advantageous in settings with challenging wellbore conditions or limited surface accessibility.

Hydraulic Fracturing

WCT plays a vital role in hydraulic fracturing operations by deploying and retrieving fracturing equipment. It is also used to pump proppants, chemicals, or fluids at high pressure to create fractures in the reservoir, thus improving hydrocarbon flow. Its compact design and operational flexibility make it indispensable in tight spaces.

Frac Through Coil (FTC)

WCT can be applied for hydraulic fracturing operations, particularly in a method known as Frac Through Coil (FTC). This technique involves using coiled tubing to carry out the entire fracturing process, which includes creating perforations, pumping proppant and fracturing fluids, and monitoring the wellbore conditions.

Pipeline and Flowline Cleaning

Keeping pipelines and flowlines free of debris is crucial for maintaining operational efficiency. WCT is an excellent choice for cleaning operations, as it can navigate bends and curves in the pipeline. With specialized cleaning nozzles, coiled tubing ensures thorough removal of scale, sand, and other contaminants.

Chemical and Petrochemical Plants

WCT is utilized in chemical and petrochemical plants for various applications that require precise and reliable fluid transfer.

Injection of Chemicals and Fluids

WCT is essential for the precise and controlled injection of chemicals into reactors, vessels, and pipelines.

Maintenance

It is used for cleaning pipelines, acidizing, and chemical treatments to maintain operational efficiency.

Water Treatment Systems

WCT is employed in water treatment systems for its ability to provide continuous, uninterrupted flow with minimal risk of clogging.

Distribution Systems

WCT is used in water systems for continuous, uninterrupted flow with minimal risk of clogging. It is especially useful in water treatment plants where the seamless design minimizes leakage risks.

HVAC Systems and Radiant Heating

WCT is utilized in HVAC systems and radiant heating applications due to its efficient heat transfer capabilities.

Efficient Heat Transfer

WCT is used in radiant floor heating systems and cooling applications. Its continuous nature allows for better heat exchange efficiency in compact systems.

Enhanced Efficiency in Industrial Cooling Towers

Its ability to handle high-pressure fluids makes it an ideal choice for cooling towers in power plants and industrial plants.

Material and Manufacturing Considerations

The selection of materials for welded coiled tubing is critical to ensure its performance and longevity in various applications. Common materials include:

  • Stainless Steel (304/316): Suitable for conventional oil well water injection, low-pressure heat transfer systems, and cost-effective in pH-neutral environments.

  • Duplex Steel (2205/2507): Its duplex microstructure (ferrite + austenite) gives it 2-3 times the resistance to pitting corrosion of conventional stainless steels, which makes it particularly suitable for oil and gas wells containing hydrogen sulfide or seawater cooling systems.

  • Alloy 625/825: These high-performance alloys offer exceptional resistance to corrosion and are used in the most demanding environments.

The manufacturing process of WCT involves several critical steps:

  1. Strip Preparation: Hot rolled strips are produced in a steel shop, and controlled rolling is used to guarantee high strength and good toughness through microstructural refinement.

  2. Splicing: The strips are longitudinally cut to the width for pipe production and then spliced end to end through a joining process (e.g., Plasma Arc Welding or Friction Stir Welding) to form a longer strip.

  3. Tube Forming: The tube is formed using the ERW (Electric Resistance Welding) process.

  4. Heat Treatment: A Full Body Heat Treatment (FBHT) is performed after the coiled tube is formed by ERW and is composed of at least one cycle of austenitization, quenching, and tempering.

Challenges and Limitations

While welded coiled tubing offers numerous advantages, it also faces certain challenges and limitations:

  • Fatigue Life: The repeated bending and straightening of WCT during deployment and retrieval can lead to fatigue failure. Factors such as internal pressure cycles, corrosion, and exposure to harsh environments can also affect fatigue life.

  • Pressure and Tension Limits: WCT has burst and collapse pressure limits, as well as maximum tension and compression force limits, which must be considered in its applications.

  • Diameter and Ovality Limits: Pipe monitoring is required to ensure that WCT is not ballooned, ovaled, or mechanically damaged.

  • Welding Quality: The quality of the welds is critical to the integrity of the WCT. Field welding can be challenging due to environmental conditions and the need for specialized equipment.

  • Corrosion Resistance: While certain materials offer high corrosion resistance, WCT can still be susceptible to corrosion in harsh environments, which can reduce its lifespan.

Recent developments in welded coiled tubing technology focus on improving material properties, welding techniques, and inspection methods.

  • High-Performance Materials: Research is ongoing to develop high-strength coiled tubing with increased low-cycle fatigue life and improved Sulfide Stress Cracking (SSC) resistance.

  • Advanced Welding Techniques: The use of advanced welding techniques, such as laser welding and friction stir welding, is gaining traction due to their ability to produce high-quality welds with minimal heat input.

  • Non-Destructive Testing (NDT): Advanced NDT methods are being developed to ensure the integrity of welds and detect any defects before they lead to failure.

  • Coiled Tubing Drilling (CTD): CTD is becoming increasingly popular due to its cost-effectiveness and ability to drill extended-reach and horizontal wells.

The future of welded coiled tubing looks promising, with ongoing research and development efforts focused on overcoming its limitations and expanding its applications. As technology advances, WCT is expected to play an even greater role in various industries, offering efficient, reliable, and cost-effective solutions for a wide range of applications.

Conclusion

Welded coiled tubing has revolutionized various industries by providing a flexible, strong, and cost-effective alternative to traditional jointed pipes. Its applications span across oil and gas, chemical processing, water treatment, and HVAC systems, offering numerous benefits such as reduced leakage risk, enhanced efficiency, and improved maneuverability. While WCT faces challenges such as fatigue life and welding quality, ongoing research and development efforts are focused on overcoming these limitations and expanding its applications. As technology continues to advance, welded coiled tubing is poised to play an increasingly important role in various industries, providing innovative solutions for complex challenges.

Frequently Asked Questions (FAQ)

Q1: What is the primary advantage of using welded coiled tubing in oil and gas operations?

A1: The primary advantage is its ability to perform continuous operations without the need for connections, reducing the risk of leaks and enhancing efficiency in well intervention, drilling, and hydraulic fracturing.

Q2: How does welded coiled tubing contribute to cost savings in industrial applications?

A2: WCT reduces the need for frequent maintenance and repairs due to its continuous structure, which minimizes potential leak points and extends the lifespan of the tubing system.

Q3: What materials are commonly used in the manufacturing of welded coiled tubing for corrosive environments?

A3: Duplex steel (2205/2507) and high-performance alloys like Alloy 625/825 are commonly used due to their superior resistance to pitting and crevice corrosion in harsh conditions.

Q4: Can welded coiled tubing be used in deepwater applications, and what are the considerations?

A4: Yes, but it requires careful consideration of pressure and tension limits, as well as the selection of materials that can withstand the corrosive effects of seawater and the high pressures at depth.

Q5: What are the latest advancements in welding techniques for coiled tubing, and how do they improve its performance?

A5: Advanced welding techniques such as laser welding and friction stir welding are used to produce high-quality welds with minimal heat input, which enhances the fatigue life and structural integrity of the coiled tubing.

Article Summary

Welded Coiled Tubing (WCT) is a continuous, jointless pipe widely utilized across industries for its flexibility, strength, and cost-effectiveness. In the oil and gas sector, WCT revolutionizes well intervention, drilling, and hydraulic fracturing, reducing leakage risks and enhancing operational efficiency. Its applications extend to chemical processing, water treatment, and HVAC systems, where it ensures reliable fluid transfer and efficient heat exchange. Despite challenges like fatigue life and welding quality, ongoing advancements in materials and welding techniques promise to expand WCT's role, offering innovative solutions for complex challenges. This article provides a comprehensive overview of WCT, highlighting its benefits, limitations, and future trends.
