Understanding the Role of Resistive Touch Screen Technology in Modern Devices
Touch screens have become an essential part of modern electronics, yet not all touch technologies function the same way. Among them, the Resistive Touch Screen remains one of the most durable, cost-effective, and precise input methods. While capacitive screens dominate smartphones, resistive screens persist across industrial equipment, medical devices, retail systems, transportation consoles, and rugged environments.
This guide explores how resistive touch screens work, their advantages, limitations, modern innovations, applications, and how they compare to other touch technologies. Whether you're a procurement manager, engineer, product designer, or tech enthusiast, this article provides clarity and depth into a technology that continues to evolve despite its long history.
What Is a Resistive Touch Screen?
A resistive touch screen is a pressure-activated interface consisting of two thin layers separated by micro-spacers. When a user presses the surface, the top flexible layer makes contact with the bottom layer, creating a detectable electrical change. This pressure-based mechanism allows resistive screens to be triggered by:
-
A finger
-
A stylus
-
A gloved hand
-
Any pointed object
Unlike capacitive screens that rely on the electrical conductivity of your finger, resistive touch screens respond to force, making them highly versatile across harsh or controlled environments.
How a Resistive Touch Screen Works
To understand the mechanism clearly, imagine a sandwich of conductive and resistive layers:
Internal Structure Breakdown
-
Top flexible membrane – coated with a transparent conductive material
-
Spacer dots – keep the layers apart
-
Bottom glass/plastic panel – also conductive
-
Controller – interprets positional data
-
Protective film – shields against contaminants
Step-by-Step Operation
-
Pressure is applied to the top membrane.
-
The top and bottom conductive layers touch momentarily.
-
A voltage is produced based on where the layers meet.
-
The controller interprets the coordinates.
-
The input appears on the device screen.
This simple but effective structure is why resistive screens excel in specialized markets where precision and reliability outweigh the need for multi-touch gestures.

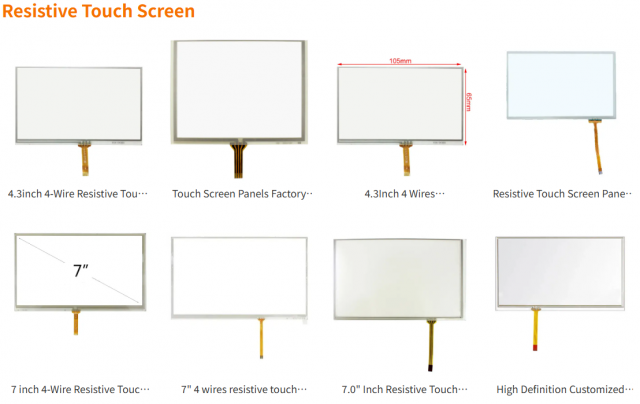

Types of Resistive Touch Screens
Resistive touch screens come in several variations, each optimized for unique performance needs.
4-Wire Resistive
-
Most cost-effective
-
Suitable for basic applications
5-Wire Resistive
-
Highest durability
-
More stable and long-lasting
-
Widely used in industrial machinery
8-Wire Resistive
-
Increased accuracy
-
Better calibration consistency
Multi-Layer Resistive
-
Provides improved touch sensitivity
-
Designed for complex industrial controls
These variations allow manufacturers to choose screens tailored to their industry's requirements.
Key Advantages of Resistive Touch Screens
Works with Any Touch Object
Stylus, glove, finger—anything applies. This makes resistive screens ideal for:
-
Factories
-
Laboratories
-
Outdoor kiosks
-
Food processing plants
High Accuracy
Resistive screens capture detailed and precise touch input, beneficial in:
-
Medical equipment
-
POS systems
-
Graphic tablets
Cost-Effective
Manufacturers favor resistive technology because:
-
Components are inexpensive
-
Maintenance costs are low
-
Long-term durability reduces replacement cycles
Resistant to Contaminants
Unlike capacitive screens, resistive touch screens remain functional even when exposed to:
-
Dust
-
Oils
-
Liquids
-
Grease
Limitations of Resistive Touch Screens
While resistive screens excel in accuracy and cost, they are not without drawbacks.
-
Lower light transmission compared to capacitive
-
Single-touch only (in most models)
-
Slightly less responsive feel
-
Flexible upper layer prone to wear over time
Despite these limitations, ongoing innovations continue to improve their clarity, sensitivity, and lifespan.
Comparison: Resistive vs. Capacitive Touch Screen
To highlight their differences clearly, here is a compact comparison table.
Comparison Table: Resistive vs. Capacitive Touch Screen
| Feature | Resistive Touch Screen | Capacitive Touch Screen |
|---|---|---|
| Input Method | Works with any object | Requires bare finger or special stylus |
| Multi-Touch Support | Mostly single-touch | Supports multi-touch |
| Cost | Lower | Higher |
| Accuracy | High precision | Moderate precision |
| Environmental Tolerance | Excellent in dust, water, gloves | Sensitive to moisture and contaminants |
| Durability | Good, depending on model | Excellent surface durability |
| Ideal Use Cases | Industrial, medical, retail POS, rugged environments | Consumer electronics, smartphones, tablets |
Where Resistive Touch Screens Are Used
Resistive touch screens are widely used in industries that require reliability, precision, and versatility.
Industrial Control Panels
Factories rely on screens that respond even when workers wear gloves or operate in dusty conditions.
Medical Equipment
Touch interfaces must remain responsive regardless of sterile gloves or medical tools.
Automotive & Transportation Displays
Resistive screens remain dependable under vibration, temperature changes, and frequent interaction.
POS Terminals
Retail settings require durable, precise, and low-maintenance interfaces.
Outdoor and Public Kiosks
Even in rain, snow, or dust, resistive screens maintain accurate performance.
Modern Innovations in Resistive Touch Screens
Despite their long history, resistive touch screens continue to evolve.
Improved Transparency Layers
New conductive materials enhance clarity, reducing the brightness gap with capacitive screens.
Enhanced Surface Hardness
Manufacturers apply stronger coatings to resist scratches and extend service life.
Higher Touch Sensitivity
Modern resistive types allow smoother gesture recognition and faster feedback.
Hybrid Resistive-Capacitive Solutions
These newer models combine pressure and electrical sensing for specialized applications.
Choosing the Right Resistive Touch Screen for Your Device
Consider Environmental Conditions
If your device will be exposed to dust, chemicals, or gloves, a resistive screen is ideal.
Required Precision
Graphic tablets and control systems often require the pinpoint accuracy resistive touch offers.
Long-Term Budget Planning
Lower initial and maintenance costs make resistive screens appealing for large-scale deployments.
User Interaction Mode
If multi-touch gestures are essential, consider hybrid or alternative touch technologies.
Installation and Maintenance Tips
Keep the Surface Clean
Although resistant to contaminants, regular cleaning extends lifespan.
Avoid Excessive Sharp Pressure
Any pointed object can trigger input—but extremely sharp tools may damage the surface.
Calibrate When Necessary
Position accuracy can drift slightly over time, especially in older models.
Maintain a Stable Controller Connection
Faulty cables can result in dead zones or inaccurate touch points.
Future Trends of Resistive Touch Screen Technology
Even with the dominance of capacitive screens, resistive touch screens will continue evolving due to demand in industrial and specialty sectors.
Expected advancements include:
-
Higher optical clarity
-
Pressure-sensitive multi-touch
-
Flexible resistive screens for curved surfaces
-
Thinner and stronger top membranes
-
Energy-efficient controllers
The next generation of resistive touch screens will focus on intelligence, durability, and seamless integration into IoT and embedded systems.
Frequently Asked Questions
1. Can a Resistive Touch Screen Support Multi-Touch?
Traditional resistive screens do not support multi-touch, but newer engineered designs can recognize simplified gestures.
2. Are Resistive Screens Suitable for Outdoor Use?
Yes. They work well in environments affected by rain, dust, or gloves, making them ideal for kiosks and machinery.
3. What Causes a Resistive Touch Screen to Lose Accuracy?
Over time, calibration drift, connector issues, or wear on the top membrane can reduce precision.
4. Can Resistive Screens Be Used With a Stylus?
Absolutely. In fact, stylus input is one of their biggest advantages due to high accuracy.
5. Which Industries Prefer Resistive Touch Screens?
They are widely used in medical, industrial, automotive, POS, agriculture, and transportation applications.
Summary
This article explores the structure, working principles, advantages, limitations, and modern uses of resistive touch screens. It includes comparisons with capacitive screens, industry applications, innovations, and buying tips. A comprehensive guide for engineers, procurement teams, and tech decision-makers.
