Modern electronics manufacturing is built on precision—from micrometer solder paste apertures to ultra-fine pitch components. Every detail matters, and few processes influence yield more directly than stencil cleanliness. As PCB assemblies continue trending toward miniaturization, manufacturers face mounting pressure to improve solder deposition accuracy while minimizing defects. This is where the stencil cleaning machine has evolved from a helpful accessory into a mission-critical element of high-reliability SMT lines.
This article takes you on a deep dive into stencil cleaning machines: how they work, why they matter, the differences between machine types, and how to choose the right model for your production environment. Whether you run a high-volume EMS operation, a mid-scale industrial facility, or a small prototype shop, the insights here will help you operate smarter, cleaner, and more efficiently.
Understanding the Function of a Stencil Cleaning Machine

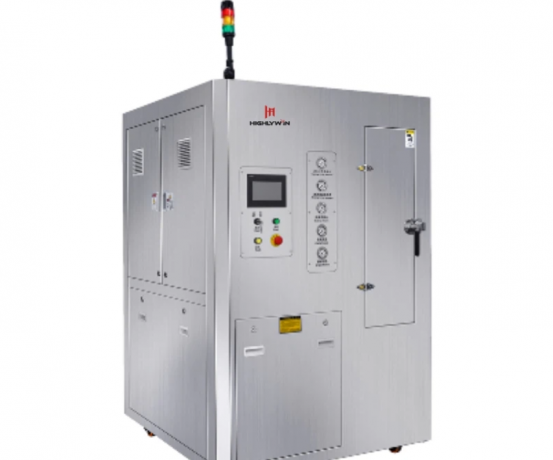

A stencil cleaning machine is an automated system designed to remove solder paste, adhesives, and contaminants from SMT stencils, squeegees, and misprinted PCBs. Cleanliness is essential for achieving accurate solder paste deposition, reducing bridging, eliminating insufficient solder deposits, and extending stencil lifespan.
Modern machines integrate controlled cleaning chemistry, high-pressure spray mechanisms, optimized drying cycles, and automated filtration systems. The result is consistent, repeatable cleaning performance that manual methods simply cannot match.
Why Stencil Cleanliness Matters in SMT Production
Precision Printing Requires Clean Stencils
Tiny apertures clog easily, and even small paste residues can alter print volumes. As component pitches shrink—0.4 mm, 0.35 mm, and beyond—there is zero tolerance for blocked apertures.
Reduced Defects and Rework
Common problems caused by poor stencil maintenance include:
-
Bridging
-
Tombstoning
-
Voiding
-
Inconsistent solder joints
-
Excess reflow residue
A stencil cleaning machine eliminates these recurrent issues by ensuring every print starts with a contaminant-free stencil.
Increased Stencil Longevity
Regular manual scrubbing deforms fine apertures over time. Automated machines remove contaminants without physical abrasion, extending stencil life and maintaining geometric precision.
Enhanced Production Efficiency
Automated cleaning means operators spend less time manually wiping, soaking, or brushing. Machines deliver faster, more predictable cycles, enabling uninterrupted SMT line flow.
How Stencil Cleaning Machines Work
Stencil cleaning machines typically operate through a combination of:
Spray Pressure Systems
High-pressure water-based or solvent-based sprays break down solder paste and adhesives. The spray angle, velocity, and coverage are optimized to reach both stencil surfaces and aperture walls.
Ultrasonic Cavitation (in some models)
Ultrasonic waves create microscopic bubbles that implode, loosening contaminants from deep within apertures. This option is beneficial for ultra-fine pitch stencils.
Closed-Loop Filtration
Most advanced machines recycle cleaning liquid through progressive filters. This reduces chemical use, lowers environmental impact, and improves operating cost efficiency.
Automated Drying Cycles
Hot air knives or vacuum drying remove moisture or solvent residue, ensuring the stencil is ready for immediate production.
Different manufacturers will have variations in nozzle design, chemical compatibility, tank capacity, and automation features. The right choice depends heavily on your production requirements.
Types of Stencil Cleaning Machines
Offline Stencil Cleaning Machines
These are standalone machines that operate separately from the printing line. They are ideal for:
-
Medium to large SMT operations
-
High stencil turnover environments
-
Facilities needing high volume cleaning capabilities
Offline machines deliver the strongest cleaning performance and the most advanced automation.
Inline Stencil Cleaning Machines
Inline cleaning systems integrate directly with the screen printer. They clean the stencil without needing removal and help maintain consistent print quality. Suitable for:
-
High-volume factories
-
Operations with minimal downtime tolerance
This system ensures peak printing accuracy but requires a more significant investment.
Ultrasonic Stencil Cleaners
These machines use ultrasonic waves to dislodge contaminants. Their advantages include:
-
Excellent penetration for micro-apertures
-
Gentle cleaning without mechanical abrasion
They are preferred for ultra-fine pitch and complex stencil designs.
Hybrid Cleaning Systems
Some models combine spray and ultrasonic technologies, delivering versatile cleaning performance across a range of stencil types.
Comparison of Common Stencil Cleaning Machine Types
| Feature / Machine Type | Offline Cleaning Machine | Inline Cleaning Machine | Ultrasonic Cleaning Machine |
|---|---|---|---|
| Best For | High-mix SMT environments | High-volume SMT production | Ultra-fine pitch stencils |
| Cleaning Strength | Strong, customizable | Continuous maintenance cleaning | Deep aperture penetration |
| Cost Level | Moderate to High | High | Moderate |
| Chemical Use | Water-based or solvent | Water-based, low waste | Typically solvent-safe |
| Automation Level | High | Very high | Medium |
| Space Requirement | Medium | High | Low |
| Suitable Apertures | Standard to fine pitch | Standard to fine pitch | Micro and ultrafine |
Choosing the Right Stencil Cleaning Machine
Selecting the best machine means evaluating multiple operational needs:
1. Production Volume and Throughput
High-volume facilities benefit from inline systems. Smaller factories may find offline machines sufficient and cost-effective.
2. Aperture Size and Stencil Type
Fine-pitch or nano-coated stencils may require ultrasonic or hybrid cleaning for optimal results.
3. Cleaning Chemistry Compatibility
Some machines support water-based detergents, others rely on solvents. Consider environmental regulations, waste handling requirements, and cost per cycle.
4. Installation Space and Utility Requirements
Large machines require significant floor space, ventilation, and electrical capacity.
5. Automation Level Needed
Features like automatic drying, liquid level monitoring, and programmable wash cycles reduce labor and improve consistency.
6. Environmental and Safety Standards
Closed-loop filtration systems help meet global compliance requirements while reducing operating costs.
Environmental Considerations in Stencil Cleaning
Modern stencil cleaning machines have evolved around green manufacturing principles:
-
Reduced waste disposal
-
Low-VOC chemicals
-
Advanced filtration and recycling
-
Water-saving technologies
-
Energy-efficient drying modules
Manufacturers now prioritize safety, sustainability, and compliance as much as cleaning capability itself.
Maintaining a Stencil Cleaning Machine
To ensure long-term performance:
-
Replace filtration media regularly
-
Monitor chemical concentration
-
Inspect spray nozzles and ultrasonic modules
-
Clean internal tanks and pumps
-
Follow scheduled preventive maintenance plans
Well-maintained machines not only perform better but also reduce long-term operating costs.
Future Trends in Stencil Cleaning Technology
Electronics manufacturing is moving toward higher reliability and smarter automation. Trends include:
-
AI-assisted process monitoring
-
Chemical-free cleaning technologies
-
Dry cleaning systems using plasma or laser processes
-
Fully automated closed-loop eco-systems
-
Real-time cleanliness verification using vision sensors
The stencil cleaning machine of the future will be faster, greener, and more intelligent.
Frequently Asked Questions
1. Can ultrasonic cleaning damage fine-pitch stencils?
Modern ultrasonic systems use controlled low-frequency cavitation that is safe for stainless steel stencils when used according to manufacturer guidelines.
2. Are water-based chemicals as effective as solvents?
Yes, especially with modern formulations. Water-based detergents are safer and more environmentally friendly, though some stubborn adhesives may still require solvent solutions.
3. How often should a stencil be cleaned during production?
This depends on stencil design and solder paste type. Many high-precision lines clean after every few prints or continuously using inline systems.
4. Is manual cleaning still acceptable?
Manual cleaning can work for simple stencils or prototypes, but it is not recommended for fine-pitch or high-volume production due to inconsistency.
5. What is the typical lifetime of a stencil cleaning machine?
With proper maintenance, many machines last eight to fifteen years or more.
Summary
This comprehensive guide explores how stencil cleaning machines improve SMT printing accuracy, reduce defects, and enhance production efficiency. It compares offline, inline, and ultrasonic systems and explains selection criteria, maintenance tips, and future cleaning technology trends.
