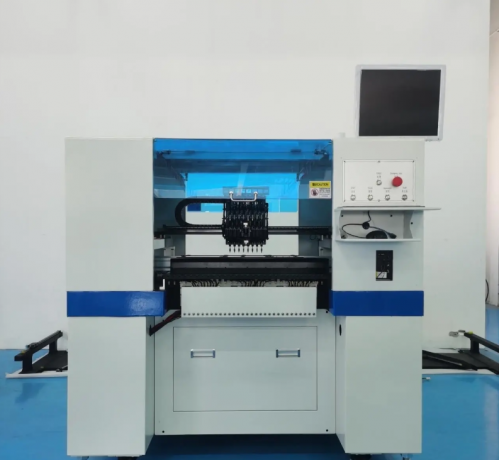

Surface Mount Technology has redefined modern electronics manufacturing, and at the heart of this transformation stands the SMT Pick And Place Machine. As consumer expectations rise and device architectures shrink, manufacturers need smarter, faster, and more adaptive placement systems. This article explores how SMT pick and place machines have evolved, how they work, how to choose the right one, and what trends will shape their future.
Understanding the Role of an SMT Pick And Place Machine
SMT pick and place machines are automated systems designed to position electronic components onto printed circuit boards with precision and high speed. Whether used in a compact startup workshop or an industrial-grade mass-production line, these machines ensure consistent quality and productivity far beyond manual assembly.
Why SMT Placement Matters More Than Ever
The density of components on modern circuit boards demands placement accuracy down to fractions of a millimeter. With IoT devices, wearables, EV power systems, and advanced robotics becoming mainstream, manufacturers depend on machines capable of aligning thousands of components per minute without error.
Core Tasks Performed by Pick and Place Systems
Modern machines do more than pick components and drop them onto pads. They integrate vision systems, real-time monitoring, feeder management, and motion control, all working seamlessly to maintain efficient production.
Key operations include:
-
Picking components from feeders or trays
-
Vision inspection to confirm orientation
-
High-precision movement to PCB coordinates
-
Placement at controlled pressure and speed
-
On-the-fly adjustments to compensate for board deviations
How an SMT Pick And Place Machine Works
The internal workflow of a placement machine involves several synchronized modules. Understanding these mechanics helps operators optimize settings and minimize downtime.
Component Feeding
Components are delivered through various feeder types, such as tape feeders, tray feeders, vibrating feeders, or bulk feeding systems. Intelligent feeders allow rapid changeovers and track usage to prevent missing components during production.
Vision Alignment and Calibration
Vision systems, typically using top and bottom cameras, identify component orientation, board fiducials, and potential misalignment. Advanced algorithms compare the real-time image with stored footprint data, ensuring every component is placed correctly.
Gantry and Placement Heads
Placement heads travel along precision-engineered axes. High-end machines may contain multiple heads with multiple nozzles to enable simultaneous handling of different components. Servo motors and linear guides ensure stable, vibration-free movement.
Pressure Control and Soft Landing
When placing fragile components such as BGAs or 01005 resistors, pressure control becomes essential. Soft-landing mechanisms prevent damage and ensure proper solder joint integrity after reflow.
Data Exchange and Workflow Integration
SMT production lines integrate pick and place machines with printers, ovens, conveyors, and AOI stations. Through MES or factory automation platforms, data flows seamlessly to monitor yield, component usage, and equipment health.
Types of SMT Pick And Place Machines
Different production environments require different classes of machines. Below is a breakdown of the major categories.
Entry-Level Desktop Machines
These compact models target prototyping, small workshops, and educational labs. They offer acceptable precision for low-volume tasks but narrower feeder capacity and lower throughput.
Medium-Volume Inline Machines
Often used by contract manufacturers or mid-scale factories, these machines balance speed, versatility, and cost-effectiveness. They handle a wide range of components, from basic chips to fine-pitch ICs.
High-Speed Chip-Shooter Systems
Designed for mass-production, chip shooters specialize in placing small passive components at extraordinary speeds. They often operate alongside flexible placement machines that handle larger packages.
Hybrid Multi-Function Machines
These are increasingly common, combining the speed of chip shooters with the flexibility of multi-nozzle placement heads. They reduce footprint while increasing line efficiency.
Comparison Table of SMT Pick And Place Machine Categories
| Machine Type | Typical Speed (CPH) | Best For | Feeder Capacity | Component Range | Cost Level |
|---|---|---|---|---|---|
| Desktop / Entry-Level | 2,000–6,000 | Prototype, hobby, small workshops | Low | Basic chips, small ICs | Low |
| Medium-Volume Inline | 10,000–35,000 | SMEs, contract manufacturers | Medium | Wide range | Medium |
| High-Speed Chip Shooter | 50,000–120,000+ | Large factories, mass production | High | Small passives | High |
| Hybrid Multi-Function | 20,000–60,000 | Mixed-volume production | Medium-High | Chips to BGAs | Medium-High |
Key Features to Consider When Choosing a Pick And Place Machine
Choosing the right machine involves balancing performance, flexibility, budget, and long-term growth.
Placement Speed
Though often highlighted by manufacturers, raw speed alone doesn't determine real productivity. Changeover time, feeder count, and machine utilization have broader impacts on actual output.
Accuracy and Repeatability
High-precision tasks require consistent accuracy across shifts. Look for machine designs with rigid frames, precise linear guides, and dual-camera alignment.
Feeder Intelligence and Expandability
Smart feeders with barcode tracking, quick-release designs, and error prevention significantly reduce setup and component waste.
Software Interface and Programming Ease
Modern SMT machines come with graphical programming, library management systems, automatic optimization, and job simulation. A user-friendly interface shortens operator training curves.
Component Compatibility
The ability to handle everything from 01005 passives to large QFPs, BGAs, CSPs, and odd-shaped components ensures long-term flexibility.
Maintenance and Reliability
Predictive diagnostics, easy-access modules, and durable nozzles reduce downtime. Integrated monitoring helps identify worn mechanical parts before failure.
Applications of SMT Pick And Place Machines
The increase in digitalization fuels the demand for fast, automated PCB assembly. Pick and place machines are essential across industries such as:
-
Automotive electronics
-
Communication devices and 5G modules
-
Medical instruments
-
Industrial automation controllers
-
Consumer electronics
-
Aerospace and defense electronics
In each case, performance and reliability hinge on accurate component placement.
Common Challenges in SMT Placement and How to Solve Them
Even with advanced machines, production lines face predictable challenges.
Misalignment or Tombstoning
Improper solder paste volume or inaccurate component positioning can cause tombstoning. Calibrating the vision system and adjusting pick angle can mitigate this issue.
Feeder Jamming
Feeder errors slow down production and cause missing placements. Using high-quality feeders and performing regular maintenance helps prevent jams.
Nozzle Wear or Blockage
Dirty or worn nozzles lead to missing picks. Most modern systems provide alerts when vacuum levels fall below threshold.
Static Damage and Handling Risks
Proper grounding, humidity control, and careful tray handling protect sensitive components from static discharge.
Future Trends in Pick And Place Technology
The market is moving toward more intelligent, efficient, and adaptive systems.
AI-Driven Vision and Placement Optimization
Machine learning enhances shape recognition, defect detection, and real-time adjustment during placement.
Collaborative Robotics Integration
Cobots are increasingly being used for feeder loading, board handling, and machine tending, reducing labor dependency.
Ultra-Miniature Component Handling
As 008004 and even smaller components become mainstream, machines will evolve to handle them reliably.
Smart Factory and Cloud-Based Monitoring
Remote dashboards allow engineers to monitor machine health, track production, and optimize job queues without on-site presence.
How to Maximize the Life and Performance of Your SMT Pick And Place Machine
Proper maintenance and intelligent workflow improve equipment lifespan and production stability.
Lubrication and Cleanliness
Linear guides, belts, and gears require regular lubrication. Dust and solder paste particles must be kept away from sensitive camera modules.
Routine Calibration
Fiducial recognition, placement height calibration, and nozzle database updates ensure stable placement quality.
Heat and Environmental Control
Clean, temperature-stable environments reduce mechanical and electronic wear.
Operator Training and Certification
Skilled operators can prevent many production issues. Ensuring staff understand job creation, feeder mapping, and troubleshooting is essential.
When Should You Upgrade Your Placement Machine?
Manufacturers often hesitate to replace older systems, but several signs indicate it's time for an upgrade:
-
Increasing defect rates despite frequent calibration
-
Incompatibility with new component sizes
-
Excessive downtime or feeder failures
-
Insufficient speed to meet customer lead times
-
High maintenance costs
-
Inability to integrate with modern SMT lines
Upgrading can dramatically improve cost per board and overall throughput.
Frequently Asked Questions
1. What components can an SMT Pick And Place Machine handle?
Most machines handle passives, ICs, BGAs, QFNs, LEDs, connectors, sensors, and even odd-shape parts depending on nozzle and feeder compatibility.
2. How accurate are modern pick and place machines?
High-end units achieve precise component placement with repeatable accuracy suitable for fine-pitch and miniaturized components.
3. Do I need separate machines for small and large components?
Not necessarily. Hybrid or multifunction machines can handle both high-speed chip shooting and larger IC placement in one system.
4. How often should the machine be calibrated?
Calibration routines depend on usage but are typically performed regularly to maintain consistent accuracy.
5. What is the biggest cost factor in SMT placement?
Feeder investment, machine capabilities, and maintenance significantly influence total ownership cost.
Summary
This article explores SMT Pick And Place Machines in depth, covering how they work, machine types, key selection features, production challenges, and future industry trends. It includes a comparison table, FAQs, and practical insights to guide manufacturers in making informed decisions.
