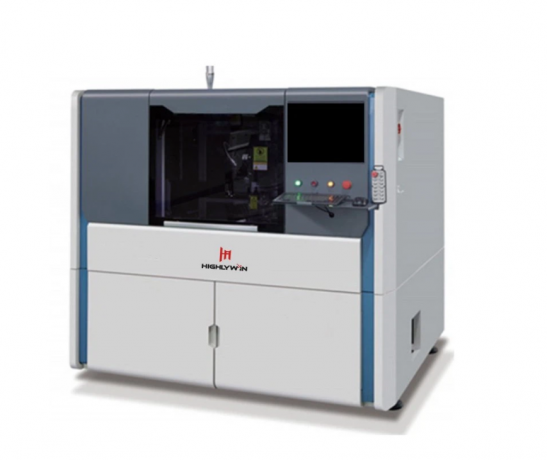

Understanding the Role of the Radial Insertion Machine
The Radial Insertion Machine has become one of the most vital pieces of equipment in the modern PCB assembly line. As manufacturers demand higher efficiency, reduced labor dependence, and consistent product quality, the radial inserter fills a crucial gap by automating the placement of radial lead components. These components, unlike axial or SMD types, require a precise combination of lead-forming, orientation control, and insertion force. Manual handling not only slows the process but increases the risk of lead damage, inconsistent insertion depth, and production bottlenecks.
In environments where output quality directly affects downstream soldering reliability, the Radial Insertion Machine becomes more than a piece of automation equipment. It becomes a strategic investment. As the global manufacturing landscape transitions toward fully intelligent factories, this machine stands at the core of hybrid assembly lines where both through-hole and SMT processes must coexist without sacrificing speed.
Why Radial Components Still Matter
Despite the dominance of surface-mount technology, radial components retain an irreplaceable role. Components like electrolytic capacitors, varistors, coin cells, sensors, relays, and various high-current devices still rely on radial leads. These parts require the vertical stability and mechanical robustness offered by through-hole assembly.
This is where the Radial Insertion Machine shines. Rather than discarding radial components as outdated, manufacturers recognize that these components complement SMT. In fact, a mixed assembly approach often yields better cost structure, board durability, and overall performance. The automation of the radial insertion process ensures that this hybrid approach remains scalable and economically attractive.
How a Radial Insertion Machine Works
A Radial Insertion Machine performs a sequence of coordinated actions that enable smooth, accurate, repeatable component placement. Key functional elements include:
Component Feed System
The machine draws radial components from taped reels. The feed mechanism ensures proper spacing, orientation, and alignment so that each component arrives at the forming and insertion zone without error. Sensors detect whether a part is misaligned or missing, preventing defects before they occur.
Lead Forming and Cutting
Most radial components need their leads trimmed and shaped to match the PCB hole spacing. The machine performs this forming with automated tooling, ensuring consistency that is nearly impossible to achieve manually. Lead shaping also helps maintain the correct insertion height and solderability downstream.
Positioning and Vision Assistance
Advanced models incorporate vision alignment to guarantee the insertion accuracy even on densely packed boards. By analyzing fiducial points or specific PCB coordinates, the system auto-corrects minor board offsets, ensuring every component is placed at the exact designated position.
Insertion and Clinching
Once aligned, the machine precisely drives the component into the PCB via controlled force. The clinching unit bends the leads on the underside of the PCB to secure the component during soldering. This step minimizes fall-off and ensures the board remains stable before wave soldering.
The most advanced machines include servo-driven insertion heads, dynamic pitch adjustment, and automated program storage, allowing rapid changeovers for different component types.
Comparing Radial Insertion Machines With Alternative Through-Hole Methods
Below is a comparison table that highlights how radial insertion technology compares with manual assembly and axial insertion machines.
| Feature / Method | Radial Insertion Machine | Manual Insertion | Axial Insertion Machine |
|---|---|---|---|
| Suitable Components | Radial lead capacitors, varistors, sensors | Any THT parts | Axial resistors, diodes |
| Speed | Very high, automated | Very slow | High, automated |
| Accuracy | Exceptional | Operator-dependent | High |
| Labor Cost | Very low | Very high | Low |
| Lead Forming | Automatic | Manual or external | Automatic |
| Risk of Damage | Minimal | Medium to high | Minimal |
| Best Use Case | Large-volume PCB production | Prototyping, small runs | High-volume axial parts |
This table demonstrates why radial insertion equipment is preferred in factories targeting high throughput and consistent quality, especially when production includes large electrolytic capacitors, sealed coils, or polarized radial components.
Key Features to Look for in a Radial Insertion Machine
Flexible Pitch Adjustment
Not all PCBs follow the same hole spacing. A flexible pitch adjustment function saves time and tooling cost. Machines that allow programmable pitch width enable manufacturers to switch products without swapping mechanical fixtures.
High-Capacity Component Reel Support
Large reel capacity reduces changeover frequency. This is especially useful in 24-hour mass-production lines where downtime translates into significant financial cost.
Intelligent Fault Detection
Smart diagnostics detect issues such as jammed tape, missing components, misfeeds, and insertion errors. Some machines provide automatic jam clearance cycles to avoid the need for manual intervention.
Quick-Change Tooling
To maintain productivity, advanced radial inserters offer modular tooling systems. These allow operators to switch between different component types with minimal downtime.
MES and Data Connectivity
Modern factories depend on traceability and data integration. Machines with MES support and data export functions can log insertion records, cycle counts, and error rates. This information drives long-term process optimization and predictive maintenance strategies.
Applications Across Various Industries
The Radial Insertion Machine plays a major role across many different markets. Each industry leverages its reliability and throughput advantages in unique ways.
Consumer Electronics
Power supplies, chargers, LED drivers, and audio boards often contain electrolytic capacitors requiring radial insertion. High-speed automation ensures consistent quality in these price-sensitive products.
Industrial Control Systems
Automation controllers, PLC boards, motor drivers, and inverters heavily rely on radial components for durability and heat resistance. Manual insertion becomes impractical due to volume, complexity, and required precision.
Automotive and Transportation
Radial insertion equipment serves automotive modules such as lighting control units, sensor boards, and infotainment power systems. Automotive manufacturers value consistency and traceability, making automated insertion preferred over manual handling.
Medical Electronics
Medical-grade equipment requires extremely low defect rates. Automated insertion helps ensure repeatability and reduces contamination risks caused by manual handling.
Power and Energy Systems
Battery management systems, power inverters, solar controllers, and uninterruptible power supply units often contain high-current radial capacitors. The radial inserter provides essential mechanical stability that such high-stress boards require.
How Radial Insertion Machines Improve Production KPIs
Manufacturers adopt radial insertion equipment primarily to optimize performance metrics that govern manufacturing competitiveness.
Improved Cycle Time
Automation reduces insertion time dramatically. A typical manual operator may handle a few hundred components per hour, whereas a radial inserter handles thousands effortlessly.
Higher First-Pass Yield
Because placement accuracy is consistent, defects related to misaligned parts or insufficient insertion depth drop significantly. This leads to fewer reworks and reduced cost per PCB.
Lower Labor Dependence
With skilled labor becoming harder to find and retain, replacing manual insertion with automation ensures production remains stable even during staffing shortages.
Predictability and Scalability
Once programmed, the machine replicates insertion routines perfectly, enabling predictable delivery schedules. Scaling output simply requires additional machines rather than additional operators.
Enhanced Safety
Manual insertion poses repetitive strain risks. By automating the task, manufacturers reduce workplace injuries and improve long-term labor ergonomics.
Challenges in Implementing Radial Insertion Automation
Even with significant advantages, onboarding a Radial Insertion Machine requires strategic planning.
Component Variety
If a production line handles dozens of radial component types, changeovers may be frequent. This highlights the importance of modular tooling and flexible programming.
Operator Training
Although the machine automates most tasks, operators must understand feeding mechanisms, diagnostic alerts, and maintenance routines. High-end machines often include intuitive touchscreen interfaces that shorten training time.
Floor Space Considerations
Radial insertion machines are compact compared to older-generation equipment, but manufacturers must still plan assembly line layout to optimize handling flow between SMT and THT processes.
Consumables and Spare Parts
Like any mechanical system, cutting tools, forming blades, and clinching units require periodic replacement. Ensuring supply availability keeps the machine running at optimal performance.
Integration With Wave Soldering
Proper planning is needed to align radial insertion timing with downstream wave soldering. Clinching must be precise to prevent component drop-off during conveyance.
The Future of Radial Insertion Technology
Automation trends are pushing radial inserters into a new generation of capability.
Vision-Enhanced Precision
Next-generation machines incorporate more powerful cameras and AI-assisted alignment, reducing the need for perfectly printed fiducials and compensating for minor PCB variances.
Predictive Maintenance
Integrated sensors measure vibration, cycle load, and tool temperature. The machine predicts failure before it occurs, reducing unplanned downtime.
Fully Automatic Changeover
Future machines will adjust pitch, switch tapes, and replace tooling automatically—reducing human intervention to near zero.
Connectivity and Cloud Analytics
Data-driven factories can push real-time performance metrics to the cloud, enabling remote monitoring of OEE, error trends, and production forecasting.
These advancements will position radial insertion systems as key enablers of the smart factory ecosystem.
Choosing the Right Radial Insertion Machine: Practical Buying Guide
Selecting a radial inserter involves balancing technical needs, future product plans, and cost dynamics.
Define Component Range
Analyze the types, lead spacing, heights, orientations, and reel formats of all radial components. This determines whether you need wide pitch flexibility or multiple forming tools.
Evaluate Speed Requirements
Some machines offer higher throughput for single-type components, while others trade speed for greater flexibility. Match the choice to your long-term production strategy.
Look for Upgrade Paths
Choose brands that allow later upgrades such as additional pitch modules, extended reel capacity, or enhanced vision systems. Scalability protects the machine's long-term value.
Confirm Local Service Support
Downtime costs more than most companies expect. Reliable after-sales support and spare parts availability are critical.
Consider Data and Integration
If your facility relies on smart manufacturing or MES systems, select a machine with support for standardized communication protocols.
Conclusion
The Radial Insertion Machine is essential for any manufacturer dealing with radial lead components. Its ability to accelerate throughput, improve accuracy, reduce labor dependency, and ensure consistent quality makes it a cornerstone of modern hybrid PCB assembly lines. With continuous advancements in vision systems, connectivity, and predictive maintenance, these machines are becoming smarter, more adaptable, and more cost-effective than ever.
Frequently Asked Questions
1. What components are suitable for a Radial Insertion Machine?
Radial capacitors, varistors, sensors, relays, coils, and many vertically oriented components with radial leads.
2. Can a radial inserter replace manual insertion entirely?
For high-volume production, yes. For small prototyping tasks, manual insertion may still be more cost-effective.
3. Do radial insertion machines support multiple lead pitches?
Modern models offer programmable pitch settings, allowing flexibility across different PCB layouts.
4. Is vision alignment necessary?
Not always, but vision systems significantly improve accuracy for dense or complex PCB designs.
5. How often do forming blades or tooling need replacement?
That depends on production volume. High-speed lines may replace tooling periodically to maintain precision.
Summary
This article explores how the Radial Insertion Machine enhances modern PCB assembly through automation, precision, and efficiency. It covers machine features, applications, workflow, technology trends, comparison with manual methods, buying considerations, and the growing role of smart manufacturing.
