Manufacturing environments today demand more than accuracy—they demand speed, repeatability, connectivity, and a seamless workflow from raw components to finished wiring assemblies. At the center of these evolving expectations stands a piece of automation equipment that often goes unnoticed yet performs some of the most critical tasks in electrical component production: the Terminal Insertion Machine.

Whether used for automotive wiring harnesses, consumer electronics, industrial control systems, medical cables, or home appliances, terminal insertion machines have become essential for high-quality, high-volume, and zero-defect wire processing. This guide breaks down the technology in a fresh, comprehensive, and highly practical way—offering deeper insight than standard blogs that often recycle the same definitions and surface-level descriptions.

Below you will find real workflow explanations, comparison tables, use-case analysis, advanced engineering considerations, and an expert-level look at where insertion automation is heading next.

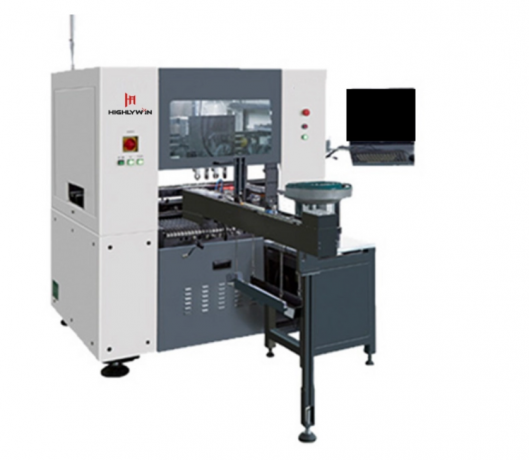

Understanding What a Terminal Insertion Machine Really Does

A terminal insertion machine is not merely a device that pushes terminals into housings; it is a coordinated electromechanical system designed to streamline the wiring assembly process from end to end. It aligns terminals, orients connectors, positions wires, verifies alignment, applies appropriate pressure, and performs quality checks—often within a fraction of a second.

Its core objective is simple:

Ensure every terminal is inserted into its corresponding housing cavity with perfect accuracy and repeatability.

But beneath this simplicity lies a world of engineering:

  • Servo-driven arms synchronize multiple axes for precise insertion angles.

  • Vision sensors validate orientation and cavity position.

  • Pneumatic or electric press units apply consistent insertion force.

  • Feed systems manage terminals delivered on reels, strips, or loose form.

  • Advanced software ensures each insertion process meets measured standards.

In modern factories, these machines eliminate the human error common in manual insertion, particularly in high-density connectors common in EVs, robotics, and 5G infrastructure.



Why Terminal Insertion Machines Matter More Than Ever

Growing product complexity and shrinking tolerances mean manufacturers can no longer rely on traditional manual insertion methods. With more circuits per connector and more micro-terminals packed into compact housings, precision is no longer optional.



Key reasons insertion automation is rising:

  • Higher quality demands from automotive OEMs and electronics companies

  • Shortened production cycles in competitive manufacturing markets

  • Scaling production volume for EV wiring harnesses and consumer devices

  • Labor shortages in many regions, increasing dependency on automation

  • Safety and ergonomics improvements for workers

  • Digital traceability required by Industry 4.0

Terminal insertion machines answer these challenges through smart automation, embedded sensors, force monitoring, and continuous process feedback.



Types of Terminal Insertion Machines

Although many models exist, they can be grouped into several major categories based on production needs.



Fully Automatic Terminal Insertion Machines

These represent the highest level of automation. Once configured, they:

  • Feed terminals automatically

  • Position housings on fixtures

  • Insert terminals with controlled force

  • Inspect insertion depth

  • Reject faulty assemblies automatically

They are ideal for high-volume production where consistency and cycle time matter most.



Semi-Automatic Terminal Insertion Machines

These machines still automate insertion but require manual placement of housings or wires. They strike a balance between flexibility and cost.



Custom / Application-Specific Insertion Systems

Often used in aerospace, telecommunications, or medical manufacturing, custom machines can:

  • Handle exotic terminals

  • Perform multi-directional insertion

  • Integrate testing modules

  • Work with special connector materials or shapes

These systems are engineered for unique production environments where standard machines cannot perform reliably.



Core Components of a Modern Terminal Insertion System

Understanding the internal mechanics gives manufacturers better control over performance and maintenance.



1. Terminal Feeding Module

This module sorts, aligns, and delivers terminals from reels, strips, or trays. High-end systems employ vibration feeders, step feeders, and robotic pick-and-place mechanisms.



2. Connector Positioning Fixture

The fixture secures the housing, preventing micro-movement. It ensures insertion occurs at exactly the right angle and depth.



3. Servo-Driven Insertion Press

Servo motors allow precise force control. They apply just enough pressure to seat the terminal without deforming it.



4. Optical Vision System

Vision sensors verify:

  • Terminal orientation

  • Housing cavity alignment

  • Insertion depth and position

This is essential for micro-terminal applications.



5. Force & Displacement Monitoring

The machine tracks real-time insertion force patterns. Deviations indicate misalignment, contamination, or incorrect part selection.



6. Control Software Interface

Operators configure insertion parameters, storage of historical data, auto-calibration, and integration with MES/ERP systems.



Advantages of Using Terminal Insertion Machines

Automation delivers a portfolio of benefits across all major stages of production:

Consistency and Repeatability

Unlike manual operators—affected by fatigue or variability—machine-driven insertion maintains stable results across thousands of cycles.

Higher Productivity

Cycle times are shorter and more stable—machines often perform several insertions per second.

Zero-Defect Manufacturing

With built-in force monitoring, optical inspection, and automated rejection, quality becomes predictable.

Cost Reduction

Labor, scrap, and rework drop significantly over time.

Improved Workplace Safety

Repetitive manual insertion can lead to injuries. Automation reduces strain and risk.



Comparison Table: Manual vs Semi-Automatic vs Fully Automatic Insertion

Feature / Capability Manual Insertion Semi-Automatic Insertion Fully Automatic Insertion
Consistency & Repeatability Low Medium Very High
Throughput Low Medium High
Defect Rate High Medium Very Low
Dependence on Operator Skill Very High Medium Low
Equipment Cost Low Moderate High
Best Use Case Prototyping Medium-volume production High-volume production



Choosing the Right Terminal Insertion Machine

Selecting an insertion machine is not a one-size-fits-all decision. Consider these factors to make an intelligent choice.



Connector Type and Pin Density

High-density multi-row connectors require more advanced equipment with calibrated force control and multi-axis alignment.



Production Volume

  • High-volume = fully automatic

  • Medium-volume = semi-automatic

  • Low-volume or prototyping = manual or basic assistive systems



Terminal Form

Reel-fed terminals work best with high-speed automation. Exotic or loose terminals may need custom feeders.



Insertion Force Requirements

Observe the mechanical characteristics of your terminals and housings to ensure compatibility with servo press or pneumatic press systems.



Inspection Requirements

If your industry requires full traceability, choose a machine with:

  • Barcode integration

  • Vision inspection

  • Real-time force graphs



Floor Space & Integration

Fully automatic lines require more space and may include conveyors, robot arms, or testing stations.



Where Terminal Insertion Machines Are Used

Terminal insertion machines are indispensable across industries:

  • Automotive wiring harnesses

  • Electric vehicle battery systems

  • Industrial automation control panels

  • Consumer electronics

  • 5G communication equipment

  • Household appliances

  • Medical device cables

Each industry values different performance attributes—cycle time, traceability, micro-terminal capability, or robustness.



Innovations Changing the Future of Terminal Insertion

Technology is pushing insertion systems into a new era.



Smart Force Signature Analysis

Machines now build digital force fingerprints for every insertion cycle. If the signature deviates, the system automatically stops, alerts operators, or ejects faulty pieces.



AI-powered Vision Systems

AI improves cavity recognition, terminal flaw detection, and orientation correction—even when connectors are partially obstructed.



Robot-Assisted Insertion Modules

Cobots can load housings, orient wires, or transport finished assemblies to the next station, enabling unmanned production lines.



Digital Twin Modeling

Manufacturers can simulate insertion behaviors before physically producing parts—optimizing connector design and machine settings.



Modular Production Platforms

Modern machines allow tool-free changeovers and reconfigurable insertion heads, making low-volume, multi-product manufacturing more efficient.



Maintaining a Terminal Insertion Machine: Best Practices

Reliable performance requires proper maintenance.

Lubrication and Cleaning

Particles or leftover insulation can disrupt alignment. Clean feeders, guides, and fixtures regularly.

Calibration

Periodic force and displacement calibration prevents drift in insertion precision.

Software Updates

Modern systems improve accuracy and speed through firmware enhancements.

Tooling Inspection

Punches, dies, and alignment pins wear out over time and require timely replacement to maintain accuracy.



Common Problems and How to Avoid Them



1. Misalignment Between Terminal and Cavity

Cause: worn tooling or improper fixturing

Fix: replace fixtures or recalibrate alignment systems



2. Terminal Damage or Deformation

Cause: excessive force or incorrect press settings

Fix: adjust servo force parameters



3. Connector Housing Cracks

Cause: rigid, brittle materials or wrong insertion angle

Fix: ensure multi-axis alignment is active



4. Feeding Errors

Cause: improper reel tension or contamination

Fix: adjust feeder tension and clean the system



Sample Workflow of a Fully Automated Insertion Cycle

To understand how automation transforms production, here is a realistic workflow example:

  1. Terminal reel feeds into alignment track

  2. Vision system confirms orientation

  3. Robotic arm or fixture positions housing

  4. Servo-driven insertion head presses terminal

  5. Force signature is recorded

  6. Vision confirms seating depth

  7. Good parts move to next station; bad parts are auto-ejected

This workflow repeats continuously with consistent precision, boosting productivity significantly.



Table: Comparing Different Terminal Feeding Methods

Feeding Method Benefits Limitations Best Application
Reel / Strip Feed Fast, stable, low misfeeds Requires tooling compatibility Automotive, electronics mass production
Vibration Feeder Handles small loose terminals Lower speed Medical, telecom connectors
Robotic Pick & Place Flexible, high precision Higher cost Multi-product or high-mix facilities



Conclusion: Why Every Modern Factory Needs Terminal Insertion Automation

Terminal insertion machines are no longer optional—they are foundational equipment for manufacturers aiming to achieve high throughput, ultra-low defect rates, and globally competitive production costs. Their growing integration with robotics, AI, and smart analytics demonstrates how critical they are to the next generation of manufacturing.

Whether you are upgrading existing lines or evaluating automation for the first time, choosing a terminal insertion system can redefine how efficiently and accurately your factory operates.



FAQ Section

1. What is the major benefit of using a terminal insertion machine?

The primary benefit is consistent, high-precision insertion with minimal defects.

2. Can terminal insertion machines handle different connector types?

Yes. Many systems feature interchangeable tooling for various housings and terminals.

3. How do I know if I need a fully automatic or semi-automatic machine?

Your decision depends on production volume, complexity, and budget.

4. Are terminal insertion machines compatible with Industry 4.0 systems?

Modern machines can integrate with MES and ERP systems for traceability and digital monitoring.

5. How often should insertion machines be calibrated?

Calibration varies by usage but is typically recommended on a scheduled maintenance cycle to maintain accuracy.

Summary

This article explores terminal insertion machines in depth, covering automation types, system components, advantages, industry applications, and future innovations. It includes comparison tables, workflow insights, FAQs, and expert guidance to help manufacturers choose the right insertion technology.
