Pharmaceutical companies are facing unprecedented pressure to deliver safer, more accurate, and more patient-friendly injectable products. Among all the processing technologies reshaping the industry, the PreFilled Syringe Filling Machine stands out as a cornerstone of sterile manufacturing. From biologics to vaccines to high-value injectables, prefilled syringes are no longer a niche format but a global standard.
This guide explores every critical aspect of the technology—its mechanisms, components, innovations, quality controls, validation requirements, and how manufacturers can strategically choose the right system for scalable, compliant production.
Understanding the Rise of PreFilled Syringe Systems
PreFilled syringes (PFS) have transformed injectable delivery. Instead of vials that require manual preparation, PFS pack accuracy, convenience, sterility, and safety into a single-use device. For sensitive biologics, the reduced container interaction results in higher stability, while hospitals benefit from fewer medication errors.
As demand surges, PFS production must be fast, clean, sterile, and extremely precise. This is where modern prefilled syringe filling machines redefine what is possible in aseptic processing.

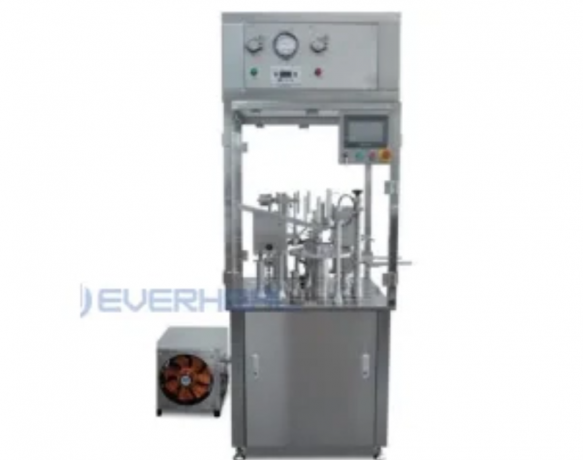

How a PreFilled Syringe Filling Machine Works
A prefilled syringe filling line combines filling, stoppering, plunger insertion, inspection, and sometimes labeling into an integrated aseptic workflow. Although designs vary, most systems include:
Filling Mechanism
The heart of the machine uses either peristaltic pumps or rotary piston pumps. The goal is ultra-precise micro-dosing while avoiding turbulence or shear stress—critical for biologics like mRNA or enzymes.
Nozzle and Diving System
A diving nozzle reduces splashing and foaming, ensuring each syringe receives its exact dose without bubbles or air pockets.
Stoppering System
Stopper insertion must be sterile and synchronized with the filling rhythm. Servo-controlled movements ensure accurate placement and torque-consistent sealing.
Plunger Rod Insertion
An automated tool applies uniform force, ensuring the plunger seats correctly without deforming the silicon layer or rubber components.
Conveying and Nest Handling
Syringes are typically processed in nests or tubs, minimizing contact and particle generation.
Integrated Inspection
From fill-level sensors to particle detection to stopper position checks—modern systems incorporate real-time QC monitoring.
Why Manufacturers Choose Automated PreFilled Syringe Filling Machines
Automation brings clear advantages in a pharmaceutical environment where sterility and precision are non-negotiable. Key benefits include:
-
Higher accuracy for micro-dosing applications
-
Dramatic reduction in contamination risk
-
Consistent quality across large batches
-
Lower operational labor requirements
-
Full compliance with cGMP, EU GMP, and FDA guidelines
-
Scalable from small-batch biologics to mass-market products
-
Lower rejection rates due to real-time QC feedback
In production environments where every milliliter counts, this equipment often pays for itself through reduced waste alone.
Key Technologies Advancing PFS Filling Machines
The newest systems integrate advanced capabilities that would have seemed futuristic a decade ago.
Robotics and Isolators
Robotic arms reduce human intervention to near zero. When paired with isolator or RABS technology, the risk of contamination reaches its lowest possible level.
Servo-Controlled Movements
Servo precision ensures dosing accuracy within tight tolerances, essential for expensive active ingredients.
100% In-Process Control
Sensors verify the fill level of every single syringe. Deviations trigger instant ejection without disrupting the line.
Smart Recipe Management
Operators can change formats (1 mL, 3 mL, 5 mL syringes) using touchscreen menus without mechanical adjustments.
AI-Assisted Anomaly Detection
Ultrasensitive cameras can detect micro-particles or stopper defects that were undetectable with older vision systems.
Comparing Different Types of PreFilled Syringe Filling Machines
Below is a concise comparison of the three most common filling machine categories:
| Machine Type | Suitable For | Strengths | Limitations | Best Use Case |
|---|---|---|---|---|
| Rotary High-Speed Machine | Large-scale mass production | Highest throughput, compact footprint | Higher changeover time | Vaccines, generics |
| Linear Servo-Based Machine | Medium to large batches | Extremely precise dosing, easy format change | Slower than rotary | Biologics, specialty injectables |
| Small-Batch / R&D Machine | Clinical trials, pilot runs | Maximum flexibility, minimal product waste | Low throughput | mRNA trials, rare disease drugs |
This comparison highlights that “faster” does not always mean “better”—biologic manufacturers often choose slower machines with higher precision and gentler handling.
A Detailed Look at the Filling Process
Step 1: De-nesting and Preparation
Syringes arrive pre-sterilized in tubs. Once opened, a robotic tool lifts them into the production nest.
Step 2: Nitrogen Purging
For oxygen-sensitive formulations, inert gas displaces air before and after filling.
Step 3: Precision Filling
Micro-dosing pumps dispense exact volumes while minimizing shear.
Step 4: Stoppering
A vacuum-assisted system places stoppers into the barrel without trapping air.
Step 5: Plunger Rod Installation
Some lines insert the rod immediately; others defer to downstream equipment depending on customer packaging needs.
Step 6: Quality Inspection
Each syringe is inspected for:
-
Fill level
-
Particles
-
Stopper alignment
-
Cosmetic defects
Step 7: Labeling and Final Packaging
Syringes move to labeling, automatic loading into trays, or blister lines for distribution.
Maintaining Sterility Through Advanced Engineering
Aseptic conditions are at the core of syringe manufacturing. Key design features include:
-
Non-shedding materials for all contact parts
-
Laminar airflow control
-
HEPA-filtered isolator chambers
-
CIP/SIP cleaning cycles
-
Contactless filling options
Every step of the engineering process aims to reduce particles, prevent human contact, and ensure a sterile barrier from start to finish.
Choosing the Right PreFilled Syringe Filling Machine
Manufacturers should evaluate more than price or speed. Critical selection factors include:
Product Sensitivity
Biologics require gentle pumps and low turbulence systems.
Batch Size
High-speed rotary systems suit massive vaccine campaigns, while linear systems suit specialty pharmaceuticals.
Viscosity Range
Thick or gel-type formulations may require custom pump heads or specialized nozzles.
Container Format
Ensure the machine supports your syringe type:
-
Glass syringes
-
Polymer syringes
-
Safety syringes
-
Luer-lock or staked-needle types
Regulatory Compliance
The system should be designed with documentation, validation protocols, and audit trails already in mind.
Expandability
Future-proof systems allow integration with:
-
Freeze dryers
-
Cartridge fillers
-
Auto-injector assembly lines
-
Advanced analytics
Where Most Manufacturers Go Wrong
Surprisingly, failures in syringe filling lines usually stem not from the machine, but from upstream or downstream decisions:
-
Choosing pumps incompatible with protein-based drugs
-
Ignoring ISO Class cleanliness needs
-
Underestimating particle sensitivity
-
Using non-pharma-grade lubricants or materials
-
Not planning for long-term scalability
-
Relying on manual changeovers that introduce contamination risk
Avoiding these pitfalls can save millions in rejected batches and compliance issues.
The Future of PreFilled Syringe Filling Technology
The evolution of injectable drug formats means PFS machines must continue advancing. Technology trends include:
-
Zero-loss filling for ultra-high-value biologics
-
Fully integrated robotics for complete human-free production
-
AI-driven mass analytics detecting patterns invisible to operators
-
Predictive maintenance reducing downtime
-
Modular lines for plug-and-play scalability
-
Compatibility with wearable injectors and smart delivery systems
As precision biologics and personalized medicines grow, prefilled syringe filling systems will become even more central to pharmaceutical production.
Frequently Asked Questions
1. What is the main advantage of using a PreFilled Syringe Filling Machine?
It ensures accurate dosing and high sterility while reducing human interaction and medication errors.
2. Can one machine handle multiple syringe sizes?
Yes, most modern platforms support format changes through servo adjustments and recipe-based settings.
3. Are these machines suitable for biologics and mRNA?
Absolutely—precision pumps and controlled environments make them ideal for sensitive formulations.
4. How fast are high-speed rotary PFS filling machines?
Depending on configuration, they can process thousands of syringes per hour.
5. What type of maintenance is required?
Regular calibration, cleaning-in-place cycles, lubrication of moving parts, and periodic pump verification.
6. Is nitrogen purging necessary?
Only for oxygen-sensitive formulations where product stability is improved by reducing oxygen exposure.
7. Can PFS filling machines integrate with auto-injector assembly lines?
Yes. Many modern systems are designed for seamless downstream integration.
Abstract
This article explores the complete landscape of PreFilled Syringe Filling Machines, covering technology, workflows, benefits, precision dosing, aseptic engineering, machine comparisons, features for biologics, and future innovations. Ideal for manufacturers seeking high-accuracy, scalable sterile production.
