Surface Mount Technology continues to push global electronics manufacturing into faster, smaller, more intelligent directions. While placement machines often receive most of the spotlight, SMT feeders quietly determine whether a production line performs with flawless accuracy or suffers unnecessary downtime. These deceptively simple modules are the gateway through which components enter the automated assembly process, and their design has evolved as rapidly as the boards they populate.
This article takes a deep dive into SMT feeders, from their mechanical foundations to smart digital upgrades. It also compares different feeder types, highlights selection factors, and explains how advanced factories use them to elevate yield performance. Whether you are new to SMT or seeking a professional-level understanding for procurement or production planning, this guide offers a thorough, practical exploration.
Understanding the Role of SMT Feeders in PCB Assembly

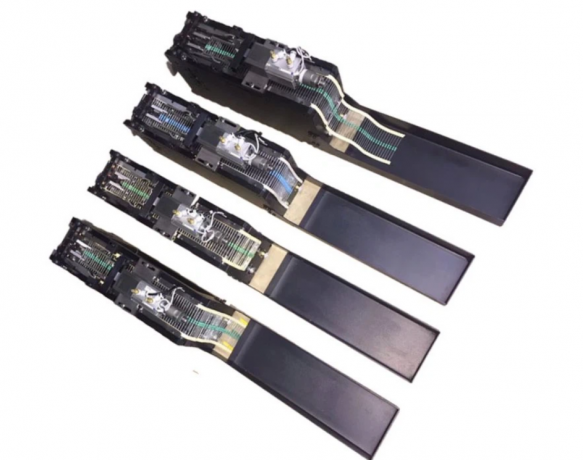

SMT feeders are mechanical devices that present electronic components to the pick-and-place machine. They control the movement, alignment, and availability of components, ensuring that parts are delivered quickly and precisely for placement onto PCBs. In many ways, they set the rhythm for the line.
A single line may deploy dozens or even hundreds of feeders at once, each responsible for a specific component size and format. When feeders perform well, placement machines maintain high throughput, stable cycle time, and accurate pick rates. When feeders fail, the entire line can pause. This is why smart factories treat feeders as strategic assets instead of expendable accessories.
Common Types of SMT Feeders
Tape Feeders
Tape feeders are the most commonly used in SMT lines. They handle components supplied on carrier tape wound onto reels. Their strengths include broad compatibility, low maintenance, and robust support for very small passive components. They are ideal for high-volume production where repeatable motion is essential.
Vibration Feeders
Vibration feeders use oscillation to separate and present loose or specialty components. These feeders are ideal for irregular-shaped parts that cannot be packaged in tape and reel. Although not as fast as tape feeders, they support niche applications in automotive, industrial, and LED manufacturing.
Tray Feeders
Tray feeders supply components in JEDEC trays. They are essential for larger ICs, BGAs, CSPs, QFNs, and other components that must remain protected from bending or static. Tray feeders offer high flexibility but require more machine travel, which may reduce placement speed.
Stick Feeders
Stick feeders support components shipped in tube packaging. These are often used for connectors, LEDs, or long components. They rely on gravity, pneumatic pressure, or vibratory movement to release parts at a predictable rate.
Smart Electronic Feeders
The newest generation of feeders incorporates embedded electronics, RFID tracking, sensors, and intelligent control. Smart feeders automatically detect component type, remaining quantity, and pickup location offsets. They significantly reduce changeover time and are a cornerstone of modern Industry 4.0 lines.
Comparison of Different SMT Feeder Types
| Feeder Type | Ideal Component Format | Speed Level | Strengths | Limitations | Best Application |
|---|---|---|---|---|---|
| Tape Feeder | Tape & reel | Very high | Reliable, fast, supports tiny parts | Requires reel packaging | High-volume SMT lines |
| Tray Feeder | JEDEC trays | Medium | Protects fragile ICs, precise alignment | Slower travel, more space | IC packaging, BGA, CSP |
| Stick Feeder | Tube packaging | Medium | Good for long or specialty parts | Less stable, occasional jams | Connectors, LEDs |
| Vibration Feeder | Loose parts | Low to medium | Supports odd-form components | Lower accuracy | Automotive, industrial |
| Smart Feeder | All standard formats | Very high | Automation-ready, real-time monitoring | Higher cost | Industry 4.0 digital factories |
Inside the Mechanics: How SMT Feeders Operate
While feeder designs vary, the essential functional elements remain consistent.
Component Indexing
Feeders advance components to the pickup position through mechanical or electronic indexing. Tape feeders typically use stepper motors or mechanical teeth that grab the sprocket holes of the carrier tape. Precision here determines the smoothness of the line.
Peel Mechanism
For tape packaging, a peel mechanism removes the protective cover film to expose components. A poorly tuned peeling angle can slip components or affect pickup success.
Pickup Presentation
This is the moment when the feeder positions the component exactly where the placement nozzle expects it. Variables include:
-
Pitch alignment
-
X/Y tolerance
-
Height consistency
-
Static charge control
The better the presentation, the higher the pick-rate efficiency.
Communication with PnP Machines
Smart feeders can communicate with the machine's software for:
-
Component verification
-
Error detection
-
Automatic re-indexing
-
Real-time quantity tracking
This transforms feeders from passive devices into active process maintainers.
Digital Transformation: The Rise of Intelligent SMT Feeders
Modern electronics production increasingly favors flexible, data-driven systems. Smart SMT feeders integrate sensors and digital identification features that make them compatible with advanced manufacturing environments.
RFID & Barcode Identification
Each feeder can register its component type, lot information, and placement position. This dramatically reduces setup errors during changeovers.
Automatic Splice Detection
Feeder sensors detect when tape splicing is required, preventing sudden component starvation in the middle of a production run.
Real-Time Component Counting
Some systems display remaining component quantities and alert operators before components run out, drastically reducing machine stoppages.
Offset Self-Calibration
Advanced feeders compensate for mechanical wear by automatically adjusting pickup coordinates.
Factories investing in these upgrades often report improvements in uptime, lower defect rates, and shorter changeover windows.
Choosing the Right SMT Feeder for Your Production Line
Choosing a feeder is not simply about compatibility with a reel or tray. Several deeper factors determine long-term manufacturing efficiency.
Component Type and Format
Small passives require extremely stable tape feeders, while large ICs belong in trays. Specialty components may demand vibration or tube feeders.
Production Volume
High-volume consumer electronics lines often standardize on high-speed tape feeders with minimal maintenance requirements. Low-volume prototype lines may prioritize flexibility and fast changeovers.
Machine Brand Compatibility
Most feeders are designed specifically for brands like Yamaha, Panasonic, Juki, Fuji, Samsung, Siemens, or ASM. Third-party feeders may reduce cost but require careful testing to maintain precision.
Smart vs. Conventional Feeders
Smart feeders cost more but save operators significant time while reducing placement errors. The return on investment is often realized within months in large-scale operations.
Durability and Maintenance Requirements
Precision gears, anti-static materials, peel accuracy, and motor design all affect long-term stability. A reliable feeder prevents costly line stoppages.
Common Challenges in SMT Feeder Usage
Even high-quality feeders face certain operational challenges.
Tape Jams
Tape jams occur when carrier tape fails to index correctly. Causes include worn gears, humidity, or low-quality tape.
Cover Tape Peeling Issues
Improper peeling leads to components bouncing or rotating. This directly reduces pick-and-place accuracy.
Wear and Tear
After thousands of hours of operation, feeders may drift out of tolerance. Regular calibration is necessary.
Incorrect Component Loading
Human error during loading can introduce wrong components or insufficient tape tension.
Inconsistent Component Presentation
This affects pickup success and can slow down the entire line.
Understanding these challenges allows engineers and operators to create preventive strategies.
Maintenance Strategies for Long-Life SMT Feeders
Maintaining feeders is not merely about cleaning. It is a systematic engineering process.
Regular Cleaning
Dust and debris can disrupt component alignment. Clean index wheels, bearings, and the peel mechanism frequently.
Lubrication
Mechanical feeders require accurate lubrication levels to maintain smooth indexing.
Periodic Calibration
Modern smart feeders may self-calibrate, while traditional models need manual adjustment.
Tape Path Inspection
Operators should verify tension and feed path straightness when changing reels.
Spare Parts Management
Critical components like springs, sensors, and motors should be stocked for quick replacement.
Treating feeders with the same importance as placement machines ensures consistent, high-quality production output.
How SMT Feeders Drive Productivity in Smart Factories
SMT feeders have a direct impact on production performance metrics such as:
-
Uptime
-
Placement accuracy
-
Changeover speed
-
Scrap rate
-
Operator workload
Automated Setup Verification
Smart feeders eliminate manual checking of component identities, ensuring that every feeder contains correct parts before production starts.
Predictive Maintenance Analytics
Modern feeders record performance data that allows engineers to detect trends like slow indexing, misalignment, or abnormal wear.
Modular Changeover
By pre-programming feeder carts, operators can change over an entire line in minutes rather than hours.
Full Integration with MES and ERP Systems
This enables complete traceability and real-time visibility across the entire supply chain.
In high-tech manufacturing, the feeder's role has evolved from a passive mechanical unit to a data-enabled, performance-critical device.
Future Trends in SMT Feeder Technology
The next generation of SMT feeders will emphasize greater intelligence, sustainability, and integration.
AI-Based Accuracy Prediction
Machine-learning algorithms will analyze pickup success rates and automatically adjust feeder behavior.
Tool-Free Maintenance
Designs are shifting toward simplified components that operators can remove, clean, and reinstall without tools.
Ultra-Miniature Component Support
As 01005 and smaller components become mainstream, feeders will need tighter tolerances and more advanced pickup presentation.
Digital Twins for Feeder Management
Virtual models will allow engineers to simulate feeder behavior, predict failure, and optimize machine layouts.
Green Manufacturing
Feeder motors and materials will be optimized for lower energy consumption and longer service life.
Frequently Asked Questions
1. What components do SMT tape feeders support?
They support passive components, ICs packaged in tape and reel, and many small to medium-sized SMD parts that require high-speed automated feeding.
2. How long does an SMT feeder typically last?
High-quality feeders can last several years with proper maintenance and calibration. Usage intensity and environmental conditions play major roles.
3. Can smart feeders reduce operator errors?
Yes. Smart feeders use RFID, sensors, and software integration to validate component types and detect mistakes during setup.
4. What is the best feeder for odd-shape components?
Vibration feeders are commonly used because they can handle irregular or loose components that cannot be packaged in tape or tray formats.
5. Are third-party SMT feeders reliable?
Many third-party feeders perform well and provide cost advantages, but compatibility testing is essential to ensure accuracy and long-term performance.
Summary
This article explores SMT feeders used in modern electronics manufacturing, covering feeder types, smart technology, operation mechanics, maintenance, and selection criteria. It also compares different feeder formats and explains how intelligent feeders enhance productivity and accuracy across SMT lines.
