Surface Mount Technology continues to reshape global electronics production, and SMT feeders remain one of the most critical—but often overlooked—components in any high-performance SMT assembly line. Whether you operate a high-volume EMS facility or a specialized prototype shop, understanding SMT feeders can dramatically elevate placement accuracy, reduce downtime, and increase manufacturing profitability.

This comprehensive article explores SMT feeders from the ground up: their working principles, classifications, innovations, selection criteria, troubleshooting strategies, and real-world comparisons. Designed for engineers, manufacturing managers, and PCB assembly professionals, this guide aims to deliver practical insights backed by industry best practices.



The Role of SMT Feeders in PCB Assembly

SMT feeders function as the delivery mechanism that supplies components to pick-and-place machines. While placement heads tend to receive more attention, feeders are what determine whether a machine operates at peak consistency—or slows down due to jammed tapes, inconsistent indexing, or misalignment.

In simple terms, feeders ensure components arrive at the exact position, orientation, and timing needed for highly precise SMT placement. They manage:

  • Tape advancement

  • Component alignment

  • Pocket indexing

  • Tension control

  • Communication with the placement system

Without reliable feeder performance, even the most powerful pick-and-place machine cannot maintain speed or accuracy.



How SMT Feeders Work

Although design varies across brands, all SMT feeders follow the same essential workflow:

  1. A carrier medium—tape, tube, tray, or stick—holds the components.

  2. The feeder advances this medium in precise increments.

  3. The placement head retrieves each component from a known coordinate.

  4. Sensors verify alignment and feed consistency.

  5. The cycle repeats for continuous operation.

Sophisticated feeders incorporate intelligent chips, real-time feedback loops, and automatic tension control to prevent misfeeds or double feeding.



Common Types of SMT Feeders

Below is an overview of the major feeder categories used across modern assembly lines.



Tape Feeders

Used for the majority of SMT components, tape feeders handle embossed tapes, paper tapes, and pocket tapes. They come in multiple widths such as 8mm, 12mm, 16mm, 24mm, and larger for connectors or IC packages.



Vibratory Feeders

Ideal for odd-form parts that cannot be supplied via tape. They use vibration to gradually move components into a pickup area.



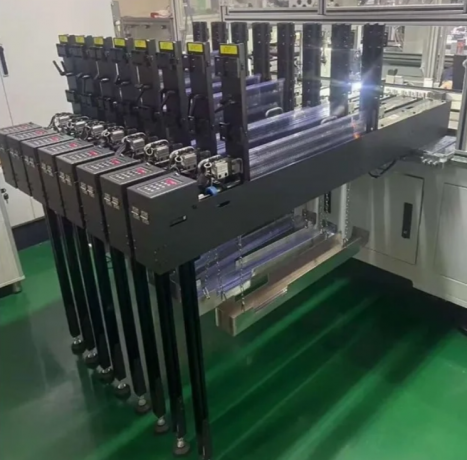

Stick / Tube Feeders

Used for long, tube-packaged components including older IC packages or specialty parts.



Tray Feeders

Suitable for QFPs, BGA components, and large ICs that require more stable packaging.



Intelligent Feeders

These advanced feeders include:

  • Real-time monitoring

  • Barcode identification

  • RFID tracking

  • Automatic calibration

  • Error logging

They reduce operator error and increase traceability, making them essential for Industry 4.0 environments.



Comparison Table: Tape Feeders vs. Intelligent Feeders

Feature Standard Tape Feeder Intelligent SMT Feeder
Component Identification Manual labeling Automatic RFID or barcode
Setup Speed Moderate Fast thanks to self-recognition
Error Prevention Basic mechanical detection High-level real-time monitoring
Data Tracking None Full traceability logs
Maintenance Needs More frequent Reduced due to smart diagnostics
Cost Low to moderate Higher initial investment
Ideal For Traditional SMT lines Smart factories & high-volume EMS



Why SMT Feeders Affect Production Quality

A placement machine's speed rating means little if your feeders cause error after error. Poor feeder performance can introduce:

  • Misalignment

  • Tape tearing

  • Component flipping

  • Missing components

  • Feeding delays

  • Machine stoppages

High-quality feeders ensure steady throughput, enabling predictable takt time and reducing scrap due to misplacement.



Latest Innovations in SMT Feeder Technology

Manufacturers continue to push feeder design forward. Modern innovations include:



Automated Calibration

New-generation feeders adjust their indexing position digitally, removing the need for manual tweaking.



Smart Sensors

Sensors detect:

  • Pocket depth changes

  • Component shifts

  • Tension inconsistencies

  • Tape jams

  • Pickup failures



Lightweight Carbon Fiber Frames

These reduce vibration and improve motion stability on high-speed placement machines.



Multi-Lane Feeding

Allows simultaneous feeding of several tapes within a single feeder body, increasing component capacity without expanding machine footprint.



Real-Time Error Messaging

Smarter feeders communicate with MES (Manufacturing Execution Systems) for instant alerts.



How to Choose the Right SMT Feeder

Selecting feeders is not a one-size-fits-all decision. Consider the following:



Component Packaging

Most components arrive on 8mm tape, but connectors, shield cans, and power components may require wider feeders.



Machine Compatibility

OEM-specific feeders include:

  • Yamaha

  • Fuji

  • Panasonic

  • Samsung / Hanwha

  • Juki

  • ASM

Mixing brands is rarely possible without adapters.



Speed Requirements

High-volume production benefits from lightweight, servo-driven intelligent feeders.



Traceability Needs

If compliance requires production logging, intelligent feeders are essential.



Feeder Capacity

Consider whether your line requires:

  • Quick changeover

  • Large component variety

  • Parallel production modes



Proper Maintenance of SMT Feeders

Regular maintenance extends feeder lifespan and improves placement reliability.

Cleaning

Dust, adhesive residue, and tape fragments can obstruct feeder mechanisms. Clean using compressed air and lint-free wipes.

Lubrication

Moving parts benefit from light lubrication according to manufacturer instructions.

Calibration

Recalibration ensures accurate index pitch and alignment.

Inspection

Operators should check covers, springs, gears, and alignment plates.



Common Issues and How to Fix Them

Tape Jamming

Caused by tension imbalance or poor tape quality. Solution: adjust torque or replace tape.

Misfeeds

Typically due to worn indexing gears. Replace the mechanical components.

Component Double Feeding

Occurs when pockets are shallow or sensors fail. Clean sensors and check pocket shape.

Pickup Misalignment

Feeder may be improperly seated in the machine base. Reseat or recalibrate feeder.



The Future of SMT Feeders

The next decade will bring:

  • Fully autonomous feeders that self-repair minor jams

  • Integration with AI for predictive diagnostics

  • Battery-free RFID identification

  • Universal modular feeder systems

  • Holographic repair guidance for technicians

These developments will make SMT lines more efficient, with fewer operator interventions and lower operating costs.



Real-World Case Example: Intelligent Feeder Upgrade

When a medium-scale EMS factory upgraded from standard mechanical feeders to intelligent servo-driven feeders, it gained:

  • Faster changeover due to automatic component identification

  • Lower machine downtime

  • Reduced feeder-related placement errors

  • Increased traceability for automotive PCB projects

The ROI was achieved within six months due to reduced scrap and manual labor.



Best Practices for Maximizing SMT Feeder Performance

Use these recommendations to maintain peak speed and accuracy:

  • Standardize feeder carts for fast changeover.

  • Use color-coded tape width zones.

  • Train operators to inspect tape quality before loading.

  • Implement preventive maintenance schedules.

  • Track feeder performance data digitally.



5 Frequently Asked Questions about SMT Feeders

1. What is the main function of an SMT feeder?

An SMT feeder supplies components to the pick-and-place machine in precise positions and intervals to ensure accurate placement.

2. How long do SMT feeders typically last?

With proper maintenance, high-quality feeders can last several years even in high-volume production environments.

3. Are intelligent feeders worth the investment?

Yes. They significantly reduce operator errors, enhance traceability, and improve efficiency in automated electronics manufacturing.

4. Can different brands of feeders be used on the same machine?

Generally no. Most feeders are brand-specific unless special adapters are used, which may still affect performance.

5. How often should feeders be calibrated?

Routine calibration every few months is common, but high-volume environments may require more frequent checks.

 Summary

This article explores the role of SMT feeders in modern electronics manufacturing, covering their types, working principles, innovations, selection strategies, troubleshooting, and maintenance. It highlights how intelligent feeders improve accuracy, speed, and traceability in SMT production lines.
