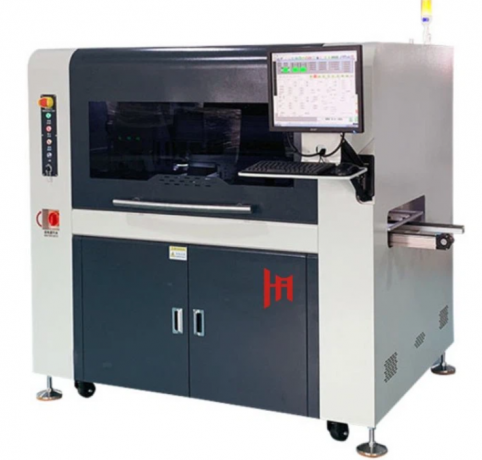

Modern electronics manufacturing has evolved into a world of miniaturization, speed, and uncompromising precision. As PCB assemblies become more compact, densely populated, and mechanically sensitive, the way manufacturers separate circuit boards after panel production becomes a critical quality step. This is where the PCB Separator Machine emerges as a quiet but essential hero.
In this comprehensive guide, we explore how PCB separator machines work, the differences between various separation technologies, the factors influencing machine selection, and practical usage tips for consistent, low-stress PCB depaneling. Whether you are an SMT factory owner, a process engineer, or an OEM optimizing production lines, this article brings clarity, comparison, and actionable insights.
Understanding the Role of a PCB Separator Machine
A PCB separator machine is designed to divide multi-board panels into individual PCBs without causing stress or damage. In the past, snapping boards by hand or using rudimentary cutting tools was common. As electronics evolved, this method became risky—especially for boards featuring fragile components or thin substrates.
Modern PCB separators ensure:
-
Smooth, burr-free edges
-
Minimal mechanical stress
-
Increased throughput
-
Repeatable, automated cuts
-
Reduced operator involvement
-
Lower risk of microcracks, pad lifting, and solder joint fractures
They are now indispensable across industries such as automotive electronics, aerospace, IoT devices, smart home products, industrial control systems, and medical electronics.
Why PCB Separation Matters More Than Ever
Electronics manufacturing faces new challenges:
-
PCBs are becoming thinner.
-
Components are placed closer to V-grooves or routing edges.
-
Many PCBs include rigid-flex zones requiring controlled force.
-
Quality standards—especially for automotive and medical devices—demand high reliability.
A poorly separated PCB can lead to:
-
Hidden cracks that cause field failures
-
Assembly rework
-
Scrap and production delays
-
Customer complaints and loss of trust
Therefore, selecting the right PCB separator machine is not a luxury; it is a process control requirement.
Primary Types of PCB Separator Machines
Different factories use different separator technologies depending on their PCB design, stress tolerance, and production volume. Each machine type brings unique strengths.
Manual Circular Blade Separator
This type uses a pair of rotating blades: one upper and one lower. Operators feed the panel manually through the blades.
Advantages
-
Low cost
-
Suitable for small factories
-
Fast setup
Limitations
-
Operator skill affects consistency
-
Not ideal for fragile boards
-
Limited to V-groove designs
Motorized Circular Blade Machine
Similar to manual versions but powered by a motor. The feeding force is stable and controlled.
Advantages
-
Stable cutting speed
-
Less operator fatigue
-
Better edge quality
Limitations
-
Still restricted to V-groove panels
-
Generates some mechanical stress
Router-Type PCB Separator
Uses a high-speed spindle with milling bits to cut routed tabs or perform complex contours.
Advantages
-
Excellent precision
-
Works with any PCB shape
-
Low mechanical stress
-
Ideal for fragile components and dense layouts
Limitations
-
Higher consumable cost
-
Generates dust (requires vacuum system)
Punch-Type (Die Cutting) Separator
Uses custom tooling to punch multiple PCBs at once.
Advantages
-
Very high throughput
-
Ideal for mass production
-
Fast cycle time
Limitations
-
Requires custom die tooling
-
Best for stable, high-volume PCB designs
Laser PCB Separator
Uses high-precision laser cutting to separate boards without mechanical contact.
Advantages
-
Zero stress cutting
-
Works for rigid, flex, and rigid-flex PCBs
-
Precise, burr-free edges
Limitations
-
Very high investment cost
-
Slower than some mechanical options
-
Requires fume extraction
Comparison Table: Popular PCB Separator Machine Types
| Machine Type | Stress Level on PCB | Suitable PCB Designs | Speed | Investment Cost | Typical Use Cases |
|---|---|---|---|---|---|
| Manual Circular Blade | Medium | V-groove | Medium | Low | Small factories, prototypes |
| Motorized Circular Blade | Lower | V-groove | High | Medium | Mid-volume production |
| Router-Type | Very Low | Routed tabs, complex shapes | Medium | Medium-High | High-reliability products |
| Punch-Type | Very Low | Standardized layouts | Very High | Medium-High (tooling required) | Large-scale production |
| Laser Separator | Zero | Any type, including flex | Medium | High | High-precision industries |
How to Select the Right PCB Separator Machine
Choosing the correct PCB separator depends on several technical factors. Below are the key considerations.
Board Stress Tolerance
If your product is sensitive to mechanical stress—common in medical or automotive electronics—router or laser separators are ideal.
PCB Cutting Style
Your board may use:
-
V-grooves
-
Routing tabs
-
Mixed structures
-
Rigid-flex designs
Laser and router machines handle the widest range of patterns.
Production Volume
High volumes benefit from punch-type separators or automated motorized blade cutters. Low-volume, high-complexity boards favor routers or laser cutters.
Precision Requirements
If you need tight dimensional accuracy or zero deformation, a laser separator provides unmatched performance.
Budget
Cost ranges widely depending on complexity:
-
Manual blade: lowest cost
-
Motorized: moderate
-
Router: moderate-high
-
Punch: moderate-high
-
Laser: highest
Factories must balance cost with quality expectations.
The Technological Advantages of Modern PCB Separator Machines
Automated Optical Alignment
High-end models detect fiducials and compensate for panel deformation.
Programmable Cutting Paths
Routers and lasers allow engineers to upload digital cutting data directly from CAD files.
Low-Stress Motion Systems
Servo-driven feed mechanisms ensure consistent cutting forces for sensitive boards.
Dust Control and Fume Extraction
Router and laser systems integrate suction modules to maintain clean production areas.
Intelligent Safety Features
Modern machines include guard doors, emergency stops, overload detection, and safety sensors to protect operators.
Maintaining a PCB Separator to Extend Machine Lifespan
A well-maintained PCB separator ensures consistent quality and reduces downtime. Below are maintenance recommendations.
Replace Blades or Router Bits on Time
Dull edges increase stress and burrs. Regular inspection is essential.
Clean the Cutting Area Frequently
Residues, dust, or debris can affect machine precision.
Lubricate Moving Components
Linear guides, bearings, and drive systems require periodic lubrication.
Check Safety Systems
Ensure that sensors, guards, and emergency controls work properly at all times.
Calibrate Cutting Paths
Routers and lasers must be calibrated to maintain accuracy and avoid cutting off-tolerance.
Case Study: Common PCB Depaneling Problems and Solutions
Problem: Cracked Components Near the Edge
Caused by excessive stress during manual snapping or blade cutting.
Solution:
Switch to router or laser depaneling for low-stress results.
Problem: Burrs or Rough Edges
Typically results from dull blades or improper cutting speed.
Solution:
Sharpen or replace blades; adjust feed rate.
Problem: Panel Warping During Cutting
Occurs when mechanical forces apply uneven pressure.
Solution:
Use vacuum table fixtures or laser cutting to reduce contact.
Problem: Low Throughput
Manual methods cannot keep up with production demand.
Solution:
Implement automated feeding or punch-type separators.
Future Trends in PCB Separator Machine Technology
AI-Driven Path Optimization
Future machines will analyze cutting paths to minimize heat, dust, and stress.
Full Connectivity with MES Systems
Real-time production analytics will improve process control.
Energy-Efficient Laser Sources
Next-generation lasers will cut faster with lower power consumption.
Enhanced Dust Control
Better filtration systems will support cleaner environments for miniaturized electronics.
Frequently Asked Questions (FAQ)
1. What type of PCB separator is best for thin and fragile boards?
Router-type and laser PCB separators are ideal because they apply minimal or zero mechanical stress.
2. Do PCB separator machines require special operators?
Basic blade machines require simple training, but router and laser systems benefit from trained technicians familiar with programming and maintenance.
3. How often should blades or router bits be replaced?
It depends on workload, but replacement is typically required when edge quality declines or when cutting forces increase.
4. Can PCB separators work with rigid-flex boards?
Yes. Laser systems are the best choice, followed by routers equipped with custom support fixtures.
5. What is the typical lifespan of a PCB separator machine?
With proper maintenance, machines can last many years, especially router and blade systems with replaceable consumables.
Summary
This article explains how PCB separator machines enhance precision and reduce stress during PCB depaneling. It compares major machine types, provides a detailed selection guide, includes a comparison table, and offers maintenance tips to help manufacturers choose the best solution for modern electronics production.
