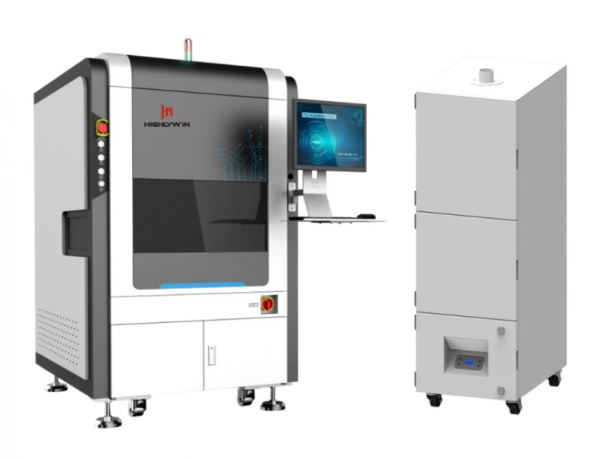

Efficient PCB depaneling is now one of the most critical stages in electronics manufacturing. As components become smaller and circuit layouts become more compact, the need for precise, stress-free, and automated separation technology grows rapidly. The PCB Separator Machine has evolved from a simple cutting tool into a highly engineered system designed to support large-scale assembly lines, protect fragile components, reduce labor, and guarantee consistent quality.
This article breaks down the technology behind modern separator machines, compares machine types, highlights selection criteria, and explores the future of automated depaneling. Whether you operate an SMT production line, run a contract manufacturing plant, or want to upgrade your equipment, this guide provides a complete and fresh perspective.
Understanding What a PCB Separator Machine Does
In electronics production, printed circuit boards are often manufactured as multi-panel arrays to increase assembly efficiency. After soldering, these multi-panel boards must be separated into individual units. Manual breaking introduces stress, micro-cracks, and edge burrs that compromise electronic reliability. A PCB Separator Machine performs this separation with greatly minimized mechanical strain, preventing damage to solder joints, components, and copper traces.
Core Functions of a Separator Machine
-
Cuts or routes panelized PCBs into individual pieces
-
Maintains dimensional accuracy during separation
-
Reduces stress transferred to the PCB during the cutting motion
-
Allows consistent, repeatable depaneling
-
Supports different PCB materials, thicknesses, and shapes
The machine appears simple from the outside but contains detailed mechanical coordination, motion control systems, multi-axis blades or routers, and vibration-optimized structures to ensure accurate cuts.
Why Modern Production Lines Depend on PCB Separator Machines
Electronics are shrinking. From automotive electronics to smartphones, PCBs now carry more components per square centimeter than ever before. Older cutting methods—scissors, V-groove snap-off, manual routing—cannot meet modern tolerances. The PCB Separator Machine ensures:
-
Zero component shift after soldering
-
Reduced operator dependency
-
Fewer rejects and product failures in the field
-
Higher throughput during mass production
-
Protection of sensitive SMDs such as MLCCs, which are particularly stress-sensitive
With mounting cost pressure in global manufacturing, reliable depaneling is directly linked to production yield and brand reputation.
Main Types of PCB Separator Machines
Modern depaneling systems come in several designs, each suited to specific PCB structures and production sizes. Below is a clear comparison to help you identify which system fits your operation.
1. Circular Blade PCB Separator
Uses two rotating blades: one upper and one lower. The board is fed through the blades and cleanly slit along a pre-cut V-groove.
2. Linear Blade or Guillotine-Style Separator
A straight blade descends vertically with controlled pressure. Best for simple V-groove boards.
3. Router-Type PCB Separator
Uses a high-speed spindle and milling bit to route complex board outlines. Ideal for irregular shapes and tight component spacing.
4. Laser PCB Separator
Cuts using a precision laser beam, offering essentially stress-free cutting with very narrow kerf width. Suitable for ultraprecise applications such as medical or aerospace electronics.
Detailed Comparison of Separator Machine Types
| Feature / Machine Type | Circular Blade | Linear Blade | Router Type | Laser Type |
|---|---|---|---|---|
| Cutting Stress | Low | Medium | Very Low | Near Zero |
| Best For | V-groove PCBs | Thick or long boards | Complex shapes | High-precision microelectronics |
| Cutting Edge Quality | Good | Average | Very Good | Excellent |
| Dust Generation | Minimal | Minimal | High | None |
| Automation Compatibility | High | Medium | High | High |
| Investment Level | Low | Low to Medium | Medium | High |
| Typical Throughput | Fast | Fast | Moderate | Moderate |
This table demonstrates that there is no universal “best” machine—only the right machine for the right PCB and production requirements.
What to Consider When Choosing a PCB Separator Machine
A high-quality machine is not defined by cutting speed alone. Modern factories must consider multiple aspects:
PCB Layout and Complexity
If your boards have:
-
Odd shapes
-
Thin walls between components
-
Tight component spacing
-
No V-grooves
Then a router or laser system often becomes necessary.
Component Sensitivity
Many components, such as ceramic capacitors, are vulnerable to mechanical stress. A router or laser system applies the least strain and is therefore recommended.
Production Volume
-
High-volume lines benefit from circular blade and fully automated inline routing systems.
-
Low-volume or prototype environments may opt for simpler manual or semi-automatic options.
Material Compatibility
FR-4, aluminum substrates, flexible PCBs, and composite materials each respond differently to cutting pressure and heat. Ensuring compatibility is essential for long-term reliability.
Maintenance and Consumables
Blades, router bits, dust filters, and extraction systems add recurring costs. Laser machines minimize consumables but increase initial investment.
Automation Options
Advanced equipment now includes:
-
Automatic loading systems
-
Camera-based fiducial recognition
-
Inline conveyors
-
Vacuum dust collection
-
MES connectivity
-
Barcode tracking
Factories moving toward Industry 4.0 often prioritize automation-ready machines.
How PCB Separator Technology Reduces Damage and Improves Yield
A major challenge in depaneling is unwanted stress. Even slight warping during cutting can cause micro-cracks or solder joint failure. Modern machines incorporate:
Precision Blade Synchronization
Both upper and lower blades rotate in perfect alignment to avoid pulling force on the V-groove.
Vibration-Optimized Machine Frames
Stable mechanical structure prevents resonance during cutting.
Controlled Cutting Speed
Slow, smooth feed motion reduces shock.
Multi-Point Support Fixtures
Ensures even pressure across the PCB, preventing bending.
Routing Path Optimization Algorithms
Used in router machines to reduce cutting time while preserving precision.
These innovations significantly reduce hidden damage that normally leads to customer complaints or early product failure.
Inline Versus Offline PCB Separator Machines
Choosing between inline and offline systems depends largely on your production environment.
Inline Machines
Integrated into the SMT assembly line and automatically receive PCBs via conveyor.
Advantages:
-
No operator handling
-
Consistent cycle times
-
Fully automated workflow
-
Best suited for high-volume mass production
Offline Machines
Operated manually or semi-automatically, ideal for small or mixed-batch production.
Advantages:
-
Lower investment
-
Greater flexibility
-
Easier changeover
-
Suitable for R&D and prototyping
PCB Separator Machines for Aluminum and Metal-Core Boards
Metal-core PCBs used in LED lighting and power electronics require more robust separation due to their stiffness and heat conductivity. Router-type machines with carbide bits or specialized laser systems are commonly used. Circular blades struggle with aluminum unless the V-groove is perfectly machined and shallow.
Dust Management: A Critical Issue in Routing-Based Separation
Router systems generate significant fine dust which can contaminate optical sensors, affect solder joints, or reduce machine lifetime. Advanced systems integrate:
-
High-power vacuum suction
-
Dual-direction airflow
-
Dust-shielding covers
-
Self-cleaning filter systems
Good dust control not only protects the equipment but also ensures operator safety and consistent cutting quality.
The Future of PCB Separator Machines
The industry is moving rapidly toward smarter and more precise solutions. Future trends include:
AI-Optimized Cutting Paths
Artificial intelligence will shorten cycle time and improve tool longevity.
Adaptive Cutting Pressure
Sensors will automatically adjust cutting parameters based on PCB thickness, material, and temperature.
Full Vision-Based Automatic Alignment
Better than traditional fiducial recognition, allowing precise cutting even on poorly printed boards.
Hybrid Machines
Systems capable of switching between routing and laser mode depending on PCB material.
Zero-Operator Production Lines
Driven by robotics and MES, machines will integrate entirely into automated smart factories.
Practical Tips for Maximizing Machine Lifespan
-
Clean the machine daily to prevent dust accumulation
-
Replace blades or bits before obvious wear
-
Lubricate motion rails regularly
-
Ensure stable temperature and humidity in the production area
-
Train operators to avoid improper loading and handling
Unexpected downtime is far more expensive than scheduled maintenance.
Environmental and Safety Considerations
In addition to performance, manufacturers should consider:
-
Noise levels during cutting
-
Laser exhaust treatment requirements
-
Dust and particle filtration
-
Operator ergonomics
-
Compliance with industrial safety standards
Modern machines increasingly incorporate noise dampening and enclosed cutting chambers to ensure compliance and operator comfort.
Conclusion: Choosing the Right PCB Separator Machine for Your Production Line
The PCB Separator Machine is far more than a simple cutting device. It is a critical element in ensuring electronic reliability, manufacturing precision, operator safety, and overall productivity. Choosing the right machine means evaluating your product type, production volume, PCB complexity, automation needs, and future scalability.
With electronics becoming more compact and complicated each year, investing in high-precision, low-stress separation technology is no longer optional—it is a necessity for any competitive electronics manufacturer.
Frequently Asked Questions (FAQ)
1. Can a PCB separator handle flexible PCBs?
Yes, but routers or laser separators are recommended because flexible materials deform easily under mechanical pressure.
2. How often should blades or router bits be replaced?
Replacement frequency depends on production volume and material hardness, but regular inspection is necessary to maintain cut quality.
3. Are laser separators too expensive for mid-size factories?
Initial cost is high, but savings come from no mechanical wear, no tooling replacement, and extremely high precision for complex boards.
4. Does routing damage electronic components?
With proper fixtures and low-vibration designs, cutting stress is minimal, making routers safe for sensitive SMDs.
5. What is the best separator for aluminum PCBs?
Router or laser systems work best; circular blades require perfect V-grooves, which are not always feasible.
Summary
This article explores PCB Separator Machines used in modern electronics manufacturing. It compares machine types, explains key features, outlines selection criteria, discusses automation trends, and highlights how advanced depaneling improves quality and yield. A practical guide for choosing the right system.
