The electronics industry is defined by its speed. Product cycles are shorter, designs are more compact, and manufacturing expectations have shifted from “efficient” to “near-instantaneous.” One of the most transformative technologies enabling this accelerated pace is the Auto Insertion Machine, a specialized system engineered to place through-hole components with high accuracy and minimal human involvement.
While surface-mount technology often dominates discussions about modern electronics, through-hole components remain indispensable in power devices, automotive electronics, industrial controls, aerospace equipment, and any application requiring mechanical stability. Auto insertion technology bridges the gap between precision assembly and high-volume manufacturing, redefining what consistency and scalability truly mean.
This article explores the machine's mechanics, application scenarios, ROI factors, technical evolution, and best-fit selection criteria. Whether you're a factory engineer, sourcing manager, or technology enthusiast, this guide breaks down complex automation principles into actionable insights.
Understanding What an Auto Insertion Machine Really Does

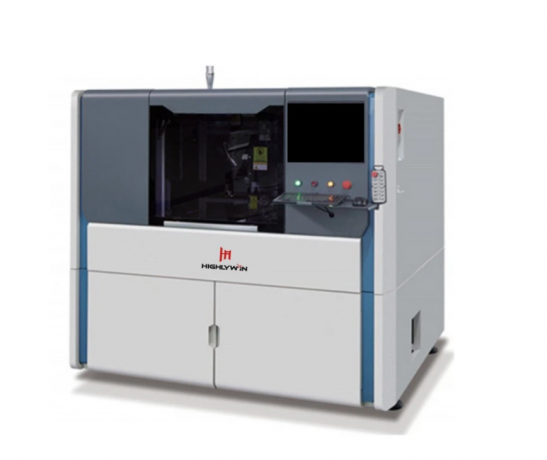

An Auto Insertion Machine is an automated system designed to insert through-hole electronic components—such as resistors, capacitors, diodes, transistors, transformers, and connectors—into pre-drilled holes on PCB boards. It eliminates manual insertion, reduces labor intensity, and keeps production lines balanced with downstream soldering processes like wave soldering.
Unlike early mechanical inserters, modern systems employ digital programming, servo motors, optical positioning, and AI-driven correction algorithms. They not only place parts but also bend leads, cut tape, rotate components to proper orientation, and push them into PCB holes with controlled insertion force.
The machine turns what used to be a repetitive, error-prone process into a precisely orchestrated workflow.
Why Through-Hole Insertion Still Matters
Despite the dominance of SMT, through-hole processes remain widely used due to:
-
Superior mechanical strength for connectors, relays, transformers, switches, and heavy components
-
High vibration resistance needed in automotive, aerospace, and industrial equipment
-
Better heat tolerance for high-power electronics
-
Essential role in mixed-technology PCB layouts where SMT and THT coexist
Automation ensures these advantages are delivered without compromising productivity.
Key Functional Sections of an Auto Insertion Machine
Component Feeding System
This subsystem handles taped components and prepares them for insertion. It includes feeders, tape indexing, and cutting tools. A smart feeding system prevents jams, detects irregularities, and ensures continuous operation.
Positioning and Alignment System
Optical sensors, cameras, and servo alignment mechanisms confirm PCB location before insertion. This eliminates misalignment issues that cause bent leads or damaged boards.
Insertion Head Assembly
The insertion head performs the actual component placement. It pulls the component from the tape, adjusts lead spacing, shapes leads if needed, rotates the part, and drives it into PCB holes with carefully calibrated force.
Lead Cutting and Clinching System
After insertion, leads are cut and bent automatically on the underside of the PCB to secure components for wave soldering. Clinching patterns vary depending on board design and assembly requirements.
Control & Programming Interface
Modern machines feature:
-
Touchscreen UI
-
CAD import
-
Program storage
-
Real-time monitoring
-
Error detection
-
Predictive maintenance diagnostics
This software layer is critical for efficiency and ease of use.
Types of Auto Insertion Machines
Axial Insertion Machines
Designed for axial-lead resistors, diodes, fuse bodies, and cylindrical capacitors. The machine straightens, cuts, and bends leads before insertion.
Radial Insertion Machines
Used for radial capacitors, LEDs, transistors, relays, and other round or angled components. Radial systems provide more orientation flexibility.
Odd-Form Insertion Machines
Suitable for irregular-shaped or heavy components. Often used in automotive and industrial PCBs requiring connectors, transformers, power switches, and custom parts.
Combination/Hybrid Machines
Able to handle axial, radial, and odd-form components in one modular platform. These machines are ideal for flexible, mixed-technology production lines.
Comparison: Auto Insertion Machine vs Manual Insertion
| Feature / Metric | Auto Insertion Machine | Manual Insertion |
|---|---|---|
| Placement Speed | Up to thousands of components per hour | Highly dependent on operator skill and fatigue |
| Accuracy | Very high, consistent, programmable | Variable, prone to misalignment |
| Labor Cost | Low after setup | High ongoing labor expense |
| Lead Forming | Automatic shaping & clinching | Manual or semi-manual, inconsistent |
| Error Rate | Extremely low due to sensors and verification | Higher due to fatigue and variation |
| Scalability | Excellent for mass production | Poor for high-volume or 24/7 runtime |
| ROI | Strong for mid-to-high volume plants | Low for manual processes |
Automation brings predictable efficiency and frees skilled workers to focus on higher-value tasks.
Industries Where Auto Insertion Machines Shine
Automotive Electronics
High shock resistance, temperature fluctuations, and power tolerance make THT components essential.
Consumer Electronics
Large appliances, power supplies, audio devices, and chargers continue to rely on through-hole reliability.
Industrial Automation Equipment
Motors, PLCs, sensors, and machine controls require secure component anchoring.
Aerospace and Defense
Stable performance, strict durability, and highly controlled manufacturing make automated THT assembly valuable.
Medical Equipment
Machines ensure tight tolerance and contamination-free insertion for life-critical devices.
Benefits of Using an Auto Insertion Machine
Higher Productivity
Machines run faster than human operators. They maintain consistent tempo without breaks, fatigue, or quality decline.
Improved Accuracy
Servo control and closed-loop verification reduce bent pins and misalignment.
Lower Defects
The machine's precision ensures better soldering results and fewer post-assembly repairs.
Significant Labor Reduction
One operator can oversee multiple machines, dramatically reducing labor intensity and costs.
Material Waste Reduction
Automatic lead cutting and shaping lower consumable waste.
Better Data Traceability
Newer machines log performance metrics, maintenance schedules, and output quality.
What to Consider When Choosing an Auto Insertion Machine
Component Variety
Do you need axial, radial, odd-form, or a combination? Your current and future product line determines machine choice.
Production Volume
High-volume plants benefit from dedicated axial/radial systems. Lower-volume users may prefer modular hybrid systems.
Changeover Time
Rapid product cycles require quick reel changes and fast program switching.
Board Size and Layout
Machines must support your PCB dimensions, hole sizes, and layout complexity.
Maintenance Requirements
Look for systems with self-diagnostics, easily replaceable tooling, and strong vendor support.
Budget and ROI
Compare costs with expected output, labor savings, and long-term scalability.
Integration Capability
Ensure compatibility with existing SMT lines, conveyors, wave soldering equipment, and MES/ERP systems.
Technical Trends Shaping the Future of Auto Insertion Machines
AI-Assisted Component Recognition
Machine vision systems reduce program creation time and eliminate feeding mistakes.
Adaptive Force Control
Smart insertion heads detect insertion resistance and adjust force to prevent PCB cracking.
Digital Twins
Simulation environments help engineers optimize layout and reduce trial-and-error.
Tool-Free Changeover
Innovative designs are pushing toward no-tool changeovers for faster switching between component types.
Cloud-Connected Monitoring
Remote oversight helps track uptime, maintenance, and production yield in multi-factory environments.
Practical Tips for Maximizing Machine Performance
-
Keep feeders clean and properly lubricated.
-
Calibrate sensors regularly.
-
Maintain consistent reel quality.
-
Use stable PCB fixtures to prevent vibration.
-
Implement operator training for software and diagnostics.
-
Track common failure modes and adjust programs proactively.
-
Store critical spare parts to avoid downtime.
These small optimizations compound to deliver significantly higher throughput.
Common Mistakes to Avoid
-
Choosing a machine that does not match your component range
-
Ignoring changeover time requirements
-
Underestimating maintenance costs
-
Using low-quality tapes or components
-
Failing to integrate machine data into your factory system
-
Neglecting operator training
Avoiding these pitfalls protects your investment and ensures sustainable performance.
Conclusion: The Strategic Value of Auto Insertion Machines
The Auto Insertion Machine is more than a replacement for manual labor. It represents a strategic upgrade that aligns manufacturing with modern expectations for speed, consistency, scalability, and cost efficiency. As electronics evolve, through-hole components remain crucial—and automation ensures they are placed with precision every time.
Whether you're upgrading an existing production line or designing a new one from scratch, mastering this technology is key to staying competitive.
Frequently Asked Questions
1. What components can an Auto Insertion Machine handle?
It supports resistors, capacitors, diodes, LEDs, relays, connectors, transistors, and many odd-form components, depending on the machine type.
2. Do Auto Insertion Machines replace SMT assembly?
No. They complement SMT lines by automating through-hole components that require stronger mechanical support.
3. How long does it take to program a machine for a new PCB?
Modern systems with CAD import and vision tools reduce programming time dramatically, often to less than an hour depending on complexity.
4. What kind of maintenance is required?
Routine cleaning, lubrication, sensor calibration, periodic tool replacement, and diagnostic checks are essential.
5. Is an Auto Insertion Machine suitable for small factories?
Yes, especially modular hybrid models that support multiple component types and offer quick changeover.
Summary
This article explores how Auto Insertion Machines transform through-hole PCB assembly with higher speed, precision, and automation. It covers machine types, features, industry applications, benefits, comparison tables, selection tips, technical trends, FAQs, and practical advice for maximizing efficiency.
