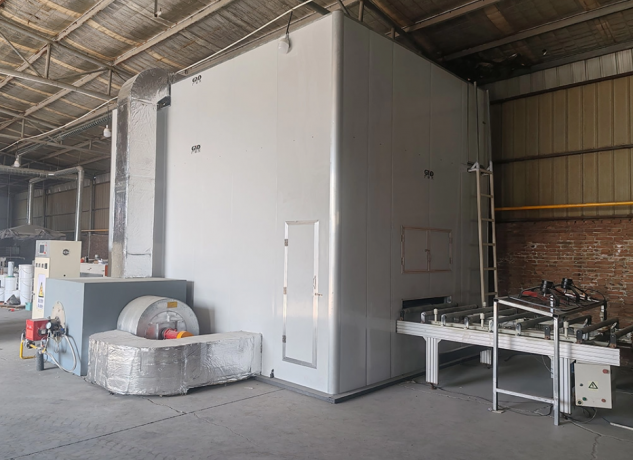

Introduction to the Vertical Drying Oven
Industrial drying processes have always been an essential part of manufacturing, research, and product development. The Vertical Drying Oven stands out as a specialized piece of equipment designed for efficiency, uniform heating, and optimized use of floor space. Unlike traditional horizontal ovens, the vertical configuration redefines drying efficiency while providing versatility for laboratories, electronics, chemical industries, and advanced materials processing.
This article explores the technology, applications, and advantages of vertical drying ovens, comparing them with other drying solutions while providing insights into their maintenance and selection.
Understanding the Vertical Drying Oven
A vertical drying oven is engineered with a chamber oriented in a vertical design, which promotes uniform air circulation and space-saving installation. It combines heating elements, airflow control, and insulation technology to achieve stable and precise drying conditions.
Key features include:
-
Vertical airflow design for uniform heating.
-
Compact structure suitable for limited space environments.
-
High-precision temperature control systems.
-
Durable construction for long-term industrial or laboratory use.
Why Choose Vertical Over Horizontal?
The design difference between vertical and horizontal ovens influences not just the footprint but also the performance. Many industries prefer vertical drying ovens when consistency and space optimization are priorities.
Comparative Table: Vertical vs. Horizontal Drying Oven
| Feature | Vertical Drying Oven | Horizontal Drying Oven |
|---|---|---|
| Space Utilization | Space-saving, upright installation | Requires more horizontal floor area |
| Airflow Pattern | Vertical, often more uniform | Horizontal, may create uneven zones |
| Applications | Electronics, labs, coatings, pharmaceuticals | Textiles, automotive, larger industrial loads |
| Temperature Control | Precision-focused, smaller batches | Can handle larger loads but less precision |
| Maintenance Access | Front access, compact layout | Side access, often bulkier |
This comparison highlights how vertical ovens bring unique strengths for precise, small to medium-scale drying applications.
Applications of Vertical Drying Ovens
Electronics Manufacturing
Printed circuit boards (PCBs), sensors, and microchips require controlled drying environments to avoid moisture-related damage. Vertical ovens ensure uniform drying without warping delicate components.
Pharmaceutical and Biotechnology
In drug production and laboratory research, precise drying of powders, glassware, and biological samples is critical. The oven provides sterile, consistent drying conditions that meet strict industry standards.
Coating and Surface Treatments
Painted, plated, or coated surfaces require carefully managed drying to achieve uniform adhesion. Vertical ovens offer gentle airflow to avoid defects.
Advanced Materials and Composites
From aerospace composites to nanomaterials, sensitive materials benefit from stable vertical drying where temperature fluctuation can be kept minimal.
Design and Technology Innovations
Precision Heating Elements
Modern vertical drying ovens use advanced heating elements with improved energy efficiency, ensuring minimal power waste while maintaining target temperatures.
Intelligent Control Systems
Digital controllers allow operators to program temperature profiles, timers, and alarms, offering repeatability and automation.
Insulation and Energy Efficiency
High-performance insulation minimizes heat loss, reducing energy consumption while maintaining safety standards.
Air Circulation Advancements
The vertical airflow design prevents hot or cold spots, ensuring materials dry evenly across multiple levels.
Selecting the Right Vertical Drying Oven
When choosing a vertical drying oven, consider the following factors:
-
Capacity: Match chamber size to batch volume.
-
Temperature Range: Ensure compatibility with your material's drying needs.
-
Control Options: Choose between manual and fully automated control systems.
-
Material Compatibility: Check for corrosion resistance and safety certifications.
-
Budget vs. Performance: Balance initial investment with long-term efficiency and maintenance costs.
Maintenance and Longevity
To ensure consistent performance, vertical drying ovens require routine checks:
-
Regularly inspect seals and insulation for leaks.
-
Calibrate temperature sensors for accuracy.
-
Clean internal surfaces to prevent contamination.
-
Monitor airflow performance to avoid uneven drying.
With proper care, a high-quality vertical drying oven can provide over a decade of reliable service.
Industry-Specific Case Example
Consider a small electronics manufacturer that shifted from a horizontal drying oven to a vertical one. The result was:
-
40% floor space savings, allowing for more production lines.
-
Increased product quality, reducing defect rates in PCBs due to moisture damage.
-
Lower energy bills, thanks to efficient airflow and insulation.
This demonstrates how the investment in a vertical drying oven can yield both operational and financial benefits.
Future Trends in Vertical Drying Ovens
Smart Integration
IoT-enabled ovens allow real-time monitoring, predictive maintenance, and remote operation.
Green Technology
Manufacturers are focusing on eco-friendly ovens with lower carbon footprints through optimized energy consumption.
Customization
Tailored designs for niche industries are becoming more common, from medical device sterilization to aerospace material processing.
Frequently Asked Questions
Q1: What makes a vertical drying oven different from other drying ovens?
A vertical drying oven uses an upright chamber and vertical airflow, optimizing space and providing more uniform heating compared to horizontal designs.
Q2: Can vertical drying ovens be used for large-scale industrial applications?
They are best suited for small to medium-scale operations requiring precision. For bulk drying, horizontal ovens may still be more effective.
Q3: Are vertical drying ovens energy efficient?
Yes, their compact design, insulation, and modern heating elements contribute to reduced energy consumption.
Q4: How often should a vertical drying oven be calibrated?
Calibration should be performed at least annually, but critical industries may require quarterly verification.
Q5: Can sensitive materials like composites or pharmaceuticals be safely dried in these ovens?
Absolutely. Their precise temperature control and uniform airflow make them ideal for sensitive materials.
Summary
The Vertical Drying Oven is a compact, efficient solution for industries needing precise drying in limited spaces. With advantages in airflow, energy efficiency, and material compatibility, it outperforms traditional ovens in many applications. Its future lies in smart, eco-friendly innovations.
