Introduction
As electronic assemblies become smaller, denser, and more sensitive, the importance of proper PCB cleaning has increased significantly. A PCB Cleaning Machine plays a critical role in removing flux residues, ionic contaminants, dust, oils, and microscopic particles that compromise product reliability. Whether used for SMT production, aerospace electronics, medical devices, or automotive control modules, PCB cleaning equipment has evolved into a sophisticated part of modern manufacturing.
This in-depth blog explains everything from cleaning principles to machine types, selection criteria, cost factors, and maintenance strategies. A comparison table is included, and the article concludes with key FAQs, word count, and a short summary.
Why PCB Cleaning Matters
Modern electronic devices run at higher frequencies and tighter tolerances. Contamination can lead to:
-
Leakage currents
-
Corrosion
-
Dendrite formation
-
Signal interference
-
Soldering defects
-
Reduced product lifespan
A PCB Cleaning Machine automates the cleaning process, ensuring consistency and eliminating human-related variations. It allows manufacturers to meet IPC, automotive, and military-level cleanliness requirements efficiently.
Key Cleaning Principles of PCB Cleaning Machines
Wet Cleaning
Uses deionized water, solvents, or saponifiers to dissolve contaminants. Effective for removing flux after reflow or wave soldering.
Mechanical Energy
Spray pressure, ultrasonic vibrations, or rotating brushes help detach stubborn residues.
Chemical Energy
Cleaning agents break down flux and oily particulates for easy removal.
Heat and Drying
Warm water or hot air improves detergent performance and ensures a moisture-free result.
Effective cleaning is the combined effect of chemistry, temperature, mechanical action, and time.
Major Types of PCB Cleaning Machines
Ultrasonic PCB Cleaning Machines
Use high-frequency cavitation bubbles to dislodge dirt from crevices.
Best for: Dense assemblies, fine-pitch components, micro-vias.
Spray-In-Air Cleaning Machines
Rely on high-pressure jets combined with detergents.
Best for: Medium-to-high volume production, mixed PCBs.
Spray-Under-Immersion Cleaning Systems
Boards are submerged in cleaning fluid while jets spray from multiple angles.
Best for: Heavy flux, solder paste residues.
Batch Cleaning Machines
Boards are loaded manually and cleaned in cycles.
Best for: Small to medium manufacturing runs.

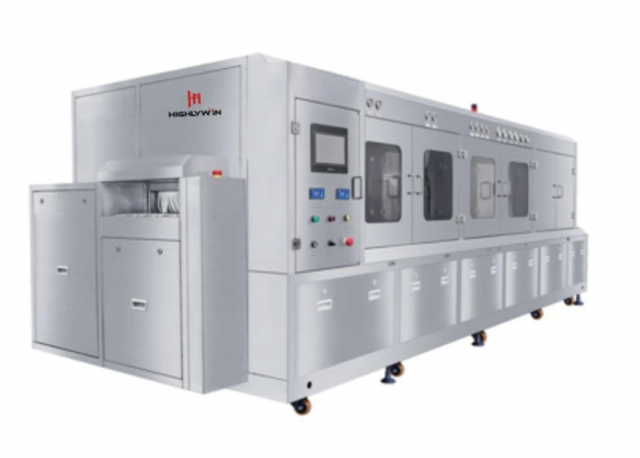

Inline PCB Cleaning Machines
Fully automated units connected to conveyor systems.
Best for: Large factories requiring high throughput and inline reflow integration.
Comparison of Common PCB Cleaning Machine Types
| Machine Type | Cleaning Strength | Suitable Volume | Best For | Cost Level |
|---|---|---|---|---|
| Ultrasonic | Very High | Low–Medium | Dense PCBs, microelectronics | Medium |
| Spray-In-Air | High | Medium–High | General SMT, automotive boards | Medium-High |
| Spray-Under-Immersion | Very High | Medium | Heavy flux contamination | High |
| Batch System | Medium | Low–Medium | Prototyping, small factories | Low–Medium |
| Inline System | High | Very High | Mass production | High |
Cleaning Agents Used in PCB Cleaning Machines
Water-Based Solutions
Eco-friendly, ideal for rosin and no-clean flux removal.
Solvent-Based Cleaners
Stronger cleaning power and fast drying. Used in aerospace and high-reliability sectors.
Semi-Aqueous Cleaners
Combination of solvents and water for balanced performance.
Pure Deionized Water
Used when flux is water-soluble and low-residue.
Selecting the correct cleaning chemistry ensures compatibility with PCB materials and components.
Important Features to Consider When Choosing a PCB Cleaning Machine
Cleaning Efficiency
The machine must handle complex components, underfill, narrow gaps, and fine-pitch designs.
Temperature & Pressure Control
Precise control ensures operator safety and consistent results.
Chemical Compatibility
Internal parts and seals must resist corrosion from solvents.
Automation Level
Features such as conveyors, automatic dosing, water filtration, and drying modules increase productivity.
Footprint and Layout
Inline machines require more space; batch types are more compact.
Environmental Compliance
Filtration systems and wastewater management are essential for eco-friendly operations.
Applications of PCB Cleaning Machines
SMT Assembly Lines
Removes flux residues after reflow soldering.
Aerospace Electronics
Ensures high reliability when exposed to extreme environments.
Medical Electronics
Contaminant-free circuits reduce failure risks in life-critical devices.
Automotive Control Units
Guarantees long-term durability under temperature cycling.
Prototype and Laboratory Use
Allows engineers to validate circuit performance.
Advantages of Using a PCB Cleaning Machine
Improved Product Reliability
Clean PCBs resist corrosion and performance drift.
Enhanced Solderability
Reduces solder bridges and voids.
Higher Process Consistency
Automated cleaning eliminates operator inconsistencies.
Better Inspection Results
Contaminant-free boards improve AOI and ICT performance.
Reduced Field Returns
Clean PCBs mean fewer warranty claims.
Challenges & Limitations
Cost of Ownership
Large inline systems require high initial investment and ongoing maintenance.
Chemical Handling Requirements
Operators must follow safety protocols for storage and disposal.
Machine Maintenance
Regular upkeep is necessary to avoid sediment buildup, clogged nozzles, or pump wear.
How to Maintain a PCB Cleaning Machine
Regular Filter Replacement
Ensures water purity and prevents particle recirculation.
Nozzle and Spray System Cleaning
Maintains consistent spray patterns.
Water Quality Management
Deionized water must remain below specific purity thresholds.
Chemical Concentration Monitoring
Automatic dosing systems help maintain optimal cleaning performance.
Routine Inspection
Pumps, heaters, and ultrasonic generators require periodic checks.
Cost Overview of PCB Cleaning Machines
Batch Machines
Most affordable, suitable for small shops.
Ultrasonic Systems
Moderately priced with high cleaning capability.
Inline Systems
Highest investment but best throughput.
Cost varies based on:
-
Automation level
-
Tank capacity
-
Number of spray arms or ultrasonic transducers
-
Heating systems
-
Filtration and drying modules
Best Practices for Using PCB Cleaning Machines
Optimize Cleaning Chemistry
Match flux type and contamination level.
Maintain Correct Temperature
Warmer solutions improve cleaning but must remain within safe limits.
Monitor Process Time
Too long may cause damage; too short leaves residue.
Verify Cleanliness
Use ionic testers or visual inspection under UV light.
Document Process Parameters
Helps ensure repeatability in manufacturing.
Industry Trends in PCB Cleaning Technology
Eco-Friendly Solutions
Shift from solvents to water-based systems due to regulations.
IoT-Enabled Smart Machines
Real-time monitoring of chemical levels, temperature, and pressure.
High-Precision Ultrasonic Systems
Optimized frequencies for micro-sized components.
Advanced Filtration Technologies
Reduce wastewater and chemical waste.
Conclusion
A PCB Cleaning Machine is essential for modern electronic manufacturing, improving reliability, reducing product failures, and ensuring compliance with industry standards. With diverse technologies available—from ultrasonic to inline systems—manufacturers can select equipment tailored to their production scale and cleanliness requirements. Understanding machine features, cleaning agents, and maintenance practices helps ensure long-lasting performance and consistent results.
FAQs
1. What type of PCB Cleaning Machine is best for dense assemblies?
Ultrasonic cleaning systems are ideal for fine-pitch components and complex geometries.
2. Can water alone clean flux residues?
Only water-soluble flux residues can be removed effectively with pure water; others require detergents.
3. Are PCB Cleaning Machines safe for sensitive components like MEMS?
Yes, when using correctly adjusted ultrasonic frequencies or low-pressure spray systems.
4. How long does a typical cleaning cycle take?
Cycle times range from 5 to 20 minutes depending on contamination and machine type.
5. Do PCB Cleaning Machines require special ventilation?
Solvent-based systems may require enhanced ventilation, while water-based systems generally do not.
Summary
This comprehensive guide explains PCB Cleaning Machines, including cleaning principles, machine types, detergents, applications, advantages, selection criteria, and maintenance tips. A comparison table and FAQs help readers understand how to choose and use the best cleaning system for their production needs.
