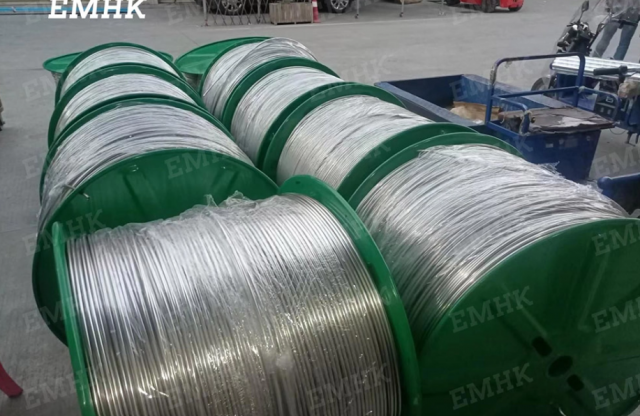

Introduction to Welded Coiled Tubing

Coiled tubing (CT) has revolutionized well intervention and drilling operations in the oil and gas industry. CT is a continuous length of pipe, typically made from high-strength steel alloys, that is spooled onto a reel. This allows for quick deployment into oil and gas wells for various operations, including drilling, well cleaning, stimulation, and logging. The use of CT minimizes the need for conventional jointed pipe, reducing operational time and costs.

Manufacturing of Welded Coiled Tubing

The manufacturing process of welded CT involves several key steps to ensure the final product meets stringent industry standards. The process begins with selecting steel sheets of appropriate width and thickness, which are then slit into continuous strips. These strips are welded end-to-end to create a continuous length of steel, which is then fed through a series of rollers to form a tubular shape. The edges of the tube are joined using electric resistance welding (ERW), a process that ensures a strong, consistent weld.

Electric Resistance Welding (ERW) Technique

Electric Resistance Welding (ERW) is crucial in manufacturing welded CT. This method involves passing a high-frequency electric current through the edges of the steel strip, generating heat due to the resistance. As the edges heat up, they are pressed together, creating a seamless weld. The weld flash, or excess material, is removed, and the welded seam is annealed to enhance its mechanical properties.

Material Selection for Welded Coiled Tubing

The selection of materials for welded CT is critical to ensure its performance and longevity in harsh downhole environments4. High-strength, low-alloy steels are commonly used due to their ability to withstand high pressures, temperatures, and corrosive fluids.

Key Material Properties

Several key material properties are considered when selecting steel for CT applications:

  • Yield Strength: The minimum yield strength of the steel must be sufficient to handle the tensile and compressive forces experienced during operations.

  • Tensile Strength: High tensile strength ensures the CT can withstand the high pressures and stresses in the wellbore.

  • Ductility: Adequate ductility is necessary to allow the CT to bend and conform to the wellbore's curves without fracturing.

  • Corrosion Resistance: The steel must resist corrosion from exposure to various chemicals and fluids present in oil and gas wells.

  • Fatigue Resistance: High fatigue resistance is crucial as CT undergoes repeated bending and straightening cycles during deployment and retrieval.

Common Steel Grades Used in Coiled Tubing

Several steel grades are commonly used in the manufacturing of CT, each offering a unique balance of strength, ductility, and corrosion resistance:

  • Low Carbon Low Alloy (LCLA) Steel: Conventional CT is often made from LCLA steel, providing a good balance of strength and weldability.

  • Martensitic Steels: High-strength CT often utilizes martensitic steels, which offer superior strength and hardness but may require careful heat treatment to optimize ductility and toughness.

  • Austenitic Stainless Steels: For highly corrosive environments, austenitic stainless steels like 304L, 316L, and 316Ti are used. These materials offer excellent corrosion resistance but may have lower yield strengths compared to carbon steels.

  • Duplex Stainless Steels: Duplex stainless steels combine the properties of austenitic and ferritic steels, offering high strength and excellent corrosion resistance, making them suitable for demanding offshore applications.

Welding Techniques for Coiled Tubing

Welding is a critical aspect of CT manufacturing, and the quality of the weld directly impacts the tubing's performance and reliability. Several welding techniques are employed, each with its own advantages and limitations.

Gas Tungsten Arc Welding (GTAW)

Gas Tungsten Arc Welding (GTAW), also known as Tungsten Inert Gas (TIG) welding, is commonly used for welding CT due to its precision and ability to produce high-quality welds. GTAW involves using a non-consumable tungsten electrode to create an arc between the electrode and the metal being welded. An inert gas, such as argon, shields the weld area from atmospheric contamination.

Advantages of GTAW

  • High-Quality Welds: GTAW produces clean, precise welds with excellent mechanical properties.

  • Versatility: It can be used to weld a wide range of materials and thicknesses.

  • Minimal Distortion: The concentrated heat input minimizes distortion of the surrounding material.

Limitations of GTAW

  • Lower Welding Speed: GTAW is slower compared to other welding processes.

  • Requires Skilled Operators: Achieving high-quality welds requires experienced and skilled welders.

Laser Beam Welding (LBW)

Laser Beam Welding (LBW) is an advanced welding technique that uses a focused laser beam to melt and fuse materials. LBW offers high precision and narrow weld beads, making it suitable for applications requiring minimal heat input.

Advantages of LBW

  • High Precision: LBW provides very precise and narrow welds.

  • Low Heat Input: The low heat input minimizes distortion and heat-affected zones.

  • High Welding Speed: LBW can achieve high welding speeds, increasing productivity.

Limitations of LBW

  • High Equipment Cost: LBW equipment is expensive.

  • Limited Material Thickness: LBW is typically used for thinner materials.

Material Considerations for Welding

Different materials require specific welding parameters and techniques to ensure optimal weld quality. For example, high-strength steels may require pre-heating and post-weld heat treatment to prevent cracking. Stainless steels require careful control of heat input to avoid sensitization and maintain corrosion resistance.

Post-Weld Heat Treatment

Post-weld heat treatment (PWHT) is crucial for optimizing the mechanical properties and reducing residual stresses in welded CT. PWHT involves heating the welded material to a specific temperature and holding it for a certain period, followed by controlled cooling.

Benefits of PWHT

  • Stress Relief: PWHT reduces residual stresses, minimizing the risk of stress corrosion cracking and fatigue failure.

  • Improved Ductility: It enhances the ductility and toughness of the weld and heat-affected zone (HAZ).

  • Microstructure Refinement: PWHT refines the microstructure, improving the overall mechanical properties of the weld.

PWHT Techniques

Common PWHT techniques include:

  • Annealing: Heating the material to a high temperature followed by slow cooling to reduce hardness and increase ductility.

  • Tempering: Heating the material to a temperature below its critical point to improve toughness and reduce brittleness.

  • Quenching: Rapidly cooling the material to increase its hardness and strength, often followed by tempering to achieve the desired balance of properties.

Quality Control and Inspection

Stringent quality control and inspection procedures are essential to ensure the integrity and reliability of welded CT. Non-destructive testing (NDT) methods are used to detect defects without damaging the material.

Common NDT Methods

  • Radiographic Testing (RT): Uses X-rays or gamma rays to detect internal defects such as porosity, cracks, and inclusions.

  • Ultrasonic Testing (UT): Uses high-frequency sound waves to detect surface and subsurface defects.

  • Magnetic Particle Testing (MPT): Detects surface and near-surface defects in ferromagnetic materials.

  • Eddy Current Testing (ECT): Uses electromagnetic induction to detect surface defects and variations in material properties.

  • Liquid Penetrant Testing (LPT): Detects surface-breaking defects by applying a dye that penetrates into cracks and voids.

Standards and Specifications

Welded CT must comply with industry standards and specifications to ensure it meets the required performance criteria. Key standards include:

  • ASTM A269: Standard specification for seamless and welded austenitic stainless steel tubing for general service.

  • ASTM A249: Standard specification for welded austenitic steel boiler, superheater, heat-exchanger, and condenser tubes.

  • API 5ST: Specification for coiled tubing.

Applications of Welded Coiled Tubing

Welded CT is used in a wide array of applications within the oil and gas industry due to its flexibility, strength, and ability to perform operations in live wells.

Well Intervention

CT is extensively used in well intervention operations to maintain or enhance production from existing wells. Common well intervention applications include:

  • Acidizing: Injecting acid to dissolve scale and improve flow.

  • Fracturing: Creating fractures in the formation to enhance permeability.

  • Logging: Running diagnostic tools to evaluate well conditions.

  • Cementing: Sealing off perforations or repairing casing leaks.

  • Fishing: Retrieving lost tools or debris from the wellbore.

Drilling Operations

CT can be used in drilling operations, particularly in underbalanced drilling and extended reach drilling. CT drilling offers advantages such as reduced formation damage and improved well control.

Pipeline Applications

Coiled Line Pipe (CLP) is used in pipeline applications for temporary and permanent installations. Sizes range from 3/4-inch to 5-inch OD, with varying wall thicknesses, to suit different operational needs.

Advantages of Welded Coiled Tubing

Welded CT offers several advantages over traditional jointed pipe and other intervention methods:

  • Speed and Efficiency: CT operations are typically faster than traditional methods, reducing downtime and costs.

  • Live Well Intervention: CT can be deployed in live wells without killing the well, minimizing production losses.

  • Flexibility: The continuous nature of CT allows it to navigate complex wellbore geometries.

  • Reduced Environmental Impact: CT operations often have a smaller footprint and produce less waste.

Despite its advantages, welded CT faces certain challenges:

  • Fatigue Life: Repeated bending and straightening can lead to fatigue failure, particularly at welds.

  • Corrosion: Exposure to corrosive fluids can degrade the material, reducing its lifespan.

  • High-Strength Material Limitations: Higher strength materials can be more difficult to weld and may exhibit reduced ductility.

Future trends in welded CT include:

  • Advanced Materials: Development of new alloys with improved strength, corrosion resistance, and fatigue life.

  • Improved Welding Techniques: Refinement of welding processes to minimize heat input and enhance weld quality.

  • Real-Time Monitoring: Integration of sensors to monitor stress, strain, and corrosion in real-time, allowing for proactive maintenance and failure prevention.

Conclusion

Welded CT is a critical component in modern oil and gas operations, offering a versatile and efficient means of well intervention and drilling. Careful material selection, optimized welding techniques, rigorous quality control, and ongoing advancements are essential to ensure the continued performance and reliability of welded CT in demanding downhole environments. As the industry continues to push the boundaries of exploration and production, welded CT will play an increasingly important role in maximizing efficiency and minimizing costs.

Frequently Asked Questions (FAQs)

Q1: What materials are commonly used for welded coiled tubing?

A1: Common materials include low carbon low alloy (LCLA) steel, martensitic steels, austenitic stainless steels (such as 304L and 316L), and duplex stainless steels. The choice of material depends on the specific application and the environmental conditions.

Q2: What welding techniques are used in the manufacturing of coiled tubing?

A2: Electric Resistance Welding (ERW) is predominantly used for its efficiency in creating a continuous seam. Gas Tungsten Arc Welding (GTAW) and Laser Beam Welding (LBW) are used when high precision and minimal heat input are required.

Q3: Why is post-weld heat treatment (PWHT) important for welded coiled tubing?

A3: PWHT is crucial for reducing residual stresses, improving ductility, and refining the microstructure of the weld and heat-affected zone (HAZ). This enhances the overall mechanical properties and reduces the risk of failure.

Q4: What non-destructive testing (NDT) methods are used to inspect welded coiled tubing?

A4: Common NDT methods include Radiographic Testing (RT), Ultrasonic Testing (UT), Magnetic Particle Testing (MPT), Eddy Current Testing (ECT), and Liquid Penetrant Testing (LPT). These methods help detect defects without damaging the material.

Q5: What are the main advantages of using coiled tubing in oil and gas operations?

A5: Coiled tubing offers speed and efficiency, the ability to perform live well interventions, flexibility in navigating complex wellbore geometries, and a reduced environmental impact compared to traditional methods.

Article Abstract

Welded Coiled Tubing (CT) is vital for efficient oil and gas operations, enabling well intervention and drilling. This article explores material selection, welding techniques like ERW, GTAW, and LBW, the importance of post-weld heat treatment, and rigorous quality control using NDT methods such as RT and UT. It highlights CT applications in well intervention, drilling, and pipeline maintenance, emphasizing its advantages-speed, flexibility, and reduced environmental impact-while addressing challenges like fatigue and corrosion. Future trends include advanced materials, improved welding processes, and real-time monitoring.
