Introduction

In an era where electronics manufacturing demands extreme precision, consistency, and speed, the insertion machine has become one of the core technologies powering modern PCB assembly lines. Whether used for through-hole components, mixed-technology boards, or flexible production environments, insertion machines deliver automation capabilities that significantly outperform manual assembly in both quality and capacity.

This article takes a deep dive into the world of insertion machines, exploring how they work, different system types, key performance factors, advantages, limitations, ROI considerations, and how to select the best machine for your manufacturing operation. By the end, you will have a comprehensive understanding of why insertion machines remain indispensable in the electronics industry and how they continue to evolve with emerging production trends.

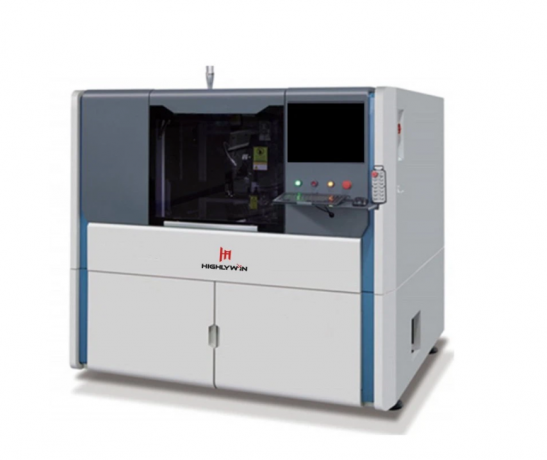

What an Insertion Machine Is

An insertion machine is a specialized piece of equipment designed to place electronic components—primarily through-hole devices—into predrilled holes on a printed circuit board. Unlike manual insertion, which requires operators to physically position and insert each component by hand, these machines automate the entire process with high-speed mechanical arms, feeders, vision systems, and control algorithms.

Insertion machines are widely used in industries that rely heavily on through-hole technology: power electronics, automotive modules, industrial equipment, heavy-duty PCBs, and high-reliability assemblies. Their precision and repeatability help manufacturers eliminate human error, accelerate output, and maintain strict compliance with product quality standards.



Why Insertion Machines Still Matter in a Surface-Mount World

Although SMT has become the mainstream assembly method for most electronics, insertion machines remain essential for several reasons:

  • Many components still require through-hole mounting, especially connectors, relays, transformers, capacitors, and power components.

  • Through-hole assemblies offer superior mechanical strength, making them ideal for vibration-intensive environments.

  • Mixed-technology PCBs are the norm rather than the exception.

  • Automation is crucial for reducing labor dependency in high-volume markets.

In other words, insertion machines bridge the gap between traditional through-hole processes and modern automated manufacturing, enabling hybrid workflows where SMT and THT coexist seamlessly.



Types of Insertion Machines

Insertion machines come in several configurations, each designed for specific component types and production requirements. Understanding the differences helps determine which system best suits your workflow.



Axial Insertion Machine

An axial insertion machine handles axial-lead components such as resistors and diodes. These machines cut, bend, and insert components into the PCB in rapid succession. Their strength lies in high-speed, repetitive tasks where consistency is critical.



Radial Insertion Machine

Radial insertion machines specialize in radial-lead components including capacitors, LEDs, and sensors. They are engineered to deliver stable insertion force while maintaining orientation accuracy.



Odd-Form Insertion Machine

These machines handle irregular or non-standard components that cannot be processed by axial or radial systems. Odd-form insertion machines are equipped with multi-axis heads, adaptive feeders, and advanced vision systems for precise placement of diverse parts.



Selective Insertion Machine

Selective insertion machines offer flexibility by allowing the insertion of different types of components on the same PCB without repositioning. They are ideal for high-mix, low-volume production environments.



How an Insertion Machine Works

While different models use various mechanisms, most insertion machines follow this process:

  1. Component Feeding – Components are supplied through tape, tubes, bowl feeders, or customized trays.

  2. Lead Processing – For axial and radial models, the machine cuts and forms leads into the required shape.

  3. Board Positioning – A conveyor transports the circuit board into the insertion area.

  4. Precision Alignment – Vision systems check hole locations and component orientation.

  5. Component Gripping and Insertion – Robotic heads pick components and insert them into designated holes.

  6. Clinching – Some machines bend or clinch leads underneath the PCB to secure components before soldering.

  7. Transport to Wave Soldering – After insertion, the board moves to the soldering station.

This automated workflow ensures rapid throughput and exceptional accuracy, far outperforming human labor in repetitive tasks.



Comparison: Insertion Machine vs Manual Insertion

To better understand the advantages of automation, the table below compares key indicators between insertion machines and manual insertion.

Feature / Metric Insertion Machine Manual Insertion
Speed Extremely high; consistent cycles per minute Slow; dependent on operator skill
Accuracy High precision with automated alignment Variable; prone to human error
Labor Cost Low per unit after setup High; requires skilled operators
Component Placement Quality Uniform and stable Inconsistent under high workload
Through-hole Lead Processing Automatic cutting and forming Manual or semi-manual
Best Use Cases High-volume or mixed-tech production Prototyping, small runs
Scalability Excellent Poor

This comparison highlights why factories continue to adopt insertion machines even when SMT is dominant.



Key Advantages of Using Insertion Machines



Higher Throughput and Productivity

Insertion machines dramatically boost production efficiency. Advanced models can insert several thousand components per hour, maintaining the same accuracy level from the first unit to the ten-thousandth.



Superior Consistency and Quality

The automation process eliminates human fatigue, misalignment, lead bending inconsistencies, and orientation errors. Quality control is more predictable, reducing rework and defect rates.



Reduced Operational Costs

While the initial investment may be significant, the long-term cost savings in labor, rework, and scrap are substantial. Automation ensures a stable output with minimal downtime.



Enhanced Component Versatility

Odd-form machines and selective insertion models offer immense flexibility, supporting custom components and mixed-technology production lines.



Improved Traceability

Modern insertion equipment includes data recording features, enabling full traceability of component placement and process parameters—critical for automotive, medical, and industrial applications.



Challenges and Limitations

Despite their strengths, insertion machines also pose certain challenges:

  • Not all components are compatible with automated feeders.

  • Equipment setup and programming require skilled technicians.

  • Machines may struggle with extremely high-mix production unless designed for selective insertion.

  • Initial investment cost can be high for small manufacturers.

Understanding these limitations helps businesses determine when automation is truly beneficial.



Choosing the Right Insertion Machine

Selecting an insertion machine involves evaluating several factors, including component type, production scale, product mix, and available space. Consider the following:



Component Compatibility

Ensure the machine supports the specific components your PCB design requires. Axial machines do not handle radial components, and vice versa.



Production Volume

High-volume operations benefit from fast-cycle axial or radial insertion systems. For mid-volume environments with frequent design changes, selective insertion may be more appropriate.



Feeder Flexibility

Machines with adaptable feeder modules enable easier changeovers and better support for mixed production.



Accuracy Requirements

Boards with tight tolerances require insertion machines with advanced vision systems and multi-axis positioning.



Factory Integration

Compatibility with existing conveyor systems, wave soldering lines, and MES/ERP systems is crucial for seamless production.



Future Trends in Insertion Machine Technology



AI-Enhanced Vision and Error Reduction

Artificial intelligence is increasingly integrated into insertion machines to detect feeding abnormalities, predict component jams, and automatically correct positioning deviations.



Higher Customization Capabilities

Modular feeder designs and flexible robotic heads are enabling machines to handle a broader range of odd-form components with greater agility.



Smarter Data and Analytics

Data-driven optimization allows predictive maintenance, real-time performance monitoring, and algorithm-based quality improvements.



Hybrid THT-SMT Workflows

Future production lines will integrate insertion machines directly into smart assembly cells that handle SMT placement, optical inspection, and selective soldering with minimal human intervention.



Practical Tips for Operating an Insertion Machine

To maximize performance:

  • Verify feeder calibration daily.

  • Optimize lead-forming parameters to match solder wave profiles.

  • Maintain clean insertion heads to prevent component slipping.

  • Use preventive maintenance schedules rather than reactive repairs.

  • Train operators to recognize subtle signs of machine wear.

Operational discipline is essential to keeping insertion machines running at peak efficiency.



Frequently Asked Questions

1. What components can an insertion machine handle?

It depends on the machine type. Axial and radial systems handle standard leaded components, while odd-form insertion machines support irregular or custom parts.

2. Do insertion machines replace manual soldering?

No. Insertion machines place components on the PCB, but soldering is typically performed afterward using wave soldering or selective soldering systems.

3. Can insertion machines work with mixed-technology PCBs?

Yes. They are widely used in hybrid SMT-THT production lines, especially in automotive and industrial electronics.

4. Are insertion machines difficult to program?

Modern systems include user-friendly interfaces, though setup requires knowledge of component orientation, hole mapping, and feeder calibration.

5. How long does it take to see ROI after purchase?

Most manufacturers see ROI within one to three years, depending on production volume, labor costs, and automation efficiency.

Summary

This article explores the role of insertion machines in modern electronics manufacturing, covering machine types, benefits, workflow processes, comparisons with manual insertion, selection tips, and future trends. It offers a complete, practical guide for optimizing through-hole automation.
