Optimizing Aluminum Billet Preheating: Techniques, Technologies, and Industrial Applications

Aluminum billet preheating is a critical step in the aluminum extrusion and forging industries, ensuring billets reach the optimal temperature for efficient and high-quality metal forming. This comprehensive article explores the principles, technologies, and best practices of aluminum billet preheating, focusing on furnace types, induction heating, process control, and industrial applications. Rich with technical insights, images, and videos, it serves as a detailed guide for manufacturers and engineers aiming to optimize their billet preheating processes.

What is Aluminum Billet Preheating?

Aluminum billets are semi-finished cylindrical metal blocks that require heating before extrusion, forging, or rolling. Preheating raises the billet temperature to a range where the aluminum becomes malleable enough for plastic deformation without melting, typically between 400°C and 600°C. Proper preheating improves material flow, reduces defects, and enhances the mechanical properties of the final product.

Why Preheat Aluminum Billets?

• Improved Malleability: Heating softens the aluminum, making it easier to shape.

• Uniform Deformation: Ensures consistent extrusion or forging results.

• Reduced Defects: Minimizes cracking, tearing, and surface imperfections.

• Energy Efficiency: Optimizes downstream processing energy consumption.

• Extended Tool Life: Reduces stress on extrusion dies and presses.

Types of Aluminum Billet Preheating Furnaces

Single Billet Preheating Furnace

Single billet furnaces heat one aluminum billet at a time, using direct gas blowout or infrared heating. These furnaces typically have three zones: preheating, soaking, and heating, designed to ensure uniform temperature distribution within ±9°C.

Advantages:

• Quick temperature rise (usually within 30 minutes)

• Precise temperature control

• No limitation on billet length

Disadvantages:

• Possible uneven temperature distribution if not properly controlled

Technical Parameters Example:

Multi Billet Preheating Furnace

Multi billet furnaces can heat several billets simultaneously using heated air circulation. They offer uniform heating and better temperature preservation but require longer heating times (2-4 hours) and have size limitations based on furnace length.

Advantages:

• Uniform heating effect

• Better temperature retention

Disadvantages:

• Limited billet length

• Larger footprint

Image: Multi billet furnace with multiple billets inside, showing burner nozzles and air circulation

Induction Heating Systems for Aluminum Billets

Induction heating is an advanced, energy-efficient technology that uses electromagnetic fields to heat billets directly and uniformly without contact.

How Induction Heating Works

• An alternating current passes through an induction coil, creating a high-frequency magnetic field.

• Eddy currents are induced inside the aluminum billet, generating heat internally.

• Heat is generated quickly and uniformly, minimizing oxidation and scaling.

Diagram: Induction coil surrounding aluminum billet with eddy current flow

Advantages of Induction Heating

• Precision Heating: Exact temperature control within ±5-10°C.

• Energy Efficiency: Over 90% energy efficiency compared to conventional furnaces.

• Faster Heating: Reduces preheating time significantly.

• Enhanced Safety: Non-contact heating reduces fire hazards.

• Minimal Oxidation: Preserves billet surface quality.

Typical Technical Specifications

Video: Induction heating system in operation, showing billet heating and temperature monitoring

Process of Aluminum Billet Preheating

Step 1: Billet Preparation

• Inspect billets for defects.

• Clean surface to ensure uniform heating.

Step 2: Furnace Loading

• Properly space billets to allow even heat distribution.

• For single billet furnaces, load one billet at a time.

• For multi billet furnaces, arrange billets to maximize airflow.

Step 3: Heating and Soaking

• Gradually raise furnace temperature to target range.

• Soak billets at the target temperature to achieve thermal equilibrium.

• Use temperature sensors (pyrometers, thermocouples) for precise control.

Step 4: Post-Heating Handling

• Transfer heated billets promptly to extrusion or forging presses.

• Apply lubrication to billets and ram to prevent sticking.

Image: Operator loading billets into furnace; temperature control panel display

Innovations in Aluminum Billet Preheating

Rapid Infrared Heating

Infrared heating technology, developed jointly by Oak Ridge National Laboratory and Infrared Heating Technologies, uses rapid infrared radiation to heat billets more quickly and efficiently than conventional convection furnaces.

Benefits:

• Reduced heating times

• Lower energy consumption

• Improved microstructure and fatigue life of billets

Image: Infrared heating furnace with glowing heating elements

Variable Preheat Temperature Control

Advanced extrusion methods adjust billet preheat temperature based on extrusion pressure and alloy type to optimize extrusion speed and product quality, avoiding overheating or underheating.

Industrial Applications

• Extrusion: Preheated billets are extruded into profiles for construction, automotive, aerospace.

• Forging: Heated billets are forged into complex shapes with improved mechanical properties.

• Rolling Mills: Preheated billets facilitate uniform rolling and deformation.

• Heat Treatment: Preheated billets undergo further thermal processing to enhance microstructure.

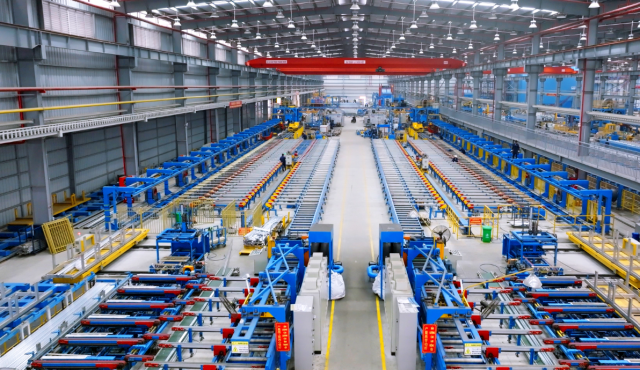

Video: Aluminum extrusion line showing billet preheating, extrusion, and profile cutting

Summary

Aluminum billet preheating is a vital process that directly affects the efficiency, quality, and cost-effectiveness of extrusion and forging operations. Modern technologies like induction heating and infrared furnaces provide precise, energy-efficient, and rapid heating solutions. Careful process control, including temperature uniformity and billet handling, ensures optimal billet preparation for downstream metal forming.

Frequently Asked Questions (FAQs)

1. Why is aluminum billet preheating necessary before extrusion?

Preheating softens the aluminum, making it malleable for shaping and reducing the risk of defects during extrusion.

2. What are the main differences between single billet and multi billet preheating furnaces?

Single billet furnaces heat one billet at a time with faster heating but potential temperature unevenness; multi billet furnaces heat multiple billets simultaneously with more uniform temperature but longer heating time.

3. How does induction heating improve aluminum billet preheating?

Induction heating provides rapid, uniform, and energy-efficient heating with precise temperature control and minimal oxidation.

4. What temperature range is typical for aluminum billet preheating?

Generally between 400°C and 600°C, depending on the alloy and process requirements.

5. Can billet preheating affect the mechanical properties of the final extruded product?

Yes, proper preheating ensures uniform deformation, reduces defects, and can improve grain structure and fatigue life.

Article Summary

This article provides an in-depth exploration of aluminum billet preheating, covering furnace types, induction heating technology, process steps, and industrial applications. It highlights the importance of precise temperature control and uniform heating for quality extrusion and forging. Innovations like rapid infrared heating and variable temperature control are discussed, along with practical FAQs to guide manufacturers in optimizing their billet preheating processes.
