Introduction
In modern electronics manufacturing, automation has evolved far beyond pick-and-place machines for SMT components. While surface-mount technology has captured most of the spotlight, through-hole components still form the backbone of countless power, automotive, industrial, and high-reliability PCB assemblies. Among all through-hole automation technologies, the Axial Insertion Machine plays a critical role by inserting rolled, taped axial components—such as resistors, diodes, and fuses—quickly, accurately, and consistently.
This article explores what an axial insertion machine is, how it works, where its strengths lie, and why factories still invest in them even in a world dominated by SMT. By the time you finish reading, you'll have a complete understanding of the technology, selection criteria, and the productivity impact these machines provide.

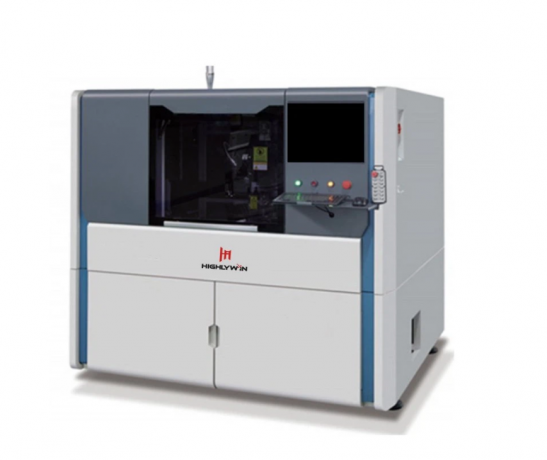

Understanding the Axial Insertion Machine
An Axial Insertion Machine is an automated system specifically designed to insert axial-lead electronic components into through-hole PCBs. These components have wires extending from both ends of a cylindrical body. Instead of requiring manual bending and trimming, the machine performs the entire flow automatically:
-
Component feeding
-
Lead straightening
-
Lead cutting
-
Lead bending
-
Precise insertion
-
Lead clinching on the board underside
This makes the machine an essential asset in medium-to-high-volume production lines where consistency, speed, and reduced labor cost are critical.
Why Through-Hole Automation Still Matters
Despite surface-mount dominance, through-hole components remain irreplaceable for several reasons:
High-Power Applications
Axial resistors and high-current diodes still require a robust mechanical connection and strong solder joints.
Automotive and Industrial Reliability
Vibration resistance and strong lead anchoring make axial components indispensable.
Cost-Effective for Certain Designs
Many low-cost consumer and industrial designs use axial components because they remain inexpensive, easy to source, and predictable in performance.
Because of these reasons, automation through axial insertion machines is still a profitable investment for EMS factories.
How an Axial Insertion Machine Works
Although different brands and models vary in technology, most machines follow a similar workflow.
Component Feeding and Identification
Components typically arrive in taped reels. The machine pulls the tape, scans component polarity (if applicable), and queues each part for processing.
Lead Conditioning
The component leads are straightened, then simultaneously:
-
Cut to the required length
-
Bent to match the hole spacing
-
Formed to optimize the mechanical fit
Inserting Into the PCB
A robot arm or precision shuttle mechanism positions the part exactly above the target holes and inserts the leads.
Lead Clinching
After insertion, the machine bends (clinches) the leads on the PCB's underside to ensure the part stays in place before soldering.
Quality Assurance
Some models feature built-in inspections for:
-
Lead bending accuracy
-
Hole alignment
-
Component body height
-
Polarity verification
Benefits of Using an Axial Insertion Machine
Factories that deploy axial insertion machines typically enjoy several advantages:
1. Increased Productivity
Manual insertion is slow and fatiguing. Automation ensures the same high speed every minute of operation.
2. Improved Quality Consistency
Human operators may vary from shift to shift. Machines eliminate inconsistency by maintaining tight tolerance control.
3. Lower Labor Costs
One machine can replace multiple manual insertion operators, significantly reducing labor requirements.
4. Reduced Scrap and Rework
Misaligned components, bent leads, or improper insertion forces cause rework in manual operations. Automated insertion minimizes these issues.
5. Better Soldering Yield
Consistent lead length and clinching results in stronger solder joints and improved long-term reliability.
Key Features to Consider When Choosing an Axial Insertion Machine
When selecting a machine, manufacturers must consider several essential categories.
Insertion Speed
Typical machines operate from 12,000 to 24,000 components per hour. Faster speeds help reduce total cost of ownership.
Supported Component Types
Not all machines support high-power resistors, glass diodes, or custom axial parts. Compatibility is crucial.
Programmability
Modern machines offer:
-
Offline programming
-
Automatic fiducial alignment
-
CAD-to-path import
-
Real-time insertion path optimization
Maintenance Requirements
Machines with modular design and self-diagnosis features reduce downtime.
Cost of Consumables
Lead cutting blades, taping systems, and clinching modules vary in lifespan and price.
Comparison Table: Axial Insertion Machine vs Manual Insertion
| Feature / Capability | Axial Insertion Machine | Manual Insertion |
|---|---|---|
| Speed | Extremely high, consistent CPM | Slow, varies by operator |
| Accuracy | High precision with minimal deviation | Dependent on worker skill |
| Labor Cost | Very low long-term | High due to repetitive labor |
| Quality Stability | Consistent across all shifts | Inconsistent over time |
| Suitable Volume | Medium to high | Low to medium |
| Lead Forming | Automated cutting and clinching | Requires hand tools |
| Error Rate | Very low | Higher due to fatigue |
| ROI Timeline | Fast in continuous production | No equipment investment but high long-term cost |
This table demonstrates why manufacturers focused on performance, reliability, and cost typically transition away from manual insertion.
Applications of Axial Insertion Machines
Automotive Electronics
Used in ECU boards, lighting controllers, alternator regulators, and safety modules requiring reliable solder joints.
Power Electronics
Industrial power supplies, transformers, and protection circuits rely heavily on axial resistors and diodes.
Consumer Electronics
Low-cost audio equipment, home appliances, and chargers often incorporate axial components for durable assembly.
Lighting Products
LED drivers and streetlight controllers frequently employ axial components that require robust through-hole strength.
Advanced Technologies in Modern Axial Insertion Machines
The newest generation of machines goes beyond simple insertion.
Smart Vision Systems
Cameras and sensors track component position and detect incorrect lead orientation or missing holes.
Predictive Maintenance
Sensors analyze machine vibration, insertion force, and temperature so that maintenance can be performed before a breakdown.
Digitized Production Monitoring
Real-time dashboards display:
-
Output per hour
-
Error statistics
-
Component usage
-
OEE data
Adaptive Insertion Algorithms
Software dynamically adjusts insertion parameters based on PCB thickness, copper density, or component lead hardness.
How Axial Insertion Machines Improve SMT Lines
Although axial components are through-hole, they still influence SMT production efficiency.
Reduced Bottlenecks
Manual through-hole insertion often becomes the slowest step. Automated insertion eliminates this bottleneck.
Better Wave Soldering Performance
Uniform lead length improves solder flow and greatly reduces solder bridges.
Enhanced Line Balancing
Production managers can pair SMT placement, reflow, axial insertion, and wave soldering in predictable cycles for optimal throughput.
Cost Factors and Investment Considerations
While axial insertion machines can be expensive, their return on investment often surprises factory owners.
Initial Cost
Machines can range widely depending on:
-
Speed
-
Brand
-
Software capabilities
-
Automation level
-
Custom component support
Operating Costs
Operating costs are typically low and include consumables, maintenance, and operator training.
ROI Calculation
Factories often recoup their investment within months due to lower labor costs and reduced defects.
Practical Tips for Implementing an Axial Insertion Machine
1. Start with a Pilot Product
Choose a board with high axial component count for the initial automation trial.
2. Train Operators Thoroughly
Even the best machine performs poorly without knowledgeable operators.
3. Keep Spare Parts On-Hand
Lead cutting blades and clinch tools should always be stocked.
4. Optimize the PCB Layout
Simple layout changes, such as consistent lead spacing and clear fiducial placement, maximize machine efficiency.
5. Use Offline Programming to Reduce Downtime
Create and test insertion programs before running the production line.
Challenges and Limitations
Despite their benefits, axial insertion machines also have challenges:
Component Deformation
Some delicate axial components may deform under high-speed insertion pressure.
Limited Flexibility
Custom axial component shapes or oversized parts may require manual insertion.
Programming Complexity
Complex boards with dense layouts require highly skilled programmers.
Future Trends in Axial Insertion Automation
The automation industry is evolving rapidly. The next generation of machines will emphasize:
-
AI-enhanced insertion optimization
-
Cloud-based diagnostics
-
Lower-cost smart feeders
-
Universal compatibility with various axial component formats
-
Increased integration with SMT line MES systems
As electronics manufacturing becomes more interconnected, axial insertion systems will become smarter, more flexible, and easier to integrate into hybrid SMT/through-hole workflows.
Frequently Asked Questions
1. What components can an axial insertion machine handle?
It supports resistors, diodes, fuses, thermistors, and various axial-lead components supplied in taped form.
2. Is manual insertion still necessary if I buy an axial insertion machine?
Yes, but only for odd-shaped, oversized, or low-volume components that the machine cannot handle efficiently.
3. How fast can an axial insertion machine work?
Depending on the model, speeds range from around twelve thousand to over twenty thousand components per hour.
4. Do these machines require special PCBs?
No special PCB is required, but consistent hole spacing, clear fiducials, and rational layout improve performance.
5. Is the investment worth it for small factories?
Factories producing medium-to-high volumes or boards with heavy axial usage typically achieve excellent ROI, while low-volume producers may prefer manual insertion.
Summary
This article explains how axial insertion machines automate through-hole assembly for axial components, improving speed, accuracy, and production efficiency. It covers machine functions, selection tips, advantages, limitations, applications, and future technology trends, with FAQs and a comparison table.
