Mastering the Panama Chock: Why This Essential Mooring Fitting Matters for Modern Ships

please click here:

https://www.anchorchainjn.com/products.html

When it comes to safe, reliable mooring and towing operations on large ships, the often-overlooked but critical fitting known as the Panama chock plays an indispensable role. In this article, we explore what a Panama chock actually is, how different standards compare, why selection matters, and what shipyards, naval architects, and marine engineers should consider when specifying and installing chocks — especially when compliance, durability, and rope safety are at stake.

What is a Panama Chock and Why It Exists

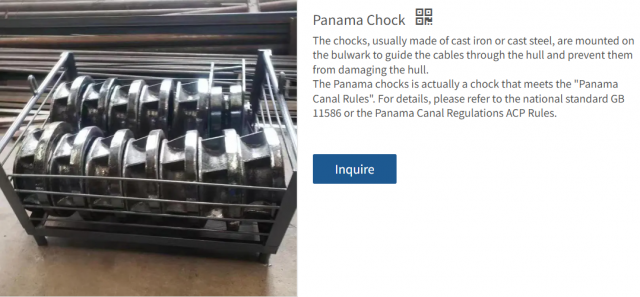

A Panama chock (sometimes simply called “chock” or “closed chock”) is a cast‑steel fitting installed on a vessel — usually on the deck or bulwark — designed to guide mooring or towing lines (ropes or wires) safely through the hull or over the rail. Its purpose is to ensure the mooring rope passes cleanly and smoothly, reducing abrasion and wear, and providing a reliable path under load to prevent damage to both rope and vessel structure.

For large vessels — whether cargo ships, tankers, or tugs — that need to moor alongside docks or transit canals, the presence of robust chocks is indispensable. Without them, ropes rubbing over plate edges or corners could rapidly wear out, fray, or — worse — fail under load, risking line breakage, equipment damage, or even safety hazards for the crew.

The name “Panama chock” stems from its historical importance for vessels transiting the Panama Canal, where tightly controlled mooring and towing operations require standardized, heavy‑duty fittings.

Depending on where they are installed and the applicable standard, Panama chocks come in various types and capacities.

Main Standards and Types — What Sets Them Apart

Not all Panama chocks are the same. They differ by the classification standard, installation location, and load capacity. Below are some of the common standards and types:

Each standard reflects different design philosophies or regulatory regimes; selection depends on where the ship will operate, compliance requirements (e.g. canal transit, classification society approvals), and the anticipated load scenarios.

Why Choice of Standard and Material Matters — Beyond Just “Any Chock”

At first glance, a chock might look like a simple metal loop or a hardened slot to run a rope through. But for marine engineering the devil is in the details: material quality, manufacturing standard, edge finishing, corrosion protection, rope compatibility, and installation method all significantly affect performance and safety.

• Material & Cast Quality: Superior cast steel with appropriate yield strength ensures the chock can handle extreme loads — such as those generated during mooring in rough weather or towing. Inferior steel or poor casting could lead to cracks or deformation. ISO‑standard chocks typically require a yield strength threshold (e.g. ≥ 235 N/mm²) and controlled carbon content (e.g. ≤ 0.23%) for weldability.

• Rope/Ring Surface Finish: The chock's interior edges — especially where the rope contacts — must be smoothly ground and treated against corrosion (typically with blasting + primer + anti‑rust painting or galvanizing). Rough edges accelerate rope wear.

• Load Capacity (SWL): Mooring lines may subject chocks to high loads in dynamic conditions (tides, wind, cargo shifting). Selecting a chock whose SWL exceeds the requirement provides a safety margin. For example, ISO 13728‑certified deck chocks commonly offer SWL values in the range of many hundreds of kN.

• Compatibility with Rope / Wire Types: Modern vessels may use synthetic ropes or steel wires. The chock must be compatible with the rope material; for synthetic ropes, smooth curves and minimal abrasion points are critical. Many suppliers supply chocks polished or designed specifically for synthetic rope use.

• Installation Method & Structural Integration: Deck‑mounted chocks may be welded directly to the deck or mounted via base plates/bolted plinths. Bulwark‑mounted chocks require correct structural reinforcement so that line loads do not deform hull plates.

If these aspects are overlooked, the risk is real: rope abrasion or failure, chock deformation/cracking, unexpected structural stress. In worst‑case scenarios, mooring failure or accidents could occur.

When and Where Panama Chocks Must Be Used

Panama chocks are almost ubiquitous on large vessels, but certain conditions make their use mandatory or strongly advised:

• Transit through canals, tight harbours, or locks — Passing through places like the Panama Canal often requires specially certified mooring and towing fittings. ISO‑standard chocks are often preferred or mandated.

• Heavy‑duty mooring or towing operations — Vessels expecting high loads (cargo ships, tankers, tugboats) benefit from high‑SWL chocks to manage dynamic loads safely.

• Use of synthetic ropes or steel towing wires — When modern mooring lines are used, chocks must be rope‑friendly: smooth finish, correct shape, minimal wear points.

• Compliance with classification societies and maritime regulations — To ensure inspections and certification, chocks often need to meet recognized standards (ISO, DIN, JIS, etc.).

• Retrofits, repairs or newbuilds requiring robust fittings — For new ships or refits, specifying the correct chock type upfront saves costs and ensures long-term safety.

Comparing Common Standards — Practical Comparison Table

Here is a practical comparison of three widely used standards/types of Panama chocks:

† For JIS F 2017 chocks, capacity depends on specific size and fabrication — always check supplier data sheet for exact SWL and rope diameter compatibility.

This comparison underscores that while all “Panama chocks” serve the same fundamental purpose — guiding mooring/towing lines — their suitability varies widely depending on vessel type, operation, and regulatory context. Choosing the wrong standard or a low‑spec chock for a high‑load scenario can be risky.

Real-World Considerations — Things to Watch Out For

When specifying or installing Panama chocks, experienced shipyards and marine engineers often pay attention to the following practical aspects:

• Edge finishing quality: After casting, all edges where rope contacts must be ground smooth; any burrs or roughness can drastically shorten rope life. Also, surface treatment (such as anti‑corrosion painting or galvanization) helps resist salt water and reduce maintenance.

• Compatibility with rope/wire diameter: The internal opening width and curvature must match the intended rope size. Oversized openings can cause rope abrasion via excessive movement, while undersized openings create friction and stress. Always confirm rope‑diameter specs when ordering.

• Structural integration and reinforcement: Especially for bulwark-mounted chocks, correct welding or bolting, plus reinforcement, is needed to handle line-induced loads — otherwise, hull plating can deform.

• Load margin and safety factor: Even if a chock meets minimum SWL, a prudent design will include a safety margin — especially if dynamic loads (waves, tugs, shifting cargo) are expected.

• Maintenance and inspection schedule: Over time, wear and tear, corrosion, and repeated loading may degrade chock integrity; regular inspection for cracks, corrosion, or deformation is crucial.

Ignoring any of these details can result in premature failure of mooring lines or structural damage — potentially expensive and dangerous for vessel operations.

When “Simple” Chock Doesn't Cut It — Upgrading to High‑Spec Panama Chocks

For modern vessels operating globally — especially those navigating canals, tight ports, or heavy‑cargo routes — a basic chock is often insufficient. Many shipowners now insist on high‑spec, certified Panama chocks (e.g. ISO 13728 Type A/B) with documented SWL, material certificates, and installation plans.

Upgrading to high‑spec chocks offers several benefits:

• Greater safety margin under extreme load or unexpected dynamic stress (e.g. sudden rope tension from wind, waves, tug pull).

• Longer rope life, thanks to smooth, polished internal surfaces and minimised abrasion — which reduces maintenance costs and downtime.

• International compliance, ensuring vessels meet classification society requirements and canal regulations.

• Reduced liability in case of line failure or accidents.

For newbuilds, refits, or vessels expected to transit challenging routes, specifying high‑spec chocks from the outset can save time, cost, and prevent retroactive fixes.

Summary — Why Panama Chocks Deserve More Respect

Though small and often hidden from casual view, Panama chocks are critical components that ensure the safety, reliability, and longevity of a ship's mooring or towing systems. Choosing the right standard, material, installation method, and finishing might seem like engineering overhead — but in the maritime world, that attention to detail can mean the difference between smooth sailing and costly failures.

When designing ships or planning mooring arrangements, professionals should treat Panama chocks not as “just a fitting,” but as a key element in load management, rope safety, regulatory compliance, and overall vessel integrity.

Frequently Asked Questions and Answers

What determines the Safe Working Load (SWL) of a Panama chock?

The SWL is mainly determined by the chock's material strength (quality of cast steel), design (thickness, wall geometry, reinforcement), and how it is mounted to the vessel's structure (deck plate, bulwark, base plate, welding/bolting). Certifications (such as ISO 13728) often dictate minimum yield strength and test protocols for SWL ratings.

Can a Panama chock designed for steel wire be used for synthetic rope instead?

Yes — but only if the internal surface is properly smoothed and finished, with no sharp edges or burrs. Synthetic ropes are more sensitive to abrasion than steel wire. It is often advisable to confirm with the chock manufacturer that the chock is suitable for the intended rope material and diameter.

Is there a difference between “deck‑mounted” and “bulwark‑mounted” Panama chocks besides location?

Yes. Besides installation site, they differ in mounting method (deck welding or base plate vs. bulwark plate/welding), load distribution, and structure around them (deck reinforcement vs. side‑wall reinforcement). Bulwark‑mounted chocks often require more structural support due to lateral loads during mooring or towing.

How often should Panama chocks be inspected or maintained?

Chocks should be inspected regularly (e.g. during routine dry-dock or maintenance cycles) for signs of corrosion, surface wear, deformation, or cracks — especially at welded joints or where the rope contacts the chock. Surface treatment (paint or galvanization) should be maintained to prevent rust. Ropes themselves should also be inspected for wear at contact points.

What happens if a Panama chock is undersized for a mooring rope?

If the chock opening is too small for the rope, the rope will experience excessive friction, bending stress, and abrasion — greatly increasing the risk of wear, damage, or sudden failure under load. Additionally, the chock might deform or concentrate stress, compromising its structural integrity.

Article summary

Panama chocks — specialized cast‑steel fittings installed on decks or bulwarks — guide mooring and towing lines safely for large vessels. Choosing the right standard (ISO, DIN, JIS), material, and finishing ensures load safety, rope longevity, and regulatory compliance. Proper specification and maintenance can prevent costly failures.
