Understanding the Role of the SMT Feeder
Surface Mount Technology has reshaped global electronics manufacturing by enabling faster, more accurate component placement. Yet, among all SMT production elements, the SMT feeder often receives less attention despite being the backbone of stable line performance. It is the component delivery system that ensures every part arrives at the exact moment, in the exact orientation, and with the exact accuracy required by high-speed pick-and-place machines. Without a properly optimized feeder, even the most advanced placement equipment will fail to reach its rated performance.
SMT feeders have evolved from simple mechanical tape feeders into sophisticated mechatronic devices capable of smart communication, automatic calibration, and ultra-stable feeding accuracy. Their reliability directly affects scrap rates, machine downtime, and overall throughput. This article explores feeder mechanisms, types, selection criteria, maintenance strategies, and the future of feeder technology—offering an updated perspective for engineers, factory managers, and decision-makers.
Types of SMT Feeders
Different manufacturers engineer feeders for different application scenarios. Each feeder type targets unique packaging styles, feeding speeds, and material handling preferences.

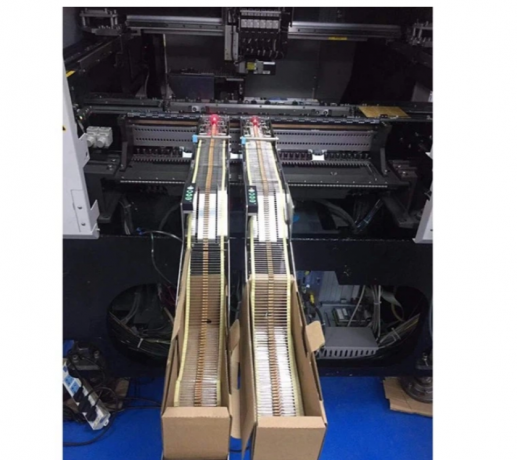

Tape Feeders
Tape feeders remain the most widely used format. They handle components packaged in embossed or paper tape wound on reels. Their advantages include ease of loading, wide compatibility, and predictable feeding performance.
Tape feeders dominate consumer electronics lines, where component sizes can range from tiny passives to ICs.
Tray Feeders
Tray feeders are designed for handling large, fragile, or high-value components. They present components from JEDEC trays with controlled indexing.
Industries producing servers, medical instruments, or automotive ECUs often rely heavily on tray feeders for handling ICs with sensitive leads or thermal pads.
Stick Feeders
Stick or tube feeders are used for components delivered in plastic tubes, usually older-generation discrete parts or customized components still in stick packaging.
Though gradually phased out, they remain relevant for low-volume or specialty production settings.
Intelligent Feeders
Intelligent feeders incorporate embedded chips, automatic recognition, feeding parameter memories, error tracking, and traceability support.
These feeders integrate directly with MES systems, minimizing human errors during setup and contributing to a fully digital factory environment.
How an SMT Feeder Works
The operation of a feeder involves much more than advancing a tape mechanically. Modern feeder design focuses on high-precision control, vibration damping, consistent pick position, and real-time synchronization with the placement head.
Key Functional Actions
-
Indexing of tape, tray, or tube
-
Accurate positioning for vacuum nozzle pickup
-
Component presentation at a fixed height
-
Peel-off tension control for embossed tapes
-
Rapid feeding without vibration or bounce
-
Communication with the pick-and-place machine
Every step must operate flawlessly within milliseconds, especially in high-speed lines where placement heads move thousands of times per minute.
Comparing Common Types of SMT Feeders
Below is a practical comparison table to help evaluate feeder types based on real manufacturing needs.
| Feeder Type | Best For | Strengths | Limitations |
|---|---|---|---|
| Tape Feeder | High-speed mass production | Fast loading, high reliability, universal use | Requires reel packaging; less ideal for large ICs |
| Tray Feeder | Large or fragile ICs | Gentle handling, no tape waste | Slow indexing; occupies more machine space |
| Stick Feeder | Low-volume discrete components | Cost-effective for small jobs | Inconsistent feed rates; limited modern support |
| Intelligent Feeder | Automated factories | Error reduction, digital tracking, fast changeover | Higher upfront cost |
Factors to Consider When Choosing an SMT Feeder
Component Packaging
The packaging format—tape, tray, or tube—will immediately narrow the feeder type. Smaller passives favor tape feeders, whereas large BGA or QFN devices perform best in tray feeders.
Machine Compatibility
Each SMT machine brand (Yamaha, Panasonic, Juki, Fuji, Siemens, Hanwha) uses feeder designs specific to its mechanical interface and communication protocol.
Selecting a feeder that matches the machine ensures smooth integration and stable performance.
Production Volume
High-speed mass production benefits from durable tape feeders with fast indexing. Specialty or low-volume builds may use a mix of tray or stick feeders.
Smart Functionality Requirements
Intelligent feeders deliver significant advantages for factories adopting digital tracking or traceability. They greatly reduce operator mistakes during changeovers.
Why SMT Feeder Accuracy Matters
Many manufacturers mistakenly assume that component placement machines dictate accuracy, but feeders contribute substantially to final placement precision.
A feeder that feeds one component slightly off-center can cause misalignment, tombstoning, bridging, or missing placements. Over time, even minor inaccuracies can create large inefficiencies.
Consistent feeding accuracy leads to:
-
Higher production yields
-
Lower machine stoppages
-
Reduced rework and scrap
-
Improved traceability and process control
-
Better return on investment for pick-and-place equipment
In short, a placement machine is only as good as the feeder feeding it.
Common Problems That Occur with SMT Feeders
Tape Jams
Poor tape quality, incorrect peel tension, or worn gears often lead to jams, slowing production and causing misfeeds.
Misalignment
Feeding mechanisms that exhibit wear or calibration drift may present components slightly off their intended pick-up location.
Static Electricity
Static buildup can cause lightweight components to shift or stick, especially in low-humidity environments.
Mechanical Fatigue
Like any moving mechanism, feeders experience fatigue in springs, gears, and motors over time. Preventative maintenance is crucial.
Best Practices for Operating SMT Feeders
Regular Preventative Maintenance
Routine cleaning, lubrication, and worn-part replacement are key to extending feeder life.
Maintaining a logbook of feeder wear patterns helps anticipate future failures.
Proper Storage
Feeder racks should protect devices from dust, vibration, and accidental impact.
Intelligent feeders should also remain within environments that protect their embedded electronics.
Operator Training
Operators must understand proper reel loading, peel-off angle control, feeder calibration, and troubleshooting techniques.
A well-trained operator can dramatically reduce feeder-related downtime.
Calibration and Verification
Regular alignment checks ensure feeders continue delivering consistent pick positions.
High-end SMT lines use automatic calibration systems to maintain accuracy across hundreds of feeders.
Future Trends in SMT Feeder Development
Smart Automation Integration
Upcoming feeder generations will support even deeper MES integration, AI-based diagnostics, and cloud-connected monitoring.
Predictive failure analysis may eliminate unplanned downtime entirely.
Modular Feeder Designs
Modularity reduces repair time and simplifies upgrades. Manufacturers are exploring tool-free modules to enable faster changeovers.
High-Speed Micro-Component Handling
With the rise of 01005 and smaller components, feeders must achieve even tighter tolerances and faster, vibration-free indexing.
Eco-Friendly Materials
Sustainable feeder materials and designs reduce waste and support environmentally responsible production.
Conclusion
The SMT feeder is more than a simple accessory—it is an essential part of surface mount manufacturing that directly affects speed, precision, and product quality. Understanding feeder types, strengths, limitations, and best practices helps factories choose the right equipment and optimize production lines.
With intelligent feeder technology and advanced automation shaping the future, manufacturers that invest early will gain a competitive edge in both quality and throughput.
Frequently Asked Questions
What is the primary purpose of an SMT feeder?
Its main function is to present components accurately to the pick-and-place machine for reliable pickup and placement.
Are intelligent feeders worth the investment?
Yes. For factories emphasizing automation, traceability, and error reduction, intelligent feeders significantly improve efficiency.
How often should SMT feeders be maintained?
Preventative maintenance should be done regularly, depending on usage intensity, but ideally as part of a scheduled monthly or weekly program.
Can feeders from one brand work with machines from another?
Generally not, unless using third-party compatibility systems. Feeders must match the mechanical and electrical interface of the machine.
What causes feeder misfeeds?
Common causes include worn parts, poor tape quality, incorrect tension, or improper loading.
Summary
This article explores SMT feeder technology, covering feeder types, functions, accuracy, selection factors, and maintenance. It includes a comparison table and insights into future trends such as intelligent feeders and automation, offering practical guidance for optimizing SMT production lines.
