Printed Circuit Board Assembly (PCBA) is a critical phase in the electronics manufacturing process, where electronic components are mounted and soldered onto a bare printed circuit board (PCB) to create functional electronic devices. This article provides an in-depth exploration of the PCBA process, technologies involved, common challenges, and best practices to ensure high-quality and reliable assemblies.
Understanding Printed Circuit Board Assembly
Printed Circuit Board Assembly refers to the process of attaching electronic components onto a PCB substrate. This process transforms the bare board into a fully functional electronic circuit. The assembly process involves several stages, from design verification to final inspection, each essential to the overall quality and performance of the finished product.
What is a Printed Circuit Board?
A printed circuit board is a laminated sandwich structure consisting of conductive copper layers separated by insulating materials. It provides the physical platform and electrical pathways for connecting electronic components.
Importance of PCB Assembly
PCB assembly ensures that components are correctly positioned and electrically connected, enabling the device to perform its intended functions. A well-executed assembly process improves product reliability, reduces defects, and optimizes manufacturing efficiency.
The Step-by-Step PCB Assembly Process
The assembly process is a combination of automated and manual operations designed to accurately place and solder components on the PCB.
1. Design for Assembly (DFA) Verification
Before assembly begins, the design files (Gerber or ODB++) and the Bill of Materials (BOM) are verified. This step ensures all design data is accurate and components are available and correctly specified. Early detection of design or component issues prevents costly rework later.
2. PCB Fabrication
The bare PCB is fabricated by layering copper on an insulating substrate, followed by imaging, etching, drilling, plating, and applying solder mask and silkscreen. This prepares the board for component mounting.
3. Incoming Quality Control (IQC)
All materials, including PCBs and components, undergo inspection for defects or inconsistencies. This step is crucial to prevent faulty parts from entering the assembly line.
4. Solder Paste Application
Solder paste is applied to the PCB pads using a stencil or dispenser. This paste will later melt to form solder joints that secure components electrically and mechanically.

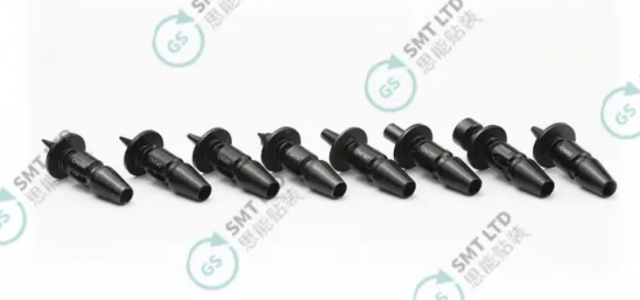

5. Component Placement
Components are placed on the PCB pads according to the design layout. This is done using pick-and-place machines for surface-mount devices (SMDs) or manually for through-hole components.
6. Soldering
There are two main soldering techniques in PCB assembly:
Surface-Mount Technology (SMT) Soldering
In SMT, components are soldered on the same side of the PCB where they are placed. The board passes through a reflow oven where the solder paste melts and forms reliable joints.
Through-Hole Technology (THT) Soldering
For through-hole components, leads are inserted into drilled holes and soldered on the opposite side. This can be done by wave soldering or manual soldering.
7. Inspection and Testing
After soldering, the assembled PCB undergoes inspection to verify correct component placement and solder joint quality. Techniques include Automated Optical Inspection (AOI), X-ray inspection, and functional testing to ensure the board operates correctly.
8. Final Quality Control and Packaging
The completed PCBs are subjected to final quality checks before packaging and shipment. This step ensures that only boards meeting specifications reach customers.
PCB Assembly Technologies
Surface-Mount Technology (SMT)
SMT is the dominant technology in modern PCB assembly. It allows mounting of miniature components directly onto the PCB surface, enabling higher component density and smaller board sizes.
Through-Hole Technology (THT)
THT involves inserting component leads through holes in the PCB and soldering them on the opposite side. Though less common for high-density boards, it is still used for components requiring strong mechanical bonds or high power handling.
Mixed Technology
Many PCBs use a combination of SMT and THT to balance miniaturization with mechanical strength and functionality.
Challenges in PCB Assembly
Signal Integrity and Thermal Management
As PCBs become miniaturized with higher component densities, maintaining signal integrity becomes complex due to increased parasitic capacitance, crosstalk, and impedance mismatches. Thermal management is also challenging because compact layouts reduce heat dissipation, risking component overheating and failure.
Precise Component Placement
Miniaturized components, some as small as 0.4 × 0.2 mm, require ultra-precise placement within tight tolerances. Minor misplacements can cause electrical shorts or connectivity issues. Advanced pick-and-place machines with microscopic optics and servo motors are necessary to achieve this precision.
Solder Joint Reliability
Smaller solder joints are more fragile and susceptible to mechanical stresses, thermal cycling, and vibration. Defects like cracks, voids, and cold joints can lead to failures. Specialized solder alloys, advanced solder masks, and localized soldering techniques like laser soldering are used to enhance joint reliability.
Miniaturization Constraints
The drive for smaller, lighter, and more powerful devices pushes the limits of PCB assembly technology. This requires careful design, advanced materials, and innovative assembly methods to ensure performance without compromising reliability4.
Best Practices for Successful PCB Assembly
-
Early Design Verification: Thorough DFA checks prevent design flaws that complicate assembly.
-
Quality Material Sourcing: Use verified, high-quality components and PCBs.
-
Process Control: Maintain strict control over solder paste application, placement accuracy, and soldering profiles.
-
Advanced Inspection: Employ AOI, X-ray, and functional testing to detect defects early.
-
Thermal and Signal Simulation: Incorporate thermal management and signal integrity analysis during design.
-
Continuous Improvement: Use feedback from production and field failures to refine processes.
Frequently Asked Questions (FAQs)
Q1: What is the difference between PCB fabrication and PCB assembly?
A1: PCB fabrication is the process of creating the bare circuit board with copper traces and holes, while PCB assembly involves mounting and soldering electronic components onto the fabricated board to make it functional.
Q2: Why is solder paste important in PCB assembly?
A2: Solder paste contains tiny solder particles suspended in flux. It is applied to PCB pads to temporarily hold components in place and, when melted during reflow soldering, forms the permanent electrical and mechanical connections.
Q3: What are the key challenges in assembling miniaturized PCBs?
A3: Challenges include maintaining signal integrity, managing heat dissipation, achieving ultra-precise component placement, and ensuring solder joint reliability despite smaller sizes and higher component densities.
Q4: How does surface-mount technology differ from through-hole technology?
A4: SMT mounts components directly on the PCB surface, allowing for smaller and denser layouts, while THT involves inserting component leads through holes and soldering them on the opposite side, providing stronger mechanical bonds.
Q5: What inspection methods are used to ensure PCB assembly quality?
A5: Common inspection methods include Automated Optical Inspection (AOI) for visual defects, X-ray inspection for hidden solder joints, and functional testing to verify electrical performance.
Article Summary
Printed Circuit Board Assembly (PCBA) is the essential process of mounting and soldering electronic components onto a fabricated PCB, transforming it into a functional electronic device. This article covers the detailed assembly steps, including design verification, solder paste application, component placement, soldering techniques, and inspection. It also discusses key technologies like SMT and THT, challenges in miniaturized PCB assembly such as signal integrity and solder joint reliability, and best practices to ensure high-quality production. Understanding these aspects is crucial for manufacturing reliable and efficient electronic products.
