Modern manufacturing is evolving faster than ever, and efficient wire processing has become essential across automotive, aerospace, consumer electronics, industrial control systems, home appliances, and communication equipment. Among the most important breakthroughs in this field is the Terminal Insertion Machine—a system designed to automate the insertion of terminals into housings with unmatched precision and speed.
Whether you are building wiring harnesses for electric vehicles or producing millions of connectors for appliances, understanding how this machine works and how to select the right model is crucial for operational success. This article offers an in-depth, practical overview that goes far beyond simple introductions.
Understanding the Role of the Terminal Insertion Machine

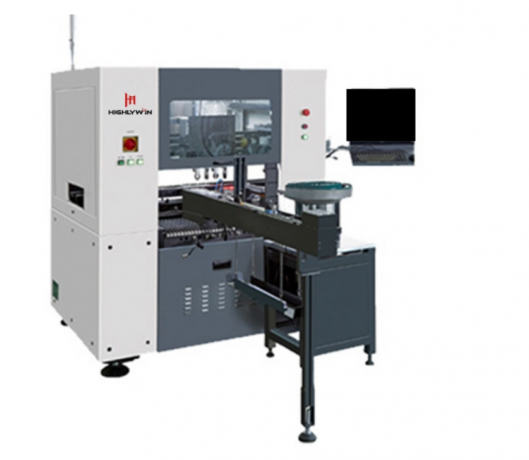

A Terminal Insertion Machine is designed to insert pre-crimped terminals into plastic housings. Traditionally, workers handled this task manually, which led to inconsistent quality and limited production capacity. Automation changes everything.
These machines ensure consistent insertion force, correct orientation, proper seating, and stable quality—especially important for high-reliability applications like vehicles and aviation electronics.
Why Terminal Insertion Matters in Modern Manufacturing
Terminal insertion is more than simply “pushing a terminal into a housing.” Several critical steps must be executed flawlessly:
-
Verifying terminal orientation
-
Identifying the correct cavity
-
Detecting insertion depth
-
Ensuring the terminal is locked
-
Verifying pull-out resistance
-
Logging process data for traceability
If any step fails, the end product may suffer from intermittent connections, short circuits, or catastrophic system malfunction.
Automation helps eliminate these risks.
Key Components of a Terminal Insertion Machine
To understand the machine's capability, it helps to know the main modules:
Insertion Head
The core mechanism pushes terminals into housings with controlled force and speed.
Terminal Feeder
Feeds pre-crimped terminals from reels or trays into the insertion head.
Housing Feeder
Automatically aligns housings for quick and precise insertion.
Vision Inspection System
Detects terminal orientation, missing wires, housing deformation, or incomplete insertion.
Force Detection System
Monitors real-time insertion force to ensure proper seating.
Servo Motor & Controller
Allows programmable positioning, torque, and speed control.
Data Logging System
Tracks each insertion for quality assurance and traceability.
Types of Terminal Insertion Machines
While models vary widely, most solutions fall into these categories:
Single-Station Insertion Machines
Ideal for low to medium production volumes. Compact, cost-effective, and suitable for short-run jobs or multiple product types.
Multi-Station Rotary Machines
Used for high-volume applications. Each station performs different tasks simultaneously, ensuring massive throughput.
Fully Integrated Workstations
Include crimping, wire cutting, stripping, sealing, and insertion. These are used in automotive harness mega-factories.
Customized Insertion Modules
Integrated into large-scale automated assembly lines with robot handling arms, conveyors, or AGV delivery systems.
How a Terminal Insertion Machine Works
Understanding the workflow helps determine how automation improves production efficiency:
-
Terminal is positioned by the feeder.
-
Housing is placed in the correct orientation.
-
Vision system checks cavity alignment.
-
Insertion head pushes the terminal into the housing.
-
Force sensor verifies insertion depth and locking.
-
System rejects faulty parts.
-
Data logs insertion parameters automatically.
Every cycle is precise, repeatable, and extremely fast—often completing insertion in milliseconds.
Comparing Manual, Semi-Automatic, and Fully Automatic Insertion
Below is a clear comparison to understand the evolution of insertion technology:
| Feature | Manual Insertion | Semi-Automatic Insertion | Fully Automatic Terminal Insertion |
|---|---|---|---|
| Speed | Slow | Medium | Very Fast |
| Consistency | Low | Medium | High |
| Labor Cost | High | Medium | Low |
| Quality Traceability | None | Limited | Full Data Logging |
| Mis-insertion Risk | High | Medium | Low |
| Best Use Case | Small batches | Mixed orders | High-volume production |
Fully automatic systems outperform all other methods in stability, productivity, and long-term cost savings.
Key Advantages of Terminal Insertion Machines
Superior Accuracy and Repeatability
The combination of servo control, machine vision, and force sensors creates extremely stable insertion quality.
High Output Efficiency
High-speed models can complete hundreds of insertions per minute, dramatically reducing labor.
Improved Quality Control
Data logging ensures every terminal meets the required insertion force and depth.
Reduced Waste
Accurate alignment prevents broken housings, bent terminals, and scrap materials.
Flexible Production
Easily switch between different connector types with adjustable fixtures and programmable tools.
Enhanced Worker Safety
Eliminates repetitive strain injuries from manual insertion tasks.
Selecting the Right Terminal Insertion Machine
When choosing a machine, consider the following criteria:
1. Production Volume
-
Low volume → Compact or single-station machines
-
High volume → Multi-station rotary or fully integrated automated systems
2. Connector Variety
If the product mix changes frequently, select a model with quick-change fixtures.
3. Terminal and Housing Compatibility
Ensure the machine supports your connector brand (TE, Molex, JST, Yazaki, Sumitomo, etc.).
4. Smart Features
Look for models with features like:
-
Vision inspection
-
Force monitoring
-
Auto cavity detection
-
Barcode/QR code product tracking
5. Expandability
Choose machines that can integrate additional modules such as:
-
Wire cutting
-
Crimping presses
-
Sealing stations
-
Robotic arms
6. Serviceability
Check whether the manufacturer offers easy maintenance access, cloud diagnostics, and spare parts availability.
Applications Across Industries
Terminal insertion machines are now widely used in:
Automotive Wiring Harness Manufacturing
EV battery management systems, lighting, infotainment, sensors, and powertrain connectors.
Home Appliances
Refrigerators, washing machines, air conditioners, kitchen appliances.
Industrial Automation
Robotics, PLC systems, sensors, machine tools.
Telecommunications Equipment
Fiber optic modules, networking hardware, communication base stations.
Consumer Electronics
Smartphones, drones, gaming consoles, wearables.
These industries rely on accurate, stable connections—and insertion machines deliver exactly that.
Future Trends in Terminal Insertion Automation
The next generation of machines is evolving rapidly.
AI-Assisted Vision Systems
Using machine learning to detect defects with higher precision.
Fully Digital Manufacturing Lines
Machines connected via cloud services for centralized data monitoring.
Adaptive Force Control
Systems that automatically adjust insertion force depending on housing deformation.
Collaborative Robot Integration
Cobots handle loading/unloading for faster workflow.
Quick-Change Smart Fixtures
Automatic fixture recognition improves flexibility in multi-product factories.
Common Problems and How the Machine Solves Them
Misalignment
Vision systems prevent incorrect positioning.
Bending Terminals
Servo-controlled insertion ensures smooth motion.
Unseated Terminals
Force sensors verify correct depth.
Housing Damage
Adaptive insertion prevents cracks or deformation.
Human Error
Automation eliminates inconsistencies caused by fatigue or inexperience.
FAQs About Terminal Insertion Machines
1. What is the main purpose of a Terminal Insertion Machine?
Its primary purpose is to insert crimped terminals into plastic housings with high accuracy and consistency.
2. Can one machine support multiple connector types?
Yes, most modern machines allow quick fixture changes to support different housing and terminal specifications.
3. Are terminal insertion machines expensive to maintain?
Maintenance costs are low if performed regularly; components like sensors and servo parts are long-lasting.
4. Do they require skilled operators?
Basic training is needed, but they do not require highly specialized technicians.
5. Can these machines integrate with other automation equipment?
Absolutely. Many are designed to connect with robots, conveyors, crimping machines, or entire production lines.
Summary
This article explores how Terminal Insertion Machines transform wire harness production through high-speed automation, precision insertion, smart inspection, and improved quality control. It explains machine types, components, benefits, selection tips, and future trends, offering a complete professional guide.
