Introduction to LED Lighting Optics

LED lighting optics are essential components that control the direction, distribution, and quality of light emitted from LEDs (light-emitting diodes). Unlike traditional light sources that emit light omnidirectionally, LEDs emit light in a more directional manner, typically within a 180-degree arc. To optimize the performance of LED lighting systems, optics such as lenses, reflectors, and diffusers are used to shape, focus, or spread the light according to specific application needs.

This article explores the fundamental principles of LED lighting optics, the types of optical components used, their benefits, and the wide-ranging applications across industries. By understanding LED optics, lighting designers and engineers can enhance energy efficiency, improve lighting quality, and create tailored lighting effects.

Understanding the Basics of LED Lighting Optics

What Are LED Optics?

LED optics refer to the optical elements that modify the light emitted by an LED to achieve desired beam patterns and intensities. The primary optic is usually a small protective dome over the LED chip, which shapes the initial light output but produces a broad, low-intensity beam unsuitable for many applications.

Secondary optics are added to further control the light. These include lenses, reflectors, and diffusers that collect, redirect, or scatter the light to increase intensity, focus beams, or soften illumination. This combination allows for precise control over beam angles and light distribution.

The Importance of Secondary Optics

Secondary optics are critical because LEDs emit light directionally and require manipulation to suit different lighting environments. Without these optics, LED light would be too diffuse or uneven, limiting its usefulness in applications requiring focused or uniform lighting.

Secondary optics help:

  • Concentrate light to increase brightness in a specific direction

  • Spread light evenly to avoid harsh shadows or glare

  • Shape beams for spotlights, floodlights, or decorative effects

  • Improve energy efficiency by minimizing wasted light

Components of LED Lighting Optics

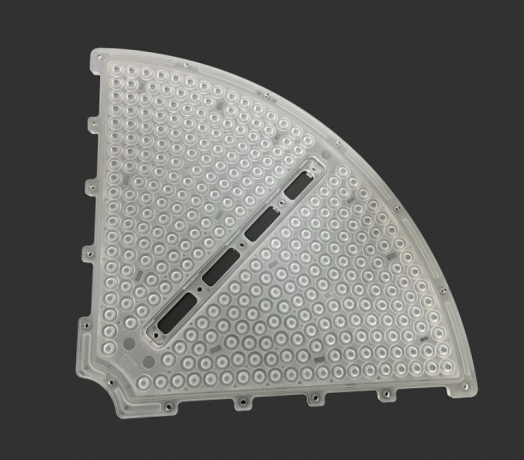

Lenses

LED lenses work on the principle of refraction, bending light rays as they pass through the lens material to direct the beam. Lenses can be convex or concave and are typically made from acrylic or polycarbonate. They enable the creation of narrow or wide beam angles depending on the shape and design.

  • Narrow beam lenses (e.g., 10°–60°) focus light for spotlights or task lighting.

  • Wide beam lenses (e.g., 90°–150°) spread light for area illumination or ambient lighting.

Advanced lenses, such as Total Internal Reflection (TIR) lenses, combine refraction and reflection to achieve highly uniform light distribution with minimal losses.

Reflectors

Reflectors are placed behind or around the LED to redirect emitted light forward, increasing brightness and controlling beam shape. They can have smooth or faceted surfaces to create different lighting effects. Reflectors are often metal-coated plastics, using materials like aluminum or silver for high reflectivity.

Reflectors are essential in applications requiring concentrated beams or specific beam shapes, such as automotive headlights or stage lighting.

Diffusers

Diffusers scatter and soften the light, reducing glare and harsh shadows. They are made from frosted glass, translucent plastics, or specialized materials that absorb and scatter photons. Diffusers help create uniform illumination over larger areas, especially when multiple LEDs are used.

Diffused lenses provide softer edges to beams, while clear lenses produce crisp, defined light patterns.

Benefits of Using LED Lighting Optics

Enhanced Light Efficiency

By directing and focusing light precisely where it is needed, LED optics minimize wasted light and maximize luminous output. This efficiency translates into lower energy consumption and cost savings, especially in commercial and industrial settings where lighting accounts for a significant portion of energy use.

Improved Light Quality

Optics allow for superior control over beam angles and light distribution, resulting in uniform and aesthetically pleasing illumination. This is vital in environments like retail stores, galleries, and offices, where lighting quality affects visual comfort and color perception.

High-quality LED optics also improve the Color Rendering Index (CRI), making colors appear more vibrant and true to life.

Versatility Across Applications

LED optics can be tailored to diverse lighting needs, from ambient residential lighting to precise industrial task lighting. Their adaptability makes them suitable for:

  • Residential recessed or track lighting

  • Commercial office and retail lighting

  • Industrial workspaces requiring focused illumination

  • Outdoor lighting for roads, parking lots, and public areas

  • Automotive headlights and signal lights

  • Stage and theatrical lighting effects

  • Medical and surgical lighting requiring high accuracy and intensity

Energy Savings and Cost-Effectiveness

By optimizing light distribution and reducing light pollution, LED optics contribute to significant energy savings. This reduces operational costs and environmental impact, making LED lighting systems more sustainable.

Applications of LED Lighting Optics

Industrial Lighting

In factories and production lines, LED optics provide directional and task lighting that enhances worker safety and productivity by delivering bright, focused light exactly where needed.

Commercial Lighting

Offices, hotels, and retail spaces benefit from LED optics that concentrate light on work areas or merchandise, improving visibility and ambiance while reducing energy costs.

Outdoor and Street Lighting

LED lenses and reflectors enable broad, uniform illumination for roads, squares, and parking lots, improving safety and visibility over large areas.

Automotive Lighting

LED optics shape and direct beams in vehicle headlights and signal lights, enhancing driver visibility and road safety.

Stage and Entertainment Lighting

LED optics create dynamic lighting effects such as spotlights, floods, and color patterns that enhance performances in theaters and concerts.

Medical and Surgical Lighting

High-intensity, accurate color rendering LED optics assist surgeons and medical professionals by providing clear, focused illumination during procedures.

How LED Optics Work: Technical Insights

LEDs emit light from a small semiconductor chip. The primary optic (dome) protects the chip and shapes the initial light but does not focus it. Secondary optics collect this light and use refraction, reflection, or diffusion to modify the beam.

  • Refraction in lenses bends light rays to focus or spread beams.

  • Reflection in reflectors redirects light to increase intensity and control direction.

  • Diffusion in diffusers scatters light to soften and spread illumination.

By combining these elements, LED lighting systems achieve specific beam angles, intensity profiles, and lighting effects tailored to application requirements.

Advancements in optical materials and design software enable even more precise control of LED light. Innovations include:

  • Custom-designed optics for specialized applications

  • Integration of smart optics with sensors for adaptive lighting

  • Use of nanostructured surfaces to enhance light manipulation

  • Improved thermal management in optics to maintain performance

These trends will continue to expand the capabilities and efficiency of LED lighting systems.

Frequently Asked Questions (FAQs)

Q1: What is the difference between primary and secondary LED optics?

A1: Primary optics are the small domes over the LED chip that protect it and shape initial light output. Secondary optics, such as lenses and reflectors, further control and focus the light for specific applications.

Q2: How do LED lenses improve lighting efficiency?

A2: LED lenses refract and direct light to minimize waste and focus illumination where needed, increasing the effective brightness and reducing energy consumption.

Q3: Can LED optics affect the color quality of light?

A3: Yes, high-quality optics can enhance the Color Rendering Index (CRI), making colors appear more vibrant and accurate under LED lighting.

Q4: What materials are commonly used for LED lenses?

A4: Acrylic and polycarbonate are commonly used due to their excellent optical clarity, durability, and ease of molding into complex shapes.

Q5: Why are reflectors important in LED lighting systems?

A5: Reflectors capture light emitted backward or sideways and redirect it forward, increasing brightness and enabling specific beam shapes for applications like automotive headlights or spotlights.

Article Summary

LED lighting optics are vital for controlling and enhancing the performance of LED light sources. By using lenses, reflectors, and diffusers, LED optics shape light beams to improve efficiency, quality, and versatility across numerous applications including industrial, commercial, automotive, and medical lighting. Advances in optical design continue to expand the capabilities of LED lighting systems, offering energy savings and superior illumination tailored to specific needs.
