Introduction

Aluminum extrusion tooling is a critical component in the manufacturing process that shapes aluminum into a wide variety of precise profiles used across industries. This article explores the fundamentals of aluminum extrusion tooling, detailing the types of dies, the extrusion process, tooling components, and the advantages of using aluminum extrusion for manufacturing. We also discuss best practices to optimize tooling performance and product quality.

Understanding Aluminum Extrusion Tooling

What is Aluminum Extrusion Tooling?

Aluminum extrusion tooling primarily consists of extrusion dies-precision-machined steel tools that shape heated aluminum billets as they are forced through the die opening under immense pressure. These dies determine the cross-sectional shape of the final aluminum profile and are essential for achieving dimensional accuracy and surface finish in extruded parts.

Types of Aluminum Extrusion Dies

  • Solid Dies: Produce solid cross-sectional shapes and may have multiple apertures to extrude several profiles simultaneously.

  • Hollow Dies: Designed to create hollow or semi-hollow profiles using fixed or floating mandrels. Variants include bridge, porthole, and spider dies.

  • Semi-Hollow Dies: Produce profiles with partially enclosed voids, balancing strength and weight.

The choice of die depends on the complexity of the profile, production volume, and extrusion press capabilities.

Key Tooling Components in Aluminum Extrusion

  • Stem: Connects the hydraulic ram to the dummy block, transferring force to push the billet.

  • Dummy Block: Protects the stem and evenly distributes pressure on the billet.

  • Container and Container Liner: Hold and maintain the billet's temperature while minimizing wear.

  • Die Slide and Horseshoe: Align and secure the die within the press, ensuring precise extrusion.

Proper design and maintenance of these components are vital for efficient extrusion and minimizing downtime.

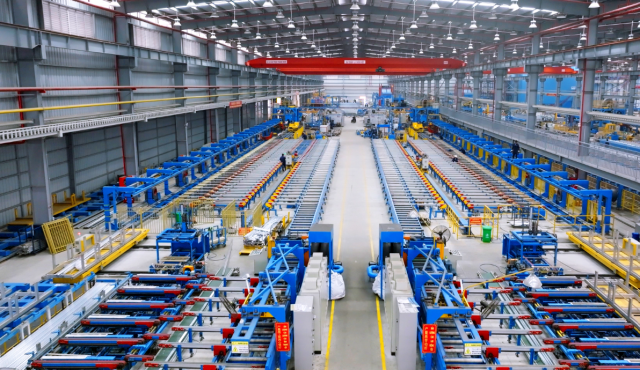

The Aluminum Extrusion Process and Tooling Role

Step-by-Step Extrusion Process

  1. Billet Preparation: Aluminum billets are cut from logs and preheated to 400–500°C to increase malleability.

  2. Loading the Billet: The heated billet is placed into the container with lubricants and release agents applied to prevent sticking.

  3. Pressing: A hydraulic ram applies up to 15,000 tons of pressure, pushing the billet through the die.

  4. Shaping: The aluminum flows through the die opening, taking its shape.

  5. Quenching: The extruded profile is cooled rapidly using water baths or fans to retain mechanical properties.

  6. Shearing and Cooling: Extrusions are cut to length and cooled to room temperature.

  7. Stretching: Profiles are straightened to correct any twists.

  8. Finishing: Heat treatment, machining, and surface finishing enhance strength and aesthetics.

Throughout, the extrusion die's precision and tooling integrity directly affect product quality and consistency.

Advantages of Aluminum Extrusion Tooling

Design Flexibility and Near-Net Shape Manufacturing

Aluminum extrusion tooling allows engineers to create complex, near-net shape profiles that minimize material waste and reduce secondary machining operations. This flexibility supports innovative product designs with tight dimensional tolerances.

Cost and Lead-Time Efficiency

Compared to other manufacturing processes like injection molding or die casting, aluminum extrusion tooling offers significantly lower tooling costs (typically $1,000 to $4,500) and shorter lead times (10–14 days). This rapid turnaround accelerates time-to-market for new products.

Superior Physical Properties

Extruded aluminum profiles exhibit increased strength and wear resistance due to the pressure-induced homogeneous structure without cavities or pores. The extrusion process also enables energy savings and high surface quality suitable for mass production.

Versatility in Extrusion Methods

  • Hot Extrusion: Uses high billet temperatures to soften aluminum, reducing tool wear.

  • Warm and Cold Extrusion: Performed at lower temperatures, improving hardness and strength but requiring more durable tooling.

Manufacturers select extrusion methods based on desired mechanical properties and tooling lifespan considerations.

Best Practices for Aluminum Extrusion Tooling

Tooling Design and Collaboration

Successful extrusion projects rely on early collaboration among product designers, engineers, and extruders to optimize die design for minimal deflection and tight tolerances. Advanced tooling design reduces production disruptions and improves first-run success rates.

Tooling Maintenance and Material Selection

Using high-strength tool steels like H13 and maintaining tooling components such as container liners and dummy blocks extend tooling life and ensure consistent extrusion quality.

Process Control

Maintaining precise temperature control for billets and dies, applying appropriate lubricants, and managing extrusion speed are critical to prevent defects and prolong tooling durability.

Conclusion

Aluminum extrusion tooling is at the heart of producing high-quality, complex aluminum profiles efficiently and cost-effectively. Understanding the types of dies, the extrusion process, tooling components, and best practices enables manufacturers to leverage the full benefits of aluminum extrusion. This knowledge supports innovation, reduces lead times, and delivers superior product performance across industries.

Frequently Asked Questions

1. What materials are used to make aluminum extrusion dies?

Extrusion dies are typically made from high-strength tool steels such as H13, which can withstand high temperatures and pressures during extrusion.

2. How does the die design affect the extrusion quality?

Die design determines the profile's shape, dimensional accuracy, and surface finish. Proper design minimizes die deflection and ensures consistent material flow.

3. What is the difference between hot, warm, and cold extrusion?

Hot extrusion heats the billet above recrystallization temperature for easier flow, warm extrusion heats it moderately, and cold extrusion uses room temperature billets, affecting material properties and tooling wear.

4. Why is billet preheating important?

Preheating increases aluminum's malleability, reducing extrusion force and preventing defects while extending tooling life.

5. How can extrusion tooling lead times be minimized?

Using in-house tooling departments and collaborating early on design can reduce lead times to as little as 10–14 days, much faster than other forming processes.

Article Summary

This comprehensive article delves into aluminum extrusion tooling, covering die types, extrusion processes, tooling components, and advantages such as cost efficiency and design flexibility. It highlights best practices for tooling design and maintenance to optimize product quality and manufacturing speed. The article also addresses common questions, providing a valuable resource for engineers and manufacturers seeking to master aluminum extrusion tooling.
