Introduction to Truss Bridge Design

Truss bridges are iconic engineering structures characterized by their use of interconnected triangular units to distribute loads efficiently. These bridges are renowned for their high strength-to-weight ratio, making them ideal for spanning long distances with minimal material usage. The core concept behind truss bridge design lies in the strategic arrangement of members-horizontal, vertical, and diagonal-that work together to resist tension and compression forces.

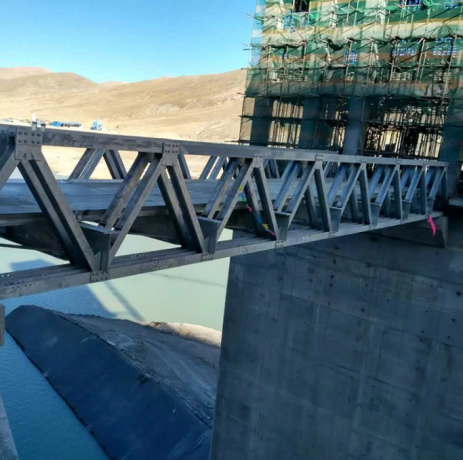

Understanding the Components of a Truss Bridge

Main Structural Elements

  • Top Chord: The upper horizontal member, typically under compression.

  • Bottom Chord: The lower horizontal member, usually under tension.

  • Vertical Members: Connect the top and bottom chords; can be in tension or compression depending on the design.

  • Diagonal Members: Provide stability and transfer loads; their stress states vary by truss type.

  • Decking: The surface on which traffic moves, supported by floor beams and stringers.

  • Supports (Abutments and Piers): Transfer loads from the bridge to the ground.

The Physics Behind Truss Bridge Design

Truss bridge design relies heavily on Newtonian physics and structural analysis principles. Engineers model the bridge as a system of forces acting on members, ensuring that each member can safely carry its share of the load. Loads considered include:

  • Dead Loads: Weight of the bridge itself and permanent fixtures.

  • Live Loads: Traffic, pedestrians, and other transient forces.

  • Environmental Loads: Wind, snow, and seismic forces.

Using structural modeling software, engineers simulate these forces to optimize member sizes and materials, ensuring safety and efficiency.

Howe Truss

  • Diagonal members are in compression.

  • Vertical members are in tension.

  • Commonly used for pedestrian bridges and favored for its simplicity and strength.

Pratt Truss

  • Diagonal members are in tension.

  • Vertical members are in compression.

  • Often used in underslung pedestrian bridges where all truss members are below the deck.

Warren Truss

  • Consists of equilateral triangles.

  • Alternates between tension and compression members.

  • Does not use vertical members, providing a clean aesthetic and efficient load distribution.

K Truss

  • Vertical members are in compression.

  • Breaks verticals into smaller sections to reduce tension in members.

  • Suitable for longer spans requiring additional stiffness.

Step-by-Step Guide to Designing a Truss Bridge

1. Define Project Requirements

  • Span length and width.

  • Expected load types and magnitudes.

  • Environmental conditions.

2. Select a Truss Type

Choose based on span, load, aesthetics, and material availability.

3. Model the Bridge

Use structural software to create a wireframe model of the truss, applying loads according to standards such as AASHTO.

4. Analyze Internal Forces

Calculate tension and compression in each member using methods like the method of joints or sections.

5. Optimize Member Sizes and Connections

Select appropriate cross-sectional shapes (e.g., I-sections for chords, hollow sections for webs) and materials (steel, wood, aluminum).

6. Design the Deck and Supports

Ensure the deck and supporting beams can carry loads safely and transfer them to abutments or piers.

Materials Used in Truss Bridge Construction

  • Steel: Most common due to high strength and durability.

  • Wood: Used in smaller or historic bridges.

  • Aluminum: Lightweight and corrosion-resistant, ideal for pedestrian bridges.

  • Concrete: Often used for decking and piers.

Modern Innovations in Truss Bridge Design

Advancements in computer modeling and materials science have allowed for:

  • More precise load simulations.

  • Use of high-performance materials.

  • Integration of aesthetic considerations with structural efficiency.

  • Modular construction techniques for faster assembly.

Case Study: Designing a 25m Long Through-Truss Bridge

  • Width: 9.0m.

  • Height: 5m.

  • Top and bottom chords: I-sections.

  • Web members: Square hollow sections.

  • Deck: 200mm thick reinforced concrete supported by primary and secondary steel beams.

This design balances strength and economy, using proven structural elements and materials.

Frequently Asked Questions (FAQs)

Q1: What distinguishes a truss bridge from other bridge types?

A truss bridge uses a network of triangular units to distribute loads, unlike beam or arch bridges that rely on different structural principles.

Q2: Why are triangles used in truss bridges?

Triangles are inherently stable shapes that efficiently transfer forces without deformation, making them ideal for load-bearing structures.

Q3: How do engineers decide between a Pratt and Howe truss?

The choice depends on load conditions and member force requirements; Pratt trusses have diagonal tension members, while Howe trusses have diagonal compression members.

Q4: Can truss bridges be used for pedestrian traffic only?

No, truss bridges can be designed for pedestrian, vehicular, and even railway traffic depending on their size and materials.

Q5: How does environmental loading affect truss bridge design?

Wind, snow, and seismic forces introduce additional stresses that must be accounted for to ensure safety and longevity.

Article Summary


This comprehensive article explores truss bridge design, detailing its fundamental components, physics, and popular structural types such as Howe, Pratt, Warren, and K trusses. It guides readers through the design process, from defining project requirements to material selection and structural analysis. Modern innovations and a practical case study illustrate how truss bridges combine efficiency, durability, and aesthetics. The article concludes with FAQs to clarify common queries about truss bridge engineering.
