Introduction to Prefabricated Bridge Systems

Prefabricated Bridge Systems (PBS) represent a transformative approach in bridge construction, where structural components are manufactured off-site and transported to the construction site for rapid assembly. This method significantly reduces on-site construction time, minimizes traffic disruptions, and enhances safety and quality control. Prefabricated bridges are increasingly favored for their efficiency, sustainability, and cost-effectiveness in modern infrastructure projects.

What Are Prefabricated Bridge Systems?

Prefabricated Bridge Systems consist of structural elements such as beams, decks, piers, and abutments that are fabricated in controlled factory environments. These components are then transported to the bridge site and assembled quickly, often using innovative techniques such as rolling, sliding, or lifting into place. This approach contrasts with traditional cast-in-situ methods, where most construction occurs directly on-site and can take months or years.

Key Components of PBS

  • Precast Beams and Girders: Manufactured with high-quality concrete or steel, these are the primary load-bearing elements.

  • Precast Deck Panels: Provide the driving surface and are designed for rapid installation.

  • Prefabricated Piers and Abutments: Support the superstructure and are often modular for quick assembly.

  • Connection Materials: Specialized grouts and ultra-high-performance concrete (UHPC) are used to join elements securely and durably.

Advantages of Prefabricated Bridge Systems

Accelerated Construction and Reduced Traffic Impact

One of the most significant benefits of PBS is the dramatic reduction in construction time. Since components are pre-made, on-site assembly can be completed in days or weeks rather than months. This acceleration minimizes traffic disruptions and reduces the time construction zones affect nearby communities.

Enhanced Quality and Durability

Factory fabrication ensures consistent quality control, reducing defects common in on-site construction. Materials such as UHPC and specially formulated grouts improve the durability and longevity of connections between prefabricated elements.

Improved Safety for Workers and Public

Shorter on-site construction times mean less exposure to hazards for workers, who spend less time working near traffic or in difficult environments. Additionally, smaller work zones enhance safety for motorists.

Environmental Sustainability

Prefabrication reduces waste by recycling excess materials in the factory setting and limits environmental disturbance at the construction site. Less heavy equipment and fewer site visits also lower the carbon footprint of bridge projects.

Cost Efficiency

Despite initial perceptions, PBS can be more affordable due to bulk manufacturing discounts, shorter project durations, and reduced labor costs. The ability to reuse molds and equipment further lowers expenses over time.

Prefabrication Methods and Technologies

Precast Concrete Method

In this method, concrete beams, decks, and other elements are cast in a factory and transported to the site. Large cranes or specialized machinery like self-propelled modular transporters (SPMTs) place these components onto piers and abutments.

Steel Prefabricated Systems

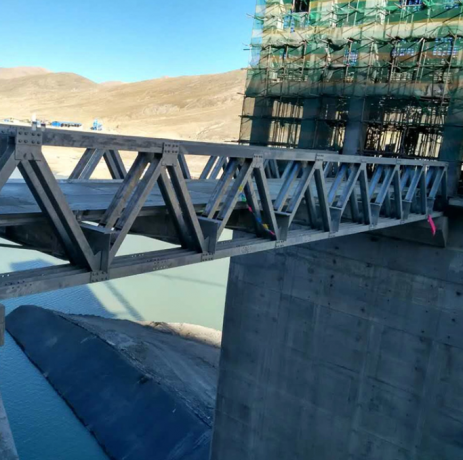

Steel bridge components, including trusses and modular panels, are fabricated off-site and assembled rapidly. Systems like the Mabey Johnson and Quadricon bridges utilize modular steel panels designed for quick erection and long service lives.

Composite Prefabricated Systems

Innovations such as the Con-Struct™ Prefabricated Bridge System combine galvanized steel tub girders with precast concrete decks, forming composite elements that behave like prestressed bridges. These systems offer thin superstructure depths, light weight, and rapid deployment.

Construction Techniques for Prefabricated Bridges

Transportation and Assembly

Prefabricated elements are transported via specialized trucks or trailers designed to handle large loads. At the site, innovative equipment such as the "Trav lanzadora" can autonomously launch and position massive beams, eliminating the need for traditional cranes and enabling construction in challenging terrains.

Connection Technologies

Fast-curing materials like magnesium phosphate grout, epoxy grout, and UHPC are used to connect prefabricated elements quickly and securely. These materials ensure early strength gain, dimensional stability, and high tensile strength, critical for the bridge's structural integrity.

Hybrid Construction

In some cases, prefabricated elements are combined with cast-in-place concrete to adapt to site constraints or design requirements, allowing flexibility while still accelerating construction.

Case Studies and Applications

  • Acrow 700XS Panel Bridge at Ground Zero, New York: Installed rapidly post-9/11 to assist recovery efforts, demonstrating the utility of prefabricated steel systems in emergency situations.

  • Mabey Johnson Bridges: Modular steel panel bridges erected within days, including a 100-foot two-lane bridge in New Mexico constructed in just one week after flood damage.

  • Con-Struct™ System: Used for vehicular spans up to 60 feet and pedestrian spans exceeding 100 feet, showcasing the versatility of composite prefabricated systems.

Challenges and Considerations

While prefabricated bridge systems offer many benefits, they also require:

  • Careful planning and design coordination to ensure components fit perfectly.

  • Logistics management for transporting large elements.

  • Skilled labor for precise assembly and connection.

  • Consideration of site accessibility and span length limitations.

Frequently Asked Questions (FAQs)

1. What are the main benefits of using prefabricated bridge systems?

They reduce construction time, improve quality control, enhance safety, minimize traffic disruptions, and offer environmental and cost benefits.

2. How are prefabricated bridge components connected on-site?

Using fast-curing materials like ultra-high-performance concrete and specialized grouts that provide early strength and durability.

3. Can prefabricated bridge systems be used for long-span bridges?

They are most commonly used for shorter spans but can be adapted for longer spans with modular composite or steel systems.

4. What types of materials are used in prefabricated bridge elements?

Concrete (precast, prestressed), steel (modular panels, girders), and composite materials combining steel and concrete.

5. How does prefabrication improve environmental sustainability?

By reducing waste, limiting site disturbance, recycling materials in factories, and lowering emissions from reduced on-site construction activities.

Article Summary


Prefabricated Bridge Systems revolutionize bridge construction by manufacturing components off-site for rapid, high-quality assembly. This method accelerates project timelines, enhances safety, reduces environmental impact, and lowers costs. Utilizing advanced materials and innovative assembly techniques, PBS is increasingly adopted for efficient infrastructure development worldwide.
